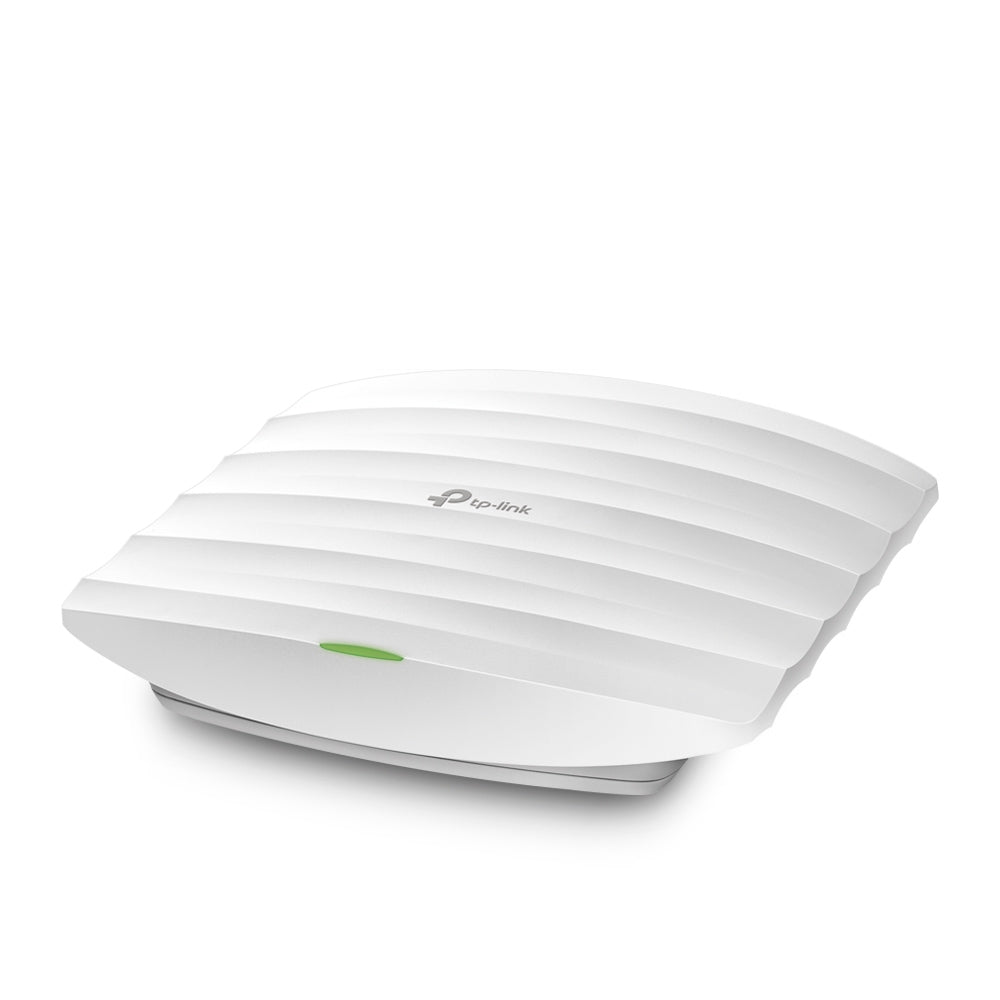

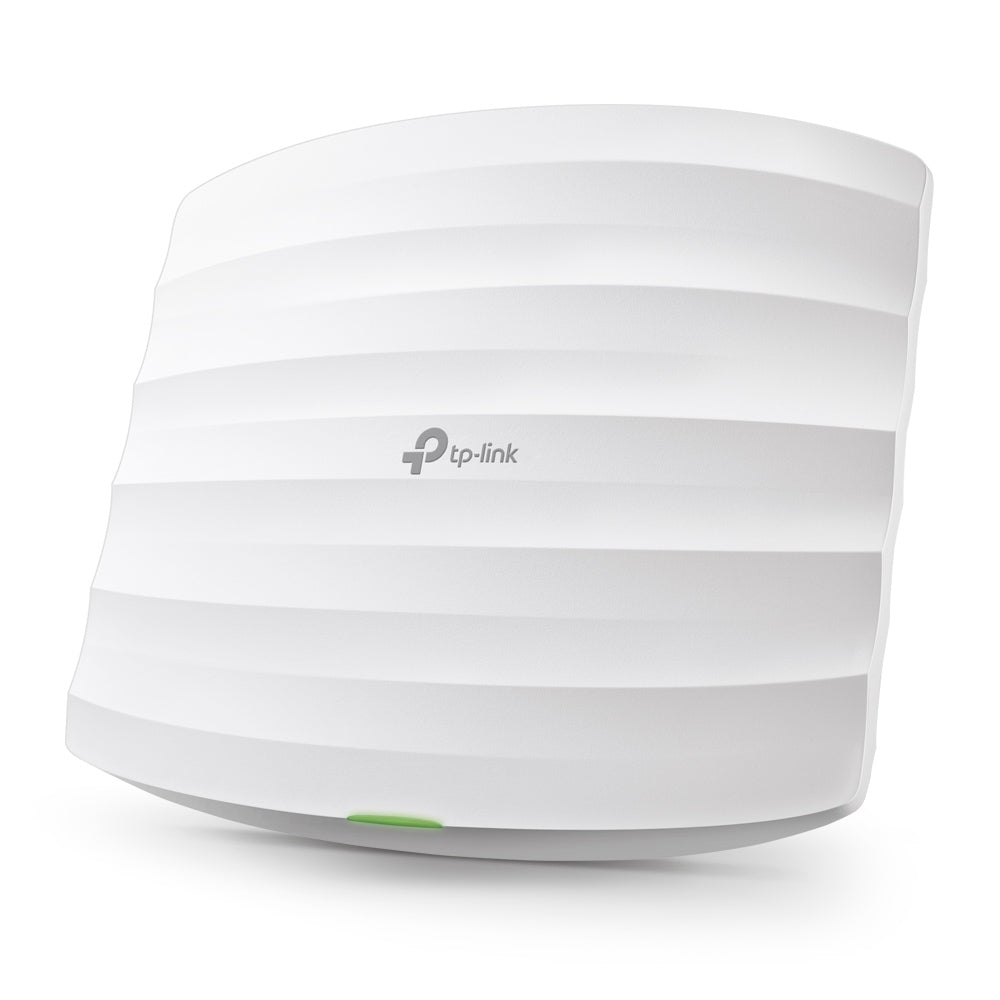

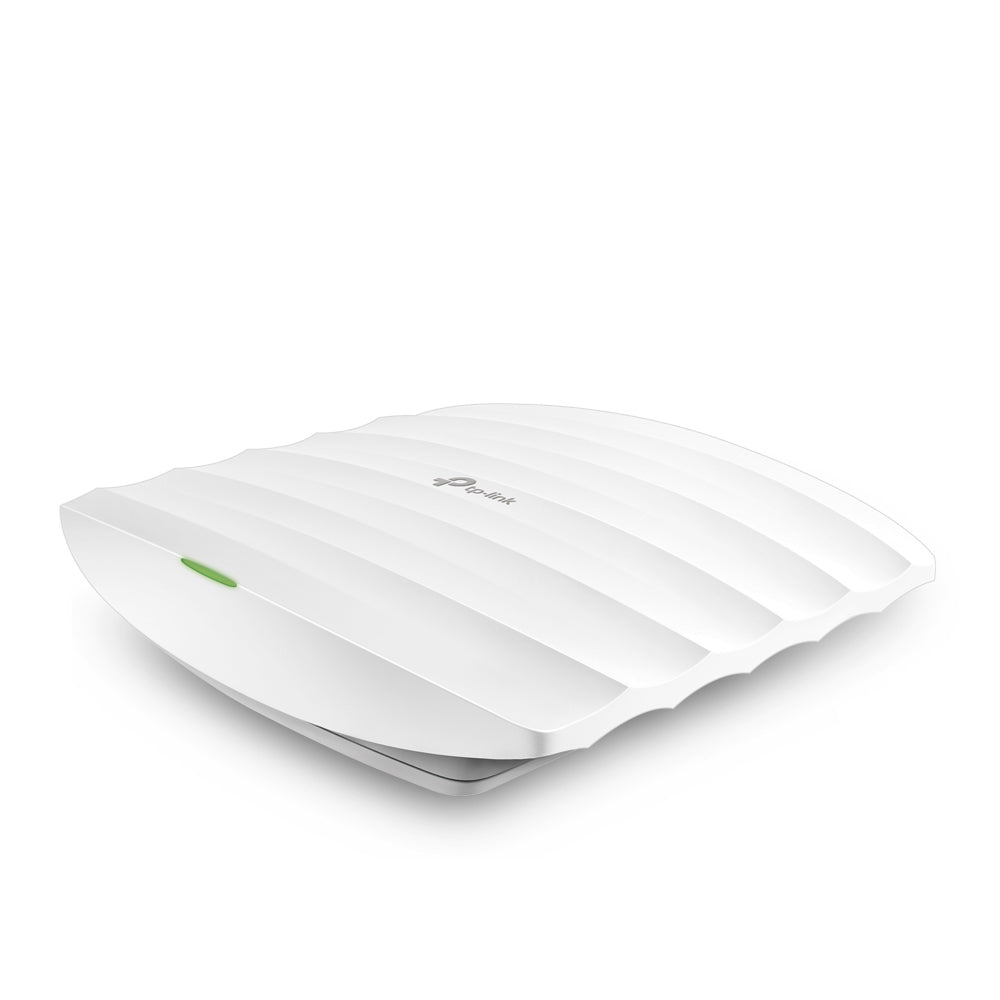

TP-Link Omada EAP225 V5 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

The TP-Link Omada EAP225 V5 is built for IT administrators, network installers, and business owners deploying managed Wi-Fi in small offices, retail stores, hotels, restaurants, schools, and multi-room commercial environments requiring centralised multi-AP management, seamless roaming, captive portal guest authentication, and Omada SDN integration. It is well-suited for single-AP deployments in small spaces and multi-AP Omada SDN deployments in larger environments where consistent coverage, band steering, and centralised control are priorities.

The EAP225 V5 delivers 802.11ac Wave 2 MU-MIMO across dual bands — 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz — simultaneously transmitting to multiple client devices for improved throughput in multi-device environments. Three internal omnidirectional antennas (4 dBi on 2.4 GHz, 5 dBi on 5 GHz) provide 115 m² (1250 ft²) coverage with support for 220+ concurrent clients. A single Gigabit RJ-45 port with 802.3af/at PoE and 24V Passive PoE support simplifies installation — the included PoE adapter enables deployment without a PoE switch. Up to 16 SSIDs (8 per band) with SSID-to-VLAN mapping enables traffic segmentation for employee and guest network separation. Seamless Roaming ensures uninterrupted connectivity as users move between APs, with video streams and calls maintained without interruption. Omada Mesh enables wireless backhaul between Omada APs for flexible deployment without full cabling. Band Steering, Airtime Fairness, and Beamforming optimise spectrum utilisation and per-client signal quality. Captive portal supports Facebook Wi-Fi, SMS, Voucher, and multiple authentication methods for managed guest access. Full integration with Omada Hardware Controller (OC200/OC300), Omada Software Controller, and Omada Cloud-Based Controller with Zero-Touch Provisioning enables centralised multi-site management from a single interface.

Model: EAP225 V5
Wi-Fi Standard: IEEE 802.11ac/n/g/b/a (Wi-Fi 5, AC1350)
Wi-Fi Generation: AC1350 (Dual-Band)
Frequency Bands: 2.4 GHz + 5 GHz
Signal Rate: 5 GHz — up to 867 Mbps | 2.4 GHz — up to 450 Mbps
MU-MIMO: Yes (802.11ac Wave 2)
Beamforming: Yes
Airtime Fairness: Yes
Band Steering: Yes
Antennas: 3× Internal Omni | 2.4 GHz: 4 dBi | 5 GHz: 5 dBi
Coverage: 115 m² (1250 ft²)
Concurrent Clients: 220+
SSIDs: Up to 16 (8 per band)

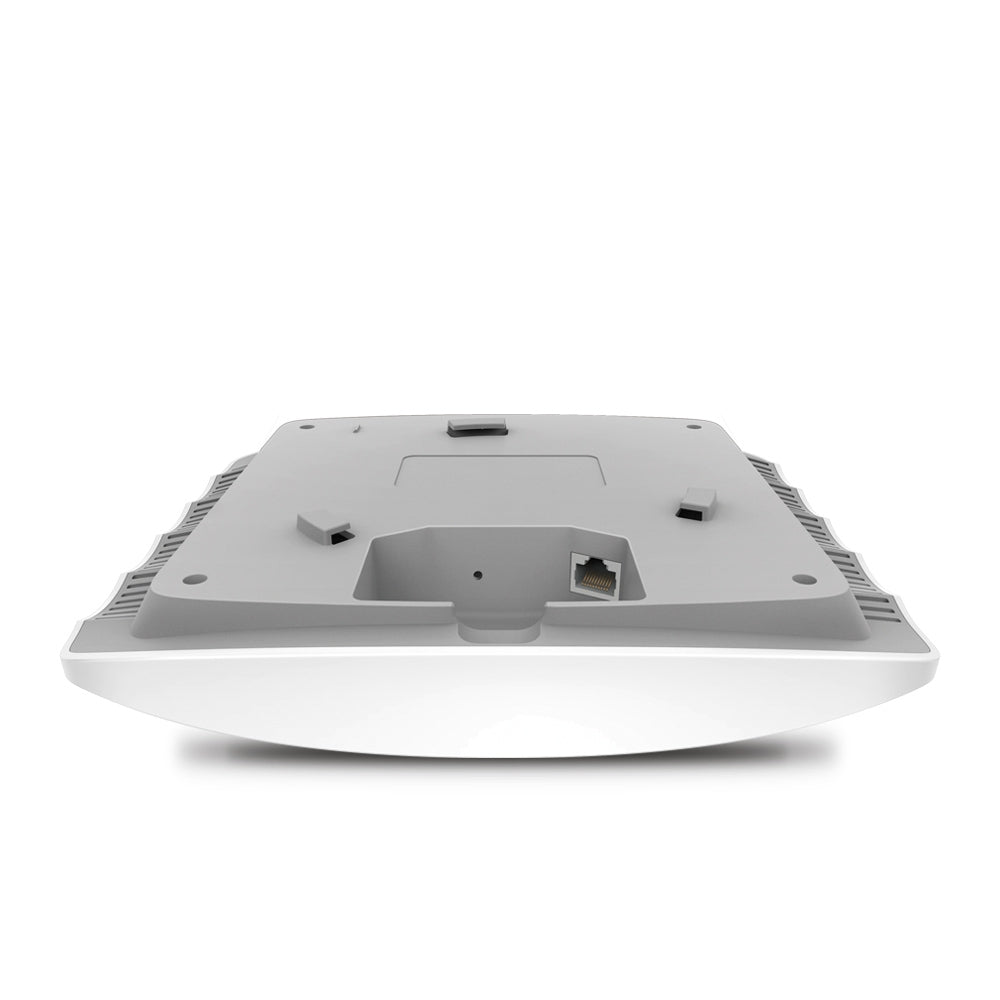

Interface: 1× Gigabit Ethernet RJ-45
Power Supply: 802.3af/at PoE | 24V Passive PoE (PoE Adapter Included)
Max. Power Consumption: 9.7W (EU) | 12.1W (US)
Physical Security Lock: Yes
Button: Reset
Mounting: Ceiling or Wall Mount (Kits Included)
Dimensions (W×D×H): 205.5 × 181.5 × 37.1mm
Wireless Security: Captive Portal (Facebook Wi-Fi, SMS, Voucher), Access Control, MAC Filtering, Client Isolation, SSID-to-VLAN, Rogue AP Detection, 802.1X
Wireless Functions: 16 SSIDs, Seamless Roaming, Omada Mesh, Band Steering, Load Balancing, MU-MIMO, Airtime Fairness, Beamforming, Rate Limit, QoS (WMM), Wireless Schedule, Reboot Schedule
Management: Omada Hardware Controller (OC200/OC300) | Omada Software Controller | Omada Cloud-Based Controller (V3.0 and above) | Omada App | Web-based HTTP/HTTPS | SNMP v1/v2c | SSH | Syslog
Zero-Touch Provisioning: Yes (requires Omada Cloud-Based Controller; V3.0 and above only)
Cloud Access: Yes (via Omada Controllers)
Seamless Roaming: Yes (requires Omada Controller)
Omada Mesh: Yes (requires Omada Controller)
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10%–90% RH (non-condensing)
Certifications: CE, FCC, RoHS

System Requirements: Compatible with all Omada SDN controllers — Omada Hardware Controller OC200/OC300, Omada Software Controller, and Omada Cloud-Based Controller (V3.0 and above); PoE switch with 802.3af/at or included 24V Passive PoE adapter for power; CAT5e or higher network cable; Omada app (iOS/Android) for mobile management; Seamless Roaming, Omada Mesh, and Captive Portal require Omada SDN Controller; Zero-Touch Provisioning requires Omada Cloud-Based Controller

Setup: Connect Gigabit port to PoE switch or included Passive PoE adapter; adopt into Omada Controller via auto-discovery or Omada App; configure SSIDs, VLANs, and wireless policies via Omada Controller; Zero-Touch Provisioning for pre-configured cloud deployment

Mounting Options: Ceiling mount (recommended for optimal coverage) or wall mount; ceiling and wall mounting kits included in box

Usage Environment: Ideal for small and medium offices, retail stores, hotels, restaurants, schools, and any business environment requiring centrally managed dual-band Wi-Fi 5 access points with Omada SDN integration
