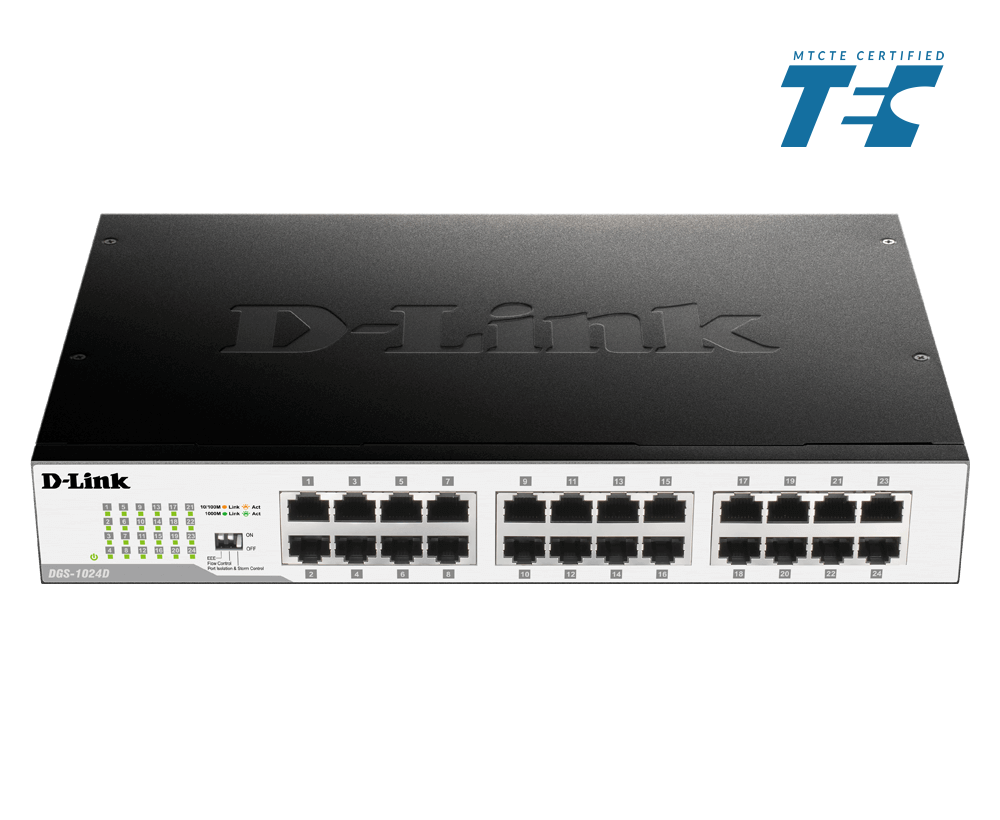

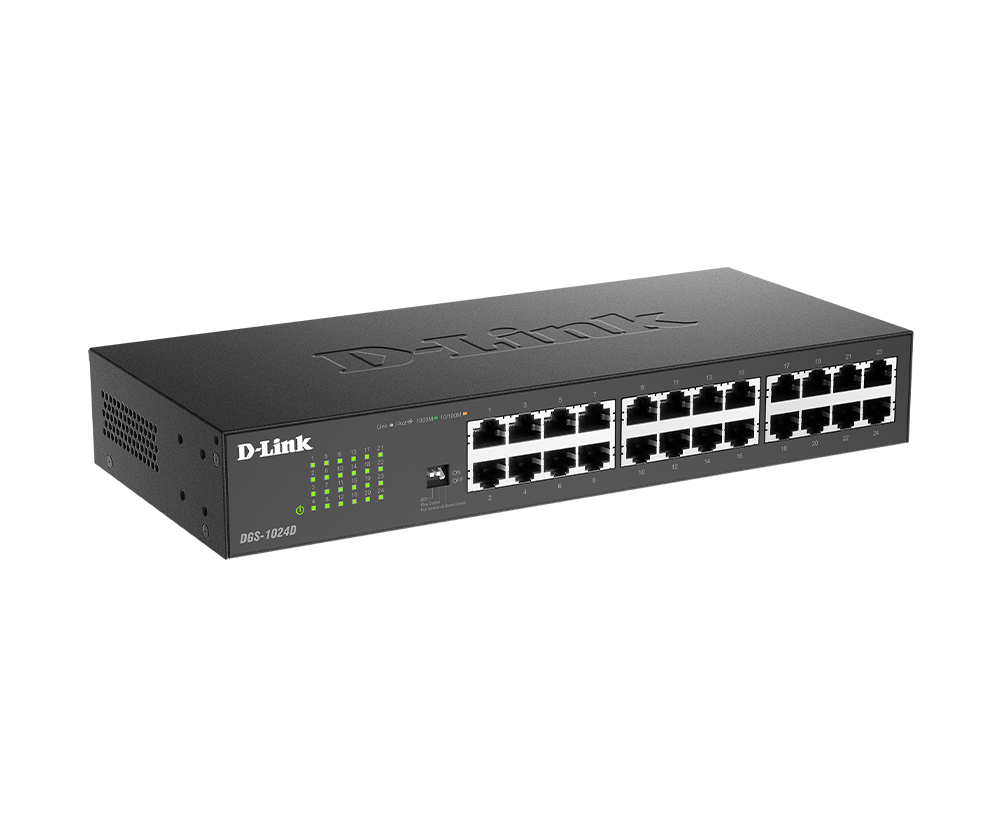

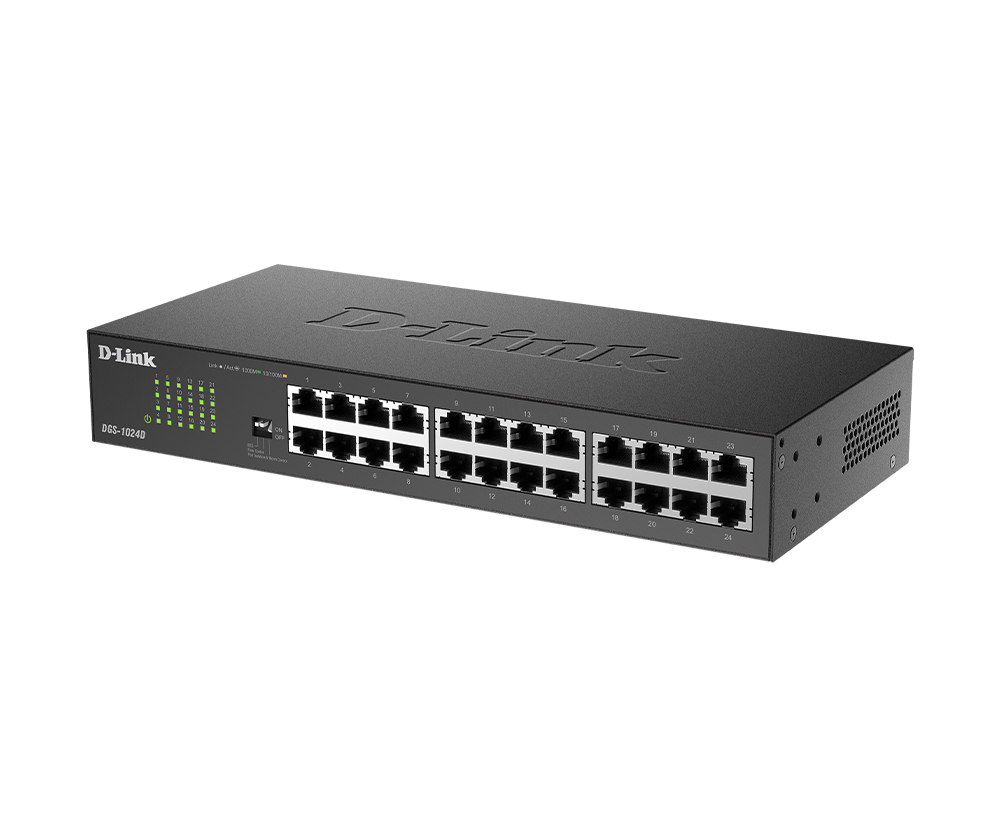

D-Link DGS-1024D 24-Port Gigabit Unmanaged Desktop Switch — Fanless | DIP Switch | D-Link Green | MTCTE Certified

The D-Link DGS-1024D is built for SOHO environments, small and medium businesses, educational institutions, retail stores, and office networks requiring a full 24-port Gigabit unmanaged switch with Storm Control, Port Isolation, cable diagnostics, and DIP switch network control at an accessible price — without complex management configuration. It is well-suited for connecting desktops, laptops, NAS devices, IP cameras, VoIP phones, printers, and servers at Gigabit speeds, and for any environment needing broadcast storm resilience, port isolation for security, and equipment protection.

The DGS-1024D delivers 24 1000Base-T Gigabit Ethernet ports with 48 Gbps non-blocking switching capacity and 35.712 Mpps maximum forwarding rate for wire-speed Gigabit performance across all 24 ports simultaneously — 10x faster than Fast Ethernet. Auto MDI/MDIX on every port eliminates crossover cable requirements. A front-panel 3-pin DIP switch enables real-time hardware toggling of four key network functions without rebooting or management software: Energy Efficient Ethernet (EEE), 802.3x Flow Control for packet loss prevention, Port Isolation for traffic separation and security, and Storm Control to protect against broadcast storms caused by rogue software or malware. Built-in cable diagnostics enable quick identification of cable faults, open circuits, and short circuits without external test equipment. The fully fanless design with a compact durable metal case ensures completely silent, reliable passive cooling — ideal for open-plan offices, classrooms, and quiet desk environments. D-Link Green Technology automatically powers down ports with no link and optimises power by cable length, while EEE further reduces consumption during low-activity periods. MTCTE certification confirms compliance with Indian telecommunications regulatory requirements. Wall mounting support enables flexible deployment across desk, shelf, or wall configurations.

Model: DGS-1024D
Switch Type: Unmanaged Desktop Switch
Casing: Compact Durable Metal
Interfaces: 24× 1000Base-T (RJ-45) — 10/100/1000 Mbps | Auto MDI/MDIX
Switching Capacity: 48 Gbps
Max. Packet Forwarding Rate: 35.712 Mpps
Forwarding Method: Store-and-Forward
Packet Buffer Size: 512 KB
DIP Switch: 3-pin front panel (EEE / Flow Control / Port Isolation / Storm Control)
Flow Control: IEEE 802.3x (DIP switch toggleable)
HOL Blocking Prevention: Yes
Port Isolation: Yes (DIP switch toggleable)
Storm Control: Yes (DIP switch toggleable)
Cable Diagnostics: Yes (built-in)
Energy Efficiency Ethernet (EEE): Yes (IEEE 802.3az, DIP switch toggleable)
Power Saving — Link Status: Yes (auto port power-down when no link)
Power Saving — Cable Length: Yes (auto power reduction by cable length)
Cooling: Fanless (passive cooling)
Power Input: AC 100–240V (universal)
Max. Power Consumption: 13.3W
Dimensions: 280 × 180 × 44mm (W × D × H)
Weight: 1.3 kg
Operating Temperature: 0°C to 40°C
Storage Temperature: -10°C to 70°C
Operating Humidity: 0%–95% RH
Storage Humidity: 0%–95% RH
Operating Altitude: Up to 2,000m
Certification: MTCTE Certified (India), RoHS, WEEE

System Requirements: Compatible with any device featuring a standard 10/100/1000 Mbps Ethernet RJ-45 port; universal AC 100–240V power input — no separate adapter required; plug-and-play — no software, drivers, or configuration required; DIP switch on front panel provides hardware-level toggle of EEE, Flow Control, Port Isolation, and Storm Control without software or reboot

Setup: Connect power cable to AC outlet; connect devices via standard Ethernet cables to any of the 24 ports; use front-panel 3-pin DIP switch to enable or disable EEE, Flow Control, Port Isolation, or Storm Control as needed; cable diagnostics accessible without external tools; wall mounting optional

Mounting Options: Desktop placement (rubber feet) or wall mounting (hardware included); compact metal chassis for server room, shelf, or desk deployment

Usage Environment: Ideal for SOHO environments, small and medium offices, educational labs, retail stores, NAS and file server networks, IP surveillance installations, and any wired network requiring reliable fanless 24-port Gigabit switching with DIP switch-controlled network features and surge protection
