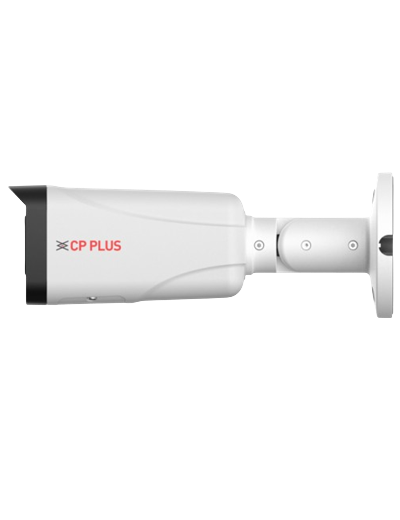

CP Plus illumax CP-UNC-TC41L5C-VMD-LQ 4MP Dual Light Network Bullet Camera — 50m IR | 30m Warm Light | Starlight | IVS | PoE | IP67 | IK10

The CP-UNC-TC41L5C-VMD-LQ is built for demanding outdoor perimeter surveillance, industrial facility monitoring, warehouse and logistics security, high-security commercial installations, and any outdoor environment requiring long-range 50-metre night vision, near-zero-light full-colour Starlight imaging, intelligent Tripwire and Intrusion perimeter detection, local onboard storage, and vandal-resistant IK10 protection alongside IP67 weatherproofing. It is well-suited for perimeter fencing lines, gates and entrances, parking areas, rooftop coverage, construction sites, and critical infrastructure requiring reliable 24/7 high-resolution surveillance with smart event detection and alarm I/O integration.

The CP-UNC-TC41L5C-VMD-LQ features a 1/2.7" 4MP Progressive Scan CMOS sensor with an exceptionally wide F1.4 maximum aperture — significantly larger than the F1.6 aperture on standard CP Plus models — delivering Starlight Technology performance with minimum illumination of just 0.001 lux (Colour) and 0.0001 lux (B/W), enabling near-full-colour imaging in near-complete darkness without requiring supplemental lighting. IR illumination reaches up to 50 metres — 20 metres further than the standard DA41/TA41 models — for exceptional long-range night coverage of wide outdoor spaces, while warm white light covers up to 30 metres for full-colour surveillance in low-ambient-light environments. Smart IR and Smart Illumination automatically adjust LED intensity based on target distance to prevent overexposure. IVS (Intelligent Video Surveillance) provides active perimeter protection via Tripwire line-crossing detection and Intrusion zone-entry detection — triggering real-time alarms to the NVR or connected systems when a defined perimeter event occurs, going significantly beyond standard motion detection. Onboard alarm I/O — 1-channel alarm input (5mA, 3–5V DC) and 1-channel alarm output (300mA, 12V DC) — enables direct integration with external alarm panels, sirens, and relay-controlled devices. Micro SD card local storage up to 512GB supports independent edge recording without requiring an NVR for standalone installations. Quad-stream output — main stream, sub stream 1, sub stream 2, and sub stream 3 — provides maximum flexibility for simultaneous high-resolution recording and multiple lower-bandwidth monitoring streams. CP Plus InstaStream compression saves up to 70% more bandwidth versus H.265. The IK10 vandal-resistant rating (optional) protects the metal housing against physical impact up to 20 joules — appropriate for high-risk public and industrial environments. AES 256-bit encryption, trusted boot, trusted upgrade, HTTPS, IP/MAC filtering, and WSSE provide enterprise-grade cybersecurity.

Part Number: CP-UNC-TC41L5C-VMD-LQ
Series: illumax Network Camera

Camera
Image Sensor: 1/2.7" 4MP Progressive Scan PS CMOS
Effective Pixels: 2688 (H) × 1520 (V)
Minimum Illumination: 0.001 lux@F1.4 (Colour, 30 IRE) | 0.0001 lux@F1.4 (B/W, 30 IRE) | 0 lux (IR on)
Lens: 3.6mm Fixed-focal (M12) | 6mm Optional
Max. Aperture: F1.4
Angle of View (3.6mm): H: 84° | V: 44° | D: 105°
Angle of View (6mm): H: 54° | V: 29° | D: 63°
Close Focus Distance: 3.6mm — 1.3m | 6mm — 2.6m
Angle Adjustment: Pan: 0°–360° | Tilt: 0°–90° | Rotation: 0°–360°
Shutter Speed: Auto / Manual 1/3s – 1/100,000s
S/N Ratio: >58 dB
RAM / ROM: 128MB / 128MB

DORI Distance (3.6mm):
Detect: 58.89m | Observe: 23.60m | Recognize: 11.79m | Identify: 5.90m

DORI Distance (6mm):
Detect: 85.5m | Observe: 34.2m | Recognize: 17.1m | Identify: 8.5m

Illumination
IR Range: Up to 50 Metres (Smart IR)
Warm Light Range: Up to 30 Metres
IR LEDs: 2× IR LED | 2× Warm Light LED
Illumination Mode: Dual Light (IR + Warm White)
IR / Warm Light Control: Auto / Manual

Video
Max. Resolution: 4MP (2688×1520) / (2560×1440) @ 1–25/30fps
Stream Capability: Quad Stream
Video Compression: InstaStream, H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
Bit Rate Control: CBR / VBR
Bit Rate: H.265 — 3 to 6144 kbps | H.264 — 8 to 6144 kbps
Image Processing: WDR (120dB), Day/Night (ICR), 3D NR, ROI (4 areas), Privacy Mask (4 areas), AWB, AGC, BLC, HLC, Digital Watermarking, Mirror

Intelligence
IVS Perimeter Protection: Tripwire, Intrusion
IMD (Intelligent Motion Detection): Supported
Smart Search: Compatible with Smart NVR for event extraction and merging
Alarm Events: No SD card, SD card full, SD card error, Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, IMD, Security exception, External alarm

Audio
Built-in Microphone: Yes
Audio Input: 1 Channel (RCA port)
Audio Output: 1 Channel (RCA port)
Audio Codec: G.711a, G.711µ, G.726, PCM, AAC

Alarm I/O
Alarm Input: 1 Channel in (5mA, 3–5V DC)
Alarm Output: 1 Channel out (300mA, 12V DC)

Storage
Micro SD Card: Up to 512GB (SFTP supported)

Network
Ethernet: RJ-45 10/100 Base-T
Protocols: ONVIF Profile S, G & T | IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP, RTSPS, RTMP, RTP, RTCP, DNS, DHCP, NTP, SMTP, SNMP V3, PPPoE, NFS, UDP, ICMP, IGMP, SSL, TLS 1.2, SFTP, unicast, multicast
Cyber Security: AES 256-bit Encryption, Configuration Encryption, Trusted Boot, Trusted Upgrade, Trusted Execution, Digest, WSSE, HTTPS, IP/MAC Filtering, Account Lockout, Video Encryption, Syslog
Max. Concurrent Users: 6 (Total bandwidth: 36 Mbps)

Power
Power Supply: 12V DC / PoE (IEEE 802.3af)
Power Consumption (Basic): 2W (12V DC) | 2.6W (PoE)
Power Consumption (Max.): 6.1W (12V DC) | 7.2W (PoE)

Physical
Camera Type: Bullet
Casing: Metal
Weatherproof Rating: IP67
Vandal Resistance: IK10 (Optional)
Dimensions: 238.5 × 90.7 × 90.7mm
Weight: 720g
Operating Temperature: -40°C to +60°C (-40°F to +140°F)
Operating Humidity: ≤95% RH (non-condensing)
Storage Temperature: -40°C to +60°C
Certifications: ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, STQC Approved

System Requirements: Compatible with ONVIF Profile S, G & T NVRs and VMS platforms; PoE switch or injector (IEEE 802.3af) or 12V DC adapter required; CAT5e or higher network cable recommended for PoE installation; compatible with CP Plus NVRs and all ONVIF-compliant recording systems; Micro SD card not included — purchase separately (up to 512GB, Class 10 recommended); external alarm panel or relay device required for alarm I/O integration

Setup: Fixed-focal 3.6mm lens — no optical zoom or PTZ; wired Ethernet connection required (no Wi-Fi); Smart NVR required for full IVS Tripwire, Intrusion, and IMD event extraction; Micro SD card enables standalone edge recording without NVR; IK10 variant protects against physical vandalism up to 20 joules of impact

Mounting Options: Outdoor bullet wall or ceiling mount; adjustable pan (0°–360°), tilt (0°–90°), and rotation (0°–360°) for precise directional alignment; IP67 and optional IK10 rated for direct outdoor and high-risk exposure

Usage Environment: Ideal for outdoor perimeter security, industrial facilities, warehouses, logistics centres, parking areas, construction sites, critical infrastructure, and high-security commercial environments requiring long-range 50m IR, Starlight low-light performance, IVS perimeter intelligence, and vandal-resistant all-weather protection
