SilverStone XE01-1700A CPU Cooler

The SilverStone XE01-1700A is engineered for 1U rack-mount servers, compact workstations and industrial systems where height clearance is severely limited but dependable cooling is still required. With its ultra-low profile of just ~28 mm and active single-fan design, it provides an effective thermal solution for modern Intel LGA 1700 platforms in tight enclosures.

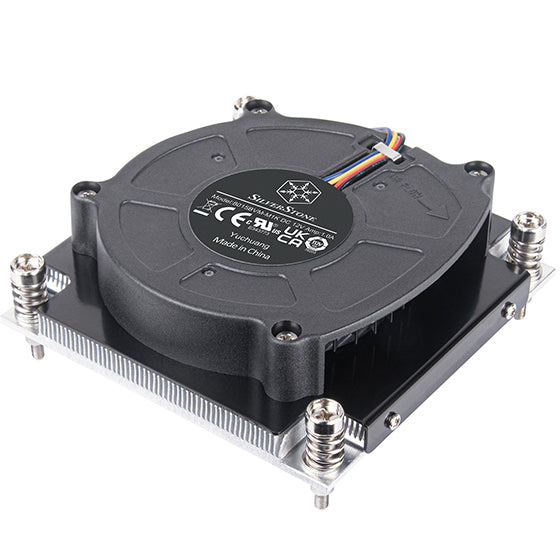

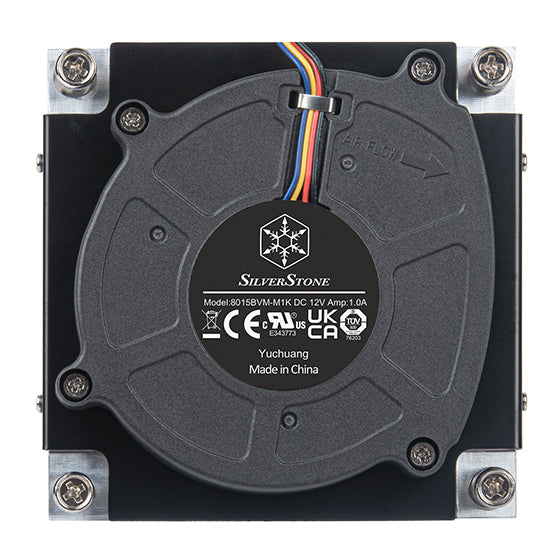

The XE01-1700A cooler features a reinforced mounting backplate designed for Intel LGA 1700, an 80 mm dual-ball-bearing PWM fan capable of up to ~5,500 RPM, and a compact heatsink block tailored for constrained clearance.

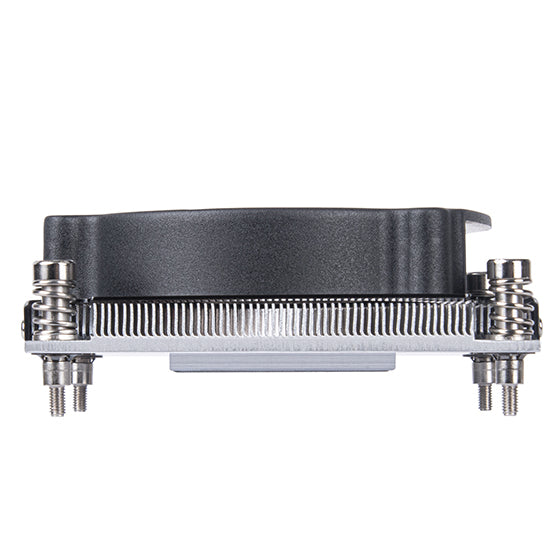

Form Factor: Low-profile CPU cooler (≈ 28 mm total height)
Supported Socket: Intel LGA 1700
Cooling Fan: 80 mm PWM, dual ball bearing, speed range ~1,000-5,500 RPM
Airflow: Up to ~15.79 CFM
Max Air Pressure: Up to ~42.4 mm H₂O
Noise Level: Up to ~58.1 dB(A) at full speed
TDP Support: Up to ~80 W
Dimensions: ~90 × 28 × 90 mm
Weight: ≈ 235 g

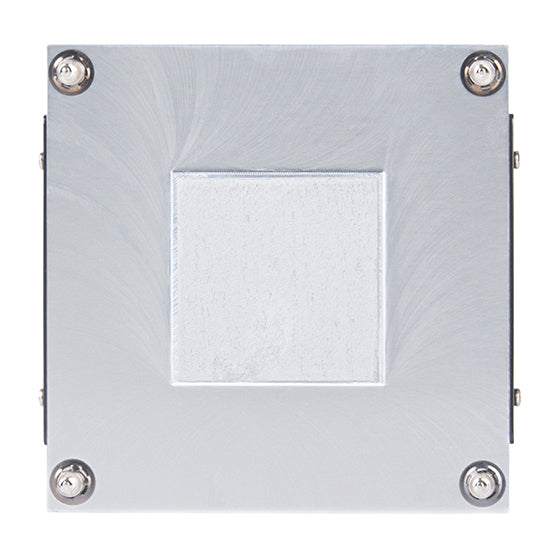

Material: Aluminium base and fins

The XE01-1700A requires a motherboard with an Intel LGA 1700 socket, supports a case height clearance of approximately 28 mm, and needs an available 4-pin PWM fan header on the board. The system should provide adequate airflow around the cooling area to ensure optimal performance in the compact enclosure. Package includes cooler unit and installation manual; mounting hardware may vary by region.
