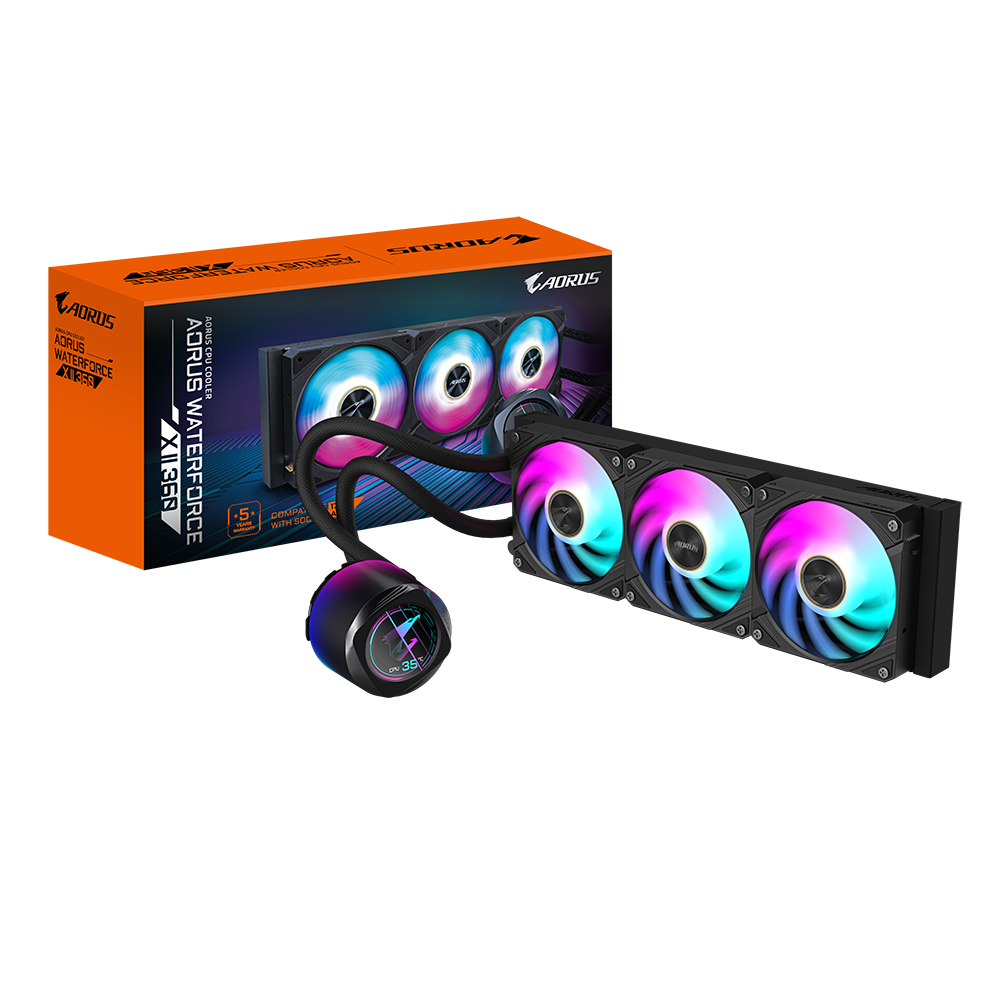

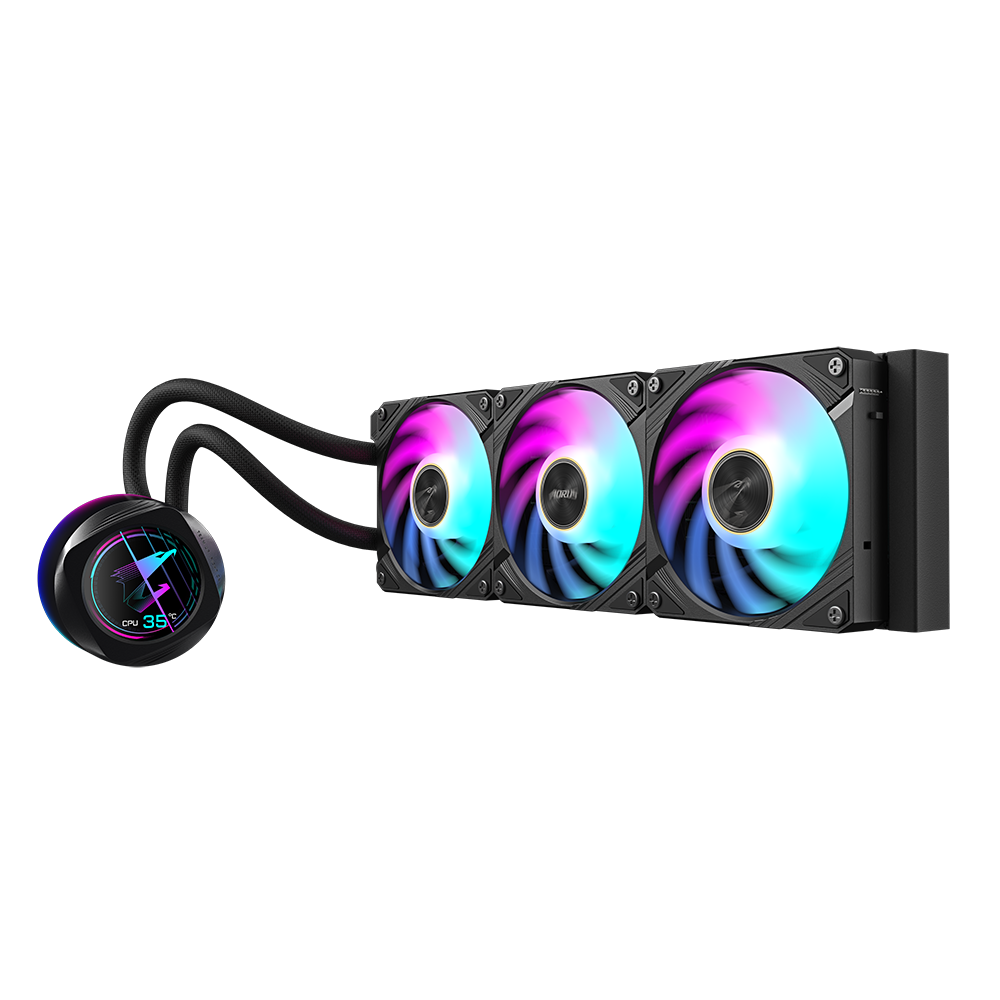

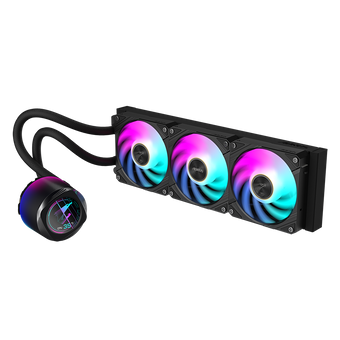

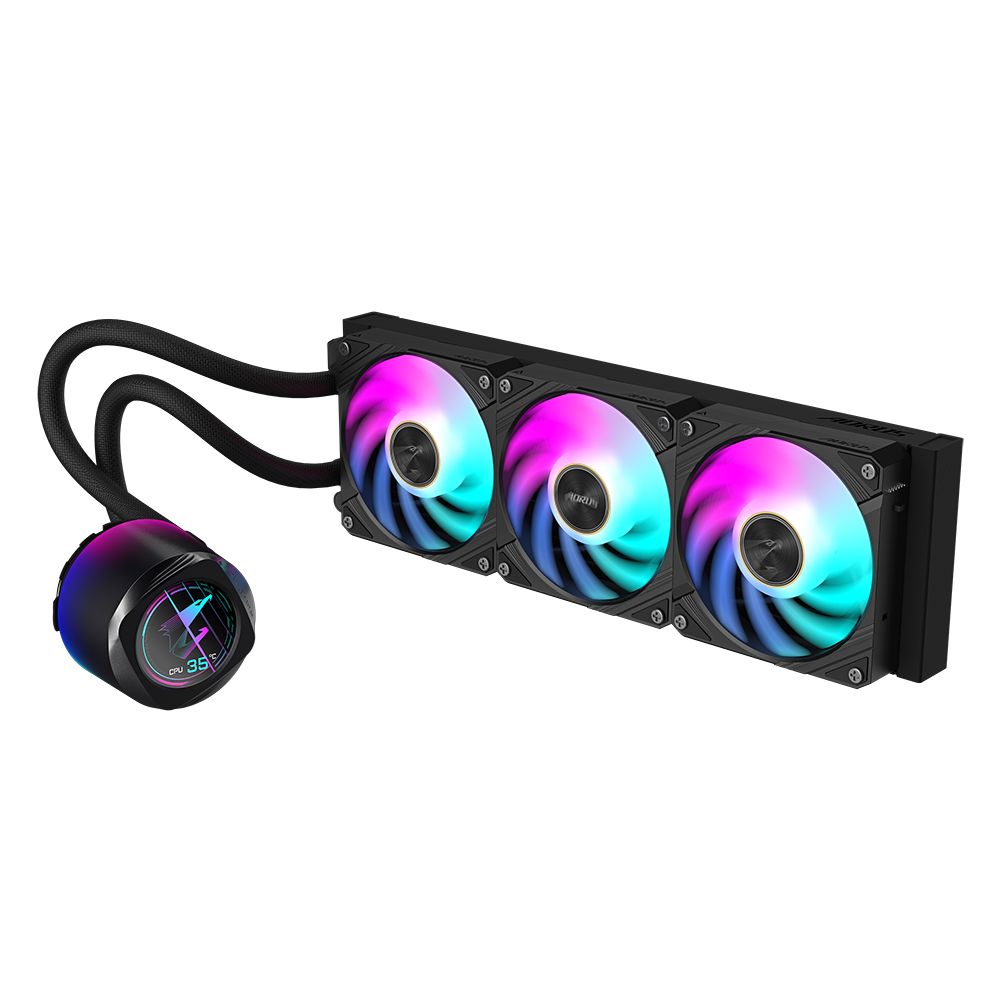

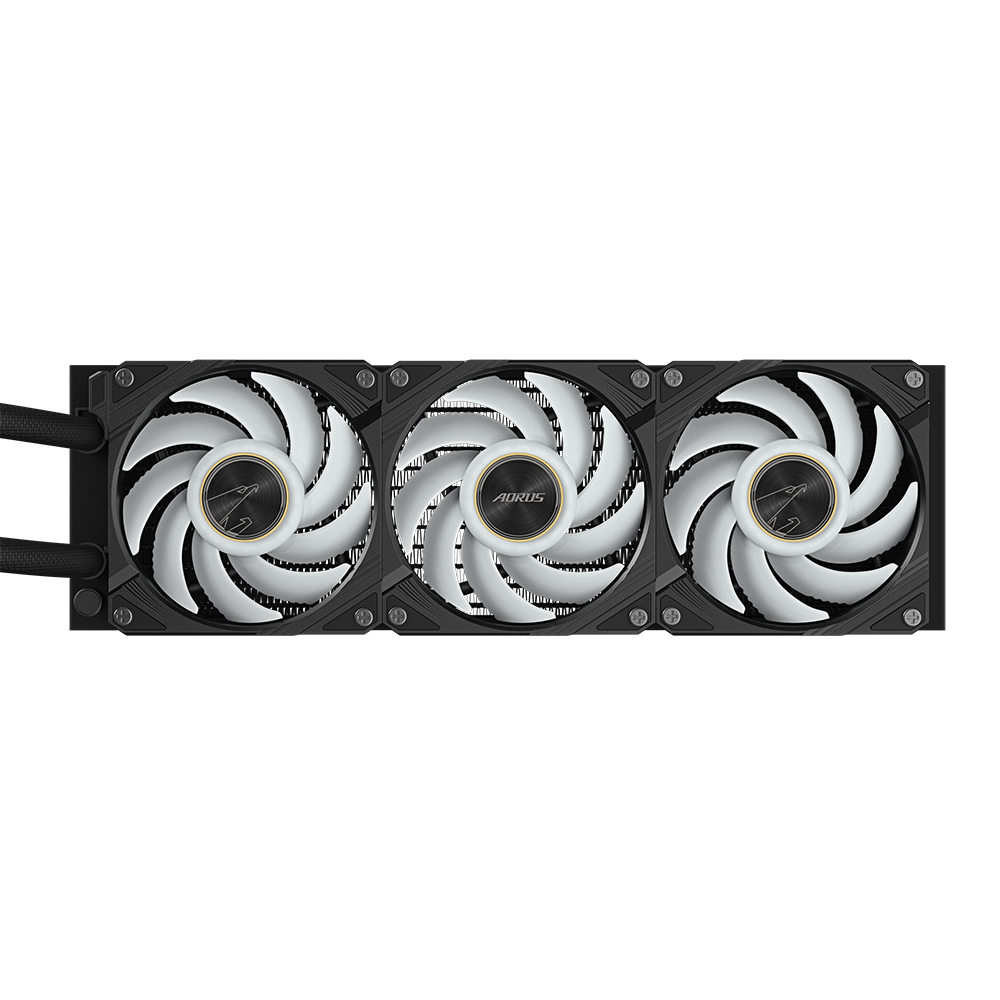

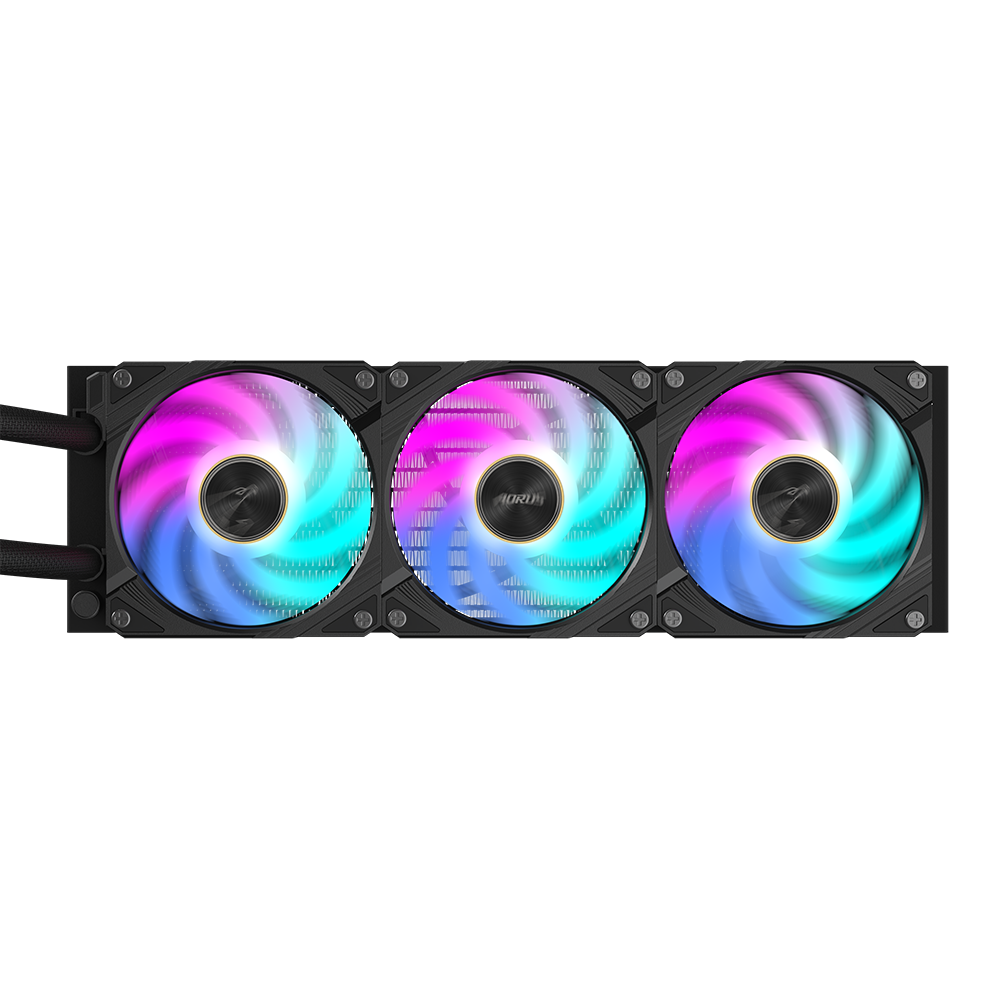

Gigabyte Aorus Waterforce X II 360 All-in-One Liquid Cooler

This liquid cooling solution is designed for high-performance desktop systems where both cooling capacity and aesthetics matter. With a 360 mm radiator paired with three high-flow 120 mm fans and a full-colour LCD display built into the pump block, it is ideal for enthusiasts, overclockers and creators who demand top-tier thermal management and a premium visual component in their PC build.

This AIO cooler features a 394 × 119 × 27 mm radiator, three 120 mm ARGB fans (speeds up to ~2,400 RPM) delivering up to ~72 CFM airflow and ~3.15 mm H₂O static pressure, and a pump unit spinning at ~2,500-3,000 RPM. It includes a 60 × 60 mm full-color LCD display on the pump block that supports custom images/GIFs/videos and system stats via software. Fan daisy-chain (EZ-Chain Mag) connectors reduce wiring clutter, and the unit supports Intel and AMD sockets including LGA 1700, 1200, 115x, AM5, AM4, TR4/sTR5.

Form Factor: All-in-One (AIO) liquid CPU cooler with 360 mm radiator
Radiator Dimensions: 394 × 119 × 27 mm
Pump Dimensions: 87.6 × 87.6 × 77.7 mm
Fans: 3 × 120 mm ARGB
Fan Speed: 800-2,400 RPM ±10%
Airflow: Up to ~72 CFM
Static Pressure: ~3.15 mm H₂O
Noise Level: Approx. 12-37.5 dB(A)
Supported CPU Sockets: Intel LGA 115x / 1200 / 1700 / 1851; AMD AM4 / AM5 / TR4 / sTR5
Display: 60 × 60 mm full-colour LCD on pump block
Software Support: Gigabyte Control Center (GCC)

This cooler requires a case with radiator mounting support for a 360 mm unit (typically top or front mount), and sufficient case clearance for 120 mm fan placement. Your motherboard should provide CPU fan/pump headers and an internal USB 2.0 header (for LCD/pump control). Compatible with systems using Intel or AMD sockets as listed above. Include thermal paste and mounting brackets for supported sockets are in the box; cables are streamlined via daisy-chain connectors.
