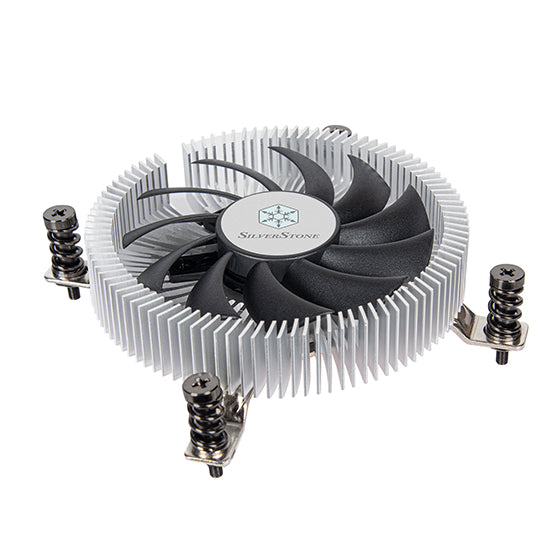

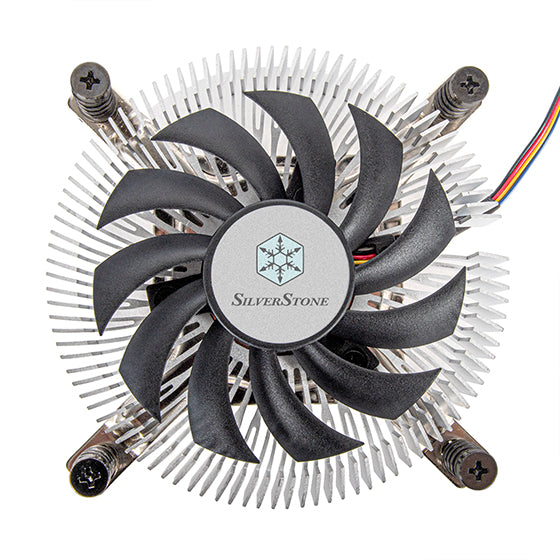

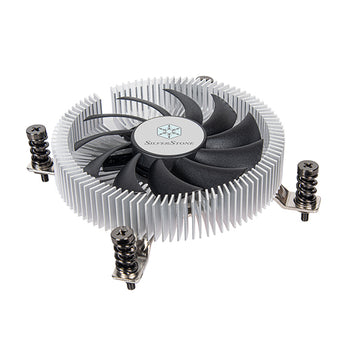

SilverStone NT07-1700 CPU Cooler

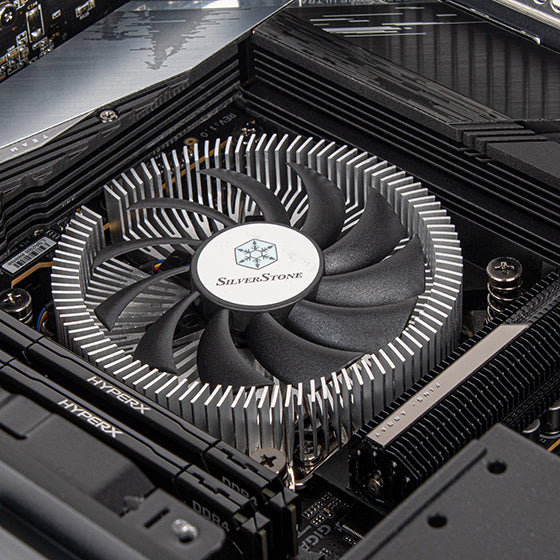

The NT07-1700 is crafted for ultra-compact systems, HTPCs and small form-factor PCs where CPU cooling must be efficient yet ultra-low profile. With just 22 mm height, it fits low-clearance cases while supporting modern Intel sockets and delivering reliable thermals for everyday computing or light productivity builds.

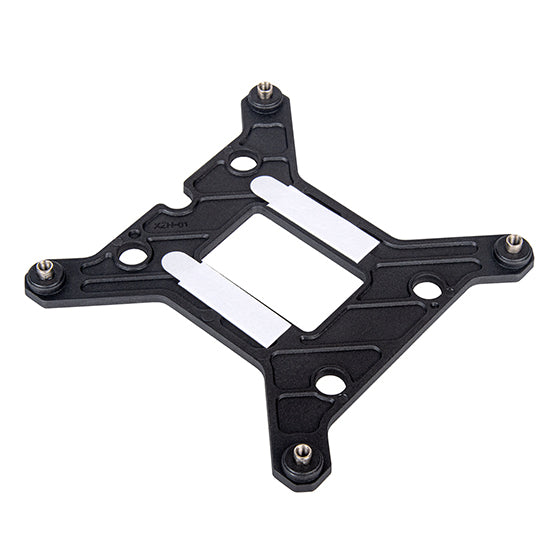

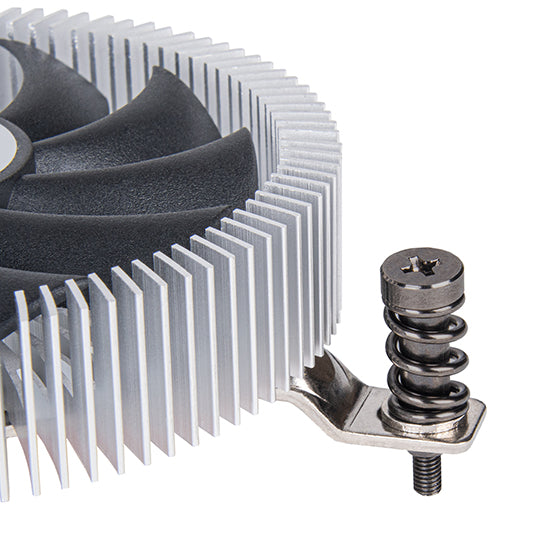

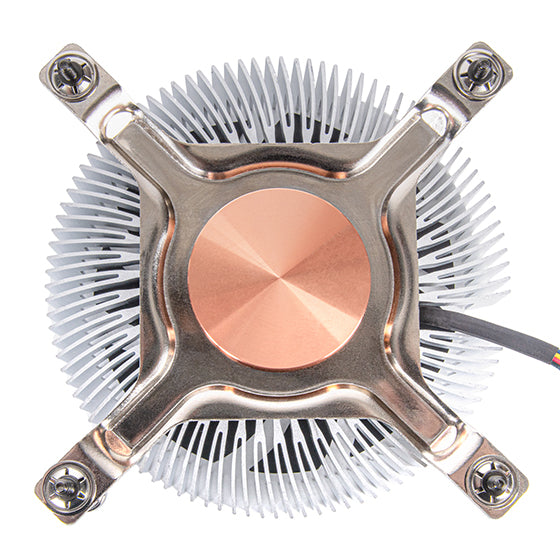

This cooler features a reinforced backplate and mounting design optimized for LGA 1700/1851. It uses a copper-base and extruded aluminum fin stack for efficient heat dissipation and an 80 mm PWM fan operating in the 1,500–3,600 RPM range for flexible control between quiet and performance modes. The low overall profile ensures compatibility in constrained enclosures without compromising on cooling efficiency.

Form Factor: Super-low profile CPU air cooler

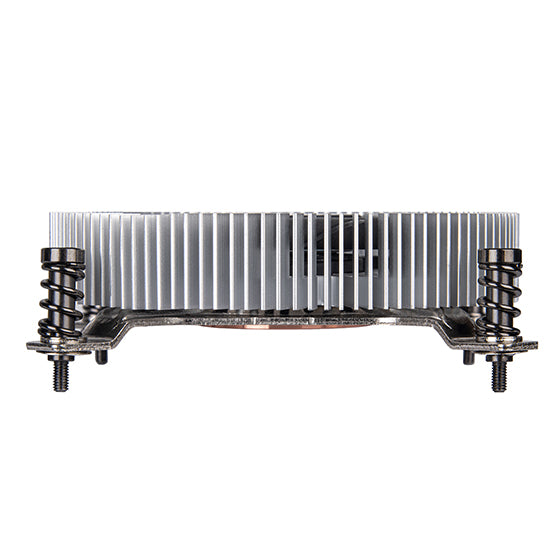

Height: Approximately 22 mm (in total installed height)
Supported Sockets: Intel LGA 1700 / LGA 1851 (check latest support list)

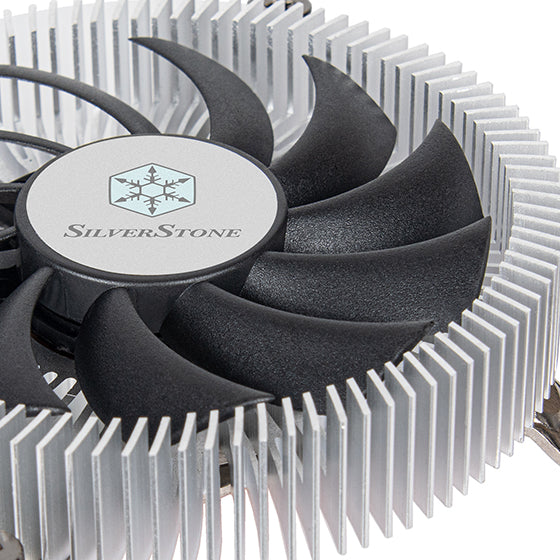

Fan Size: 80 mm PWM
Fan Speed: 1,500 – 3,600 RPM
Noise Level: From ~18 dB(A) up to approx. 34.7 dB(A)
TDP Support (Typical): Up to ~65 W (varies with system and airflow)

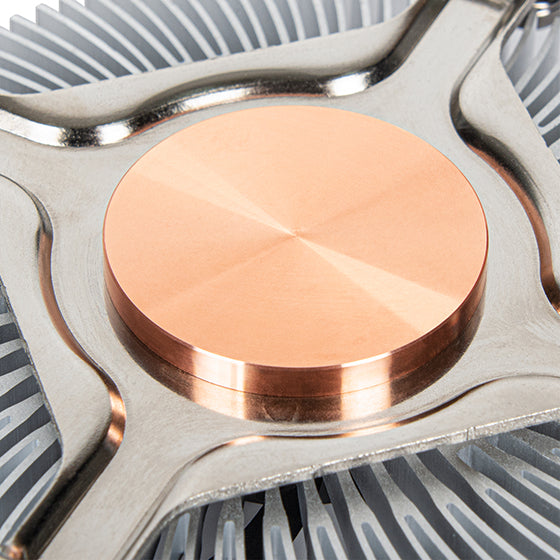

Construction: Copper centre and base, extruded aluminium fins

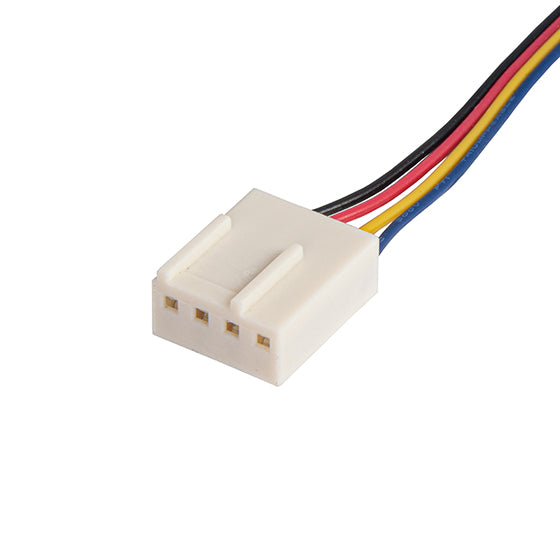

Connection: 4-pin PWM fan header
Recommended Case Clearance: Low-profile / small form-factor chassis

System Requirements: Compatible motherboard with Intel LGA 1700 or LGA 1851 socket, case with sufficient airflow (even in compact form), and available 4-pin PWM fan header. Ensure case supports cooler’s height clearance (~22 mm) and overall dimensions fit around RAM and VRM area. Included accessories: mounting brackets for supported Intel sockets, installation manual and possibly thermal paste (verify packaging).
