Grandstream GWN7062ET AX3000 Wi-Fi 6 Dual-Band Router with FXS Ports — Desktop / Wall Mount

The Grandstream GWN7062ET is built for small office and retail shop IT administrators, home office users, and remote workers who need an all-in-one Wi-Fi 6 router combining fast wireless networking, analog telephony via FXS ports, enterprise-grade security, and flexible multi-site management in a single compact device. It is well-suited for hybrid offices requiring simultaneous high-speed Wi-Fi and analog phone lines, multi-node mesh deployments for expanded office coverage, VPN-connected remote worker setups, and families needing advanced parental controls alongside strong wireless performance.

The GWN7062ET delivers up to 3Gbps aggregate wireless throughput — up to 2,402 Mbps on the 5GHz band via 802.11ax and up to 573.5 Mbps on the 2.4GHz band — powered by a 1.3GHz dual-core processor with dual-band 3×3:2 and 2×2:2 MU-MIMO, DL/UL OFDMA, and XTRA Range beamforming technology for maximum throughput and extended Wi-Fi coverage. Two integrated FXS (RJ11) ports allow simultaneous connection of up to 2 analog telephones locally — expandable to 32 analog telephone connections across a mesh network — making it an ideal converged voice and data router for small businesses and hybrid offices without separate VoIP equipment. Mesh networking with up to 16 compatible nodes (GWN7062E, GWN7062ET, GWN7062M, GWN7660EM) enables seamless, wide-area Wi-Fi coverage expansion. Three auto-sensing Gigabit Ethernet WAN/LAN ports support flexible WAN/LAN configurations, dual WAN with failover and load balancing for uninterrupted internet connectivity, and IPTV/Triple Play service support. Built-in multi-protocol VPN supports L2TP, PPTP, IPSec (site-to-site and client-to-site), OpenVPN Server, and WireGuard (site-to-site and client-to-site) for secure remote access for employees. DPI-powered traffic statistics and application monitoring enable detailed per-application bandwidth analysis across daily, weekly, and monthly reporting periods. Advanced QoS with 8 traffic queues, App QoS, and QoS rules ensure real-time applications like VoIP and video conferencing receive priority bandwidth. Comprehensive firewall features include DoS attack defence, URL filtering, URL classification, app filtering, safe search enforcement, and customisable access control with user permission management and templates. Parental controls support up to 32 clients with customised internet schedules, website and app filtering, and multi-dimensional usage analytics. Security is enterprise-grade — WPA3-192, WPA3, WPA2/WPA3, WPA2, anti-hack secure boot with digital signature lockdown, unique security certificates, and randomly generated default passwords per device. Management is flexible across local web UI, GDMS cloud (free, unlimited devices), GWN Manager (on-premise), GWN app, Grandstream Home app, and TR-069 for ISP-managed deployments.

Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Wi-Fi Generation: AX3000 (Dual-Band)
Processor: 1.3GHz Dual-Core
Frequency Bands: 2.4GHz (2400–2483.5 MHz) / 5GHz (5150–5895 MHz)
Channel Bandwidth: HT 20/40 | VHT 20/40/80 | HE 20/40/80/160
MU-MIMO: 2×2:2 (2.4GHz) + 3×3:2 (5GHz)
Technology: DL/UL OFDMA, Beamforming, XTRA Range
Wi-Fi Data Rates (5GHz): 802.11ax — 7.3 to 2,402 Mbps | 802.11ac — 6.5 to 1,732 Mbps | 802.11n — 6.5 to 300 Mbps | 802.11a — 6 to 54 Mbps
Wi-Fi Data Rates (2.4GHz): 802.11ax — 7.3 to 573.5 Mbps | 802.11n — 6.5 to 300 Mbps | 802.11g — 6 to 54 Mbps | 802.11b — 1 to 11 Mbps
Antennas: 1× 5GHz (3.4 dBi) + 2× Dual-Band 2.4GHz/5GHz (4.7 dBi / 4.3 dBi)
Maximum TX Power: 2.4GHz — 24 dBm | 5GHz — 26 dBm
Concurrent Clients: Up to 128
SSIDs: 4 Host SSIDs + 1 Guest SSID

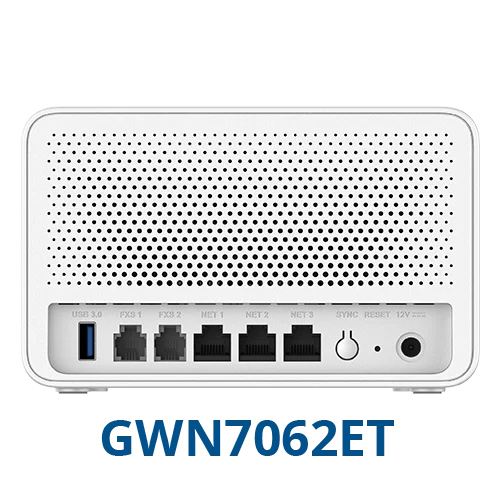

Network Ports: 3× Auto-Sensing 10/100/1000 Mbps Ethernet WAN/LAN (RJ-45)
FXS Ports: 2× RJ11 (Analog Telephone)
Analog Telephone Support: Up to 2 local / Up to 32 via Mesh
USB: 1× USB 3.0
LEDs: 1× Tri-Colour LED
Auxiliary Ports: 1× Reset Pinhole, 1× SYNC, 1× POWER
Power Input: 100–240V AC, 50/60Hz | Output: 12V / 1.5A (18W)
Working Modes: Router Mode, Wireless Bridge Mode, Wireless Relay Mode
Mesh Nodes: Up to 16 (GWN7062E / GWN7062ET / GWN7062M / GWN7660EM)
VPN: L2TP Client, PPTP Client, IPSec Site-to-Site & Client-to-Site, OpenVPN Server, WireGuard Site-to-Site & Client-to-Site
WAN: Static IP, DHCP, PPPoE, PPTP, L2TP | Dual WAN with Failover / Load Balancing
Security: WPA3-192, WPA3, WPA2/WPA3, WPA2, Anti-Hack Secure Boot, Digital Signature Lockdown, Unique Certificate + Random Default Password per Device
QoS: 8-Queue Traffic Prioritization, App QoS, QoS Rules
Firewall: DoS Defence, Blocklist, URL Filtering, URL Classification, App Filtering, Safe Search, Access Control
Parental Controls: Up to 32 Clients, Schedule Management, App/Website/URL Filtering, Usage Analytics
Traffic Management: DPI-Based Application Monitoring, Daily/Weekly/Monthly Reports
Captive Portal: Social Login, Vouchers, Password Authentication
Mounting: Desktop or Indoor Wall Mount
Dimensions: 160 × 50 × 98 mm (L × W × H)
Weight: 238 g
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Humidity: 10% to 90% RH (Non-Condensing)
Compliance: FCC, CE, RCM, IC

Management
Local Web UI: Built-in device and mesh node management
GDMS: Free cloud management platform (unlimited devices)
GWN Manager: On-premise software controller
GWN App: Enterprise-level device management
Grandstream Home App: Unified mobile management platform
TR-069: ISP-managed deployment support

System Requirements: Standard internet connection via ISP modem or ONT connected to WAN port; universal power adapter included (no PoE); analog telephones connect directly to FXS RJ11 ports; mesh expansion requires compatible GWN7062E, GWN7062ET, GWN7062M, or GWN7660EM units

Setup: Connect WAN port to internet uplink; connect analog phones to FXS ports; power via included 12V adapter; configure via local web UI at https://192.168.80.1 or through GDMS cloud or Grandstream Home app; mesh nodes added via SYNC button or web UI; auto firmware update supported

Mounting Options: Compact desktop placement or indoor wall mount; no PoE — requires power adapter

Usage Environment: Ideal for small offices, retail spaces, home offices, hybrid work environments, and growing business networks requiring combined high-speed Wi-Fi 6 wireless networking and analog telephony in a single device
