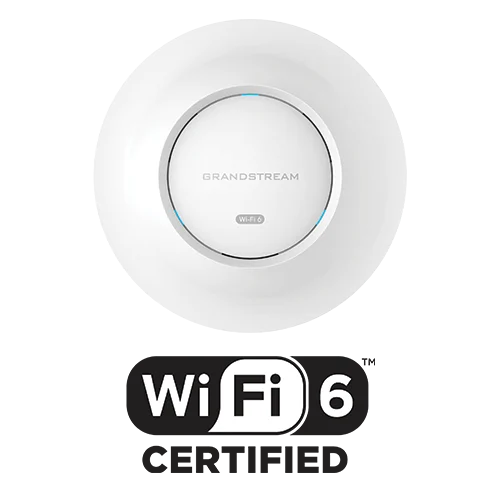

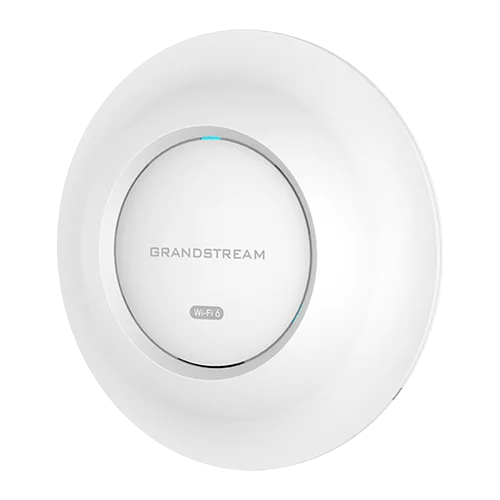

Grandstream GWN7664E AX6000 Wi-Fi 6 Enterprise Access Point — Indoor | Dual-Band | 512 Clients

The Grandstream GWN7664E is built for IT administrators, network integrators, and business owners deploying enterprise-grade Wi-Fi 6 wireless networks in offices, multi-floor buildings, schools, hotels, retail spaces, and commercial environments with medium-to-high client density. It is well-suited for voice-over-Wi-Fi (VoWiFi) deployments with seamless integration with Grandstream's Wi-Fi capable IP phones, high-throughput data environments requiring low-latency real-time applications, mesh network deployments, captive portal guest access configurations, and multi-site network management via GWN.Cloud.

The GWN7664E delivers up to 6Gbps aggregate wireless throughput across the 2.4GHz (up to 1147 Mbps via 802.11ax) and 5GHz (up to 4804 Mbps via 802.11ax) bands simultaneously, backed by dual-band 4×4:4 MU-MIMO and DL/UL OFDMA technology that dramatically improves efficiency and performance in high-density multi-client environments over legacy Wi-Fi standards. Eight sophisticated internal antennas — 4 per band — are engineered for stronger anti-interference and more stable connections, delivering expanded coverage of up to 175 metres with 3.5 dBi gain on 2.4GHz and 4.5 dBi gain on 5GHz. Dual 2.5GbE RJ45 wired ports with self-adaptive PoE/PoE+ (802.3at) detection provide high-speed wired backbone connectivity and flexible power delivery, drawing a maximum of just 21W. Support for 512 concurrent Wi-Fi clients makes the GWN7664E suitable for the most demanding high-density wireless environments. Up to 32 SSIDs (16 per radio) with customised captive portal, bandwidth limits, and per-SSID client configurations enable flexible multi-tenant or segmented network deployments. Advanced QoS via 802.11e/WMM, VLAN, and TOS ensure real-time applications such as VoIP calls and video conferencing are prioritised correctly without competing for bandwidth. WPA/WPA2/WPA3, 802.1x Enterprise authentication, anti-hacking secure boot with digital signature lockdown, unique security certificates, and randomly generated default passwords per device deliver a robust, enterprise-grade security posture. The embedded local controller manages up to 50 GWN APs without additional hardware, while GWN.Cloud provides free unlimited AP cloud management and GWN Manager supports on-premise software management of up to 3,000 GWN APs — all from a centralised dashboard. Three tri-colour LEDs provide at-a-glance device tracking and status indication. Ceiling and wall mounting kits are included in the box.

Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Wi-Fi Generation: AX6000 (Dual-Band)
Frequency Bands: 2.4GHz (2400–2483.5 MHz) / 5GHz (5150–5895 MHz)
Channel Bandwidth: 2.4GHz — 20 / 40 MHz | 5GHz — 20 / 40 / 80 / 160 MHz
MU-MIMO: 4×4:4 (2.4GHz) + 4×4:4 (5GHz)
Technology: DL/UL OFDMA, Beamforming
Aggregate Wireless Throughput: Up to 6 Gbps
Aggregate Wired Throughput: Up to 5 Gbps
Wi-Fi Data Rates (5GHz): 802.11ax — 7.3 to 4804 Mbps | 802.11ac — 6.5 to 3467 Mbps | 802.11n — 6.5 to 600 Mbps | 802.11a — 6 to 54 Mbps
Wi-Fi Data Rates (2.4GHz): 802.11ax — 7.3 to 1147 Mbps | 802.11n — 6.5 to 600 Mbps | 802.11g — 6 to 54 Mbps | 802.11b — 1 to 11 Mbps
Antennas: 8 Individual Internal Antennas (4 per band) | 2.4GHz — 3.5 dBi | 5GHz — 4.5 dBi
Maximum TX Power: 5GHz — 25.5 dBm | 2.4GHz — 26.5 dBm
Coverage Range: Up to 175 Metres
Concurrent Clients: 512
SSIDs: 32 Total (16 per radio)
Security: WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, Anti-Hacking Secure Boot, Digital Signature Lockdown, Unique Security Certificate + Random Default Password per Device
Network Interfaces: 2× 2.5GbE RJ45 Ports

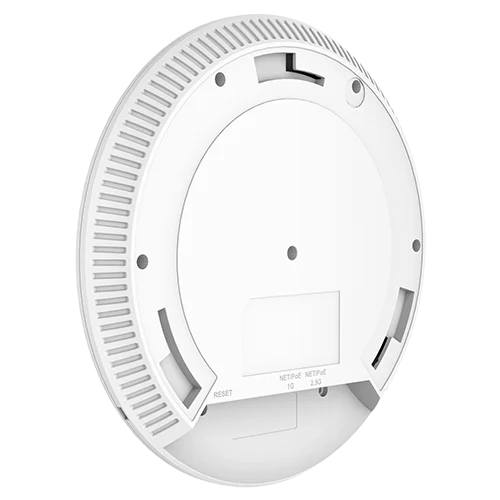

Auxiliary Ports: 1× Reset Pinhole, 1× Kensington Lock
Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS: 802.11e/WMM, VLAN, TOS
Power: PoE+ 802.3at (Self-Adaptive) | Maximum Power Consumption: 21W
LEDs: 3× Tri-Colour LEDs
Mounting: Indoor Ceiling Mount / Wall Mount (Kits Included)
Dimensions: 205.3 × 205.3 × 45.9 mm
Weight: 0.714 kg
Operating Temperature: 0°C to 50°C
Storage Temperature: -10°C to 60°C
Humidity: 10% to 95% (Non-Condensing)
Compliance: FCC, CE, RCM, IC

Management
Embedded Local Controller: Up to 50 GWN APs
GWN.Cloud: Free, unlimited AP cloud management (multi-site)
GWN Manager: On-premise software management for up to 3,000 GWN APs

System Requirements: Requires PoE+ 802.3at switch or PoE+ injector delivering at least 25W for powering the AP; compatible with all GWN.Cloud and GWN Manager managed environments; supports both IPv4 and IPv6 networks; VLAN-capable switch recommended for multi-SSID segmented deployments

Setup: Ceiling or wall mount installation using included mounting kits; power via PoE+ 802.3at switch or injector through either 2.5GbE port; configure via embedded web UI controller, GWN.Cloud (free), or GWN Manager (on-premise); ideal for mesh network deployments between multiple GWN APs

Mounting Options: Indoor ceiling mount (recommended for optimal coverage) or wall mount; standard mounting kit included in box

Usage Environment: Ideal for SMB offices, multi-floor buildings, schools, hotels, retail stores, hospitals, and any high-density indoor environment requiring reliable enterprise-grade Wi-Fi 6 with centralised management
