D-Link DGS-1008A 8-Port Gigabit Easy Desktop Switch — Fanless | D-Link Green | Unmanaged

The D-Link DGS-1008A is built for home users, home office workers, small businesses, and student setups who need a simple, reliable, and energy-efficient 8-port Gigabit switch to expand their wired network without complex configuration. It is well-suited for connecting desktops, laptops, NAS devices, smart TVs, printers, gaming consoles, and IP cameras to a home router or office network, and for environments where quiet fanless operation is a key requirement.

The DGS-1008A delivers eight 1000Base-T Gigabit Ethernet ports with 16 Gbps total non-blocking switching capacity and a maximum packet forwarding rate of 11.90 Mpps for wire-speed performance across all eight ports simultaneously. Auto MDI/MDIX on every port eliminates the need for crossover cables, enabling any standard Ethernet cable to connect any device directly and correctly. The fully fanless design operates in complete silence — making it ideal for home offices, living rooms, bedrooms, and any environment where acoustic noise is a concern. D-Link Green Technology delivers intelligent power saving through two methods: automatic port power-down when no link is detected on a port (such as when connected devices are powered off), and cable length detection that reduces power consumption proportionally when shorter cables are in use — cutting unnecessary energy draw without any user intervention. Energy Efficiency Ethernet (IEEE 802.3az) further reduces power consumption during periods of low link utilisation. 802.3x Flow Control manages data transmission to prevent packet loss during traffic bursts. A 9,720-byte jumbo frame capacity supports large data transfers for NAS, file servers, and multimedia streaming without fragmentation. Surge and lightning protection of 1kV on AC power input and all Ethernet ports, along with 8kV air discharge and 4kV contact discharge ESD protection, safeguards connected network equipment against electrical events.

Model: DGS-1008A
Switch Type: Unmanaged Desktop Switch

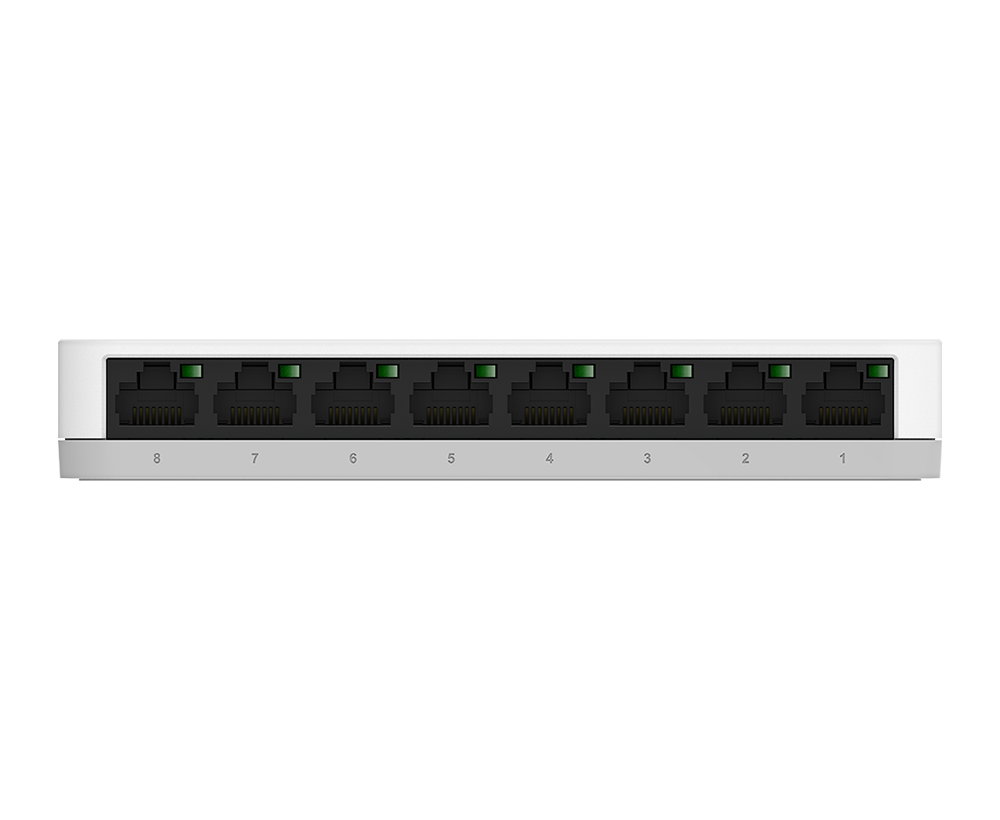

Interfaces: 8× 1000Base-T (RJ-45)
Auto MDI/MDIX: Yes (all ports)
Switching Capacity: 16 Gbps
Max. Packet Forwarding Rate: 11.90 Mpps
Forwarding Method: Store-and-Forward
MAC Address Table Size: 4,000 entries
Packet Buffer Size: 192 KBytes
Flash Memory: 64 KBytes
Jumbo Frame: 9,720 Bytes
Flow Control: IEEE 802.3x
HOL Blocking Prevention: Yes
Energy Efficiency Ethernet (EEE): Yes (IEEE 802.3az)
Power Saving — Link Status: Yes (auto port power-down when no link)
Power Saving — Cable Length: Yes (auto power reduction by cable length)
Cooling: Fanless (passive cooling)
Power Input: AC 100–240V
Max. Power Consumption: 4.80W
Standby Power Consumption: 0.70W
Max. Heat Dissipation: 16.368 BTU/h
MTBF: 1,061,267 hours
Surge / Lightning Protection: AC Power Input: 1kV | All Ethernet Ports: 1kV
ESD Protection: Air Discharge: 8kV | Contact Discharge: 4kV
Dimensions: 130 × 79 × 22mm
Weight: 130g
Operating Temperature: 0°C to 40°C
Storage Temperature: -10°C to 70°C
Operating Humidity: 0% to 95% RH (non-condensing)
Operating Altitude: Up to 2,000m
Compliance: RoHS 6, Energy Star Level V, CEC, MEPS, WEEE

System Requirements: Compatible with any device featuring a standard 10/100/1000 Mbps Ethernet RJ-45 port; AC power outlet required (100–240V universal input); no configuration, drivers, or software required — plug-and-play out of the box; Auto MDI/MDIX on all ports allows use of any standard straight-through or crossover Ethernet cable

Setup: Connect power adapter, connect devices via standard
Ethernet cables to any of the 8 ports; switch auto-negotiates speed and duplex settings per connected device; no management interface or VLAN configuration available as this is an unmanaged switch

Mounting Options: Compact desktop placement; rubber feet included for stable surface placement; wall mounting possible with optional mounting kit

Usage Environment: Ideal for home offices, small business environments, student setups, living rooms, and any wired network expansion requiring quiet fanless 8-port Gigabit switching with energy-saving features
