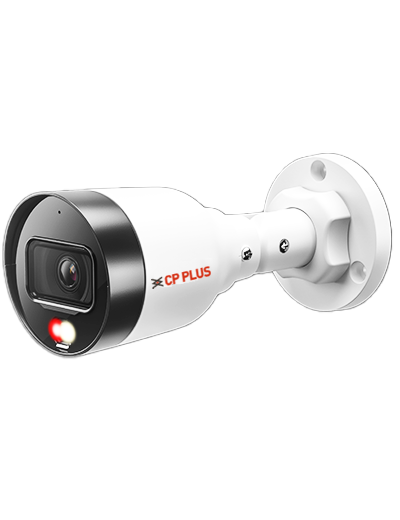

CP Plus illumax CP-UNC-TA41L3C-D-LQ 4MP Dual Light Network Bullet Camera — 30m IR / Warm Light | PoE | IP67

The CP-UNC-TA41L3C-D-LQ is built for outdoor perimeter surveillance, entrance monitoring, parking areas, warehouses, industrial facilities, commercial premises, and residential boundaries where long-range, all-weather video and audio coverage with full-colour warm light night vision is essential. It is well-suited for fixed-view outdoor installations where a directional bullet-form camera with PoE power, built-in audio, and wide 4MP coverage provides reliable 24/7 protection in all weather conditions.

The CP-UNC-TA41L3C-D-LQ features a 1/2.9" 4MP Progressive Scan CMOS sensor delivering crisp video at up to 2688×1520 resolution at 25/30fps for detailed, high-definition outdoor surveillance. Dual illumination technology combines IR night vision and warm white light — each with an effective range of up to 30 metres — enabling full-colour imaging in low-light conditions and reliable monochrome IR vision in complete darkness. Smart IR and Smart Illumination automatically adjust LED intensity based on target distance to prevent overexposure at close range. CP Plus InstaStream compression saves up to 70% more bandwidth compared to H.265, while also supporting H.265, H.264, H.264H, H.264B, and MJPEG codecs with triple-stream output for flexible integration. The built-in microphone supports audio codecs G.711a/µ, PCM, G.726, and AAC for simultaneous audio and video capture. Advanced image processing includes WDR (120dB), Day/Night (ICR), 2D Noise Reduction, ROI, 8-area Privacy Mask, AWB, AGC, BLC, HLC, and Digital Watermarking for versatile monitoring in challenging lighting conditions. PoE (IEEE 802.3af) support simplifies installation with a single network cable for both data and power. The IP67 weather-resistant rating ensures reliable performance in dusty, wet, and harsh outdoor conditions.

Part Number: CP-UNC-TA41L3C-D-LQ
Series: Illumax Network Camera

Camera
Image Sensor: 1/2.9" 4MP PS CMOS Image Sensor
Effective Pixels: 2688 (H) × 1520 (V)
Minimum Illumination: 0.06 lux@F1.6 (Colour, 30 IRE) | 0.006 lux@F1.6 (B/W, 30 IRE) | 0 lux (IR on)
Lens: 3.6mm Fixed-focal (M12)
Max. Aperture: F1.6
Angle of View (3.6mm): H: 78° | V: 40° | D: 93°
Angle Adjustment: Pan: 0°–360° | Tilt: 0°–90° | Rotation: 0°–360°
Shutter Speed: Auto / Manual 1/3s – 1/100,000s
White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
Gain Control (AGC): Auto / Manual
Iris Control: Fixed
Day / Night: Auto (ICR) / Colour / B/W
ROM: 128MB

DORI Distance (3.6mm):
Detect: 85.4m | Observe: 34.2m | Recognize: 17.1m | Identify: 8.5m

Illumination
IR Range: Up to 30 Metres (Smart IR)
Warm Light Range: Up to 30 Metres
Illumination Mode: Dual Light (IR + Warm White) — Multi-core LED
IR / Warm Light Control: Auto / Manual
Smart IR: Supported
Smart Illumination: Supported

Video
Max. Resolution: 4MP (2688×1520) / (2560×1440) @ 25/30fps
Triple Stream: Supported
Video Compression: InstaStream, H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
Bit Rate Control: CBR / VBR
Bit Rate: H.265 — 3 to 6144 kbps | H.264 — 8 to 6144 kbps
Image Processing: WDR (120dB), Day/Night (ICR), 2D NR, ROI, Privacy Mask (8 areas), AWB, AGC, BLC, HLC, Digital Watermarking
Image Rotation: 4MP — 0°/180° | 2MP & lower — 0°/90°/180°/270°
Motion Detection: ON/OFF
OSD: Camera Title, Date & Time
Video Format: PAL / NTSC

Audio
Built-in Microphone: Yes
Audio Codec: G.711a, G.711µ, PCM, G.726, AAC

Network
Ethernet: RJ-45 10/100 Base-T
Protocols: ONVIF Profile S, G & T | IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP, RTSPS, RTP, RTCP, DNS, DHCP, NTP, SMTP, SNMP V3, PPPoE, NFS, UDP, ICMP, IGMP, SSL, TLS 1.2, unicast, multicast
Max. Concurrent Users: 6 (Total bandwidth: 36 Mbps)
Browser Support: IE, Chrome, Firefox

Power
Power Supply: 12V DC / PoE (IEEE 802.3af)
Power Consumption (Basic): 1.6W (12V DC) | 2.0W (PoE)
Power Consumption (Max.): 3.7W (12V DC) | 4.7W (PoE)

Physical
Camera Type: Bullet
Weatherproof Rating: IP67
Dimensions: 162.6mm (L) × 70mm (W) × 70mm (H)
Weight: 220g
Operating Temperature: -40°C to +60°C (-40°F to +140°F)
Operating Humidity: ≤95% RH (non-condensing)
Storage Humidity: ≤95% RH (non-condensing)
Certifications: ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, STQC Approved

System Requirements: Compatible with ONVIF Profile S, G & T NVRs and VMS platforms; PoE switch or injector (IEEE 802.3af) or 12V DC adapter required; CAT5e or higher network cable recommended for PoE installation; compatible with CP Plus NVRs and all ONVIF-compliant recording systems

Setup: Fixed-focal 3.6mm lens — no optical zoom or PTZ; wired Ethernet connection required (no Wi-Fi); standard bullet mounting bracket for wall or ceiling installation; PoE-powered via single CAT cable for clean, cable-efficient outdoor deployment

Mounting Options: Outdoor bullet wall or ceiling mount; adjustable pan (0°–360°), tilt (0°–90°), and rotation (0°–360°) for precise directional alignment; IP67 rated for direct outdoor exposure

Usage Environment: Ideal for outdoor perimeter monitoring, entrances, parking areas, warehouses, industrial facilities, and residential boundaries requiring robust all-weather 4MP dual-light video and audio surveillance
