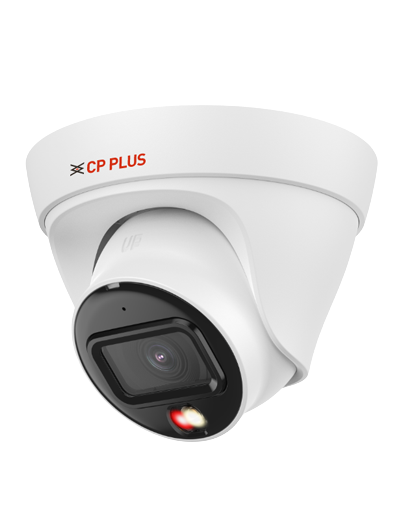

CP Plus illumax CP-UNC-DA21L3C-LQ 2MP Dual Light Network Dome Camera — 30m IR / Warm Light | PoE | IP67

The CP-UNC-DA21L3C-LQ is built for fixed-view indoor and outdoor surveillance in homes, small offices, retail shops, and commercial premises requiring Full HD video monitoring with full-colour warm light night vision, built-in audio, and AI-based human body detection at an entry-level price. It is well-suited for entrances, lobbies, corridors, stairwells, and small outdoor areas where reliable 24/7 dual-light video and audio coverage is essential, particularly in low-light or no-light environments.

The CP-UNC-DA21L3C-LQ features a 1/2.8" 2MP Progressive Scan CMOS sensor delivering crisp video at 1920×1080 (Full HD) resolution at up to 25/30fps. Dual illumination technology combines IR night vision and warm white light — each with an effective range of up to 30 metres — enabling full-colour imaging in low-light conditions via warm light and reliable monochrome IR vision in complete darkness. Smart IR and Smart Illumination automatically adjust LED intensity based on target distance to prevent overexposure. CP Plus InstaStream compression saves up to 70% more bandwidth compared to H.265, while also supporting H.265, H.264, H.264H, H.264B, and MJPEG codecs with triple-stream output. Human Body Detection (AI-based) enables accurate classification and detection of humans for smart event filtering and reduced false alarms. The built-in microphone supports audio codecs G.711a/µ, PCM, G.726, and AAC. Advanced image processing includes DWDR, Day/Night (ICR), 3D NR, ROI (4 areas), Privacy Mask (4 areas), AWB, AGC, BLC, HLC, and Digital Watermarking. PoE (IEEE 802.3af) support simplifies installation. CP Plus CTC provides AES 256-bit encryption, trusted boot, trusted upgrade, HTTPS, IP/MAC filtering, WSSE, account lockout, video encryption, and configuration encryption.

Part Number: CP-UNC-DA21L3C-LQ
Series: illumax Network Camera

Camera
Image Sensor: 1/2.8" 2MP Progressive Scan PS CMOS
Effective Pixels: 1920 (H) × 1080 (V)
Minimum Illumination: 0.005 lux@F1.6 (Colour, 30 IRE) | 0.0005 lux@F1.6 (B/W, 30 IRE) | 0 lux (IR on)
Lens: 3.6mm Fixed-focal (M12) | 2.8mm Optional
Max. Aperture: F1.6
Angle of View (3.6mm): H: 86° | V: 47° | D: 103°
Angle of View (2.8mm): H: 101° | V: 54° | D: 119°
Close Focus Distance: 3.6mm — 0.9m | 2.8mm — 0.6m
Angle Adjustment: Pan: 0°–360° | Tilt: 0°–78° | Rotation: 0°–360°
Shutter Speed: Auto / Manual 1/3s – 1/100,000s
S/N Ratio: >56dB
RAM / ROM: 128MB / 128MB

DORI Distance (3.6mm):
Detect: 52.4m | Observe: 21.0m | Recognize: 10.5m | Identify: 5.2m

DORI Distance (2.8mm):
Detect: 45.5m | Observe: 18.2m | Recognize: 9.1m | Identify: 4.6m

Illumination
IR Range: Up to 30 Metres (Smart IR)
Warm Light Range: Up to 30 Metres
Illumination Mode: Dual Light (IR + Warm White) — Multi-core LED
IR / Warm Light Control: Auto / Manual

Video
Max. Resolution: 2MP (1920×1080) @ 25/30fps
Triple Stream: Supported
Video Compression: InstaStream, H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
Bit Rate Control: CBR / VBR
Bit Rate: H.265 — 3 to 6144 kbps | H.264 — 8 to 6144 kbps
Image Processing: DWDR, Day/Night (ICR), 3D NR, ROI (4 areas), Privacy Mask (4 areas), AWB, AGC, BLC, HLC, Digital Watermarking, Mirror
Image Rotation: 0°/90°/180°/270° (90°/270° supported at 2MP and below)

Intelligence
Human Body Detection: AI-based classification and accurate detection of humans
Motion Detection: ON/OFF (4 areas, rectangular)
Smart Search: Compatible with Smart NVR for event extraction and merging
Alarm Events: Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD, Security exception

Audio
Built-in Microphone: Yes
Audio Codec: G.711a, G.711µ, PCM, G.726, AAC

Network
Ethernet: RJ-45 10/100 Base-T
Protocols: ONVIF Profile S, G & T | IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP, RTSPS, RTMP, RTP, RTCP, DNS, DHCP, NTP, SMTP, SNMP V3, PPPoE, NFS, UDP, ICMP, IGMP, SSL, TLS 1.2, SFTP, unicast, multicast
Cyber Security: AES 256-bit Encryption, Configuration Encryption, Trusted Boot, Trusted Upgrade, Trusted Execution, Digest, WSSE, HTTPS, IP/MAC Filtering, Account Lockout, Video Encryption, Syslog
Max. Concurrent Users: 6 (Total bandwidth: 36 Mbps)
Browser Support: IE, Chrome, Firefox
SDK & API: Supported

Power
Power Supply: 12V DC / PoE (IEEE 802.3af)
Power Consumption (Basic): 1.4W (12V DC) | 2.2W (PoE)
Power Consumption (Max.): 3.3W (12V DC) | 4.4W (PoE)

Physical
Casing: Metal + Plastic
Weatherproof Rating: IP67
Dimensions: 85.5mm (diameter) × 109mm (H)
Weight: 250g
Operating Temperature: -40°C to +60°C (-40°F to +140°F)
Operating Humidity: ≤95% RH (non-condensing)
Storage Temperature: -40°C to +60°C
Certifications: ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, STQC Approved

System Requirements: Compatible with ONVIF Profile S, G & T NVRs and VMS platforms; PoE switch or injector (IEEE 802.3af) or 12V DC adapter required; CAT5e or higher network cable recommended for PoE installation; compatible with CP Plus NVRs and all ONVIF-compliant recording systems

Setup: Fixed-focal lens — no optical zoom or PTZ; wired Ethernet connection required (no Wi-Fi); Smart NVR required for full human body detection event extraction and merging; HTTPS and AES encryption configurable via web interface

Mounting Options: Dome ceiling or wall mount; suitable for indoor and outdoor installation with IP67 weatherproof protection; standard dome bracket-compatible

Usage Environment: Ideal for homes, small offices, retail shops, lobbies, corridors, entrances, and small outdoor areas requiring reliable 24/7 dual-light Full HD video and audio monitoring with AI-based human detection
