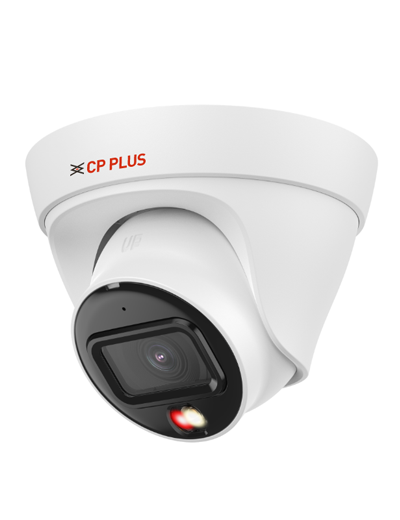

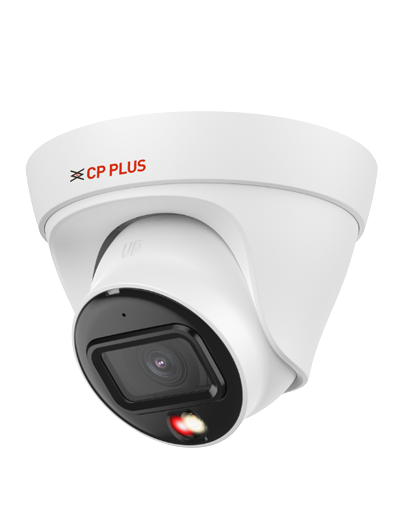

CP Plus illumax CP-UNC-DA41L3C-D-LQ 4MP Dual Light Network Dome Camera — 30m IR / Warm Light | PoE | IP67

The CP-UNC-DA41L3C-D-LQ is built for fixed-view indoor and outdoor surveillance in homes, offices, retail stores, warehouses, educational institutions, and commercial premises requiring high-definition monitoring with full-colour warm light night vision, built-in audio, and AI-based human and vehicle detection. It is well-suited for entrances, lobbies, parking areas, corridors, and perimeter walls where reliable 24/7 video and audio coverage is essential, especially in low-light or no-light environments.

The CP-UNC-DA41L3C-D-LQ features a 1/2.9" 4MP Progressive Scan CMOS sensor delivering crisp video at up to 2688×1520 resolution at 25/30fps for detailed, high-definition surveillance. Dual illumination technology combines IR night vision and warm white light — each with an effective range of up to 30 metres — enabling full-colour imaging in low-light conditions and reliable monochrome IR vision in complete darkness. Smart IR and Smart Illumination automatically adjust LED intensity based on target distance to prevent overexposure. CP Plus InstaStream compression saves up to 70% more bandwidth compared to H.265, while also supporting H.265, H.264, H.264H, H.264B, and MJPEG codecs with triple-stream output. Intelligent Motion Detection (IMD) supports AI-powered classification and accurate detection of humans and vehicles for smart event filtering. The built-in microphone supports audio codecs G.711a/µ, PCM, G.726, and AAC. Advanced image processing includes WDR (120dB), Day/Night (ICR), 3D Noise Reduction, ROI (4 areas), Privacy Mask (4 areas), AWB, AGC, BLC, HLC, and Digital Watermarking. PoE (IEEE 802.3af) support simplifies installation with a single network cable. CP Plus CTC (Trusted Core Technology) provides AES 256-bit encryption, configuration encryption, trusted boot, trusted upgrade, HTTPS, IP/MAC filtering, WSSE, and account lockout for multi-layered enterprise-grade cybersecurity. The IP67 weatherproof rating ensures reliable performance in dusty and wet outdoor conditions.

Part Number: CP-UNC-DA41L3C-D-LQ
Series: illumax Network Camera

Camera
Image Sensor: 1/2.9" 4MP Progressive Scan PS CMOS
Effective Pixels: 2688 (H) × 1520 (V)
Minimum Illumination: 0.06 lux@F1.6 (Colour, 30 IRE) | 0.006 lux@F1.6 (B/W, 30 IRE) | 0 lux (IR on)
Lens: 3.6mm Fixed-focal (M12) | 2.8mm Optional
Max. Aperture: F1.6
Angle of View (3.6mm): H: 78° | V: 40° | D: 93°
Angle of View (2.8mm): H: 94° | V: 51° | D: 110°
Close Focus Distance: 3.6mm — 1.7m | 2.8mm — 1.1m
Angle Adjustment: Pan: 0°–360° | Tilt: 0°–78° | Rotation: 0°–360°
Shutter Speed: Auto / Manual 1/3s – 1/100,000s
S/N Ratio: >56dB
RAM / ROM: 128MB / 128MB

DORI Distance (3.6mm):
Detect: 85.4m | Observe: 34.2m | Recognize: 17.1m | Identify: 8.5m

Illumination
IR Range: Up to 30 Metres (Smart IR)
Warm Light Range: Up to 30 Metres
Illumination Mode: Dual Light (IR + Warm White) — Multi-core LED
IR / Warm Light Control: Auto / Manual

Video
Max. Resolution: 4MP (2688×1520) / (2560×1440) @ 25/30fps
Triple Stream: Supported
Video Compression: InstaStream, H.265, H.264, H.264H, H.264B, MJPEG (sub stream)
Bit Rate Control: CBR / VBR
Bit Rate: H.265 — 3 to 6144 kbps | H.264 — 8 to 6144 kbps
Image Processing: WDR (120dB), Day/Night (ICR), 3D NR, ROI (4 areas), Privacy Mask (4 areas), AWB, AGC, BLC, HLC, Digital Watermarking, Mirror
Image Rotation: 4MP — 0°/180° | 2MP & lower — 0°/90°/180°/270°

Intelligence
IMD (Intelligent Motion Detection): Human and Vehicle classification and detection
Motion Detection: ON/OFF (4 areas, rectangular)
Smart Search: Compatible with Smart NVR for event extraction and merging
Alarm Events: Network disconnection, IP conflict, illegal access, motion detection, video tampering, audio detection, IMD, security exception

Audio
Built-in Microphone: Yes
Audio Codec: G.711a, G.711µ, PCM, G.726, AAC

Network
Ethernet: RJ-45 10/100 Base-T
Protocols: ONVIF Profile S, G & T | IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP, RTSPS, RTMP, RTP, RTCP, DNS, DHCP, NTP, SMTP, SNMP V3, PPPoE, NFS, UDP, ICMP, IGMP, SSL, TLS 1.2, SFTP, unicast, multicast
Cyber Security: AES 256-bit Encryption, Configuration Encryption, Trusted Boot, Trusted Upgrade, Trusted Execution, Digest, WSSE, HTTPS, IP/MAC Filtering, Account Lockout, Video Encryption, Syslog, Security Logs
Max. Concurrent Users: 6 (Total bandwidth: 36 Mbps)
Browser Support: IE, Chrome, Firefox
SDK & API: Supported

Power
Power Supply: 12V DC / PoE (IEEE 802.3af)
Power Consumption (Basic): 1.6W (12V DC) | 2.0W (PoE)
Power Consumption (Max.): 3.7W (12V DC) | 4.7W (PoE)

Physical
Casing: Metal + Plastic
Weatherproof Rating: IP67
Dimensions: 85.5mm (diameter) × 109mm (H)
Weight: 250g
Operating Temperature: -40°C to +60°C (-40°F to +140°F)
Operating Humidity: ≤95% RH (non-condensing)
Storage Temperature: -40°C to +60°C
Certifications: ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, STQC Approved

System Requirements: Compatible with ONVIF Profile S, G & T NVRs and VMS platforms; PoE switch or injector (IEEE 802.3af) or 12V DC adapter required; CAT5e or higher network cable recommended for PoE installation; compatible with CP Plus NVRs and all ONVIF-compliant recording systems

Setup: Fixed-focal lens — no optical zoom or PTZ; wired Ethernet connection required (no Wi-Fi); Smart NVR required for full IMD human/vehicle detection event extraction and merging; HTTPS and AES encryption configurable via web interface

Mounting Options: Dome ceiling or wall mount; suitable for indoor and outdoor installation with IP67 weatherproof protection; standard dome bracket-compatible

Usage Environment: Ideal for homes, offices, retail stores, warehouses, educational institutions, parking areas, and perimeter surveillance requiring 24/7 dual-light video and audio monitoring with AI-based intelligent detection
