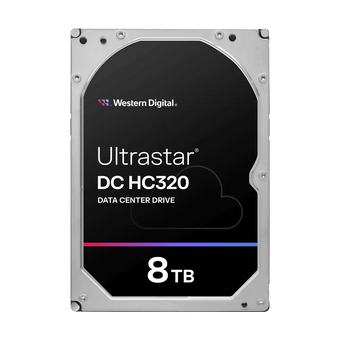

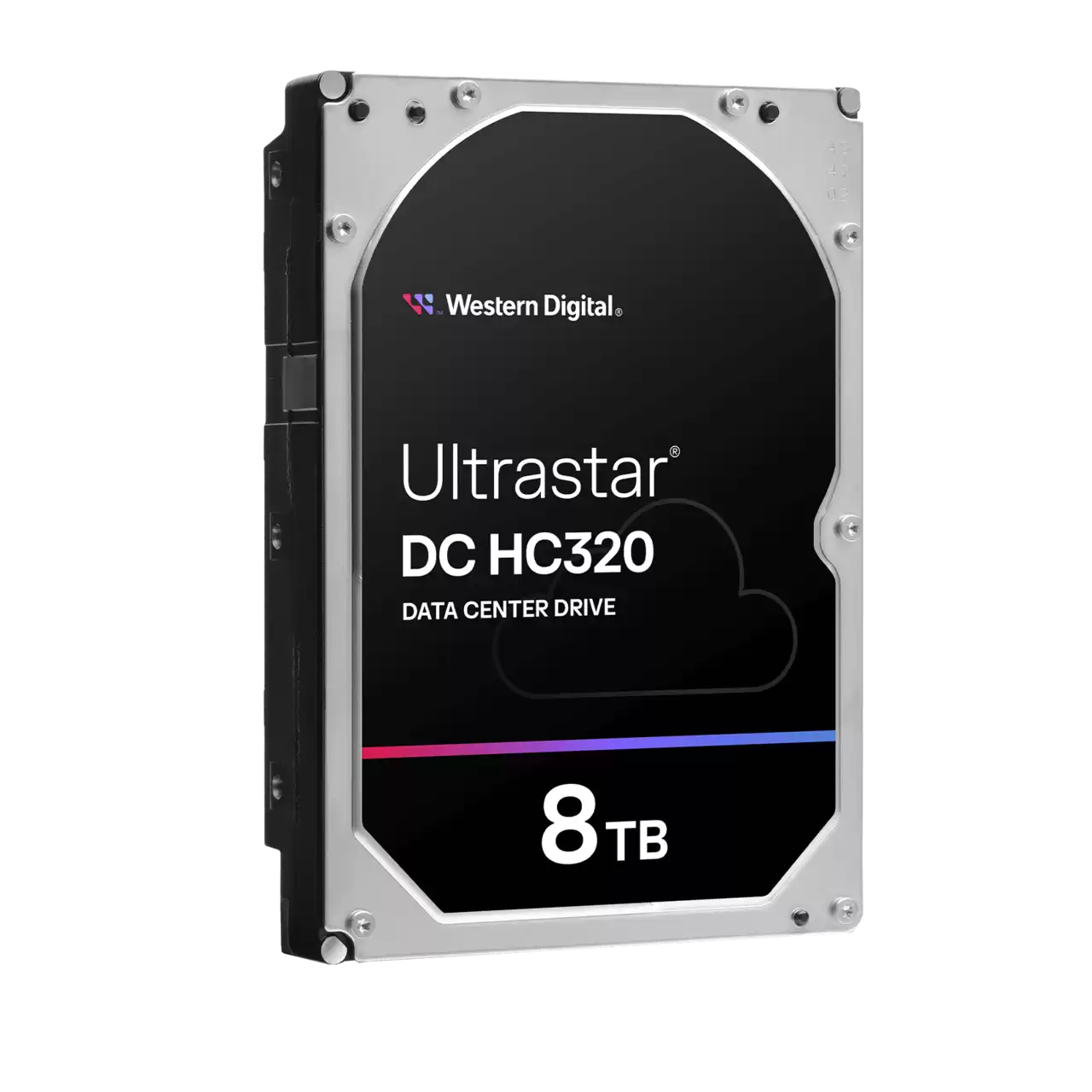

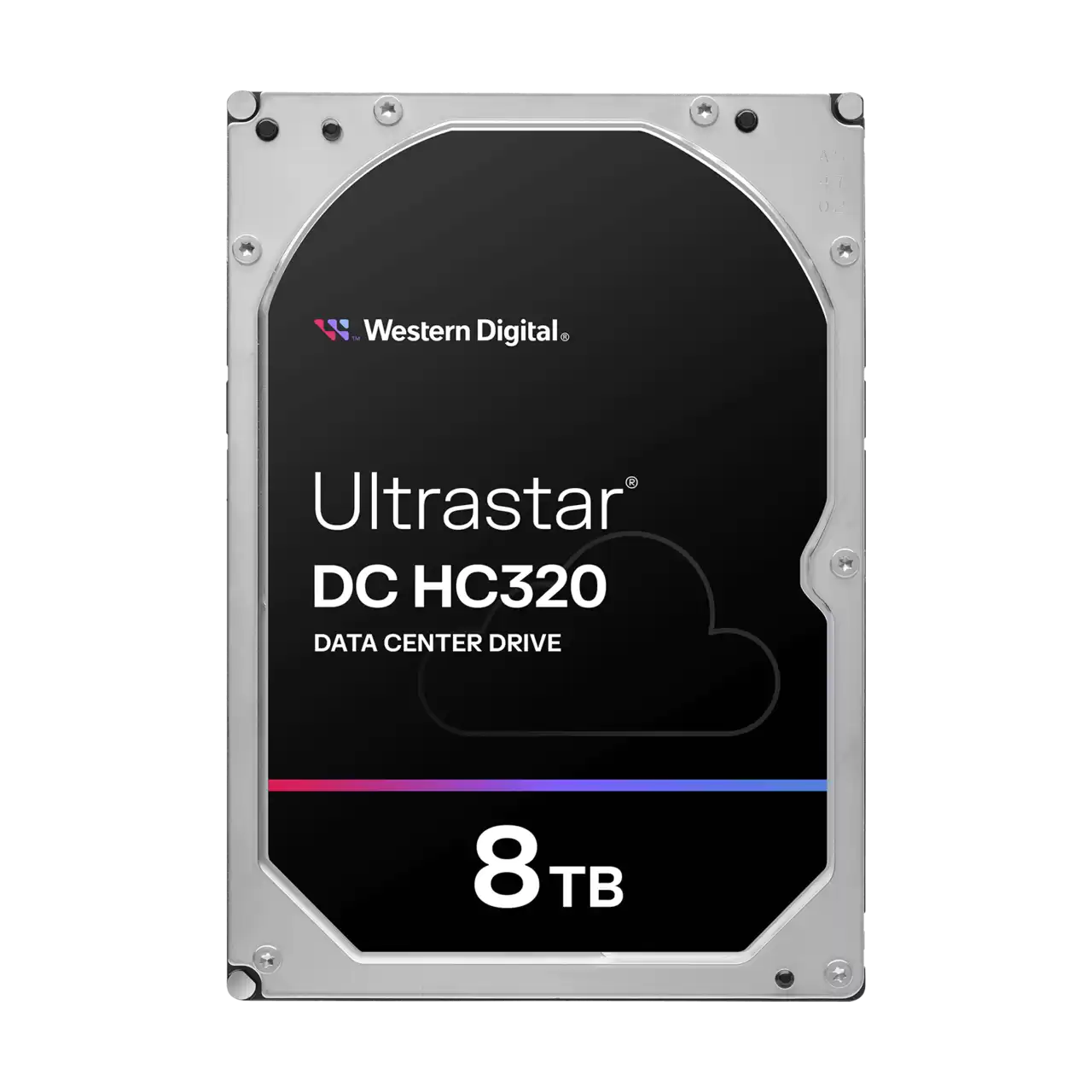

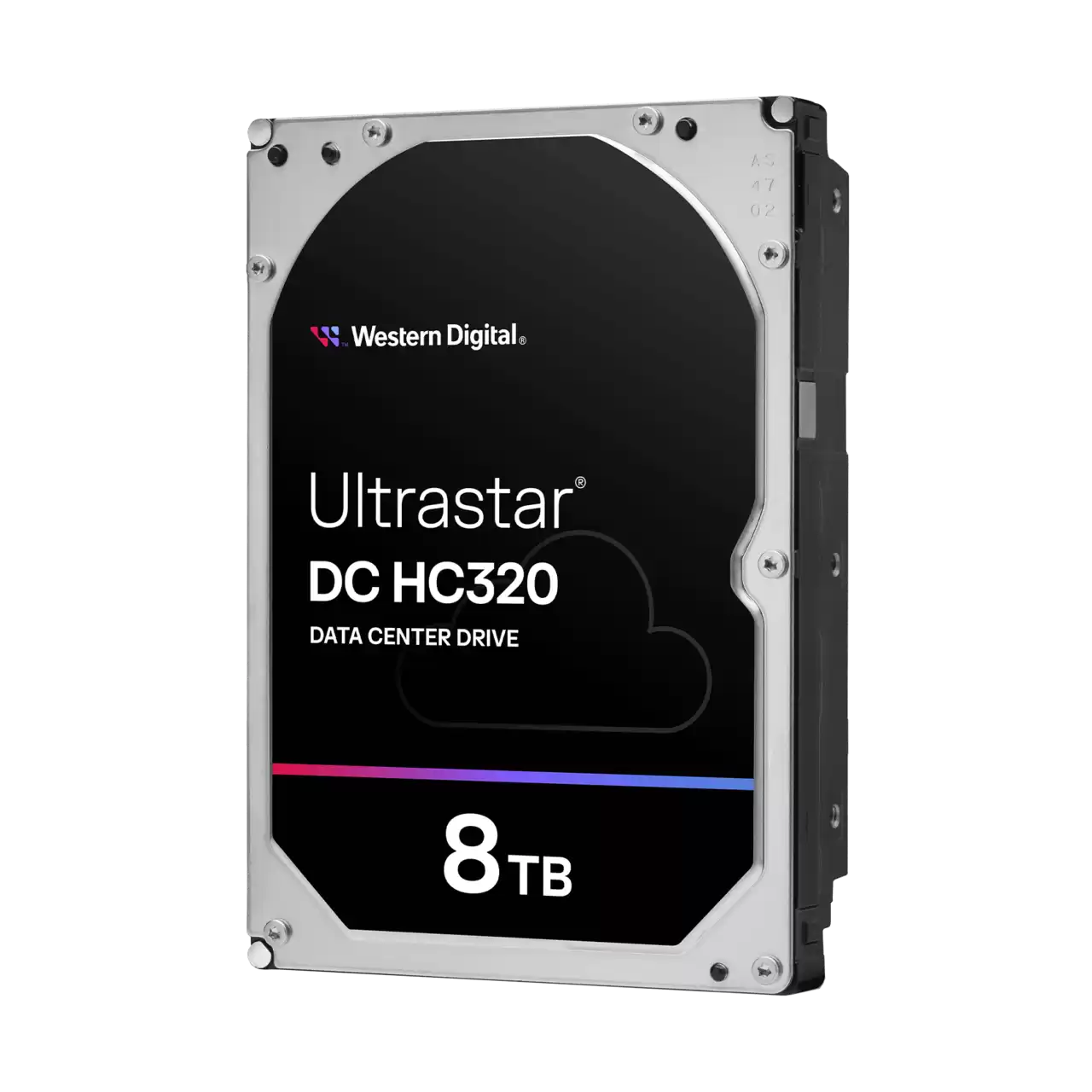

Western Digital Ultrastar DC HC320 Data Center Hard Drive

The Ultrastar DC HC320 Enterprise Hard Drive is designed for large-scale storage infrastructures where high reliability, 24×7 operation and cost-effective capacity matter most. It is ideal for datacenter deployments, archiving large data sets, cold storage, distributed computing and enterprise backups where sustained access and durable performance are required across multiple drives in racks and clusters.

The HC320 series offers high-capacity drives built on a five-disk air platform, utilizing Conventional Magnetic Recording (CMR) and features such as dual-stage micro actuator for improved head positioning, media cache architecture and optional non-volatile cache enhancements. It supports sustained workload ratings up to 550 TB/year (depending on configuration), includes rotational vibration sensors, offers up to ~255 MB/s transfer rates and comes with a 5-year limited warranty. These features make it well suited for RAID arrays, heavy duty enterprise storage and multi-drive enclosures.

Form Factor: 3.5-inch enterprise hard drive
Interface: SATA 6 Gb/s or SAS 12 Gb/s (depending on model)
Spindle Speed: 7200 RPM
Recording Technology: Conventional Magnetic Recording (CMR)
Cache: 256 MB
Maximum Sustained Transfer Rate: Up to 255 MB/s
Capacity Range: 4 TB – 10 TB
MTBF: 2,000,000 hours
Workload Rate Limit: 550 TB per year
Dimensions: 147 mm × 101.6 mm × 26.1 mm
Weight: Approx. 0.72 kg
Operating Temperature: 5 °C – 60 °C
Non-Operating Temperature: –40 °C – 70 °C

The Ultrastar DC HC320 is compatible with any enterprise system supporting 3.5-inch SATA 6 Gb/s or SAS 12 Gb/s drives. It is designed for integration into rack-mounted storage servers, JBOD enclosures, and RAID systems in data centers or enterprise IT environments. Proper airflow and vibration control are recommended for optimal performance. Each drive is shipped individually packaged; mounting hardware and cables are typically supplied by the host chassis manufacturer.
