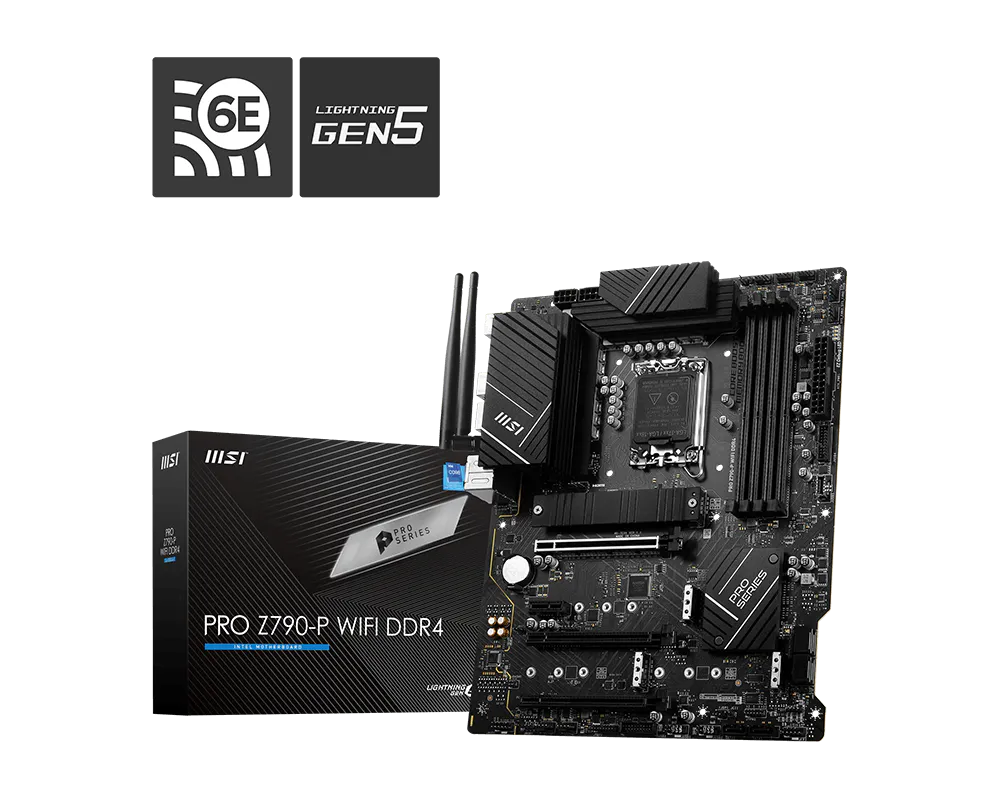

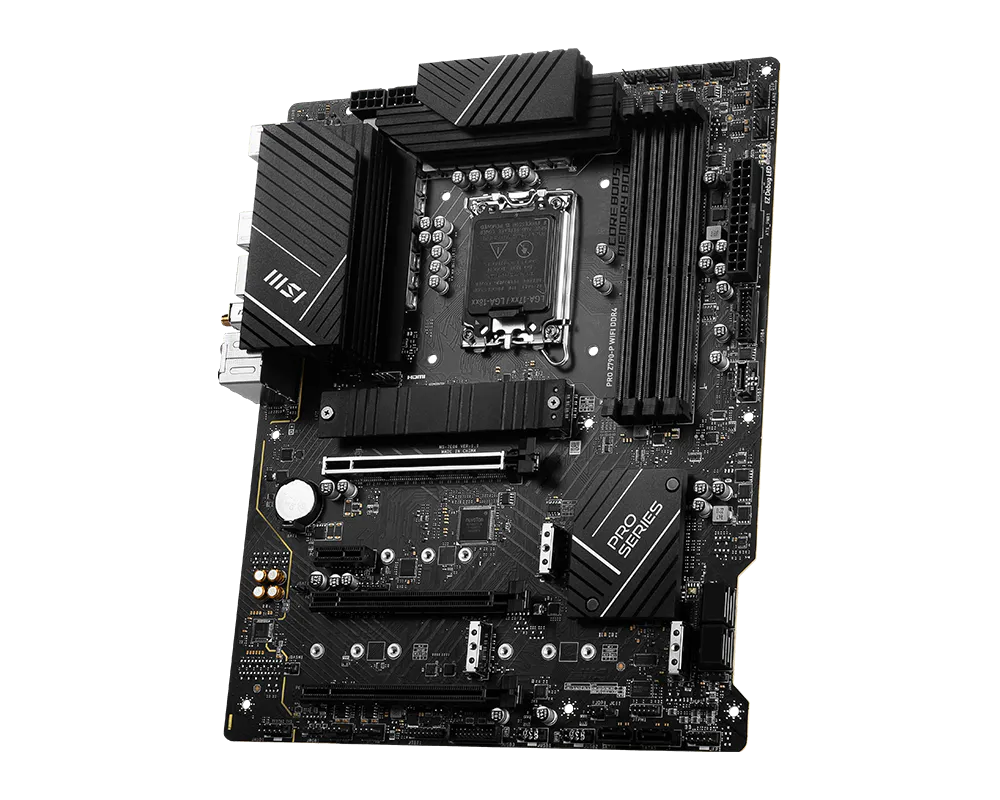

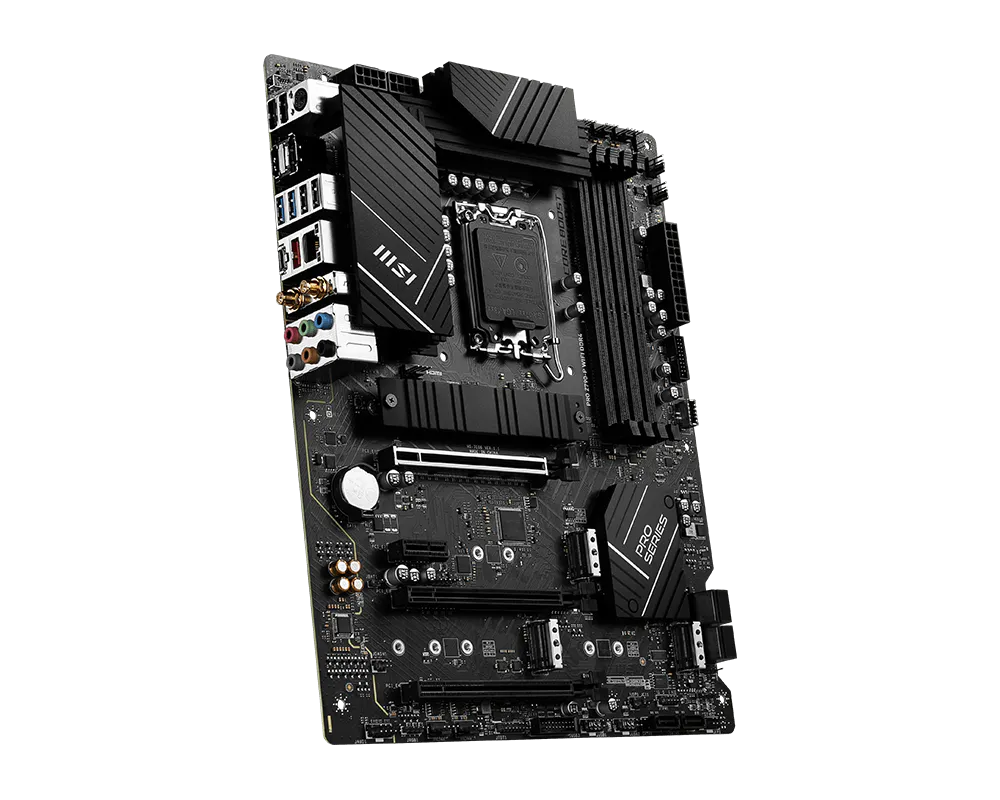

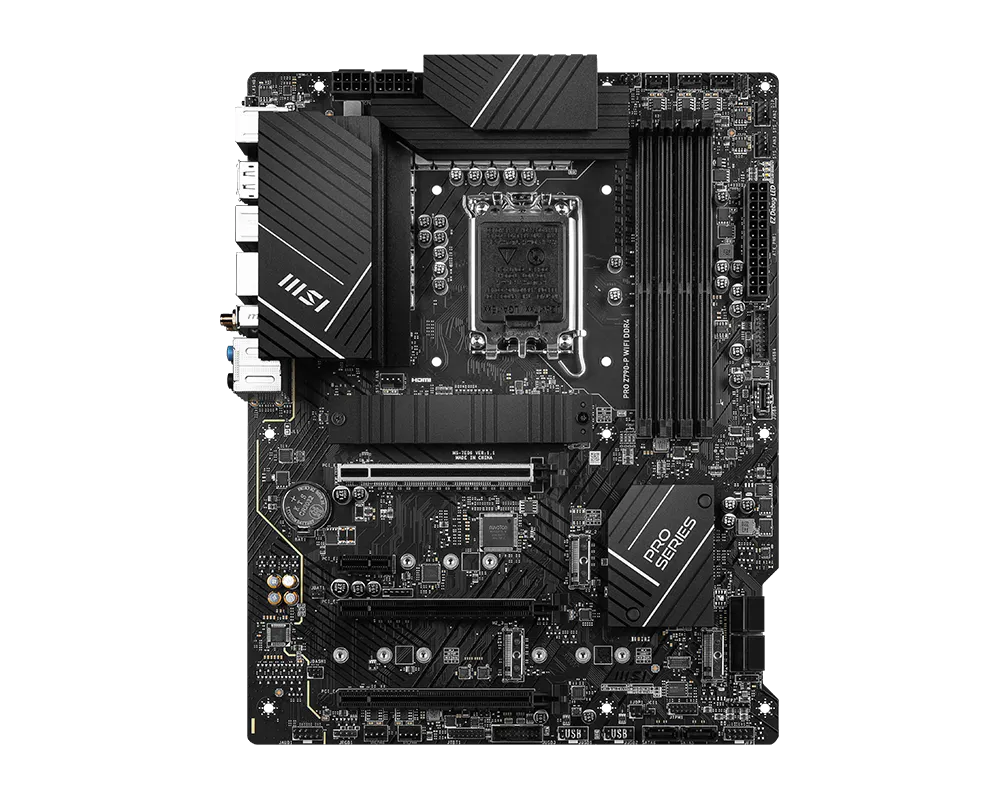

MSI PRO Z790-P WIFI DDR4 Intel Z790 ATX Motherboard — LGA1700 | DDR4 | PCIe 5.0 | Wi-Fi 6E | Intel 2.5GbE | USB 20Gbps | Business PRO Series

The MSI PRO Z790-P WIFI DDR4 is built for business professionals, content creators, overclockers, and power users who want full Z790 K-series CPU overclocking capability, PCIe 5.0 GPU support, and enterprise-grade connectivity features — Wi-Fi 6E, Intel 2.5GbE, and USB 20Gbps — alongside the cost efficiency of DDR4 memory over DDR5. It is ideal for high-performance productivity workstations, professional creative systems, K-series gaming and overclocking builds, and any Intel 12th/13th/14th Gen ATX build where Z790 features and DDR4 memory compatibility are priorities.

The PRO Z790-P WIFI DDR4 features a 14+1+1 Duet Rail Power System with 55A DrMOS power stages, dual 8-pin solid-pin CPU power connectors, Core Boost, Extended Heatsink with 7W/mK MOSFET thermal pads, additional choke thermal pads, and a 6-layer 2oz copper server-grade PCB — providing sustained, stable power delivery for Intel Core 12th through 14th Gen processors including fully unlocked K-series overclocking. Four DDR4 DIMM slots support up to 128GB at DDR4-5333+ (OC) via Intel XMP and MSI Memory Boost across a wide frequency range from JEDEC DDR4-2133 up to DDR4-5333+ OC in 1DPC 1R configuration. The PCIe 5.0 x16 primary GPU slot delivers the latest GPU bandwidth at 128 GB/s for current and next-generation graphics cards. Four PCIe 4.0 x4 M.2 slots — including one CPU-direct 22110-capable M.2_1 with M.2 Shield Frozr, and M.2_3 and M.2_4 supporting both NVMe and SATA modes — alongside 6 SATA 6Gb/s ports with RAID 0/1/5/10 for both SATA and M.2 NVMe provide extensive storage flexibility. Intel Wi-Fi 6E (802.11ax) with MU-MIMO across 2.4/5/6 GHz up to 2.4 Gbps and Bluetooth 5.3 delivers reliable, low-latency wireless. Intel 2.5GbE LAN provides fast, stable wired connectivity 2.5× faster than standard Gigabit. A rear USB 3.2 Gen 2×2 Type-C port at 20 Gbps — powered by Intel's dedicated USB 3.2 Gen 2 Turbo controller for improved stability and speed — provides the fastest USB connectivity available on this board. A dedicated Pump Fan header (3A) supports AIO liquid cooler pumps alongside six system fan headers for comprehensive thermal management. EZ M.2 Clip enables tool-free M.2 SSD installation. Flash BIOS button enables BIOS update without CPU or memory installed. MSI Click BIOS 5 provides Game Boost, XMP, VMD, and Memory Try It!! for straightforward performance tuning.

Form Factor: ATX (304.8 × 243.84mm)
Socket: Intel LGA1700
Chipset: Intel Z790

Memory Slots: 4× DDR4 UDIMM (Dual Channel)
Max Memory: 128GB
Memory Speed: DDR4-5333 (OC) / 5200 / 5066 / 5000 / 4800 / 4600 / 4533 / 4400 / 4266 / 4000 / 3866 / 3733 / 3600 / 3466 / 3333 (OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (JEDEC)
OC Configurations:
1DPC 1R: up to DDR4-5333+ MHz
1DPC 2R: up to DDR4-4800+ MHz
2DPC 1R: up to DDR4-4400+ MHz
2DPC 2R: up to DDR4-4000+ MHz
Intel XMP | Memory Boost

PCIe Slots:
PCI_E1: PCIe 5.0 x16 (CPU) — Steel Armor
PCI_E2: PCIe 3.0 x1 (Chipset)
PCI_E3: PCIe 4.0 x4 (Chipset)
PCI_E4: PCIe 3.0 x1 (Chipset)

M.2 Slots:
M.2_1 (CPU): PCIe 4.0 x4 — 22110/2280/2260/2242 — M.2 Shield Frozr | EZ M.2 Clip
M.2_2 (Chipset): PCIe 4.0 x4 — 2280/2260/2242 — M.2 Shield Frozr | EZ M.2 Clip
M.2_3 (Chipset): PCIe 4.0 x4 / SATA — 2280/2260/2242 — M.2 Shield Frozr | EZ M.2 Clip
M.2_4 (Chipset): PCIe 4.0 x4 / SATA — 2280/2260/2242 — M.2 Shield Frozr | EZ M.2 Clip

SATA: 6× SATA 6Gb/s | RAID 0/1/5/10 (SATA and M.2 NVMe)

VRM: 14+1+1 Duet Rail Power System | 55A DrMOS | Core Boost | Dual 8-pin CPU Power (Solid Pin) | 6-Layer 2oz Copper PCB | Extended Heatsink | 7W/mK Thermal Pads | Pump Fan Support

Onboard Display:
1× HDMI 2.1 (max 4K@60Hz, HDR — iGPU)
1× DisplayPort 1.4 (max 4K@60Hz — iGPU)

Audio: Realtek ALC897 | 7.1-Channel High Definition Audio | Audio Boost | Isolated Audio Signal | High-Quality Audio Capacitors | De-pop Protection

LAN: Intel 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless: Intel Wi-Fi 6E (802.11a/b/g/n/ac/ax) | 2.4/5/6 GHz | 160MHz | up to 2.4 Gbps | MU-MIMO TX/RX | Bluetooth 5.3 (pre-installed M.2 Key-E)

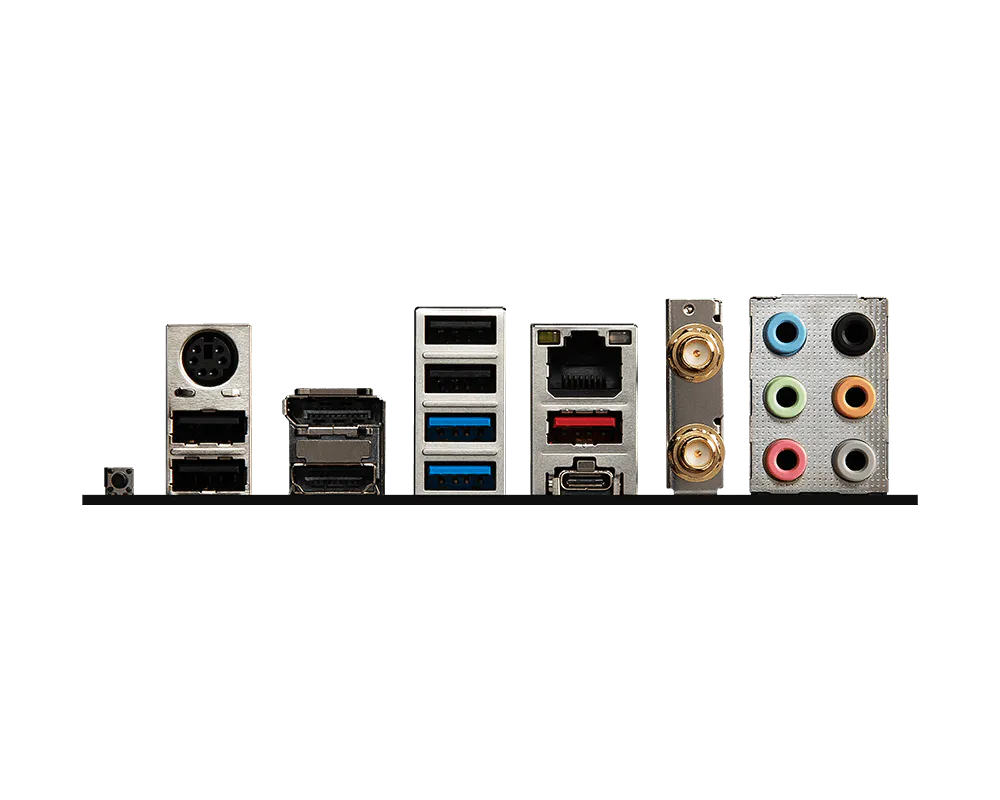

Back Panel USB:
1× USB 3.2 Gen 2×2 Type-C (20 Gbps) — Intel Turbo USB
1× USB 3.2 Gen 2 Type-A (10 Gbps)
2× USB 3.2 Gen 1 Type-A (5 Gbps)
4× USB 2.0 Type-A
1× HDMI 2.1 | 1× DisplayPort 1.4
Intel 2.5GbE | Wi-Fi 6E/BT Antenna | Audio Jacks
Flash BIOS Button | PS/2

Internal USB Headers:
1× USB 10Gbps Type-C (Front)
4× USB 5Gbps Type-A (Front)
4× USB 2.0 (Front)

Internal IO (Other):
2× CPU Power (CPU_PWR 8+8-pin solid pin)
1× ATX 24-pin Main Power
1× CPU Fan | 1× Pump Fan (3A, dedicated) | 6× System Fan
2× Addressable Gen 2 ARGB (JARGB_V2) | 1× RGB (JRGB)
1× Tuning Controller Connector (JDASH)
4× EZ Debug LEDs | 1× TPM Header (TPM 2.0) | 1× Chassis Intrusion (JCI)
2× Front Panel | 1× Front Audio

PCB Dimensions: ATX (304.8 × 243.84mm)
BIOS: AMI UEFI | Click BIOS 5 (EZ + Advanced) | M-Flash | Game Boost | XMP | VMD | Memory Try It!! | Hardware Monitor | Resizable BAR
Software: MSI Center | Driver Utility Installer | AIDA64 Extreme (60-day) | Norton 360 Deluxe (60-day) | Voicemod PRO (30-day) | DigiME (30-day)
OS: Windows 11 / Windows 10 64-bit

System Requirements: LGA1700 CPU (Intel Core 12th/13th/14th Gen, Pentium Gold, or Celeron); DDR4 memory required (DDR5 not supported — choose PRO Z790-P WIFI for DDR5); Intel Z790 chipset fully supports K-series CPU overclocking; BIOS update may be required for 14th Gen CPU support on some revisions; Wi-Fi 6E 6GHz band requires Windows 11; M.2_3 and M.2_4 SATA mode — verify SATA port availability when SATA M.2 SSDs are installed (see manual for port sharing)
Setup: Standard ATX installation; EZ M.2 Clip for tool-free M.2 SSD installation; Flash BIOS button enables BIOS update without CPU, memory, or GPU installed; Pump Fan header for AIO liquid cooler pump control; Tuning Controller connector for MSI dashboard accessory; MSI Driver Utility Installer auto-detects and installs drivers on first Windows boot with internet connection; XMP activation in BIOS for DDR4 OC speeds
Mounting Options: ATX form factor (304.8 × 243.84mm); compatible with standard ATX and full-tower cases
Usage Environment: Ideal for professional workstations, K-series overclocking builds, gaming PCs, content creation systems, and high-performance Intel 12th/13th/14th Gen DDR4 desktop builds requiring PCIe 5.0, Wi-Fi 6E, Intel 2.5GbE, quad M.2 NVMe, USB 20Gbps, and full Z790 overclocking capability
