MSI B760M GAMING PLUS WIFI DDR4 Intel B760 Micro-ATX Motherboard — LGA1700 | DDR4 | PCIe 4.0 | Wi-Fi 6E | 2.5GbE | Mystic Light

The MSI B760M GAMING PLUS WIFI DDR4 is built for gamers, home office users, content creators, and mainstream PC builders who want a feature-rich Intel B760 DDR4 Micro-ATX platform with Wi-Fi 6E and 2.5GbE networking, dual M.2 NVMe with thermal shielding, a strong 12-phase VRM, PCIe 4.0 GPU support, quad display outputs, and Mystic Light RGB ecosystem integration — while maintaining DDR4 memory cost efficiency. Well-suited for Intel 12th, 13th, and 14th Gen Core gaming builds, streaming systems, home office workstations, and multi-monitor setups.

The B760M GAMING PLUS WIFI DDR4 features a 12+1+1 Duet Rail Power System with P-PAK (Power PAK) power stages — 8-pin + 4-pin solid-pin dual CPU power connectors, Core Boost, Extended Heatsink with 7W/mK MOSFET thermal pads, additional choke thermal pads, Heavy Plated VRM Heatsink, and a 6-layer 2oz thickened copper PCB — for stable, sustained power delivery across Intel 12th through 14th Gen processors. Two PCIe 4.0 M.2 slots — M.2_1 (CPU-direct, PCIe 4.0 x4, up to 2280) with M.2 Shield Frozr, and M.2_2 (Chipset, PCIe 4.0 x4 / SATA, up to 2280) with M.2 Shield Frozr — both equipped with EZ M.2 Clip for tool-free installation, alongside 4 SATA 6Gb/s ports with RAID 0/1/5/10 for flexible storage. Four DDR4 DIMM slots support up to 128GB at DDR4-5333+ (OC) in 1DPC 1R configuration via Intel XMP 3.0 with MSI Memory Boost. Dual HDMI 2.1 (max 4K@60Hz) and dual DisplayPort 1.4 (max 4K@60Hz) rear outputs support up to four simultaneous displays via Intel integrated graphics. Intel Wi-Fi 6E (802.11ax) with MU-MIMO across 2.4/5/6 GHz up to 2.4 Gbps and Bluetooth 5.3 provides fast, low-latency wireless. Realtek RTL8125BG 2.5GbE LAN delivers fast wired networking 2.5× over standard Gigabit. Dual USB 10Gbps Type-A rear ports provide high-speed peripheral connectivity. A dedicated Pump Fan header (for AIO liquid cooler pump control) alongside 2 system fan headers enables comprehensive thermal management. Double ESD protection, TVS (Transient Voltage Suppressors), OCP (USB, DDR, PWM IC, CPU), Solid Pin power connectors, and Stainless Steel I/O Shield deliver comprehensive hardware protection. EZ M.2 Clip, EZ Debug LEDs, and MSI Driver Utility Installer complete the DIY-friendly ecosystem.

Form Factor: Micro-ATX (mATX) — 243.84 × 243.84mm
Socket: Intel LGA1700
Chipset: Intel B760

Memory Slots: 4× DDR4 UDIMM (Dual-Controller Dual-Channel)
Max Memory: 128GB
Memory Speed: DDR4-5333 (OC) / 5200 / 5066 / 5000 / 4800 / 4600 / 4400 / 4266 / 4200 / 4000 / 3800 / 3733 / 3600 / 3466 / 3400 / 3333 (OC) / 3200 / 2933 / 2666 / 2400 / 2133 (JEDEC)
OC Configurations:
1DPC 1R: up to DDR4-5333+ MHz
1DPC 2R: up to DDR4-4800+ MHz
2DPC 1R: up to DDR4-4400+ MHz
2DPC 2R: up to DDR4-4000+ MHz
Intel XMP 3.0 | Memory Boost

PCIe Slots:
PCI_E1: PCIe 4.0 x16 (CPU) — Steel Armor
PCI_E2: PCIe 3.0 x1 (Chipset)
PCI_E3: PCIe 4.0 x4 (Chipset)

M.2 Slots:
M.2_1 (CPU): PCIe 4.0 x4 — 2280/2260/2242 — M.2 Shield Frozr | EZ M.2 Clip
M.2_2 (Chipset): PCIe 4.0 x4 / SATA — 2280/2260/2242 — M.2 Shield Frozr | EZ M.2 Clip
Note: SATA8 unavailable when M.2 SATA SSD installed in M.2_2

SATA: 4× SATA 6Gb/s | RAID 0/1/5/10

VRM: 12+1+1 Duet Rail Power System with P-PAK | Core Boost | 8-pin + 4-pin CPU Power (Solid Pin) | Extended Heatsink | 7W/mK Thermal Pads | Heavy Plated VRM Heatsink | 6-Layer 2oz Copper PCB | Pump Fan Support

Onboard Graphics:
2× HDMI 2.1 (max 4K@60Hz — iGPU)
2× DisplayPort 1.4 (max 4K@60Hz — iGPU)

Audio: Realtek ALC897 | 7.1-Channel HD Audio | Audio Boost | Isolated Audio Signal | Isolated Analogy Structure | High-Quality Audio Capacitors | De-pop Protection

LAN: Realtek RTL8125BG 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless: Intel Wi-Fi 6E (802.11a/b/g/n/ac/ax) | 2.4/5/6 GHz | 160MHz | up to 2.4 Gbps | MU-MIMO TX/RX | Bluetooth 5.3 (pre-installed M.2 Key-E)

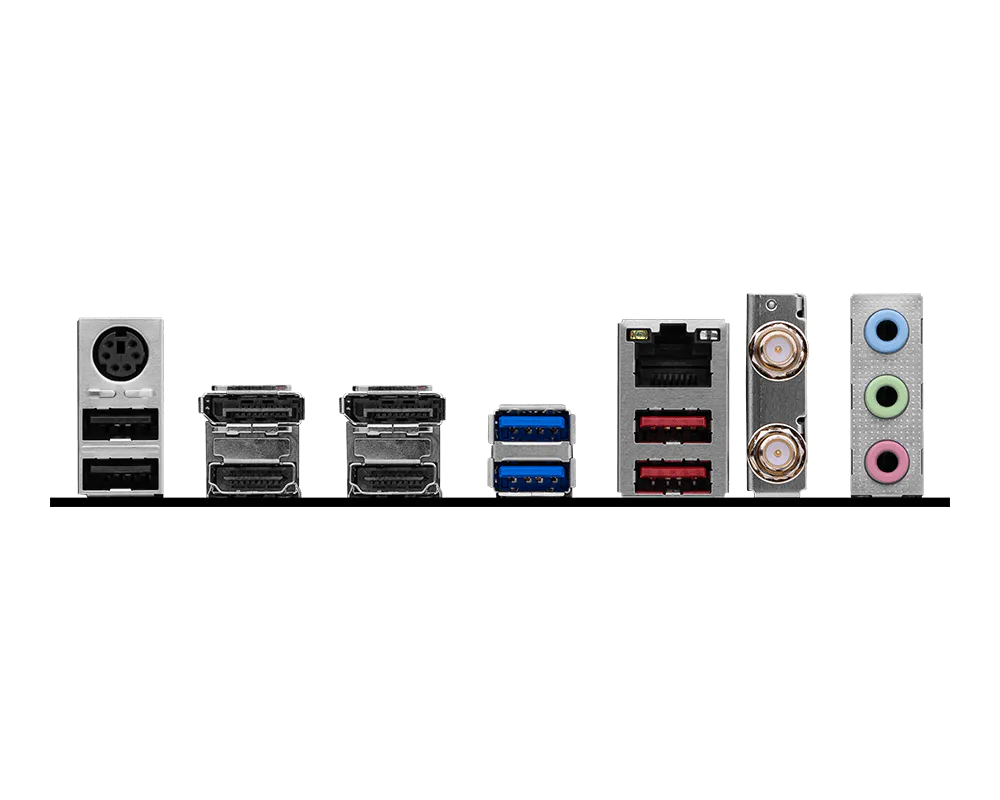

Back Panel USB:
2× USB 10Gbps Type-A (Rear)
2× USB 5Gbps Type-A (Rear)
2× USB 2.0 Type-A (Rear)
2× HDMI 2.1 | 2× DisplayPort 1.4
Realtek 2.5GbE | Wi-Fi 6E/BT Antenna | Audio Jacks | PS/2

Internal USB Headers:
1× USB 5Gbps Type-C (Front)
4× USB 5Gbps Type-A (Front)
4× USB 2.0 (Front)

Internal IO (Other):
2× CPU Power (CPU_PWR 8+8-pin and 4-pin solid pin)
1× ATX 24-pin Main Power
1× CPU Fan | 1× Pump Fan | 2× System Fan
2× Addressable Gen 2 ARGB (JARGB_V2) | 1× RGB (JRGB)
4× EZ Debug LEDs | 1× TPM Header (TPM 2.0) | 1× Chassis Intrusion (JCI) | 1× COM Port (JCOM)
2× Front Panel | 1× Front Audio

PCB Dimensions: Micro-ATX (243.84 × 243.84mm)
BIOS: AMI UEFI | Click BIOS 5 | M-Flash | XMP 3.0 | Memory Try It!! | Hardware Monitor | Resizable BAR
Protection: OCP (USB, DDR, PWM IC, CPU) | TVS | Double ESD | Steel Armor PCIe | Stainless Steel I/O | Solid Pin Power Connectors | Grounding Structure
Software: MSI Center (Frozr AI Cooling, Mystic Light, Memory Boost, Core Boost) | AIDA64 Extreme (60-day) | Norton 360 Deluxe (60-day) | Voicemod PRO (30-day) | DigiME (30-day)
OS: Windows 11 / Windows 10 64-bit

System Requirements: LGA1700 CPU (Intel Core 12th/13th/14th Gen, Pentium Gold, or Celeron); DDR4 memory required (DDR5 not supported — choose B760M GAMING PLUS WIFI for DDR5 support); Intel B760 chipset does not support CPU overclocking — K-series multiplier is locked; BIOS update may be required for 14th Gen CPU support; Wi-Fi 6E 6GHz band requires Windows 11; Bluetooth 5.3 requires Windows 10 Build 21H1 or Windows 11; quad display output requires integrated graphics-capable CPU (non-F series); SATA8 unavailable when SATA M.2 SSD installed in M.2_2 slot

Setup: Standard Micro-ATX installation; EZ M.2 Clip for tool-free M.2 SSD installation; MSI Driver Utility Installer auto-detects and installs drivers on first internet-connected boot; XMP 3.0 activation in BIOS for rated DDR4 OC speeds; Pump Fan header for AIO cooler pump control; Mystic Light and Frozr AI Cooling configurable via MSI Center

Mounting Options: Micro-ATX form factor (243.84 × 243.84mm); compatible with Micro-ATX and full-size ATX cases

Usage Environment: Ideal for gaming PCs, streaming and content creation systems, home office workstations, multi-monitor setups, and mainstream Intel 12th/13th/14th Gen DDR4 builds requiring Wi-Fi 6E, 2.5GbE, dual M.2 NVMe, PCIe 4.0, quad display outputs, and Mystic Light RGB in a compact Micro-ATX form factor
