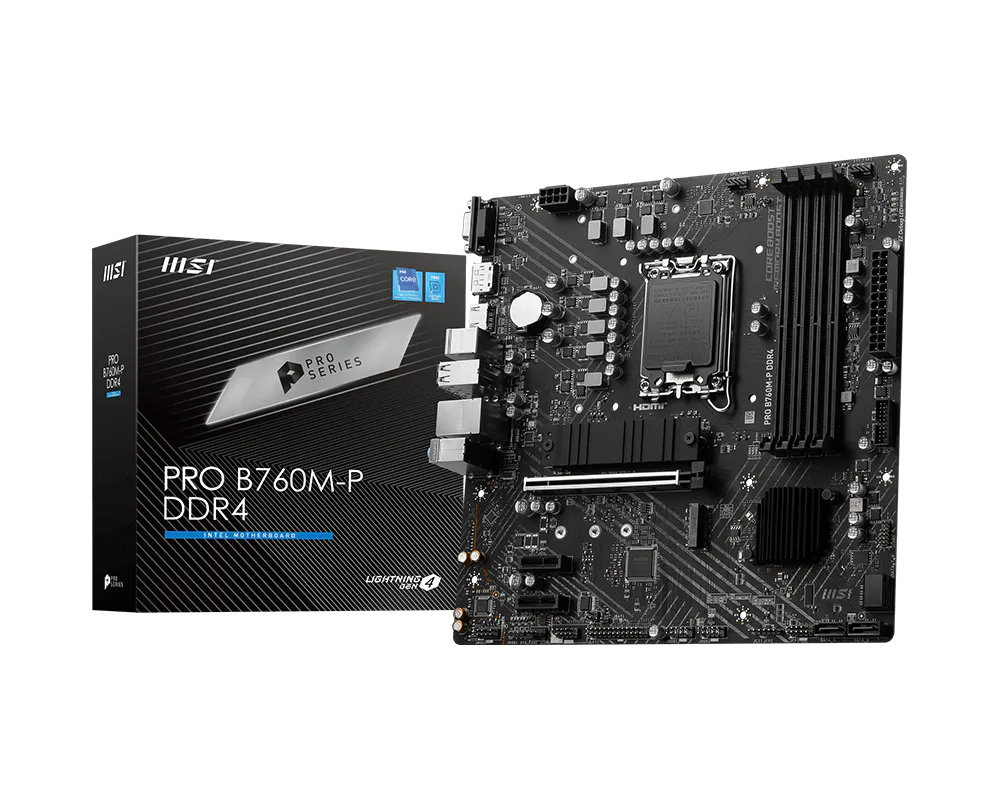

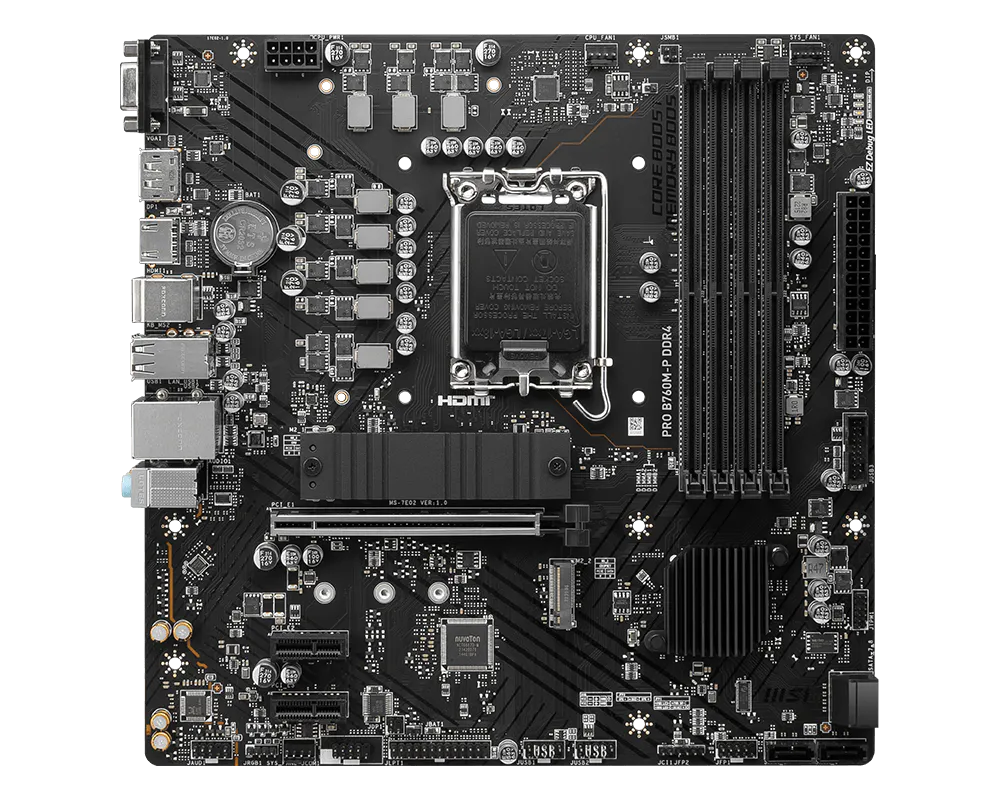

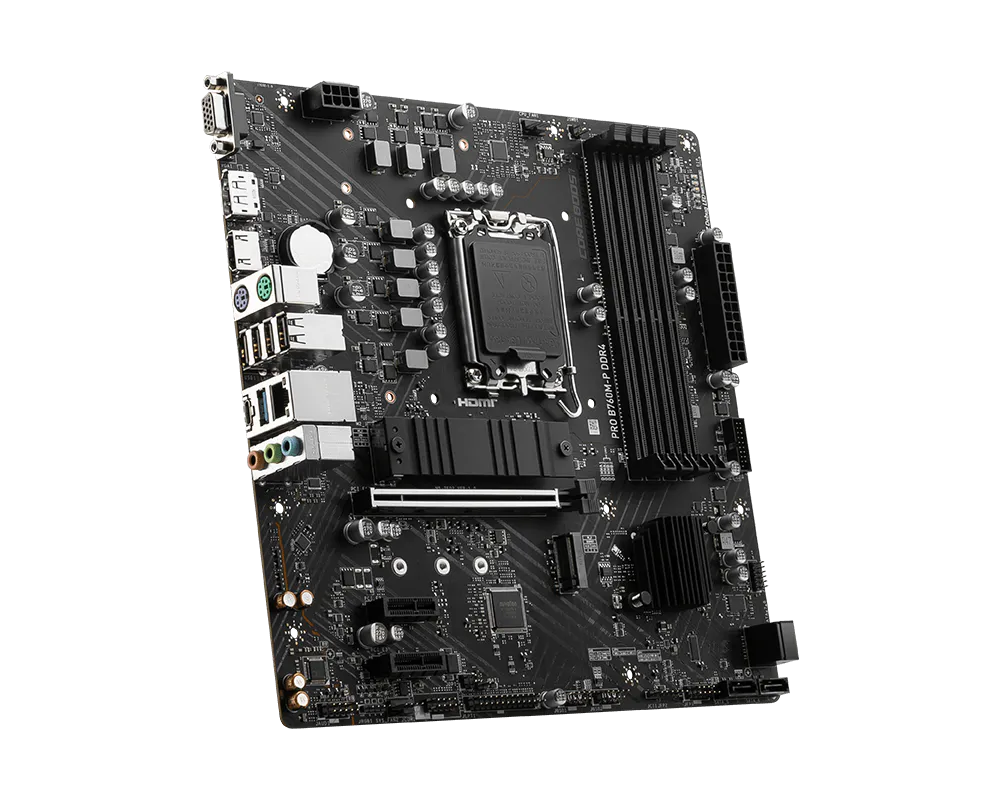

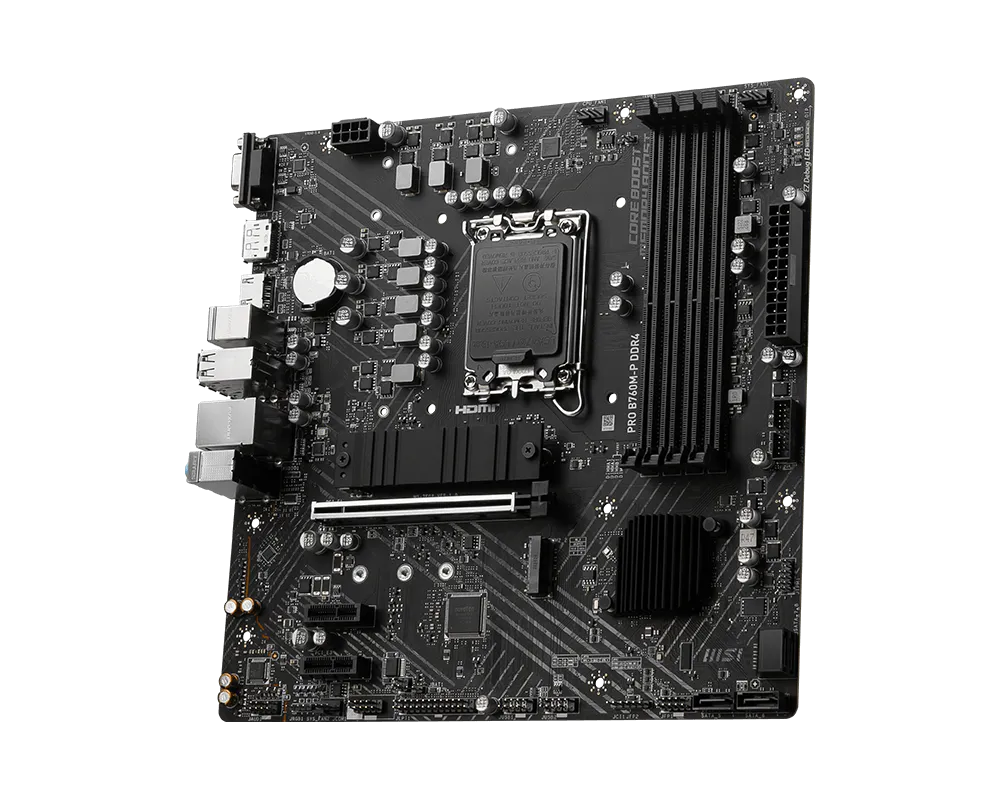

MSI PRO B760M-P DDR4 Intel B760 Micro-ATX Motherboard — LGA1700 | DDR4 | PCIe 4.0 | Triple Display | Business PRO Series

The MSI PRO B760M-P DDR4 is built for business professionals, office PC assemblers, system integrators, and mainstream builders who want a stable, well-featured Intel B760 DDR4 Micro-ATX platform for everyday productivity, office computing, multi-display workstation setups, and mainstream home and business desktop builds. The triple rear display output — HDMI, DisplayPort, and VGA simultaneously — makes it particularly suitable for multi-monitor office workstations, point-of-sale systems, reception desks, and any professional environment needing three simultaneous displays without a discrete GPU.

The PRO B760M-P DDR4 features MSI Core Boost VRM technology with premium layout and digital power design for stable, clean CPU power delivery to Intel 12th through 14th Gen processors under all workloads. Four DDR4 DIMM slots support up to 128GB at DDR4-4800+ (OC) via Intel XMP and MSI Memory Boost technology for optimised memory stability and performance. A PCIe 4.0 x16 Steel Armor reinforced primary GPU slot provides secure, reinforced support for modern discrete graphics cards. Two PCIe 4.0 M.2 slots — M.2_1 (CPU-direct, PCIe 4.0 x4, up to 2280, with M.2 Shield Frozr) and M.2_2 (Chipset, PCIe 4.0 x4 / SATA, up to 2280) — accommodate fast primary and secondary NVMe SSDs alongside 4 SATA 6Gb/s ports for flexible storage. Three rear display outputs — HDMI 1.4 (4K@30Hz), DisplayPort 1.4 (4K@60Hz), and VGA (up to 1920×1200@60Hz) — support up to three simultaneous monitors driven by Intel integrated graphics-capable processors, covering modern and legacy display connectivity simultaneously. Realtek RTL8111H Gigabit LAN delivers reliable wired networking. Realtek ALC897 Audio Boost delivers 7.1-channel HD audio with isolated audio PCB, high-quality capacitors, and de-pop protection. A rear USB 3.2 Gen 2 10Gbps Type-C port provides fast connectivity for modern peripherals and storage devices. EZ M.2 Clip enables tool-free M.2 SSD installation. MSI Click BIOS 5 includes XMP, VMD, Memory Try It!!, Hardware Monitor, and M-Flash for convenient system management. Resizable BAR support maximises GPU performance on compatible configurations. Double ESD protection safeguards the board against static discharge.

Form Factor: Micro-ATX (mATX) — 243.84 × 243.84mm
Socket: Intel LGA1700
Chipset: Intel B760

Memory Slots: 4× DDR4 DIMM (Dual Channel)
Max Memory: 128GB
Memory Speed: DDR4-4800 (OC) / 4600 / 4400 / 4266 / 4200 / 4000 / 3800 / 3733 / 3600 / 3466 / 3400 / 3333 / 3200 (JEDEC) / 2933 / 2666 / 2400 / 2133 MHz
OC Configurations:
1DPC 1R: up to DDR4-4800+ MHz
1DPC 2R: up to DDR4-4600+ MHz
2DPC 1R: up to DDR4-4400+ MHz
2DPC 2R: up to DDR4-4000+ MHz
Memory Type: Non-ECC Unbuffered DDR4 | Intel XMP supported

PCIe Slots:
PCI_E1: PCIe 4.0 x16 (CPU) — Steel Armor
PCI_E2: PCIe 4.0 x1 (Chipset)
PCI_E3: PCIe 4.0 x1 (Chipset)

M.2 Slots:
M.2_1 (CPU): PCIe 4.0 x4, supports 2280/2260/2242 — M.2 Shield Frozr | EZ M.2 Clip
M.2_2 (Chipset): PCIe 4.0 x4 / SATA, supports 2280/2260/2242 (SATA5 unavailable when SATA M.2 installed)

SATA: 4× SATA 6Gb/s | RAID 0/1/5/10

Onboard Display:
1× HDMI 1.4 (max 4K@30Hz — iGPU)
1× DisplayPort 1.4 (max 4K@60Hz — iGPU)
1× VGA (max 2048×1536@50Hz / 1920×1200@60Hz — iGPU)

Audio: Realtek ALC897 | 7.1-Channel High Definition Audio | Audio Boost | Isolated Audio Signal | High-Quality Audio Capacitors | De-pop Protection

LAN: Realtek RTL8111H Gigabit (1 Gbps / 100 Mbps / 10 Mbps)
Wireless: None (no built-in Wi-Fi)

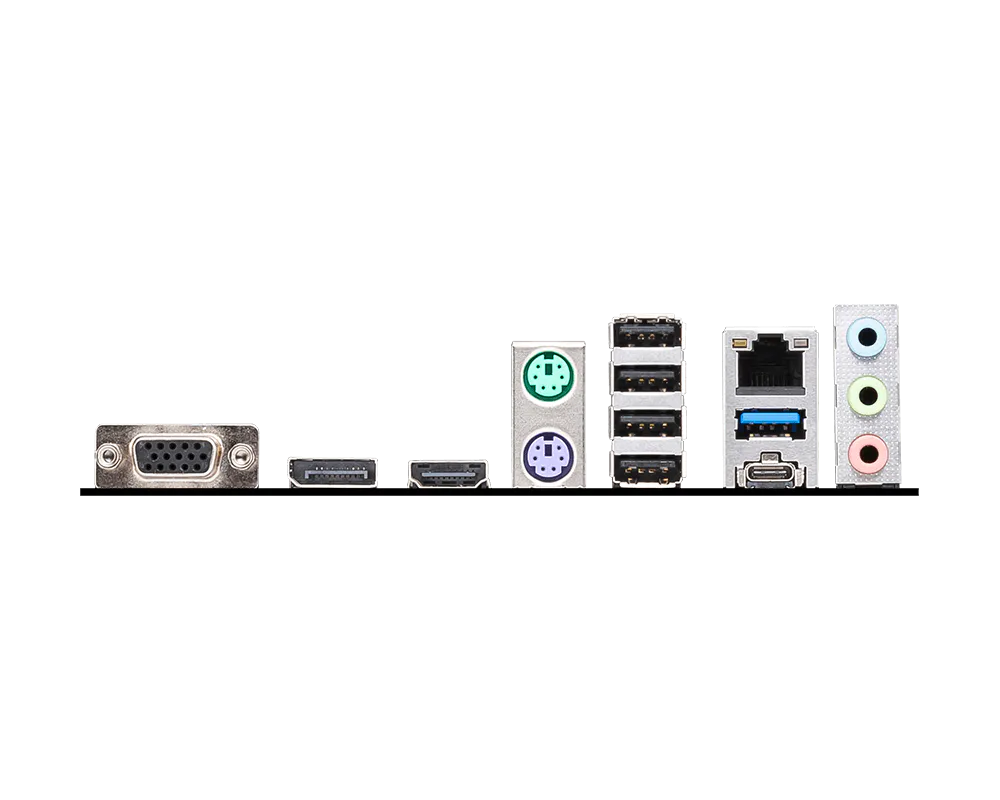

Back Panel USB:
1× USB 3.2 Gen 2 Type-C (10 Gbps)
1× USB 3.2 Gen 1 Type-A (5 Gbps)
4× USB 2.0 Type-A
1× HDMI 1.4 | 1× DisplayPort 1.4 | 1× VGA
1× Gigabit LAN
3× Audio Jacks
1× PS/2 (Keyboard/Mouse)

Internal Headers:
2× USB 5Gbps Type-A (Front)
4× USB 2.0 (Front)
1× CPU Fan | 2× System Fan
1× RGB LED (JRGB — 12V 4-pin)
4× EZ Debug LEDs (CPU / DRAM / VGA / BOOT)
1× ATX 24-pin Main Power | 1× 8-pin CPU Power
1× Front Panel Audio (JAUD)
1× COM Port (JCOM) | 1× Printer Port (JLPT)
1× TPM Header (TPM 2.0) | 1× Chassis Intrusion (JCI)

BIOS: AMI UEFI | Click BIOS 5 (EZ Mode + Advanced) | M-Flash | XMP | VMD | Memory Try It!! | Hardware Monitor | Secure Boot | Resizable BAR
Software: MSI Center | Driver Utility Installer | AIDA64 Extreme (60-day) | Voicemod PRO (30-day) | DigiME (30-day)
OS: Windows 11 / Windows 10 64-bit

System Requirements: LGA1700 CPU (Intel Core 12th/13th/14th Gen, Pentium Gold, or Celeron); DDR4 memory required (DDR5 not supported); Intel B760 chipset does not support CPU overclocking — K-series multiplier is locked; BIOS update may be required for 14th Gen support; triple display output (HDMI + DP + VGA) requires an Intel integrated graphics-capable CPU (non-F series); no Wi-Fi built-in — use USB Wi-Fi adapter or PCIe Wi-Fi card if wireless is required

Setup: Standard Micro-ATX installation; EZ M.2 Clip for tool-free M.2 SSD installation; MSI Driver Utility Installer auto-detects and installs drivers on first internet-connected Windows boot; XMP activation in BIOS for rated DDR4 OC speeds; M.2 Shield Frozr on M.2_1 for primary NVMe SSD thermal protection

Mounting Options: Micro-ATX form factor (243.84 × 243.84mm); compatible with Micro-ATX and full-size ATX cases

Usage Environment: Ideal for business office workstations, multi-monitor productivity desktops, mainstream home computing builds, point-of-sale systems, and any Intel 12th/13th/14th Gen DDR4 system requiring triple simultaneous display output, dual M.2 NVMe, and business-grade PRO Series stability
