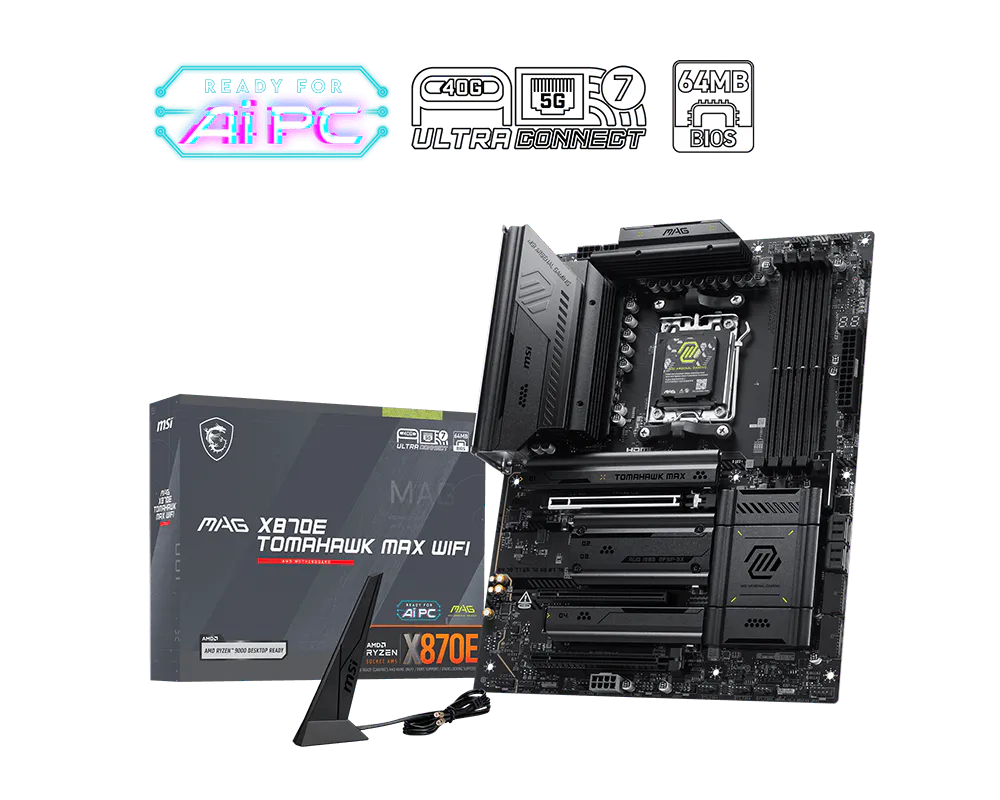

MSI MAG X870E TOMAHAWK MAX WIFI AMD X870E ATX Motherboard — AM5 | DDR5 | PCIe 5.0 | Wi-Fi 7 | 5G LAN | USB 40Gbps | AI PC Ready

The MSI MAG X870E TOMAHAWK MAX WIFI is built for enthusiast gamers, content creators, AI PC builders, and performance-focused system integrators deploying AMD Ryzen 9000, 8000, or 7000 Series processors who want the full X870E feature set — PCIe 5.0 GPU and NVMe, Wi-Fi 7, 5G LAN, USB4, comprehensive memory overclocking with AMD EXPO, and a robust 14-phase VRM — alongside MSI's industry-leading EZ DIY accessibility for a smooth, screwdriver-free build experience. Well-suited for 4K and 8K gaming rigs, rendering and AI workstations, streaming PCs, and future-ready platform builds.

The MAG X870E TOMAHAWK MAX WIFI is powered by a 14+2+1 Duet Rail Power System with 80A Smart Power Stage MOSFETs, dual 8-pin CPU power solid-pin connectors, Core Boost, Extended Heatsink with 7W/mK thermal pads, Heavy Plated VRM Heatsink, additional choke thermal pads, and an 8-layer 2oz copper server-grade PCB — delivering sustained clean power delivery for Ryzen 9000 Series processors at stock and overclocked operation. OC Engine provides a dedicated independent BCLK control chip enabling asynchronous Base Clock adjustments for up to 15% additional gaming performance gains without destabilising memory, PCIe, or NVMe subsystems. Four DDR5 DIMM slots support up to 256GB at DDR5-8400+ (OC) via AMD EXPO and A-XMP profiles with Latency Killer for up to 12% memory latency reduction, High-Efficiency Mode, and Memory Try It!! for automated timings. Two PCIe 5.0 x4 CPU-direct M.2 slots support NVMe Gen 5 SSDs at 128 Gbps each alongside two PCIe 4.0 x4 chipset M.2 slots — all with EZ M.2 Shield Frozr II for thermal protection and EZ M.2 Clip II for tool-free SSD installation. The PCIe 5.0 x16 GPU slot with Steel Armor II reinforcement and PCIe Supplemental Power connector delivers full-bandwidth ATX 3.1 and PCIe 5.1-ready GPU support for the highest-TDP current and next-generation graphics cards. Wi-Fi 7 (802.11be) with MU-MIMO across 2.4/5/6 GHz up to 5.8 Gbps and Bluetooth 5.4 provides the fastest available wireless connectivity, while Realtek RTL8126 5G LAN ensures ultra-fast, low-latency wired networking with AI LAN Manager traffic prioritisation. Two USB4 40Gbps Type-C ports on the rear panel provide the fastest USB connectivity for external SSDs, docking stations, and displays, complemented by front USB 20Gbps Type-C with 27W PD Super Charger+ for fast charging PD-compatible devices. Realtek ALC4080 Audio Boost 5 delivers 7.1-channel USB HD audio at up to 32-bit/384kHz with dedicated headphone amplifier, isolated audio PCB, and Isolated Analogy Structure for clean, professional audio. MSI's full EZ DIY suite — EZ M.2 Clip II, EZ PCIe Release, EZ Antenna with magnetic stand, Flash BIOS button, Clear CMOS button, Pre-installed I/O Shield, EZ Conn header, EZ Mounting, EZ Debug LED, EZ Digi-Debug LED, EZ Memory Detection LED, and colour-coded headers — minimises build friction at every step.

Form Factor: ATX (304.8 × 243.84mm)
Socket: AM5
Chipset: AMD X870E

Memory Slots: 4× DDR5 UDIMM (Dual Channel)
Max Memory: 256GB
Memory Speed: DDR5-8400+ (OC) / 5600–4800 (JEDEC)
Memory Configurations:
1DPC 1R: up to DDR5-8400+ MT/s
1DPC 2R: up to DDR5-6400+ MT/s
2DPC 1R: up to DDR5-6400+ MT/s
2DPC 2R: up to DDR5-6400+ MT/s
Supported: AMD EXPO / A-XMP / Non-ECC Unbuffered / CUDIMM (Clock Driver bypass only)

PCIe Slots:
PCI_E1: PCIe 5.0 x16 (CPU — Ryzen 9000/7000) / PCIe 4.0 x8 (Ryzen 8700/8600/8400) / PCIe 4.0 x4 (Ryzen 8500/8300)
PCI_E2: PCIe 3.0 x1 (Chipset)
PCI_E3: PCIe 4.0 x4 (Chipset)

M.2 Slots:
M.2_1 (CPU): PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000) — 22110/2280 — EZ M.2 Shield Frozr II
M.2_2 (CPU): PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8700/8600/8400) — 2280/2260 — EZ M.2 Shield Frozr II (unavailable with Ryzen 8500/8300)
M.2_3 (Chipset): PCIe 4.0 x4 — 2280/2260 — EZ M.2 Shield Frozr
M.2_4 (Chipset): PCIe 4.0 x4 — 2280/2260 — EZ M.2 Shield Frozr

SATA: 4× SATA 6Gb/s
RAID: SATA (0/1/10) | M.2 NVMe (0/1/5*/10) *RAID 5 = Ryzen 9000 only

VRM: 14+2+1 Duet Rail Power System | 80A SPS | Core Boost | Dual 8-pin CPU Power (Solid Pin) | OC Engine | 8-Layer 2oz Copper PCB

Onboard Graphics:
1× HDMI 2.1 FRL (8K@60Hz via iGPU)
2× USB Type-C DisplayPort (USB4 port, DP 1.4 HBR3, 4K@60Hz via iGPU)

Audio: Realtek ALC4080 | 7.1-Channel USB HD Audio | 32-bit/384kHz | Dedicated Headphone Amplifier | Isolated Audio PCB | S/PDIF Optical Out | Isolated Analogy Structure

LAN: Realtek RTL8126 5G LAN (5G/2.5G/1G/100M)
Wireless: Wi-Fi 7 (802.11a/b/g/n/ac/ax/be) | 2.4/5/6 GHz | 320MHz | up to 5.8 Gbps | MU-MIMO TX/RX | MLO | 4KQAM | Bluetooth 5.4 (pre-installed M.2 Key-E)

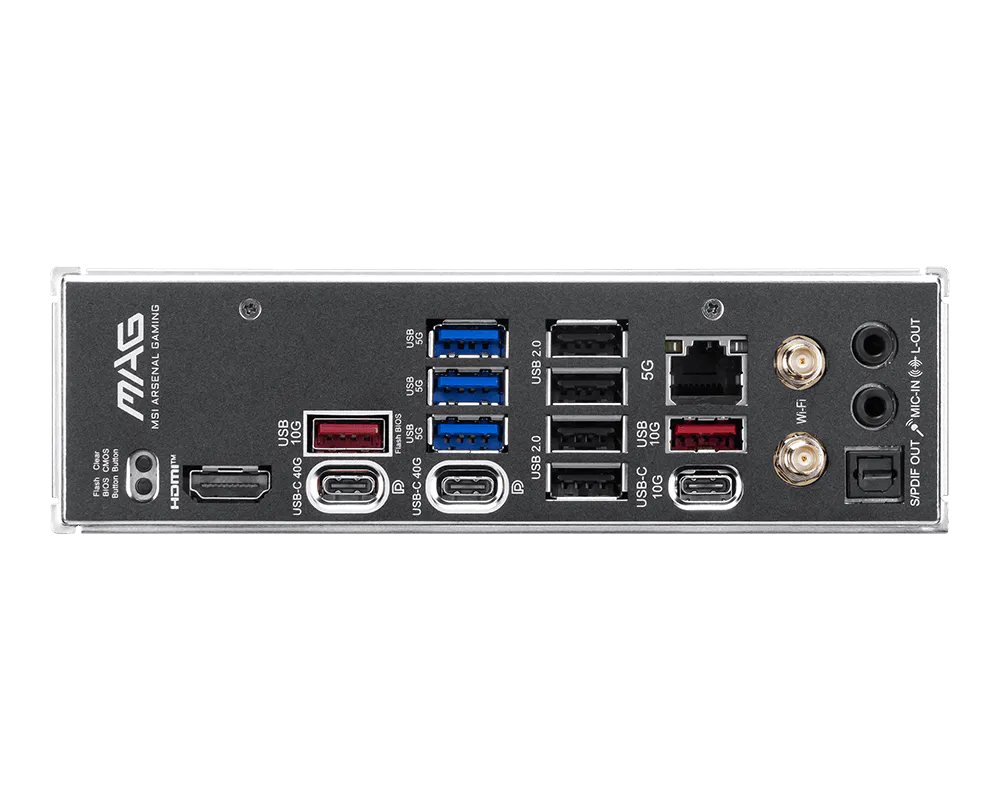

Back Panel USB:
2× USB 40Gbps Type-C (USB4)
1× USB 10Gbps Type-C
2× USB 10Gbps Type-A
3× USB 5Gbps Type-A
4× USB 2.0 Type-A
Optical S/PDIF Out | HDMI 2.1 | 5G LAN | Wi-Fi/BT Antenna | Audio Jacks
Flash BIOS Button | Clear CMOS Button

Internal USB Headers:
1× USB 20Gbps Type-C (Front)
4× USB 5Gbps Type-A (Front)
4× USB 2.0 (Front)

Internal IO (Other):
2× CPU Power (CPU_PWR 8+8-pin solid pin)
1× ATX 24-pin Main Power
1× PCIe Supplemental Power (8-pin)
1× CPU Fan | 1× Combo Fan (Pump/Sys) | 6× System Fan
1× EZ Conn Header (JAF_2)
3× Addressable Gen 2 ARGB (JARGB_V2) | 1× RGB (JRGB)
2× Direct OC Jumper (JBCLK)
1× TPM Header (TPM 2.0)
4× EZ Debug LED | 1× EZ Digit Debug LED | 1× EZ Memory Detection LED
2× Front Panel | 1× Front Audio | 1× Chassis Intrusion

PCB Dimensions: ATX (304.8 × 243.84mm)
BIOS: 64MB ROM | Click BIOS X | M-Flash | Game Boost | AI Boost | EXPO/A-XMP
Software: MSI Center (AI Engine, Mystic Light, Frozr AI Cooling, AI LAN Manager, Cooling Wizard, Hardware Monitor, User Scenario) | AIDA64 Extreme (60-day) | Norton 360 Deluxe (60-day) | Voicemod PRO (30-day) | DigiME (30-day)
OS: Windows 11 64-bit

System Requirements: AMD AM5 CPU (Ryzen 9000 / 8000 / 7000 Series); DDR5 memory required (DDR4 not supported); verify memory QVL on MSI's website for OC compatibility; BIOS update may be required for future CPU support; PCIe 5.0 x16 GPU slot and PCIe 5.0 M.2 speeds (M.2_1 and M.2_2) available on Ryzen 9000/7000 Series — Ryzen 8000 Series limited to PCIe 4.0 on CPU lanes; Wi-Fi 7 6GHz band requires Windows 11 version 24H2; Bluetooth 5.4 requires Windows 11 version 24H2; USB4 40Gbps Type-C rear ports share PCIe 5.0 x4 bandwidth with M.2_2 — both switch to PCIe 5.0 x2 when M.2_2 is occupied (can switch to x4 in BIOS, disabling USB4 rear ports); CUDIMM support available in Clock Driver bypass mode only; PCIe Supplemental Power requires compatible case with pass-through power connector

Setup: Standard ATX installation; Flash BIOS button enables BIOS update without CPU, memory, or GPU; Clear CMOS button for factory BIOS reset; EZ M.2 Clip II enables tool-free M.2 SSD installation; EZ PCIe Release for tool-free GPU removal; EZ Antenna attaches without rotation; Pre-installed I/O Shield for simplified rear panel setup; MSI Driver Utility Installer auto-detects and installs drivers on first internet-connected Windows 11 boot

Mounting Options: ATX form factor (304.8 × 243.84mm); compatible with standard ATX and full-tower cases

Usage Environment: Ideal for enthusiast AMD Ryzen 9000/8000/7000 gaming PCs, AI PC builds, content creation workstations, 4K/8K gaming rigs, streaming systems, and demanding AMD AM5 desktop builds requiring PCIe 5.0, Wi-Fi 7, 5G LAN, USB4, quad M.2 NVMe, and a flagship-grade 14-phase VRM
