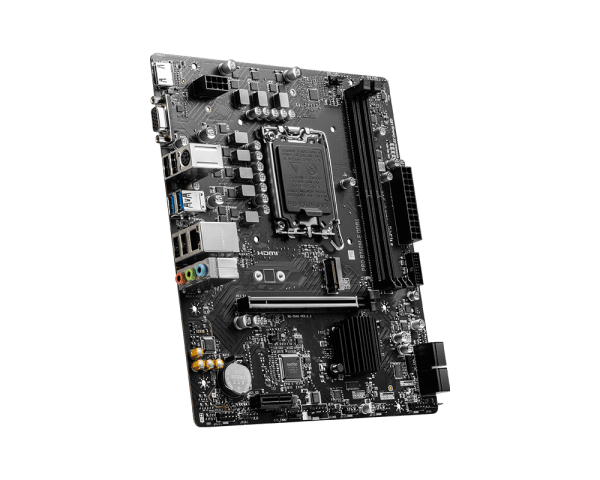

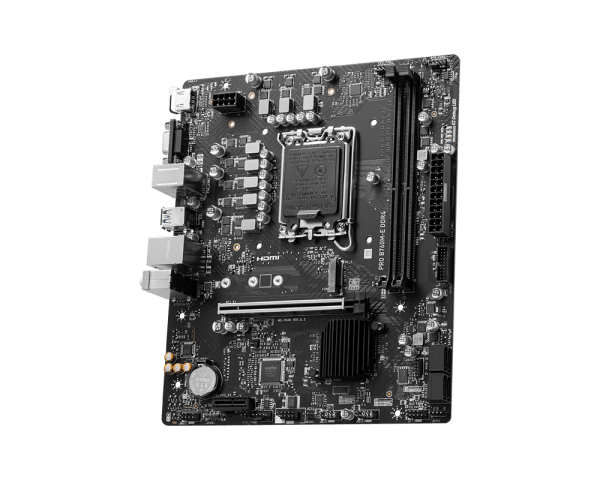

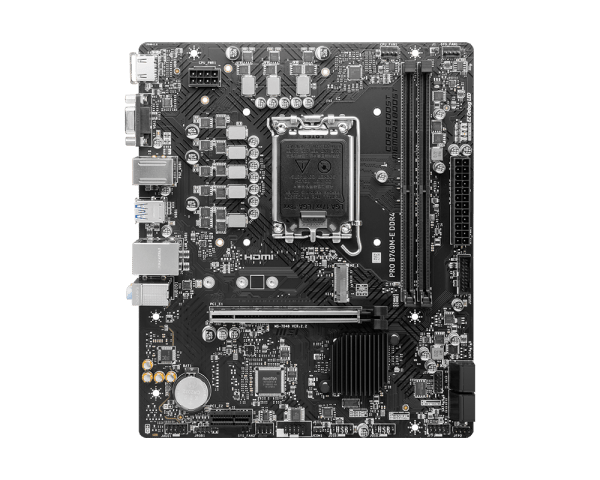

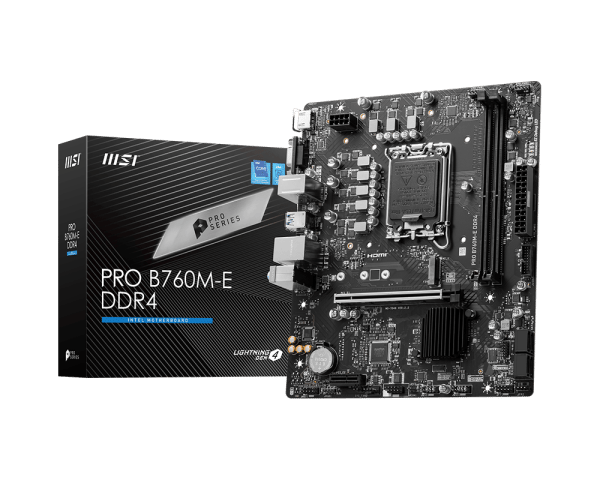

MSI Pro B760M-E DDR4 Motherboard

The MSI PRO B760M-E DDR4 is built for budget-conscious home users, office PC assemblers, small business system integrators, and students who need the most affordable Intel B760 DDR4 Micro-ATX platform for everyday productivity, web browsing, document work, video streaming, and basic computing. It is well-suited for office workstations, home computing builds, point-of-sale systems, compact budget builds, and any Intel 12th/13th/14th Gen LGA1700 system where minimal cost and essential functionality are the only requirements.

The PRO B760M-E DDR4 uses a compact 200×236.16mm Micro-ATX PCB — smaller than standard 244mm mATX — making it one of MSI's most compact Intel B760 DDR4 offerings, suitable for slim and small form factor cases that may not fit a full-size 244mm Micro-ATX board. The single PCIe 4.0 x16 CPU-direct GPU slot with Steel Armor reinforcement supports all modern discrete graphics cards at full PCIe 4.0 bandwidth with extra solder points for structural security. One chipset M.2 slot supporting PCIe 4.0 x4 / SATA modes up to 2280 provides NVMe or SATA M.2 SSD primary storage alongside 4 SATA 6Gb/s ports for comprehensive storage expansion. Two DDR4 DIMM slots with Intel XMP and MSI Memory Boost support up to 64GB at DDR4-4800+ (OC) for responsive everyday multitasking. HDMI 1.4 (4K@30Hz) and VGA dual rear display outputs support both modern HDMI and legacy VGA monitors without requiring additional adapters — ideal for office environments with legacy displays. Realtek RTL8111H Gigabit LAN provides reliable wired network connectivity. Realtek ALC897 Audio Boost delivers 7.1-channel HD audio with isolated audio signal, high-quality capacitors, and de-pop protection. Core Boost and Memory Boost optimise power delivery and memory stability for consistent performance. EZ Debug LEDs provide POST diagnostic feedback. MSI Click BIOS 5 includes XMP, VMD, M-Flash, Hardware Monitor, Resizable BAR, Secure Boot, and Memory Try It!! for straightforward system management. A single 8-pin CPU power connector keeps the power design efficient for the B760 chipset's non-overclocking platform.

Form Factor: Micro-ATX (mATX) — 200 × 236.16mm
Socket: Intel LGA1700
Chipset: Intel B760

Memory Slots: 2× DDR4 DIMM (Dual Channel)
Max Memory: 64GB
Memory Speed: DDR4-4800 (OC) / 4600 / 4400 / 4266 / 4200 / 4000 / 3800 / 3733 / 3600 / 3466 / 3400 / 3333 (OC) / 3200 / 2933 / 2666 / 2400 / 2133 (JEDEC)
OC Configurations:
1DPC 1R: up to DDR4-4800+ MHz
1DPC 2R: up to DDR4-4600+ MHz
Intel XMP | Memory Boost

PCIe Slots:
PCI_E1: PCIe 4.0 x16 (CPU) — Steel Armor
PCI_E2: PCIe 3.0 x1 (Chipset)

M.2 Slots:
M.2_1 (Chipset): PCIe 4.0 x4 / SATA — 2280/2260/2242
Note: SATA5 unavailable when SATA M.2 SSD installed in M.2_1

SATA: 4× SATA 6Gb/s | RAID 0/1/5/10

VRM: Core Boost | 1× 8-pin CPU Power | Digital Power Design

Onboard Display:
1× HDMI 1.4 (max 4K@30Hz, HDR — iGPU)
1× VGA (max 2048×1536@50Hz / 1920×1200@60Hz — iGPU)

Audio: Realtek ALC897 | 7.1-Channel HD Audio | Audio Boost | Isolated Audio Signal | High-Quality Audio Capacitors | De-pop Protection

LAN: Realtek RTL8111H Gigabit (1 Gbps / 100 Mbps / 10 Mbps)
Wireless: None (no built-in Wi-Fi)

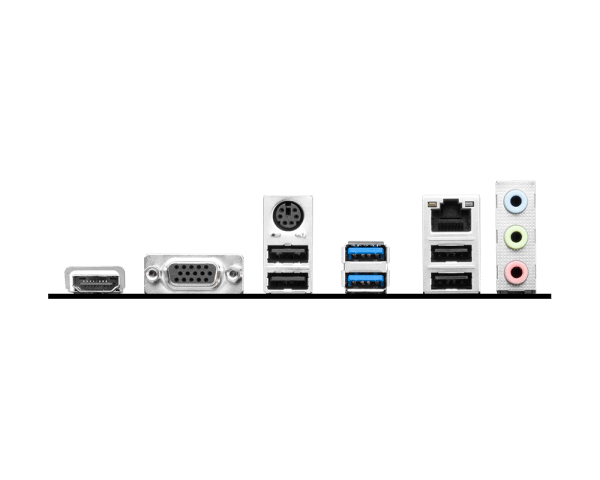

Back Panel USB:
2× USB 5Gbps Type-A (Rear)
4× USB 2.0 Type-A (Rear)
1× HDMI 1.4 | 1× VGA
Gigabit LAN | Audio Jacks | PS/2

Internal USB Headers:
2× USB 5Gbps Type-A (Front)
4× USB 2.0 (Front)

Internal IO (Other):
1× CPU Power (CPU_PWR 8-pin)
1× ATX 24-pin Main Power
1× CPU Fan | 2× System Fan
1× RGB LED (JRGB — 12V 4-pin)
4× EZ Debug LEDs | 1× TPM Header (TPM 2.0) | 1× Chassis Intrusion (JCI) | 1× COM Port (JCOM)
2× Front Panel | 1× Front Audio

PCB Dimensions: Micro-ATX (200 × 236.16mm)
BIOS: AMI UEFI | Click BIOS 5 (EZ + Advanced) | M-Flash | XMP | VMD | Memory Try It!! | Hardware Monitor | Resizable BAR | Secure Boot
Software: MSI Center | Driver Utility Installer | AIDA64 Extreme (60-day) | Voicemod PRO (30-day) | DigiME (30-day)
OS: Windows 11 / Windows 10 64-bit

System Requirements: LGA1700 CPU (Intel Core 12th/13th/14th Gen, Pentium Gold, or Celeron); DDR4 memory required (DDR5 not supported); Intel B760 chipset does not support CPU overclocking — K-series multiplier is locked; BIOS update may be required for 14th Gen support; HDMI 1.4 maximum resolution is 4K@30Hz — verify display compatibility; no Wi-Fi built-in — USB Wi-Fi adapter required for wireless; compact 200×236.16mm PCB — verify case minimum motherboard size support before purchase

Setup: Standard Micro-ATX installation; Core Boost and
Memory Boost active automatically; XMP activation in BIOS for rated DDR4 OC speeds; MSI Driver Utility Installer auto-detects and installs drivers on first internet-connected Windows boot; M.2 Shield not included — compact budget design

Mounting Options: Compact Micro-ATX form factor (200 × 236.16mm); compatible with Micro-ATX and ATX cases supporting smaller form factor boards; verify minimum board size support

Usage Environment: Ideal for budget home and office desktop builds, point-of-sale systems, compact student PCs, small business workstations, and any Intel 12th/13th/14th Gen everyday computing build requiring the most affordable DDR4 Intel B760 Micro-ATX platform
