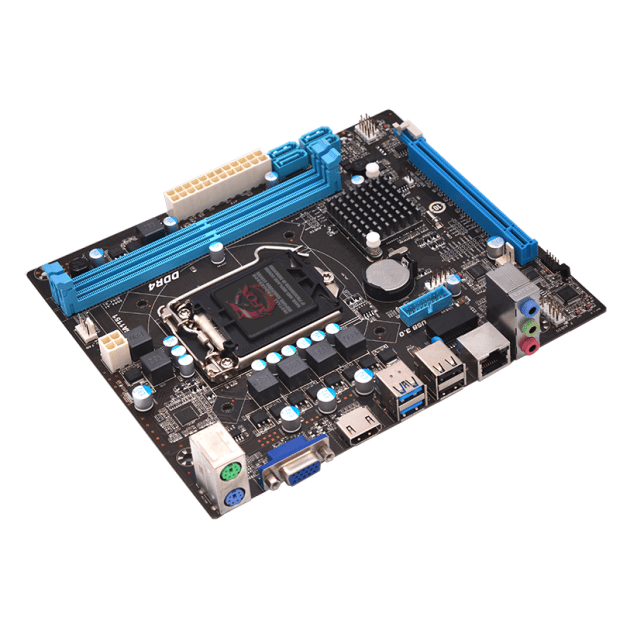

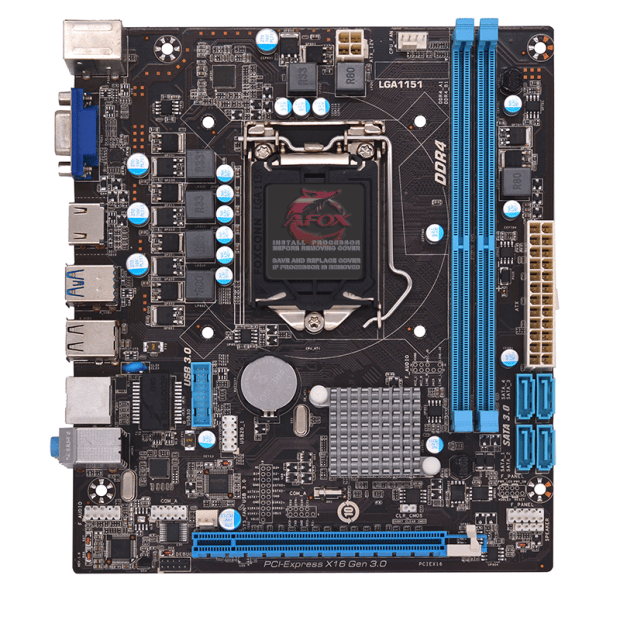

AFOX IH110-MA5 Motherboard

The IH110-MA5 is designed for budget-friendly desktops and home systems where stable performance, legacy support and efficient upgrades matter. With support for Intel’s 6th-generation Core processors and DDR4 memory, it’s ideal for everyday computing, multimedia playback and general productivity builds without high-end frills.

The IH110-MA5 features the Intel H110 Express chipset paired with the LGA 1151 socket, supporting Intel Core i7/i5/i3, Pentium and Celeron processors of the 6th generation. It supports dual-channel DDR4 memory up to 2133 MHz, onboard graphics outputs (e.g., HDMI/VGA depending on model) and standard storage connectivity. With a Micro-ATX form factor, it allows flexible case choices and compact builds at a value price.

Socket: Intel LGA 1151

Chipset: Intel H110 Express

CPU Support: Intel Core i7/i5/i3, Pentium, Celeron (6th Gen)

Memory Support: Dual-channel DDR4, up to DDR4-2133 MHz

Graphics Outputs: HDMI + VGA (via CPU graphics)

Storage Interfaces: SATA ports (H110 specification)

Expansion Slots: PCI-Express x16 slot for discrete GPU

Form Factor: Micro-ATX

Back Panel I/O: USB ports, HDMI, VGA, audio jacks, LAN connector

System Requirements: Compatible PC case supporting Micro-ATX motherboard, power supply with requisite connectors, LGA 1151 processor and DDR4 memory modules.

Setup: Install CPU and cooler, insert DDR4 modules, connect SATA storage, mount board in case, connect front-panel headers and I/O.

Usage Environment: Suitable for home desktops, office machines, multimedia systems, budget gaming builds and general-purpose computing.

Included Accessories: Motherboard unit, I/O shield, SATA cables (may vary by pack), user manual — check region.
