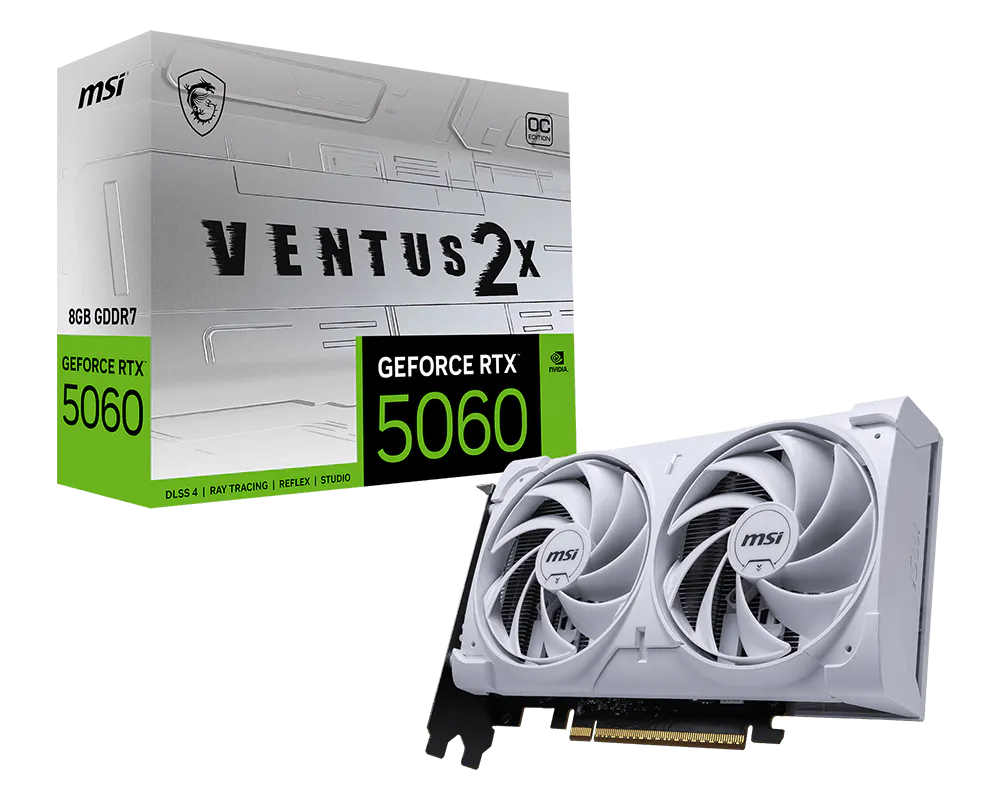

MSI GeForce RTX 5060 8G VENTUS 2X OC WHITE Graphics Card — NVIDIA Blackwell | 8GB GDDR7 | PCIe 5.0 | All-White | 145W

The MSI RTX 5060 8G VENTUS 2X OC WHITE is built for white build enthusiasts, 1080p gamers, home office users, and everyday PC builders who want next-generation Blackwell GPU performance with DLSS 4.5 in a clean, all-white neutral VENTUS design that integrates seamlessly into white-themed or minimal aesthetic builds. It is ideal for white ATX, Micro-ATX, and Mini-ITX gaming builds, home studio systems, compact clean desk setups, 1080p high-refresh gaming, and NVIDIA Studio creative workflows where the all-white aesthetic is as important as the GPU performance.

The RTX 5060 VENTUS 2X OC WHITE is powered by NVIDIA's Blackwell architecture with 3840 CUDA Cores, fourth-gen RT Cores, and fifth-gen Tensor Cores enabling DLSS 4.5 Dynamic Multi Frame Generation for dramatically multiplied effective frame rates. The all-white VENTUS enclosure with clean industrial lines delivers a neutral, versatile aesthetic that pairs perfectly with white cases, white RAM, and white cooling components for a cohesive all-white build with no visible RGB lighting to clash with other components. The dual TORX Fan 5.0 fans — with ring arcs linking 22-degree-tilted blade sets for 23% more airflow than standard axial fans — work alongside a nickel-plated copper baseplate for maximum GPU heat capture, efficient heat pipes for thermal transfer to the fin stack, and a reinforcing backplate with a through-vent for exhaust air to escape directly. Zero Frozr stops both fans completely at low temperatures for completely silent idle operation. At just 197×120×41mm and 511g, this is among the most compact RTX 5060 cards available — fitting virtually all cases including the most size-constrained ITX and SFF builds. DrMOS power stages, clay-based thermal pads, and additional PCB fuse protection ensure reliable power delivery at the card's efficient 145W TDP. MSI Center provides Extreme Performance mode at 2535 MHz alongside AI Tuning, while Afterburner supports advanced manual overclocking.

Model: G5060-8V2CW
GPU: NVIDIA GeForce RTX 5060
Architecture: NVIDIA Blackwell
CUDA Cores: 3840
Core Clock — Extreme Performance: 2535 MHz (MSI Center)
Core Clock — Boost: 2527 MHz
Memory: 8GB GDDR7
Memory Speed: 28 Gbps
Memory Bus: 128-bit
Interface: PCI Express Gen 5 x16 (uses x8 electrically)
DirectX: 12 Ultimate
OpenGL: 4.6

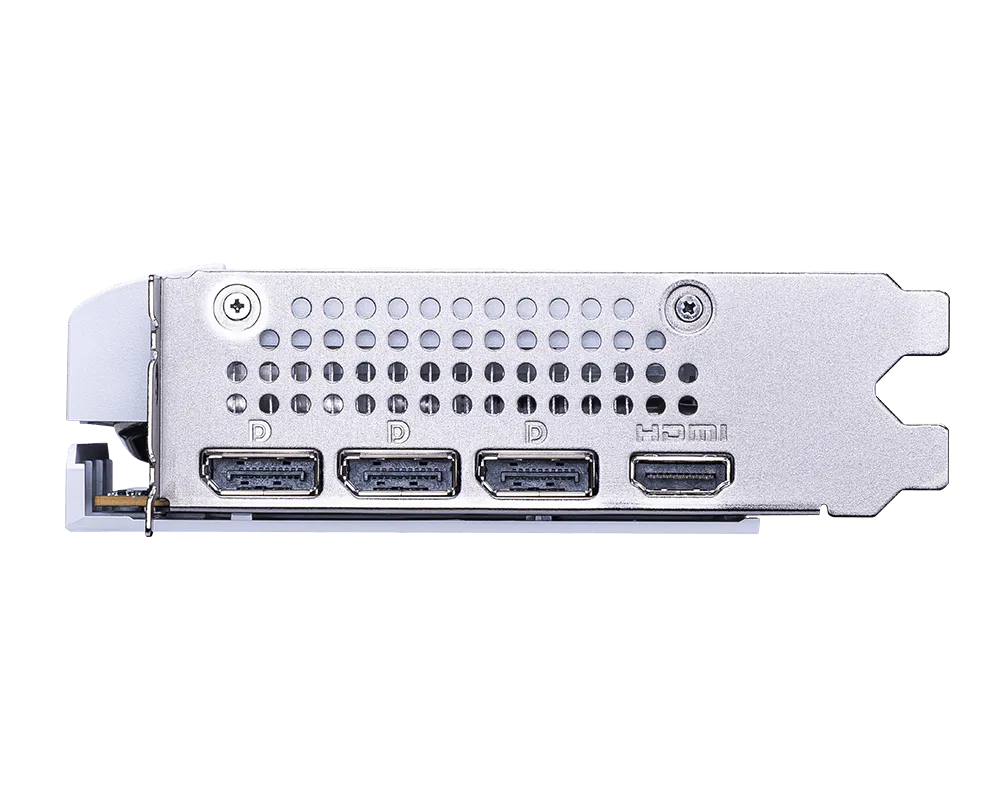

Display Outputs: 3× DisplayPort 2.1b | 1× HDMI 2.1b
Maximum Resolution: 7680 × 4320 (8K)
HDMI Capability: Up to 4K@480Hz or 8K@120Hz with DSC, Gaming VRR, HDR
Maximum Displays: 4
G-SYNC: Supported
HDCP: Supported
Power Consumption (TDP): 145W

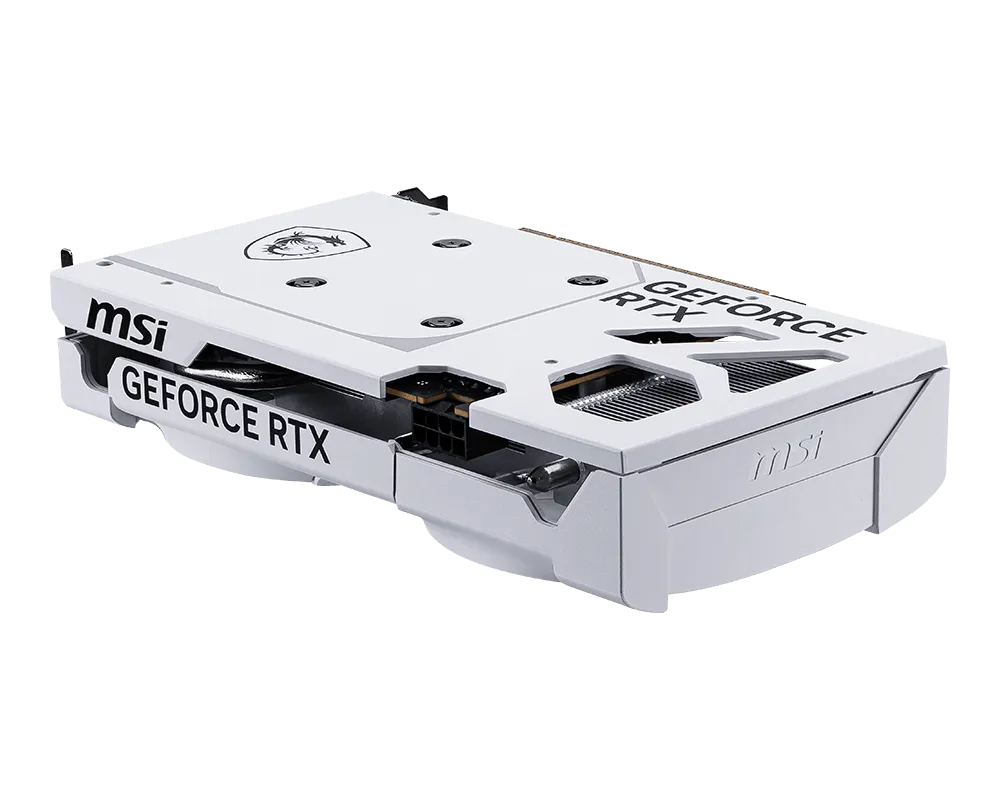

Power Connector: 1× 8-pin PCIe
Card Dimensions: 197 × 120 × 41mm
Card Weight: 511g
Package Weight: 829g
Colour: White

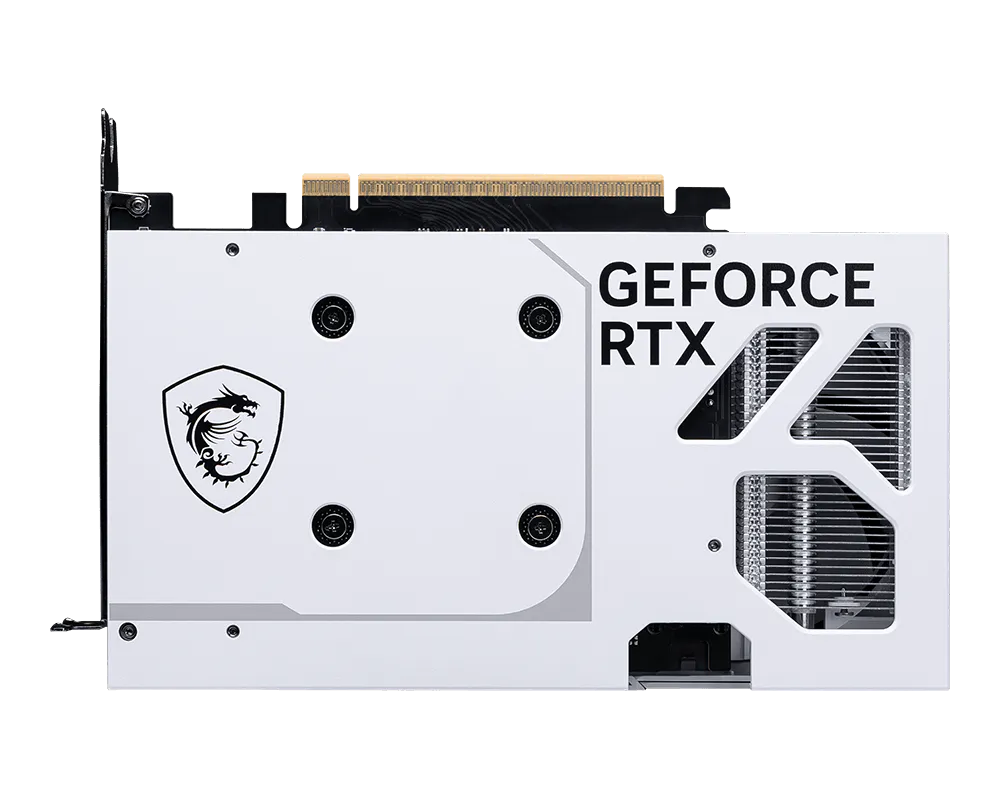

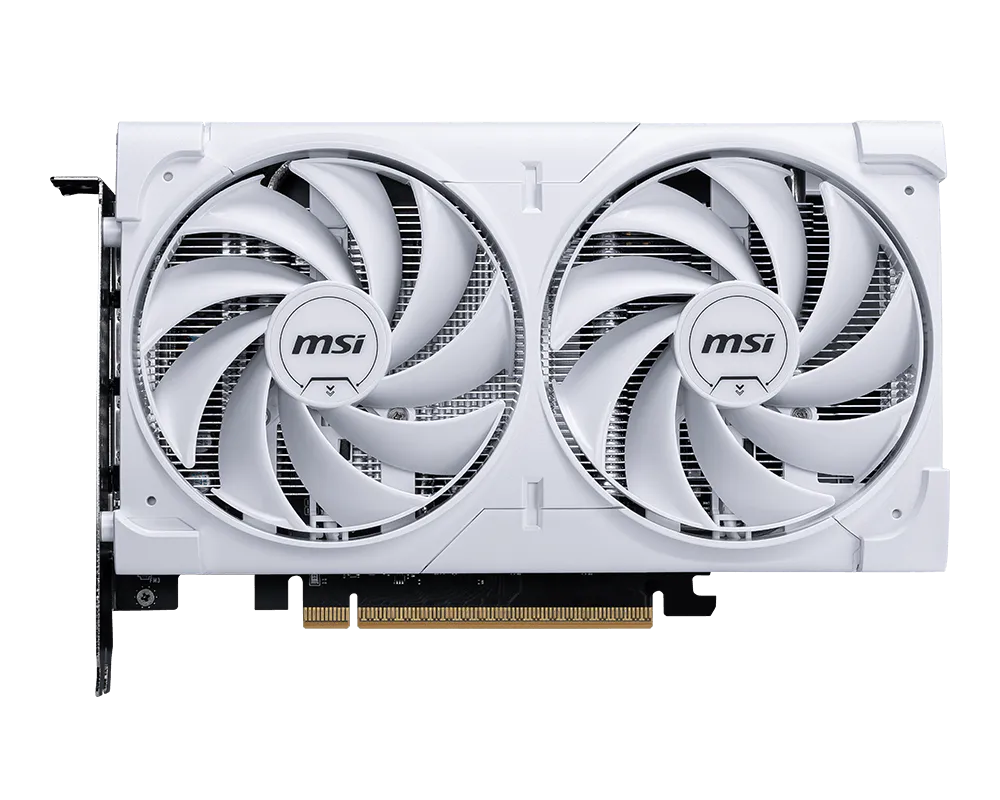

Cooling: Dual-Fan Thermal Design | 2× TORX Fan 5.0 (22° tilted blades, ring arc, +23% airflow vs axial) | Nickel-Plated Copper Baseplate | Heat Pipes | Reinforcing Backplate with Airflow Vent | Zero Frozr
Features: DrMOS | Additional Fuse Protection | Clay-Based Thermal Pads | All-White Enclosure
RGB Lighting: None (clean neutral all-white VENTUS aesthetic)
Software: MSI Center | MSI Afterburner | MSI App Player

NVIDIA Features: DLSS 4.5 (Dynamic Multi Frame Generation) | 4th Gen RT Cores | 5th Gen Tensor Cores | NVIDIA Reflex 2 (Frame Warp) | NVIDIA ACE | NVIDIA Broadcast | 9th Gen NVIDIA Encoder | NVIDIA Studio | G-SYNC

System Requirements: PCIe Gen 5 x16 slot required (electrically uses x8; backward compatible with PCIe 4.0/3.0 x8 and x16); minimum 550W PSU with 1× 8-pin PCIe connector; ultra-compact 197mm card length fits virtually all ATX, Micro-ATX, and Mini-ITX cases; DLSS 4.5 Dynamic Multi Frame Generation requires supported games and NVIDIA app with Game Ready Driver

Setup: Standard PCIe installation; connect 1× 8-pin PCIe power connector; MSI Center for Extreme Performance at 2535 MHz and AI Tuning; NVIDIA app required for DLSS 4.5 and driver management; Zero Frozr fans activate automatically above thermal threshold

Mounting Options: Standard PCIe 2-slot installation; ultra-compact 197mm length fits all case sizes including the most compact SFF and ITX builds

Usage Environment: Ideal for white-themed gaming builds, all-white PC setups, compact ATX and SFF builds, 1080p high-refresh gaming PCs, home studio and office systems, and any clean neutral aesthetic build requiring next-generation Blackwell performance with 8GB GDDR7 in an all-white enclosure at efficient 145W TDP
