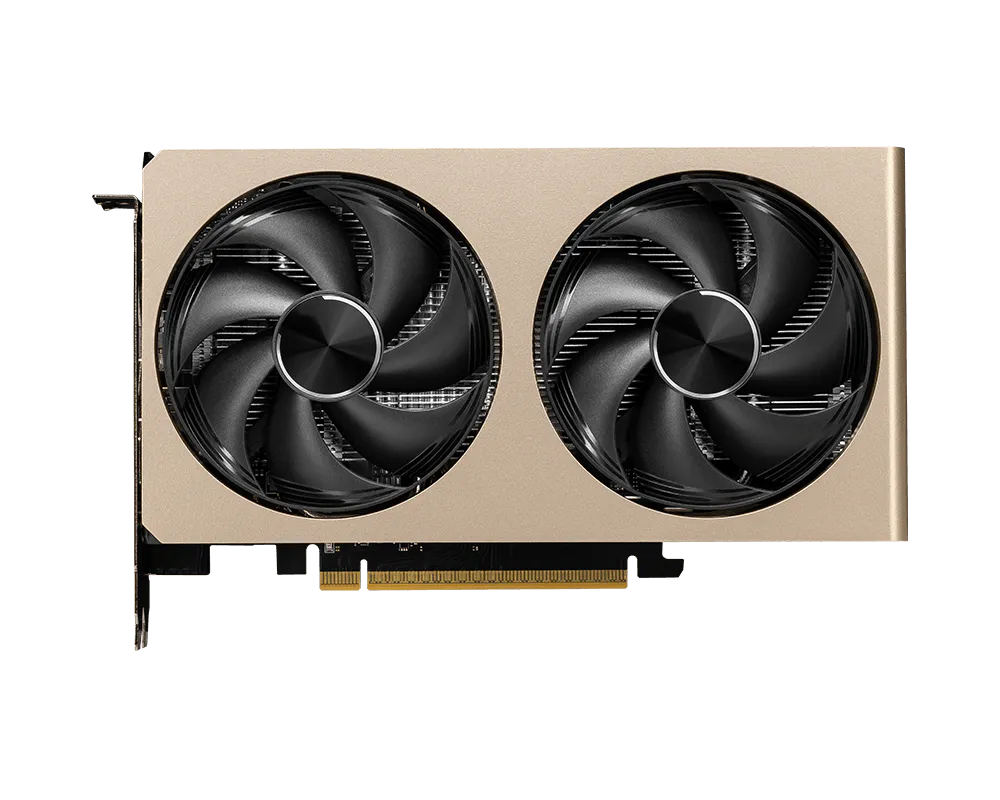

MSI GeForce RTX 5060 8G INSPIRE 2X OC Graphics Card — NVIDIA Blackwell | 8GB GDDR7 | PCIe 5.0 | Mondrian Design | 145W

The MSI RTX 5060 8G INSPIRE 2X OC is built for creative professionals, content creators, NVIDIA Studio users, and gamers who want next-generation Blackwell GPU performance with DLSS 4.5 AI capabilities in an ultra-compact design that is aesthetically distinctive from standard gaming cards. It is ideal for compact ATX, Micro-ATX, and Mini-ITX creative workstation builds, home studio setups, clean desk environments, 1080p high-refresh gaming, NVIDIA Studio creative workflows in video editing, 3D rendering, and AI content generation, and any build where a compact footprint and unique artistic design are equally valued alongside GPU performance.

The RTX 5060 INSPIRE 2X OC is powered by NVIDIA's Blackwell architecture with 3840 CUDA Cores, fourth-gen RT Cores for hardware ray tracing, and fifth-gen Tensor Cores enabling DLSS 4.5 Dynamic Multi Frame Generation for dramatically higher effective frame rates. The INSPIRE series features MSI's distinctive Mondrian grid design — a clean, geometric aesthetic inspired by modern art that merges artistic expression with advanced technology, offering a fresh visual alternative to standard gaming card aesthetics for creative and professional builds. At just 204×117×41mm and 529g, the INSPIRE 2X OC is among the most compact RTX 5060 cards available, ensuring compatibility with virtually all ATX, Micro-ATX, and Mini-ITX cases including compact MATX and ITX builds where longer cards cannot fit. The dual STORMFORCE fans — each with seven claw-textured blades and a circular arc concentration design — deliver efficient, focused cooling with minimal noise, while Zero Frozr stops both fans completely at low temperatures for silent idle operation. Heat pipes efficiently transfer thermal energy from the GPU to the heatsink for sustained cooling at the card's efficient 145W TDP — 10W lower than the GAMING OC variant. A sturdy metal backplate with airflow vents and thermal pads enhances structural rigidity and rear-side cooling. DrMOS power stages and additional PCB fuse protection deliver reliable, efficient power delivery. MSI Center provides Extreme Performance mode at 2550 MHz alongside AI Tuning, with GAMING and SILENT mode switching available.

Model: G5060-8I2C
GPU: NVIDIA GeForce RTX 5060
Architecture: NVIDIA Blackwell
CUDA Cores: 3840
Core Clock — Extreme Performance: 2550 MHz (MSI Center)
Core Clock — Boost: 2535 MHz
Memory: 8GB GDDR7
Memory Speed: 28 Gbps
Memory Bus: 128-bit
Interface: PCI Express Gen 5 x16 (uses x8 electrically)
DirectX: 12 Ultimate
OpenGL: 4.6

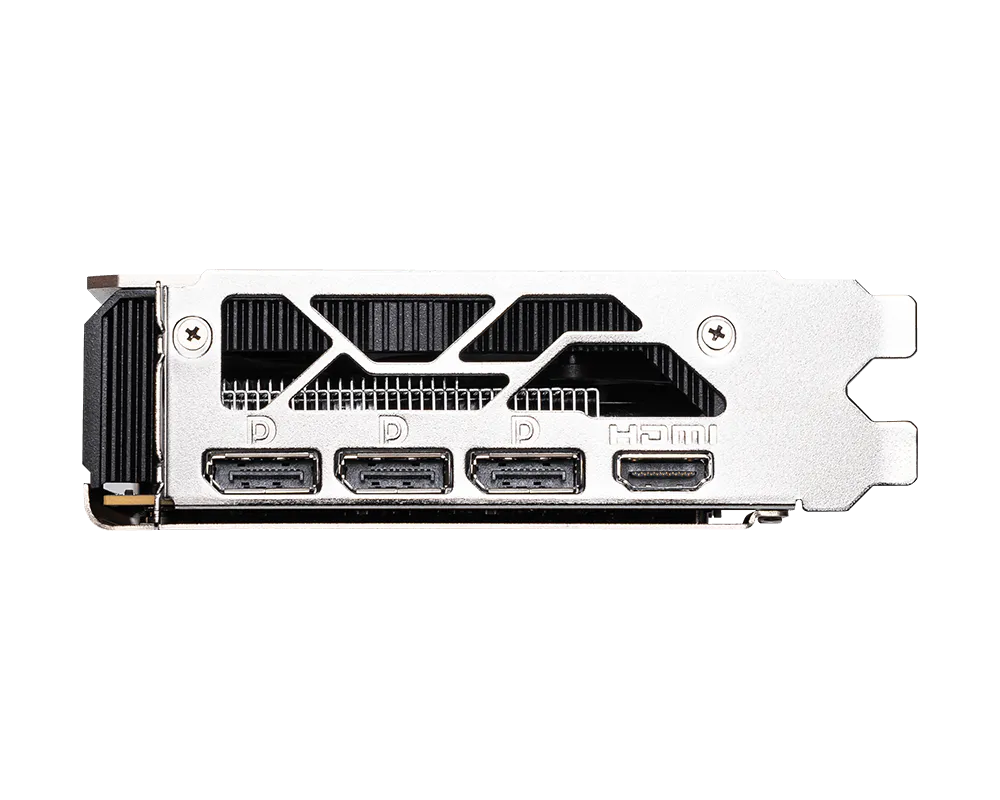

Display Outputs: 3× DisplayPort 2.1b | 1× HDMI 2.1b
Maximum Resolution: 7680 × 4320 (8K)
HDMI Capability: Up to 4K@480Hz or 8K@120Hz with DSC, Gaming VRR, HDR
Maximum Displays: 4
G-SYNC: Supported
HDCP: Supported
Power Consumption (TDP): 145W
Power Connector: 1× 8-pin PCIe
Recommended PSU: 550W
Card Dimensions: 204 × 117 × 41mm
Card Weight: 529g
Package Weight: 839g

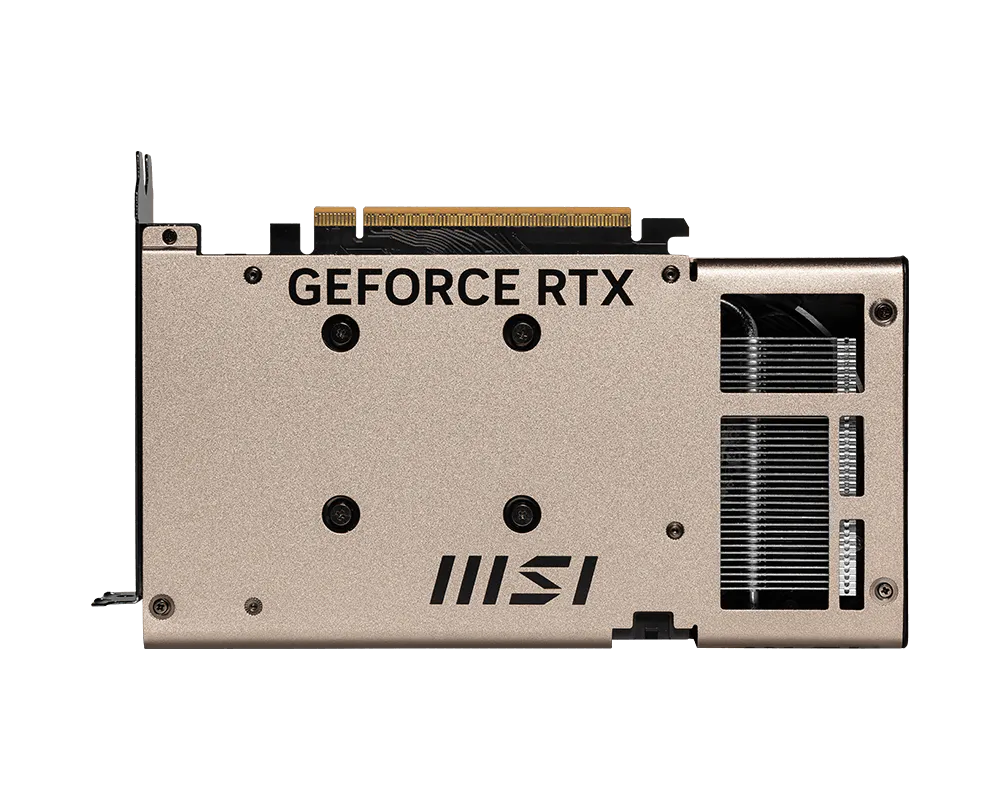

Cooling: Dual-Fan Thermal Design | 2× STORMFORCE Fan (7-blade, claw texture, circular arc) | Zero Frozr | Heat Pipes | Metal Backplate with Airflow Vents & Thermal Pads
Features: DrMOS | Additional Fuse Protection | Clay-Based Thermal Pads | Mondrian Grid Design (INSPIRE aesthetic)
RGB Lighting: None (Mondrian grid artistic design)
Software: MSI Center (GAMING / SILENT mode, Extreme Performance at 2550 MHz) | MSI Afterburner | MSI App Player

NVIDIA Features: DLSS 4.5 (Dynamic Multi Frame Generation) | 4th Gen RT Cores | 5th Gen Tensor Cores | NVIDIA Reflex 2 (Frame Warp) | NVIDIA ACE | NVIDIA Broadcast | 9th Gen NVIDIA Encoder | NVIDIA Studio | G-SYNC

System Requirements: PCIe Gen 5 x16 slot required (electrically uses x8; backward compatible with PCIe 4.0/3.0 x8 and x16); minimum 550W PSU with 1× 8-pin PCIe connector; ultra-compact 204mm card length fits virtually all ATX, Micro-ATX, and Mini-ITX cases; DLSS 4.5 Dynamic Multi Frame Generation requires supported games and NVIDIA app with Game Ready Driver

Setup: Standard PCIe installation; connect 1× 8-pin PCIe power connector; MSI Center for Extreme Performance at 2550 MHz, AI Tuning, and GAMING/SILENT mode switching; NVIDIA app required for DLSS 4.5 and Studio driver management

Mounting Options: Standard PCIe 2-slot installation; ultra-compact 204mm length fits all ATX, Micro-ATX, and Mini-ITX cases — including the most size-constrained SFF builds

Usage Environment: Ideal for compact creative workstations, NVIDIA Studio builds, home office systems, Mini-ITX and SFF gaming builds, 1080p high-refresh gaming PCs, and any build requiring next-generation Blackwell performance in an ultra-compact, artistically distinctive form factor at a power-efficient 145W TDP
