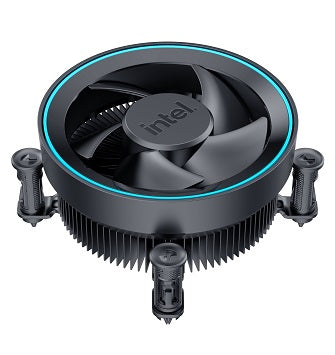

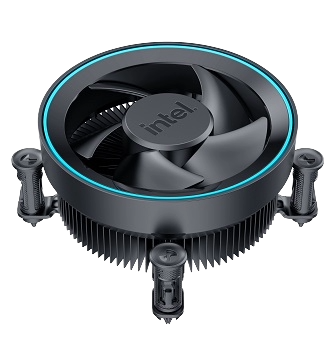

Intel Laminar RM2 CPU Cooler (for Intel Core Ultra 5 & 7 Desktop Processors)

The Intel Laminar RM2 is included in the box with qualifying Intel Core Ultra 5 and Core Ultra 7 Series 2 desktop processors and is designed for everyday productivity, home computing, and moderate workloads where out-of-the-box CPU cooling convenience is the priority. It is well-suited for office desktop builds, home PC setups, student systems, and budget gaming rigs using Intel Core Ultra 225, 225F, 235, 265, and 265F processors at their rated 65W TDP without overclocking.

The Laminar RM2 features a copper heatsink base and core for superior direct-contact heat transfer from the CPU IHS into the aluminium fin stack, enabling efficient heat dissipation within the compact 65W TDP thermal envelope. The PWM-controlled variable-speed fan adjusts automatically between 600 and 3250 RPM in response to CPU thermal demand, operating at a quiet 30 dBA at standard load (2400 RPM, 40°C inlet, 65W) for near-silent everyday desktop operation — with an even lower 3.6 BA sound power level compared to the previous Laminar RM1. The compact 100×100×47mm overall form factor ensures compatibility with virtually all standard ATX, Micro-ATX, and Mini-ITX desktop cases. Intel incorporates sustainability into the RM2's design with 8% post-consumer recycled plastic in the construction, including ocean-bound plastic, reflecting Intel's environmental commitments. The 4-pin PWM connector provides precise motherboard-controlled speed management for automatic thermal response. Intel validates the Laminar RM2 specifically against supported Core Ultra Series 2 processor TDPs for compatible, out-of-the-box performance.

Cooler Model: Intel Laminar RM2
Compatible Processors: Intel Core Ultra 5 Processor 225 / 225F / 235 | Intel Core Ultra 7 Processor 265 / 265F (Series 2 / Arrow Lake)
TDP Support: 65W
Heatsink Fin Material: Aluminium
Heatsink Base / Core Material: Copper
Overall Height: Up to 47mm
Overall Size: Up to 100mm × 100mm
Mass: Up to 340g
Fan Type: PWM Controlled Variable Speed
Fan Connector: 4-Pin PWM
Max RPM (±5%): Up to 3250 RPM
Min RPM (±20%): 600 RPM
Operating Voltage: 10.8V min / 12.0V rated / 13.2V max
Current (Peak): Up to 400mA
Sound Power Level: 3.6 BA (at 2400 RPM, 40°C inlet, 65W) / 4.6 BA (max RPM)
Sound Pressure Level: 30 dBA (at 2400 RPM, 40°C inlet, 65W)
PWM Frequency: 25 KHz ±5 KHz
PWM Duty Cycle Range: 0–100%
Sustainability: 8% Post-Consumer Recycled Plastic (including Ocean-Bound Plastic)
Operating Temperature: 0°C to 70°C
Operating Humidity: 85% Relative Humidity at 55°C
Fan Protection: Locked-Rotor / Polarity Protected

System Requirements: Included only with qualifying Intel Core Ultra 5 and Core Ultra 7 Series 2 Desktop Boxed Processors listed above; not sold separately to end users or Intel Partner Alliance members; socket LGA1851 required; compatible with all standard ATX, Micro-ATX, and Mini-ITX desktop cases supporting up to 47mm CPU cooler height; 4-pin PWM CPU fan header required on motherboard

Setup: Standard LGA1851 retention mount installation; pre-applied thermal interface material on cooler base for immediate out-of-the-box installation without separate thermal paste; connect 4-pin fan cable to CPU fan header for automatic PWM speed management

Mounting Options: LGA1851 mount; compatible with all standard LGA1851 desktop motherboards

Usage Environment: Ideal for everyday productivity builds, home and office desktops, student PCs, and budget gaming builds using qualifying 65W Intel Core Ultra Series 2 desktop processors at stock speeds without overclocking
