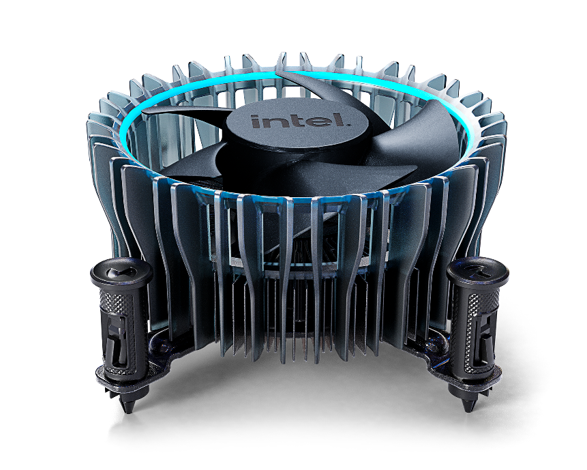

Intel Laminar RM1 CPU Cooler (for Intel Core 12th/13th/14th Gen Desktop Processors)

The Intel Laminar RM1 is included in the box with qualifying Intel Core 65W desktop processors across the 12th, 13th, and 14th Gen lineup and is designed for everyday productivity, home computing, and moderate workloads where out-of-the-box CPU cooling convenience is the priority. It is well-suited for office desktop builds, home PC setups, student systems, and budget gaming rigs using locked (non-K) Intel Core i3, i5, and i7 processors at their rated 65W TDP without overclocking.

The Laminar RM1 features a copper heatsink base and core for superior direct-contact heat transfer from the CPU IHS into the aluminium fin stack, enabling efficient heat dissipation within the compact 65W TDP thermal envelope. The PWM-controlled variable-speed fan adjusts automatically between 600 and 3150 RPM in response to CPU thermal demand, operating at a quiet 29 dBA at standard load (2400 RPM, 40°C inlet, 65W) for near-silent everyday desktop operation. The compact 100×100×47mm overall form factor ensures compatibility with virtually all standard ATX, Micro-ATX, and Mini-ITX desktop cases without height clearance issues. The 4-pin PWM connector provides precise motherboard-controlled speed management for automatic thermal response. Intel validates the Laminar RM1 specifically against supported processor TDPs for compatible, out-of-the-box performance without additional thermal paste application typically required.

Cooler Model: Intel Laminar RM1
Compatible Processors: Intel Core 12th Gen (i3/i5/i7 non-K, non-F 65W), Intel Core 13th Gen (i3/i5/i7 non-K 65W), Intel Core 14th Gen (i3/i5/i7 non-K 65W), Intel Processor 300
TDP Support: Up to 65W
Heatsink Fin Material: Aluminium
Heatsink Base / Core Material: Copper
Overall Height: Up to 47mm
Overall Size: Up to 100mm × 100mm
Mass: Up to 350g
Fan Type: PWM Controlled Variable Speed
Fan Connector: 4-Pin PWM
Max RPM (±5%): Up to 3150 RPM
Min RPM (±20%): 600 RPM
Operating Voltage: 10.8V min / 12.0V rated / 13.2V max
Current (Peak): Up to 400mA
Sound Power Level: 3.9 BA (at 2400 RPM, 40°C inlet, 65W) / 4.6 BA (max RPM)
Sound Pressure Level: 29 dBA (at 2400 RPM, 40°C inlet, 65W)
PWM Frequency: 25 KHz ±5 KHz
PWM Duty Cycle Range: 0–100%
Operating Temperature: 0°C to 70°C
Operating Humidity: 85% Relative Humidity at 55°C
Fan Protection: Locked-Rotor / Polarity Protected

Compatible Boxed Processor Models:
12th Gen: Core i7-12700, i7-12700F, i5-12600, i5-12500, i5-12400, i5-12400F, i3-12100, i3-12100F
13th Gen: Core i7-13700, i7-13700F, i5-13500, i5-13400, i5-13400F, i3-13100, i3-13100F
14th Gen: Core i7-14700, i7-14700F, i5-14500, i5-14400, i5-14400F, i3-14100, i3-14100F
Intel Processor: 300

System Requirements: Included only with qualifying Intel Core 65W Desktop Boxed Processors (12th, 13th, and 14th Gen) listed above; not sold separately to end users; socket LGA1700 required; compatible with all standard ATX, Micro-ATX, and Mini-ITX desktop cases supporting up to 47mm CPU cooler height; 4-pin PWM CPU fan header required on motherboard

Setup: Standard LGA1700 push-pin retention mount; pre-applied thermal interface material on cooler base for immediate out-of-the-box installation without separate thermal paste; connect 4-pin fan cable to CPU fan header for automatic PWM speed management

Mounting Options: LGA1700 push-pin mount; compatible with all standard LGA1700 desktop motherboards

Usage Environment: Ideal for everyday productivity builds, home and office desktops, student PCs, and budget gaming builds using qualifying 65W Intel Core 12th/13th/14th Gen desktop processors at stock speeds without overclocking
