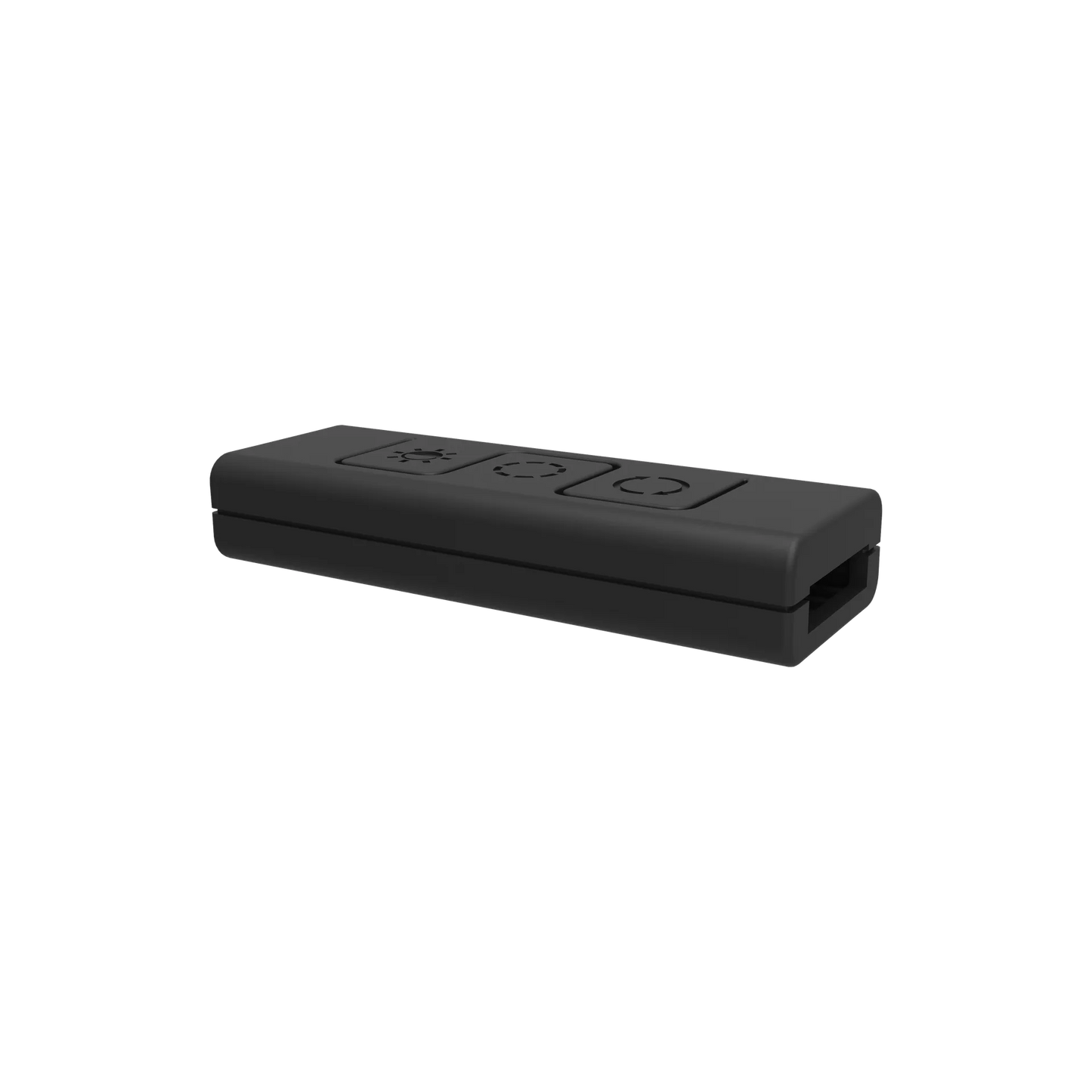

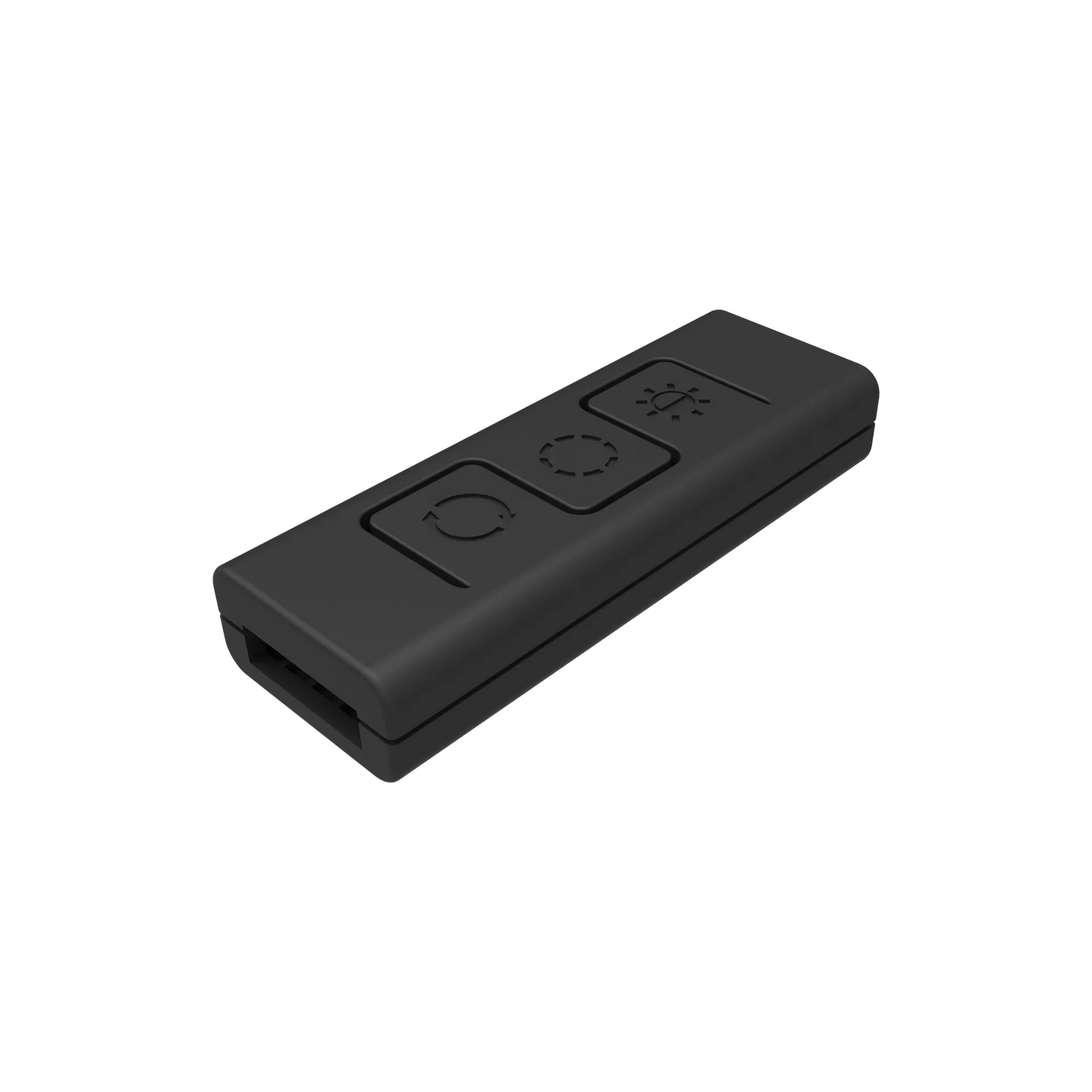

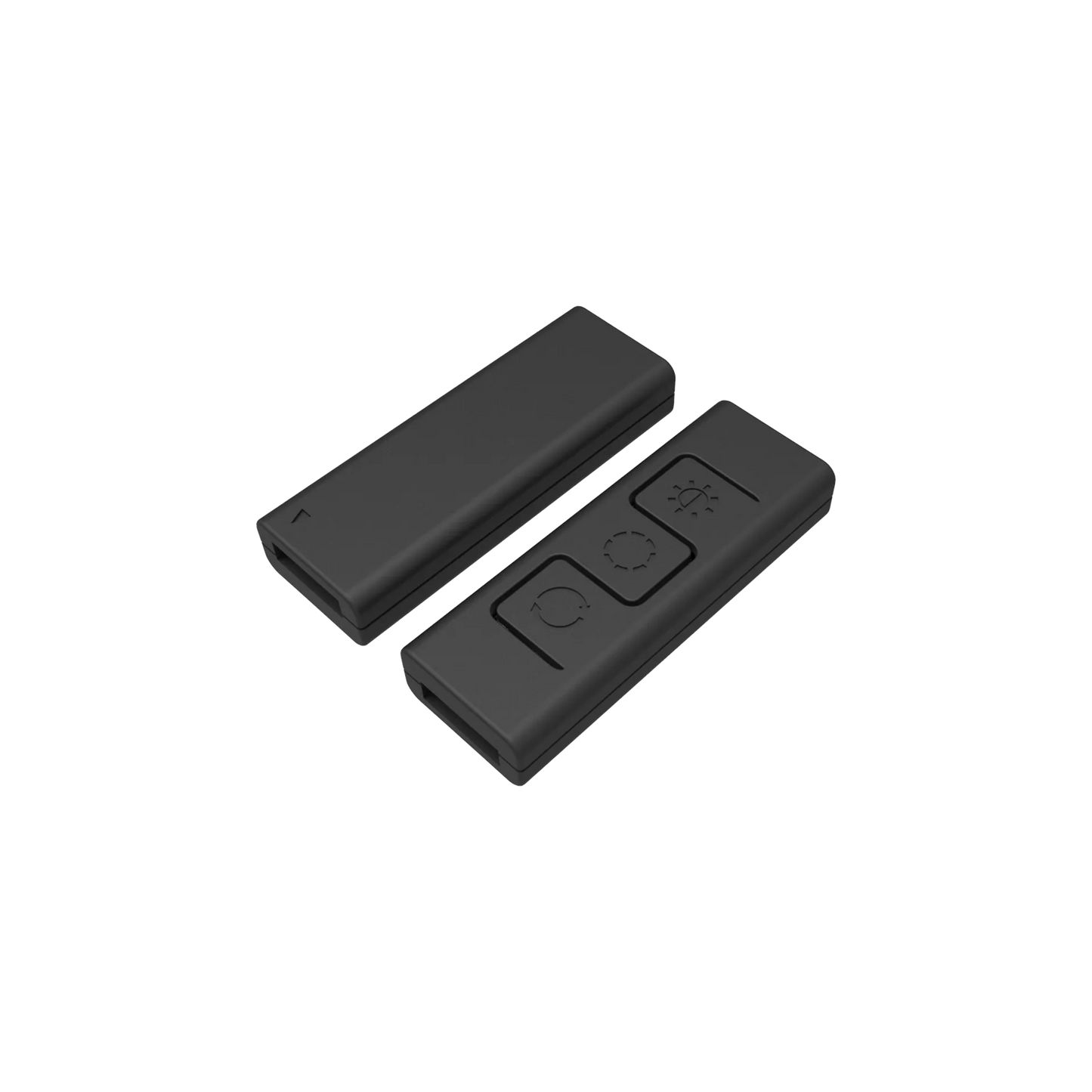

Cooler Master Wired RGB Controller C10L
Cooler Master Wired RGB Controller C10L
Regular price
₹489.00
Regular price
₹489.00
Sale price
Unit price
/
per
Tax included.
Shipping calculated at check out.
The Cooler Master Wired RGB Controller C10L is a practical, user-friendly lighting control solution designed for PC builders and modding enthusiasts seeking straightforward, centralized RGB management across multiple compatible Cooler Master components without relying solely on motherboard software. Supporting multiple RGB channels simultaneously, it enables convenient, independent lighting customization and synchronization across fans, strips, and other compatible RGB peripherals within your build.
Its compact, unobtrusive design installs discreetly inside most standard PC cases, while intuitive controls simplify lighting mode selection and color adjustment without complex software configuration requirements.
Practical, broadly compatible, and affordably priced, the Cooler Master C10L Wired RGB Controller is an essential lighting management accessory for builders seeking simplified, reliable, and independently controlled RGB illumination across their Cooler Master-equipped gaming builds.
Couldn't load pickup availability
- Non-Returnable
- Quality product
- Free Shipping available
Use Case
Use Case
This compact LED controller is designed for PC builders who want to customize the lighting effects of RGB fans, LED strips and lighting devices without needing an RGB-capable motherboard or software. It allows quick switching of lighting modes, colors and brightness via physical buttons, making it especially useful for budget builds, small form-factor PCs or anyone wanting straightforward RGB control independent of software.
Key Features
Key Features

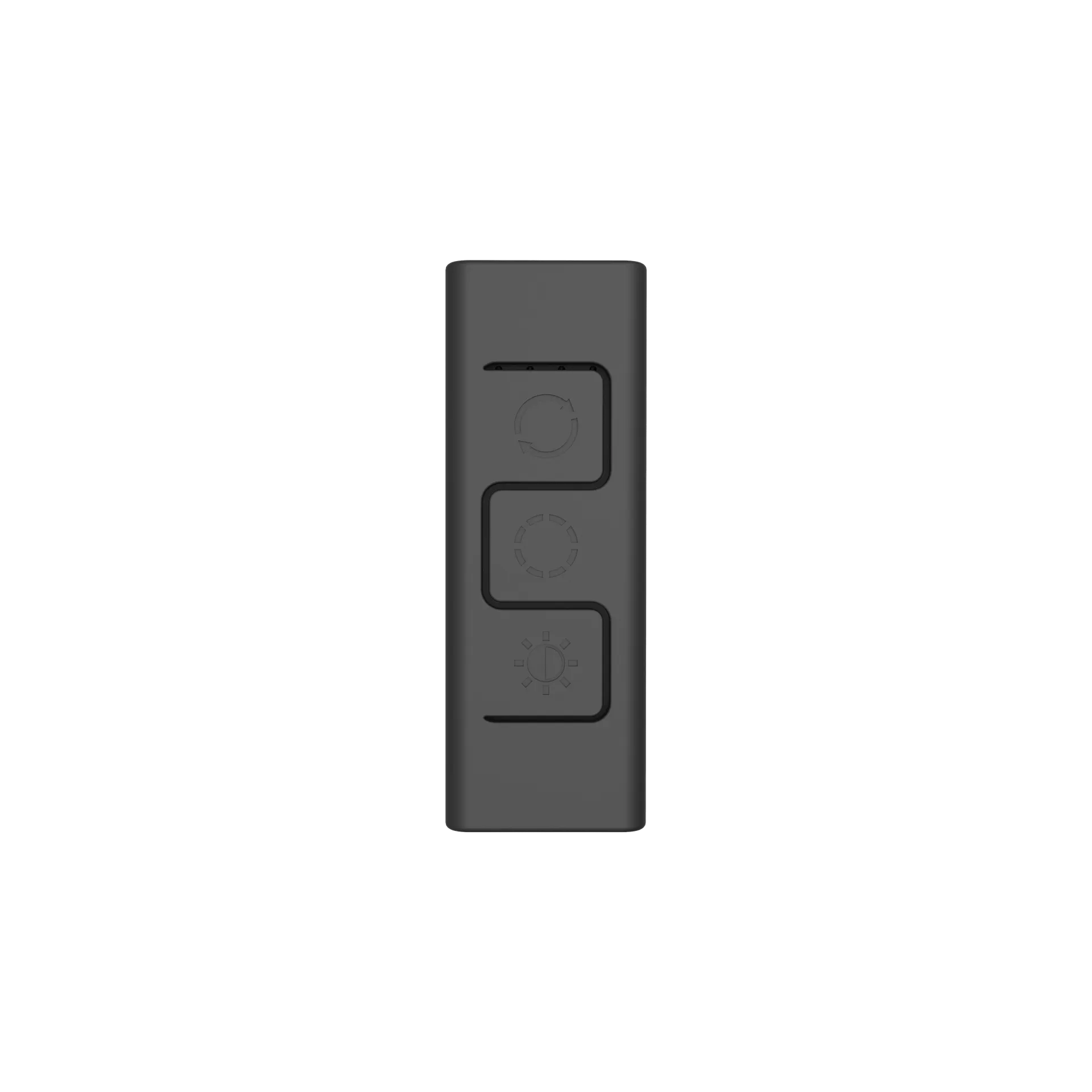

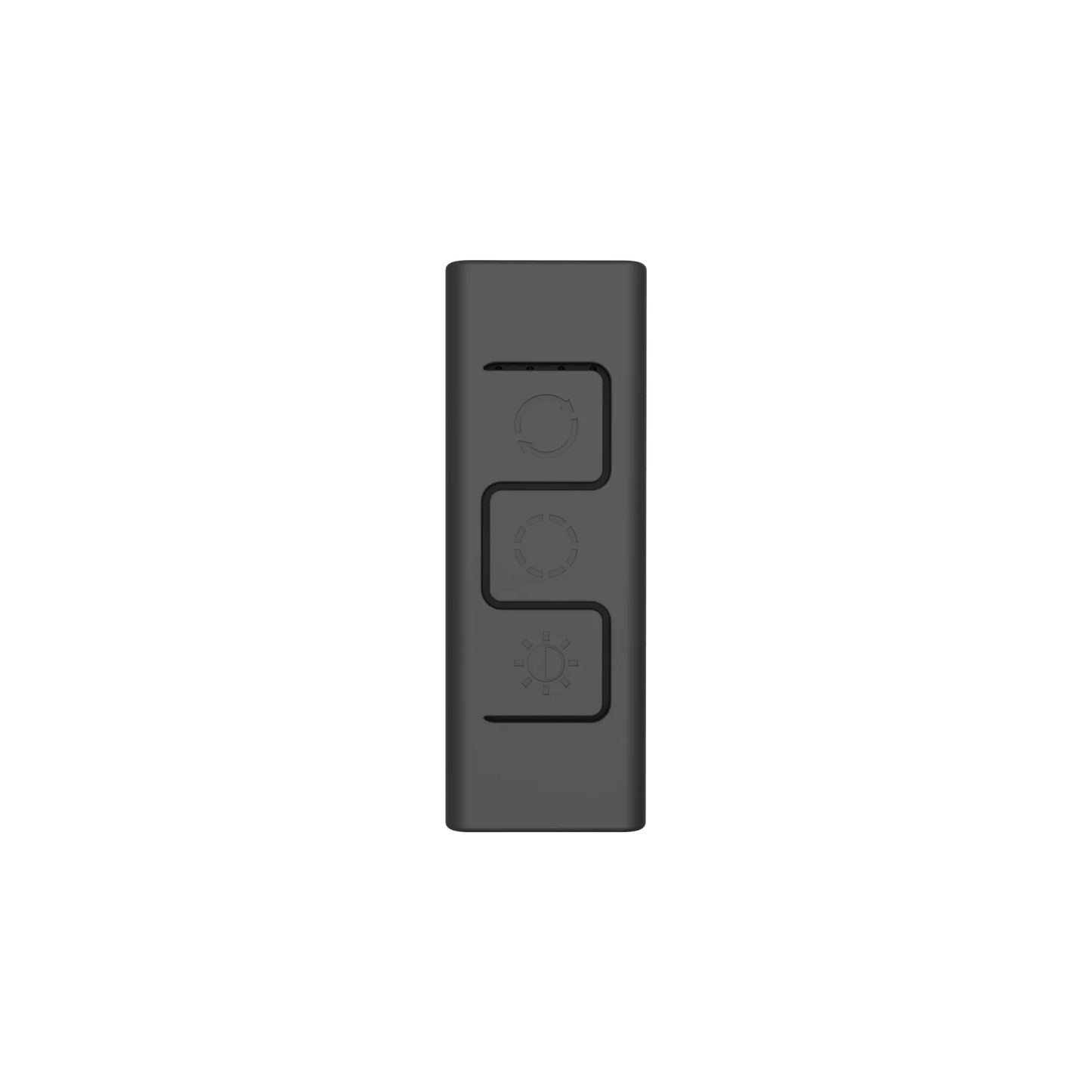

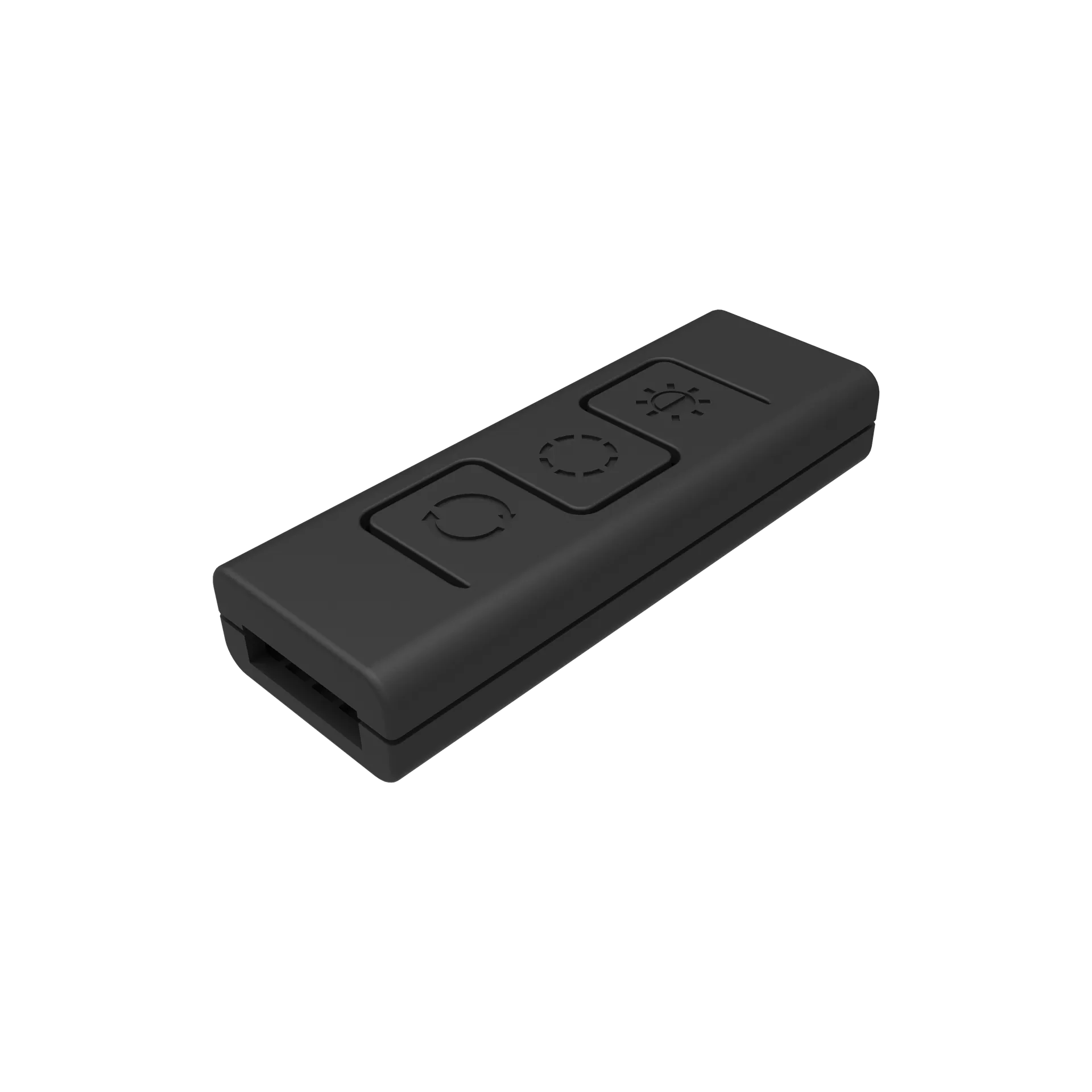

The Wired RGB Controller C10L uses a 12V 4-pin RGB output and supports six preset lighting modes plus seven single-colour options. The unit includes three tactile buttons: one to switch lighting modes, one to change the active colour, and one to adjust brightness across five levels. No additional software or compatible motherboard header is required, making installation easy and minimal-effort. Rated for up to 2 A output current, it supports a moderate number of RGB devices controlled as one group.
Specifications
Specifications
Form Factor: Inline wired RGB controller hub
Connector Type: 4-pin 12V RGB output
Output Channel Voltage: 12 V
Rated Current: 2 A
Dimensions: 45 × 16 × 8 mm
Material: Plastic and PCB construction

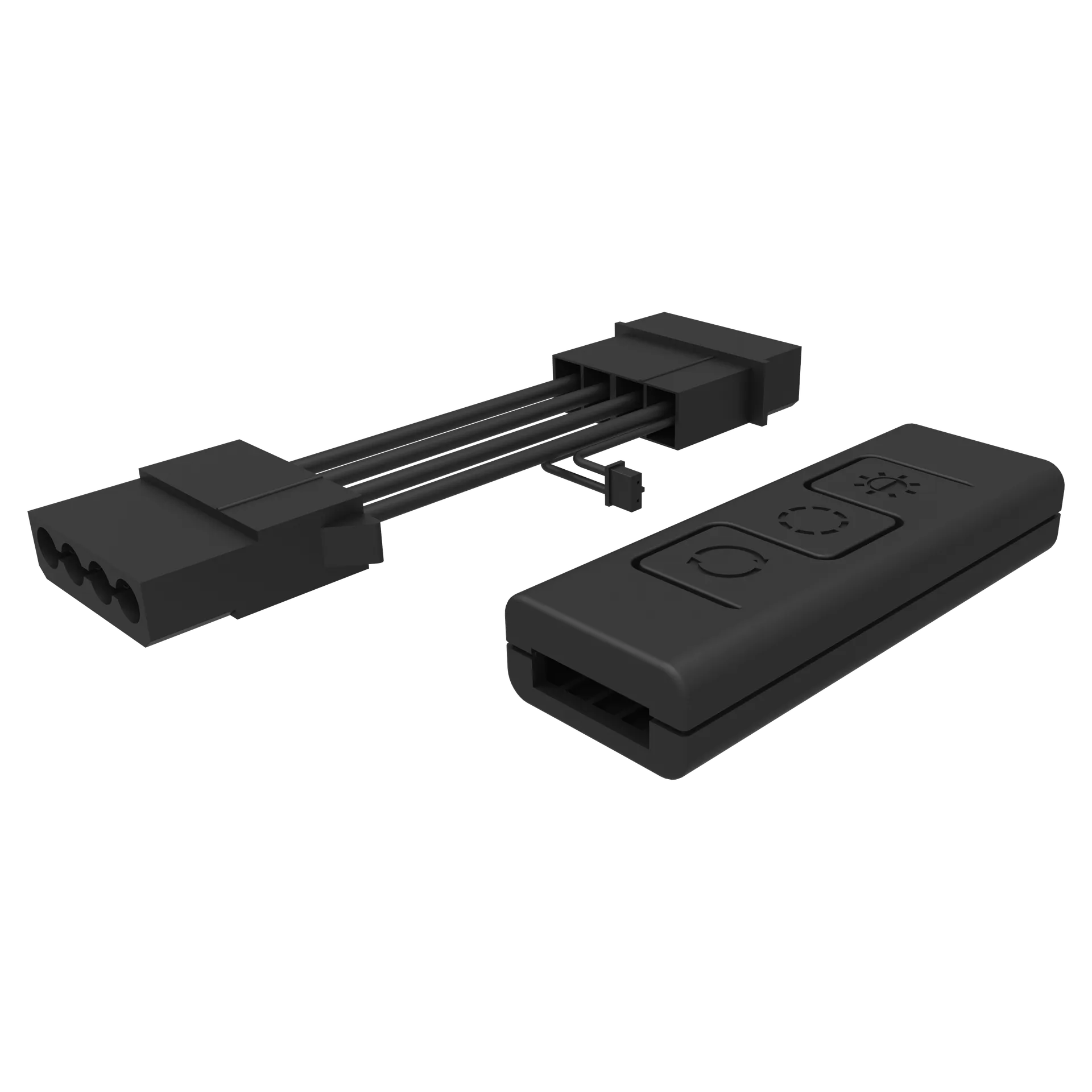

Included Accessories: 1 × extension cable
Compatibility & Requirements
Compatibility & Requirements
System Requirements: Available drive bay or internal location for the controller, power via RGB 12V header or compatible 4-pin header, and connected RGB fans or LED strips that accept 12V 4-pin standard. Usage Environment: Suitable for single-system RGB lighting setups in desktops, HTPCs and gaming rigs; ensure the combined current draw of connected devices remains within 2 A limit to maintain reliable performance.
Warranty
Warranty
2-Year Limited Warranty
