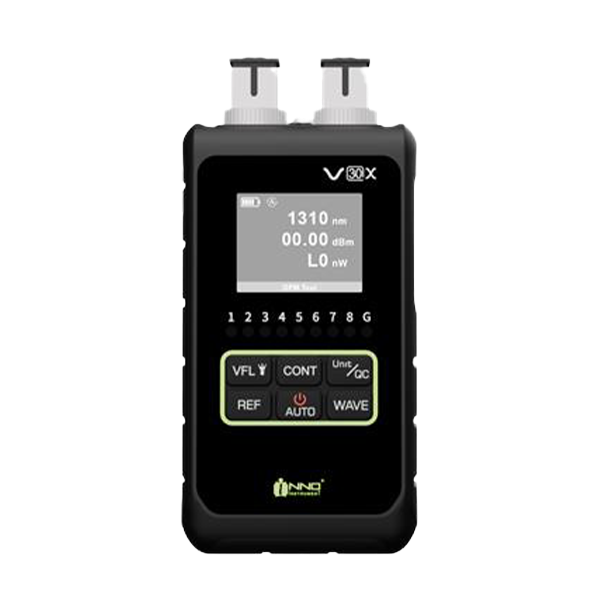

INNO Instrument V30X 4-in-1 Optical Fiber Tester — Optical Power Meter (-50 to +26dBm) | VFL | Frequency Tester | RJ-45 Continuity Tester | USB-C Rechargeable

The INNO Instrument V30X is built for fiber optic installation technicians, network engineers, ISP field teams, structured cabling professionals, and data centre technicians who need a portable, multi-function tester for daily optical power measurement, fiber fault location, signal frequency identification, and RJ-45 copper cable continuity verification — all from one compact, pocket-friendly instrument. It is well-suited for FTTH and FTTB fiber deployment, LAN and structured cabling installation, network commissioning and maintenance, field troubleshooting, and lab testing environments where minimising tool carry weight and setup time are priorities.

The V30X combines four instruments in one compact 250g body — an optical power meter, visual fault locator, frequency tester, and RJ-45 continuity tester — dramatically reducing the number of tools a technician needs to carry for standard fiber and copper network testing in the field. The optical power meter covers ten popular wavelengths — 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, and 1650nm — with an InGaAs sensor, a measuring range of -70dBm to +10dBm, ±5% uncertainty, 0.01dBm resolution, and ±2% linearity for accurate optical power readings across both multimode and singlemode fiber networks. The 650nm Visual Fault Locator emits 1mW of red laser light in three selectable modes — Steady On, Slow Flashing, and Fast Flashing — enabling quick visual identification of fiber breaks, bends, and connectors up to several kilometres. The frequency tester supports 270Hz, 1KHz, and 2KHz for signal modulation identification on measured optical power. The RJ-45 continuity tester with Fast (0.5 second) and Slow (1 second) modes enables quick copper cable pair verification for LAN and structured cabling installations. A large, clear display simplifies reading measurement results, even for technicians with minimal training. USB-C charging via the included USB-C cable makes topping up the 700mAh rechargeable lithium battery straightforward using any standard USB-C power source. The Auto-Off function (ON/OFF configurable) conserves battery during field deployments when the instrument is inadvertently left on.

Model: V30X
Functions: 4-in-1 (Optical Power Meter + VFL + Frequency Tester + RJ-45 Continuity Tester)

Optical Power Meter
Wavelengths: 850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 / 1650nm
Units: dBm / mW / W / nW
Measuring Range: -50dBm to +26dBm
Uncertainty: ±5%
Resolution: 0.01dBm
Sensor Type: InGaAs
Linearity: ±2%
Frequency Detection: 270Hz / 1KHz / 2KHz

Visual Fault Locator (VFL)
Wavelength: 650nm ±15nm
Output Power: 1mW
Output Modes: Steady On / Slow Flashing / Fast Flashing

RJ-45 Continuity Tester
Test Modes: Fast (0.5 second) / Slow (1 second)

Power
Battery: 3.7V 700mAh Rechargeable Lithium
Charging Interface: USB-C
Auto-Off: Supported (ON/OFF configurable)

Physical
Dimensions: 128 (H) × 61 (W) × 32 (D) mm
Weight: 250g
Operating Temperature: -10°C to +60°C
Storage Temperature: -20°C to +70°C

System Requirements: Compatible with standard SC, FC, ST, and LC fiber connectors via appropriate adapter (verify connector type compatibility before purchase); RJ-45 continuity tester compatible with standard Cat5e/Cat6/Cat6A RJ-45 cables; USB-C power source required for charging (5V USB-C charger or power bank — not included); no PC software or drivers required for operation

Setup: Insert fiber connector into optical port; select wavelength or function via controls; read measurement on large display; use USB-C cable (included) to recharge battery; configure Auto-Off and continuity test speed via on-device settings

Usage Environment: Ideal for FTTH/FTTB fiber deployment, LAN and structured cabling installation, network commissioning and maintenance, ISP field testing, data centre fiber testing, and lab measurement environments requiring a compact, multi-function portable optical fiber and copper cable tester
