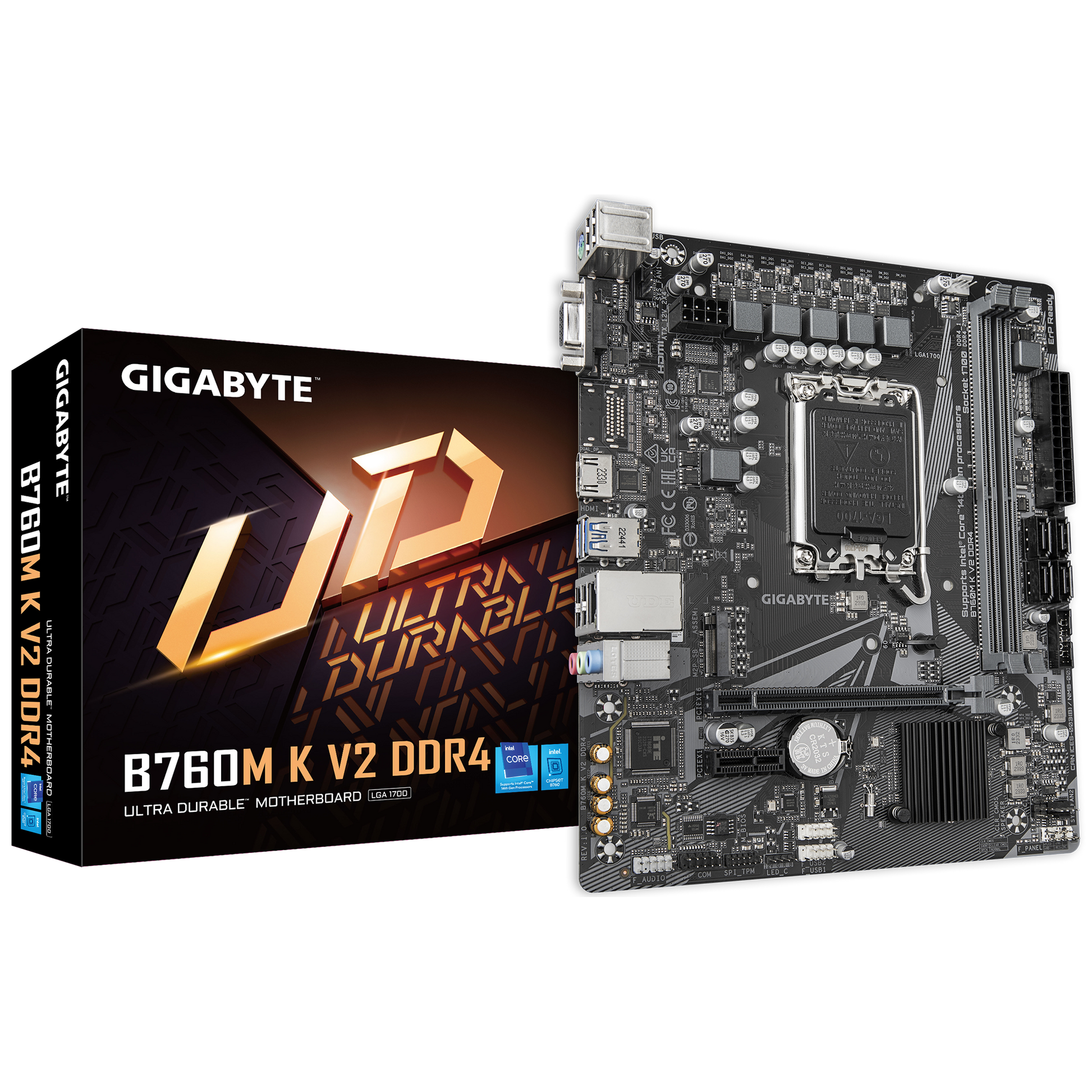

Gigabyte B760M K V2 DDR4 Intel B760 Micro-ATX Motherboard — LGA1700 | DDR4 | PCIe 4.0

The Gigabyte B760M K V2 DDR4 is built for mainstream builders, students, home and office users, and budget-conscious PC assemblers who want a stable and feature-complete Intel B760 Micro-ATX foundation for everyday productivity, casual gaming, and home computing builds. It is well-suited for Intel 12th, 13th, and 14th Gen Core builds using DDR4 memory, system upgrades from older platforms, compact ATX case builds, and value-focused gaming rigs where reliable platform support, sufficient connectivity, and clean power delivery are the priorities over premium RGB or overclocking features.

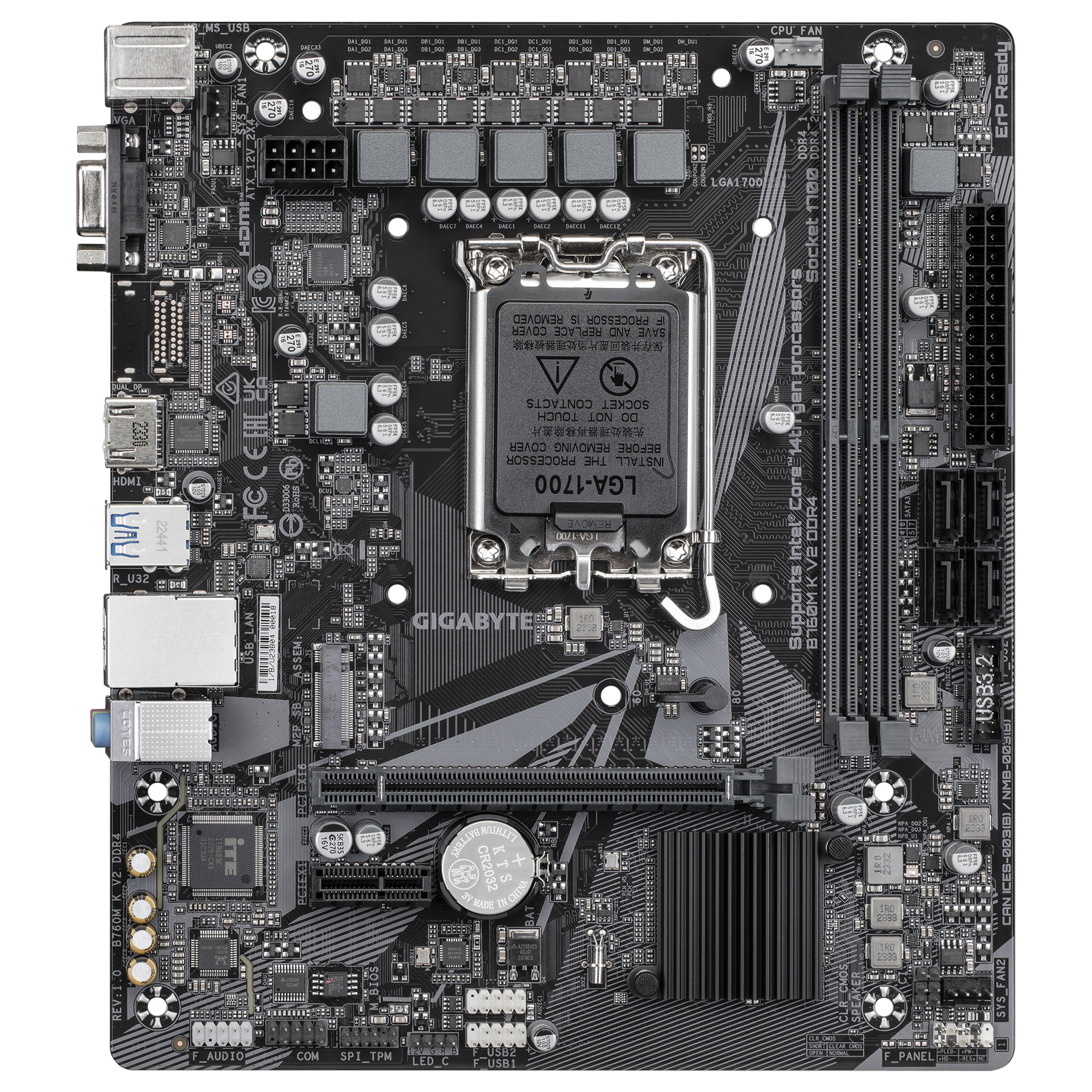

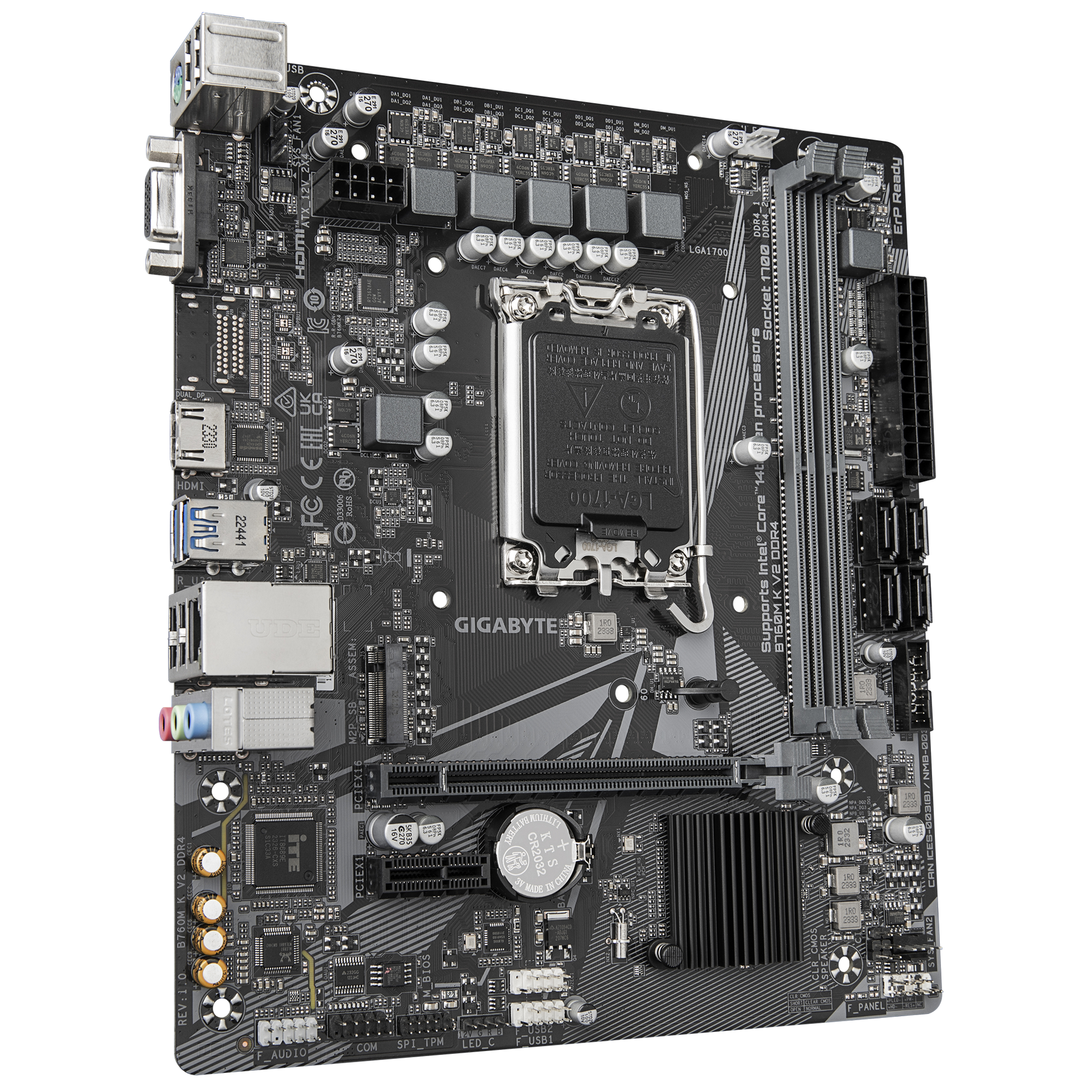

The B760M K V2 DDR4 features a 4+1+1 Hybrid Digital VRM design with 50A low RDS(on) MOSFETs for clean, stable power delivery to Intel 12th through 14th Gen processors across everyday and moderate workloads. A reinforced PCIe 4.0 x16 slot with a PCIe 4.0-ready PCB accommodates modern discrete graphics cards at full PCIe 4.0 bandwidth for smooth gaming performance. A single NVMe PCIe 3.0 x4 M.2 slot (type 2280/2260) supports fast NVMe SSD storage, complemented by four SATA 6Gb/s ports for additional HDD or SSD expansion with RAID 0/1/5/10 support. Dual DDR4 DIMM slots support up to 64GB of DDR4 memory (up to 32GB per slot) at speeds up to DDR4-3200 with XMP profile support for performance tuning. Display outputs include HDMI 2.1 for up to 4K@60Hz and D-Sub for legacy displays, driven by Intel integrated graphics. The Realtek GbE LAN chip with bandwidth management software reduces network latency and maintains low ping for smoother online gaming and video calls. Realtek HD audio with 7.1-channel support, high-quality audio capacitors, and an audio noise guard PCB separation ensure clean audio output for everyday and gaming use. Gigabyte's Smart Fan 6 system provides three hybrid PWM/DC fan headers with Fan Stop, up to seven temperature-based control points, and four internal temperature sensors for precise, quiet cooling management. Anti-Sulfur resistor protection guards against environmental sulfur compound degradation for improved long-term board reliability. An RGB LED strip header enables basic RGB customization without requiring ARGB ecosystem. GIGABYTE Q-Flash and the GIGABYTE Control Center software suite round out the platform with easy BIOS flashing and intuitive system management.

Form Factor: Micro-ATX (22.3 cm × 19.3 cm)
Socket: LGA1700
Chipset: Intel B760 Express
Supported CPUs: Intel Core 14th / 13th / 12th Gen; Pentium Gold; Celeron (LGA1700)
Memory Slots: 2× DDR4 DIMM
Max Memory: 64 GB (32 GB per DIMM)
Memory Speed: DDR4-3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s
Memory Type: Non-ECC Unbuffered DDR4; ECC Unbuffered (runs in non-ECC mode); XMP supported
VRM Design: 4+1+1 Hybrid Digital Phases, 50A Low RDS(on) MOSFETs
PCIe Slots: 1× PCIe 4.0 x16 (CPU) | 1× PCIe 3.0 x1 (Chipset)
M.2 Slots: 1× M.2 Socket 3 (M key, 2280/2260, PCIe 3.0 x4/x2 NVMe)
SATA Ports: 4× SATA 6Gb/s (RAID 0/1/5/10 support)
Display Output: 1× HDMI 2.1 (max 4096×2160@60Hz) | 1× D-Sub (max 1920×1200@60Hz)
Audio: Realtek HD Audio CODEC, 7.1-channel, High-Quality Audio Capacitors, Audio Noise Guard
LAN: Realtek GbE (1 Gbps / 100 Mbps / 10 Mbps) with Bandwidth Management

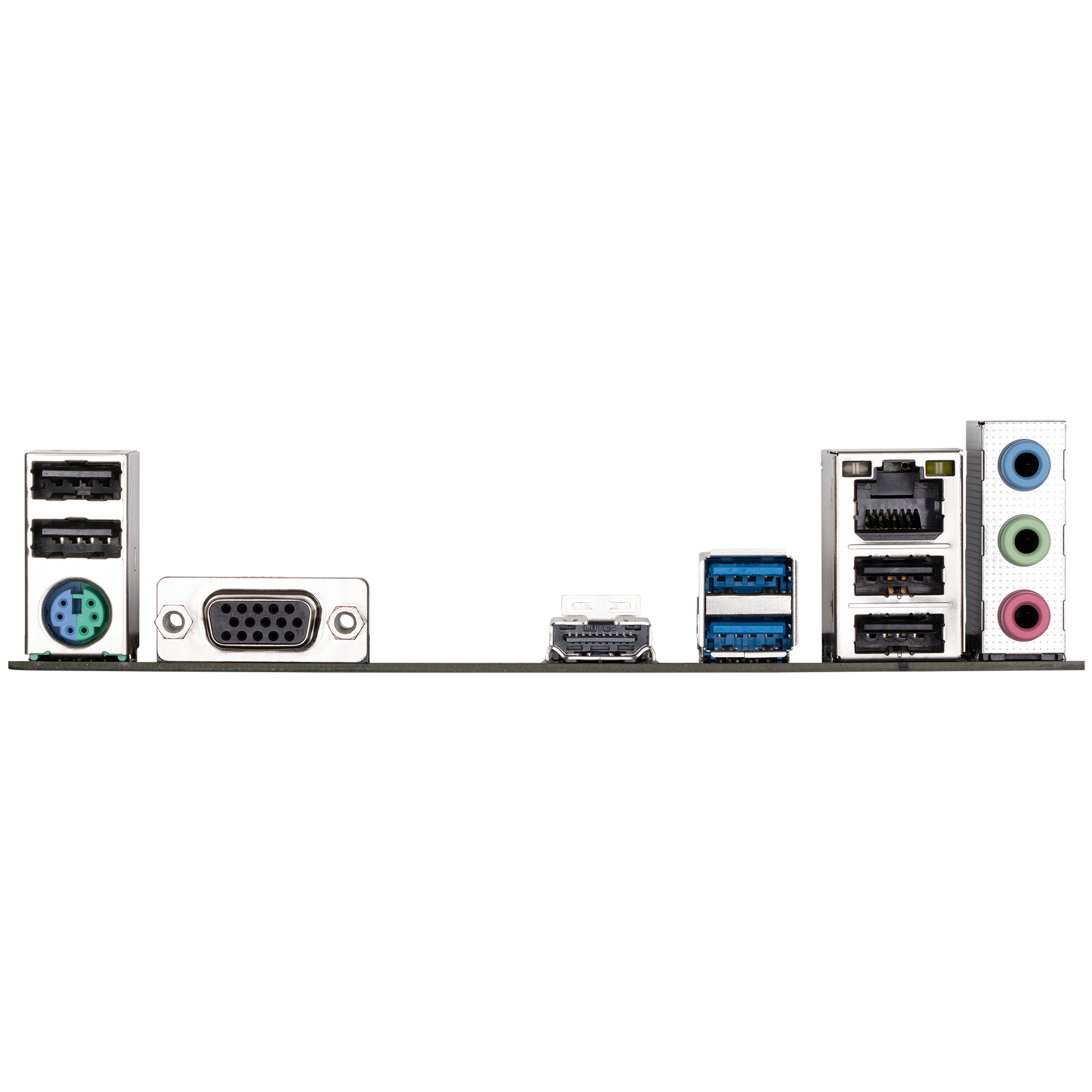

Back Panel USB: 2× USB 3.2 Gen 1 (Type-A) | 4× USB 2.0/1.1 | 1× PS/2 (keyboard/mouse)
Internal USB Headers: 1× USB 3.2 Gen 1 header | 2× USB 2.0/1.1 headers
Fan Headers: 1× CPU fan | 2× System fan (PWM/DC hybrid, up to 24W per header, Fan Stop supported)
Power Connectors: 1× 24-pin ATX | 1× 8-pin ATX 12V (Solid Pin)
Internal Headers: RGB LED strip header (12V 4-pin), Front panel header, Front panel audio header, Speaker header, TPM header, Serial port header, Clear CMOS jumper, Chassis intrusion header
BIOS: 128 Mbit flash, AMI UEFI BIOS, Q-Flash support
H/W Monitoring: Voltage, Temperature, Fan Speed, Water Cooling Flow Rate detection; Fan Fail Warning
Operating System: Windows 11 64-bit / Windows 10 64-bit
Software: GIGABYTE Control Center (GCC), EasyTune, System Information Viewer, Q-Flash, LAN Bandwidth Management, Norton Internet Security (OEM)

System Requirements: LGA1700 CPU (Intel Core 12th/13th/14th Gen, Pentium Gold, or Celeron); DDR4 memory modules (DDR4-2133 to DDR4-3200 supported; verify memory QVL on Gigabyte's website); PCIe 4.0-compatible GPU recommended for x16 slot; BIOS update may be required for 14th Gen CPU support on some early board revisions

Setup: Standard Micro-ATX installation; Q-Flash for BIOS updates directly from USB without CPU or memory installed; Smart Fan 6 fan curves configurable in BIOS or via GIGABYTE Control Center; XMP profile activation in BIOS for rated memory speeds

Mounting Options: Micro-ATX form factor (22.3 cm × 19.3 cm); compatible with Micro-ATX and full-size ATX cases

Usage Environment: Ideal for everyday productivity PCs, home and office desktop builds, budget gaming rigs, and value-focused Intel 12th/13th/14th Gen system builds using DDR4 memory with NVMe SSD primary storage
