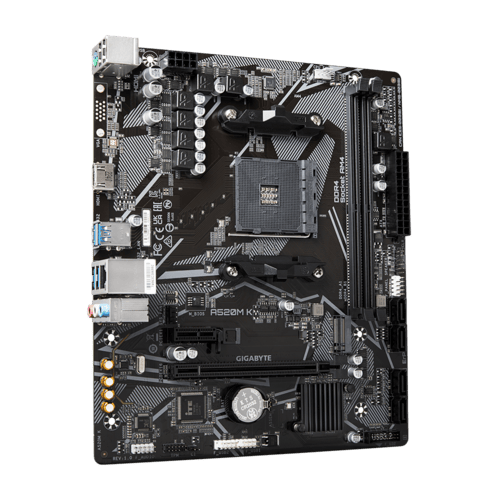

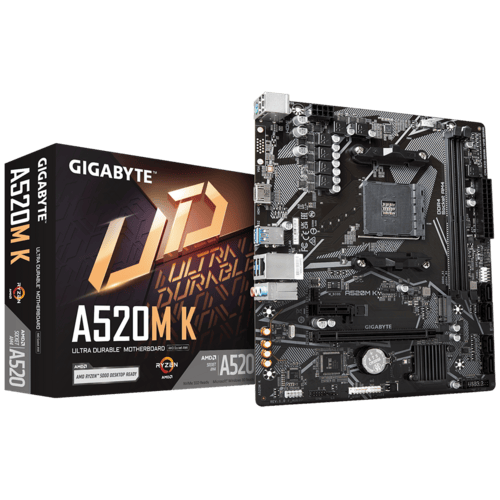

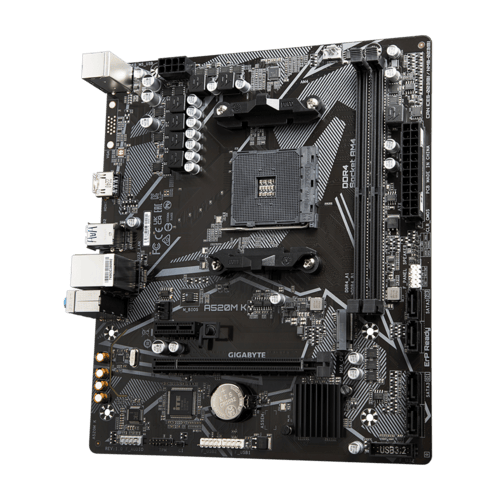

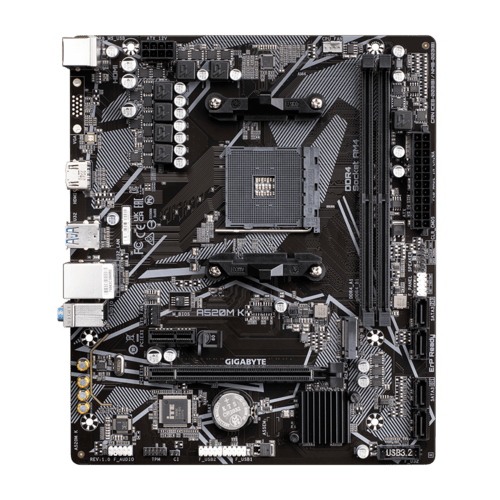

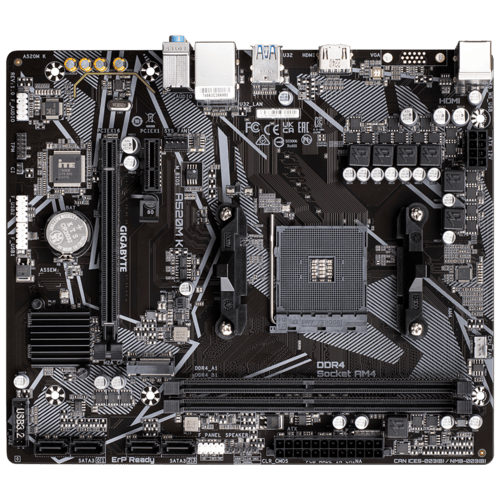

Gigabyte A520M K Motherboard

The Gigabyte A520M K is designed for modern budget-friendly desktops built around the AMD AM4 platform. It supports Ryzen 3000/4000/5000 series CPUs and enables fast NVMe storage and PCIe expansion, making it ideal for everyday computing, media playback, home office systems and entry-level gaming builds.

The A520M K offers full AM4 CPU support (including Ryzen 5000 series), dual-channel DDR4 memory support up to 64 GB, an M.2 PCIe Gen3 x4 slot for NVMe SSDs, four SATA 6Gb/s ports, and gigabit LAN with network management features. With GIGABYTE’s Smart Fan 5 technology for advanced fan control and hybrid fan headers, high-end audio capacitors and a compact micro-ATX form factor, it blends performance and value in one.

Socket: AMD AM4

Chipset: AMD A520

CPU Support: AMD Ryzen 5000/4000 G-series/3000 series processors

Memory Support: 2 × DDR4 DIMM slots; up to 64 GB; dual-channel

Storage Interfaces: 1 × M.2 slot (PCIe 3.0 ×4/NVMe + SATA mode) + 4 × SATA 6Gb/s ports

PCI-Express Slots: 1 × PCIe x16 (Gen3) + 1 × PCIe x1

Networking: Gigabit LAN with bandwidth management

Audio: High-end audio capacitors, 7.1-channel HD audio support

Form Factor: micro-ATX (≈ 198 mm × 233 mm)

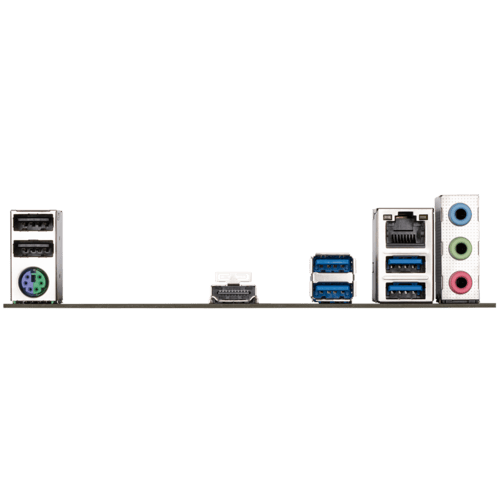

USB I/O: USB 3.2 Gen1 + USB 2.0 ports (varies by revision)

System Requirements: Compatible PC case supporting micro-ATX form factor; ATX power supply with 24-pin main connector + 8-pin CPU connector; AM4 socket processor; DDR4 memory modules

Setup: Install AM4 CPU and cooler, insert DDR4 modules, mount motherboard into case, connect storage drives (NVMe or SATA), connect front-panel headers and I/O

Usage Environment: Ideal for home desktops, study/work setups, entry gaming builds, media centres and compact PC builds

Included Accessories: Motherboard unit, I/O shield, SATA cables (depending on region), user manual
