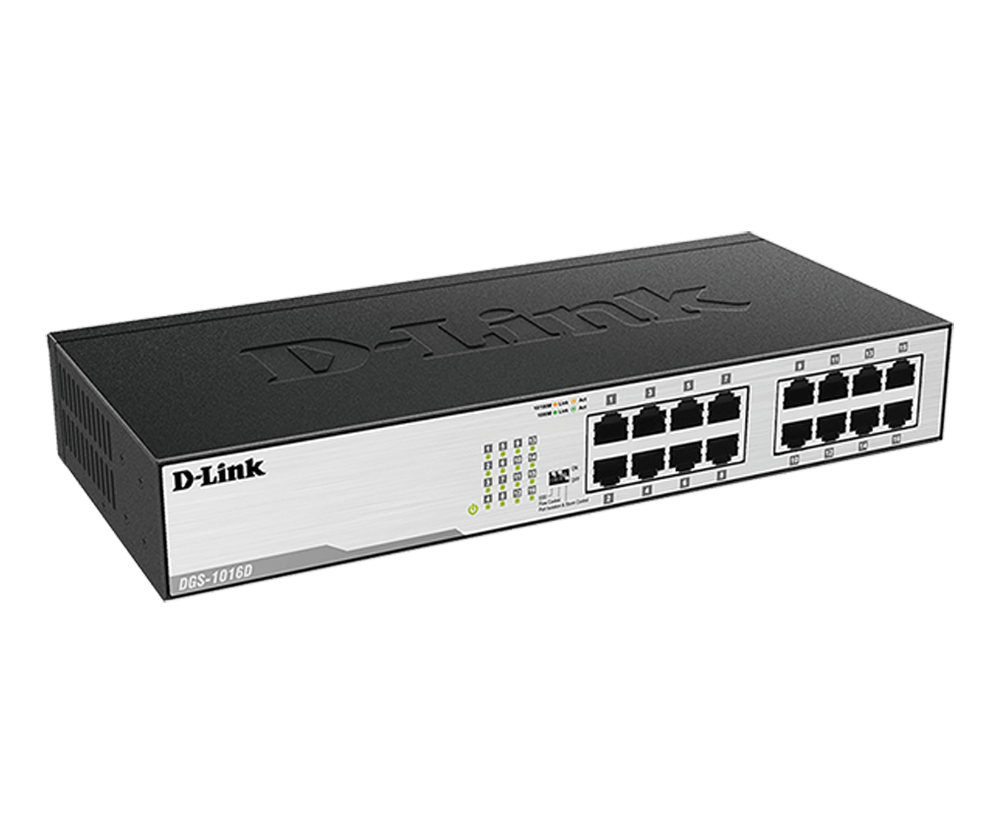

D-Link DGS-1016D 16-Port Gigabit Unmanaged Desktop Switch — Fanless | DIP Switch | D-Link Green | MTCTE Certified

The D-Link DGS-1016D is built for SOHO environments, small and medium businesses, educational labs, retail stores, and office networks who need a full Gigabit 16-port unmanaged switch with built-in Storm Control, Port Isolation, cable diagnostics, and surge protection — features rarely found in unmanaged switches at this port count. It is well-suited for environments connecting desktops, laptops, NAS devices, IP cameras, VoIP phones, printers, and servers at Gigabit speeds, and for offices concerned about network stability, broadcast storm resilience, and equipment protection in areas with unstable power or lightning risk.

The DGS-1016D delivers sixteen 1000Base-T Gigabit Ethernet ports with 32 Gbps non-blocking switching capacity and a maximum forwarding rate of 23.81 Mpps for wire-speed Gigabit performance across all sixteen ports simultaneously — 10x faster than Fast Ethernet switches. Auto MDI/MDIX on every port eliminates crossover cable requirements for seamless device connection. A unique front-panel 3-pin DIP switch enables real-time toggling of four key network functions without rebooting or connecting to a management interface: Energy Efficient Ethernet (EEE), 802.3x Flow Control for packet loss prevention, Port Isolation for security-sensitive environments requiring per-port traffic separation, and Storm Control to protect the network against broadcast storms caused by rogue software or malware. Built-in cable diagnostics enable quick identification of cable faults, open circuits, and short circuits without needing external test equipment. The fully fanless design and compact durable metal casing ensure completely silent, reliable operation with effective passive heat dissipation — suitable for open-plan offices, classrooms, and desk deployments. Surge and lightning protection of ±1kV on both AC power input and all sixteen Ethernet ports, alongside 8kV air discharge and 4kV contact discharge ESD protection, delivers robust hardware-level protection for all connected equipment. D-Link Green Technology automatically powers down ports with no link and optimises power usage by cable length, while EEE further reduces power during low-activity periods. A large 8K MAC address table and 10,000-byte jumbo frame support handle large-scale concurrent device connections and high-throughput data transfers for NAS, file servers, and multimedia streaming. RoHS-compliant and packaged in recyclable materials.

Model: DGS-1016D
Switch Type: Unmanaged Desktop Switch
Casing: Compact Durable Metal
Interfaces: 16× 1000Base-T (RJ-45) — 10/100/1000 Mbps | Auto MDI/MDIX
Switching Capacity: 32 Gbps
Max. Packet Forwarding Rate: 23.81 Mpps
Forwarding Method: Store-and-Forward
MAC Address Table Size: 8,192 entries
Packet Buffer Size: 512 KBytes
Jumbo Frame: 10,000 Bytes
Flow Control: IEEE 802.3x (DIP switch toggleable)
HOL Blocking Prevention: Yes
Port Isolation: Yes (DIP switch toggleable)
Storm Control: Yes (DIP switch toggleable)
Cable Diagnostics: Yes (built-in)

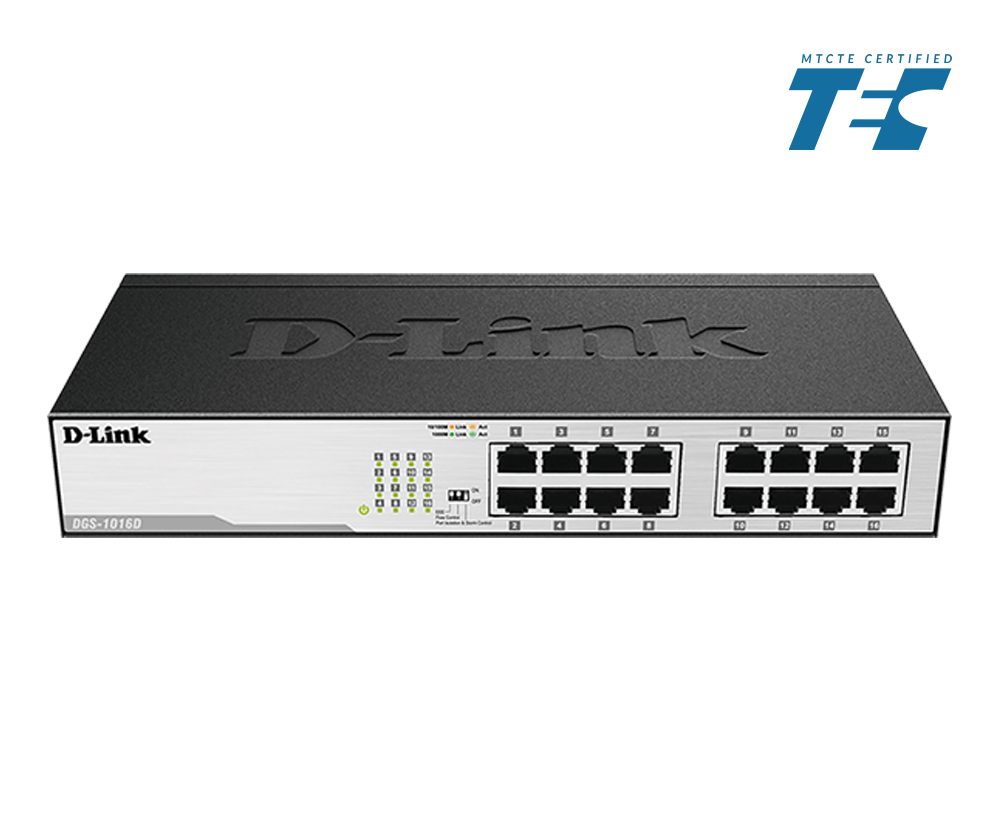

DIP Switch: 3-pin front panel (EEE / Flow Control / Port Isolation / Storm Control)
Energy Efficiency Ethernet (EEE): Yes (IEEE 802.3az, DIP switch toggleable)
Power Saving — Link Status: Yes (auto port power-down when no link)
Power Saving — Cable Length: Yes (auto power reduction by cable length)
Cooling: Fanless (passive cooling)

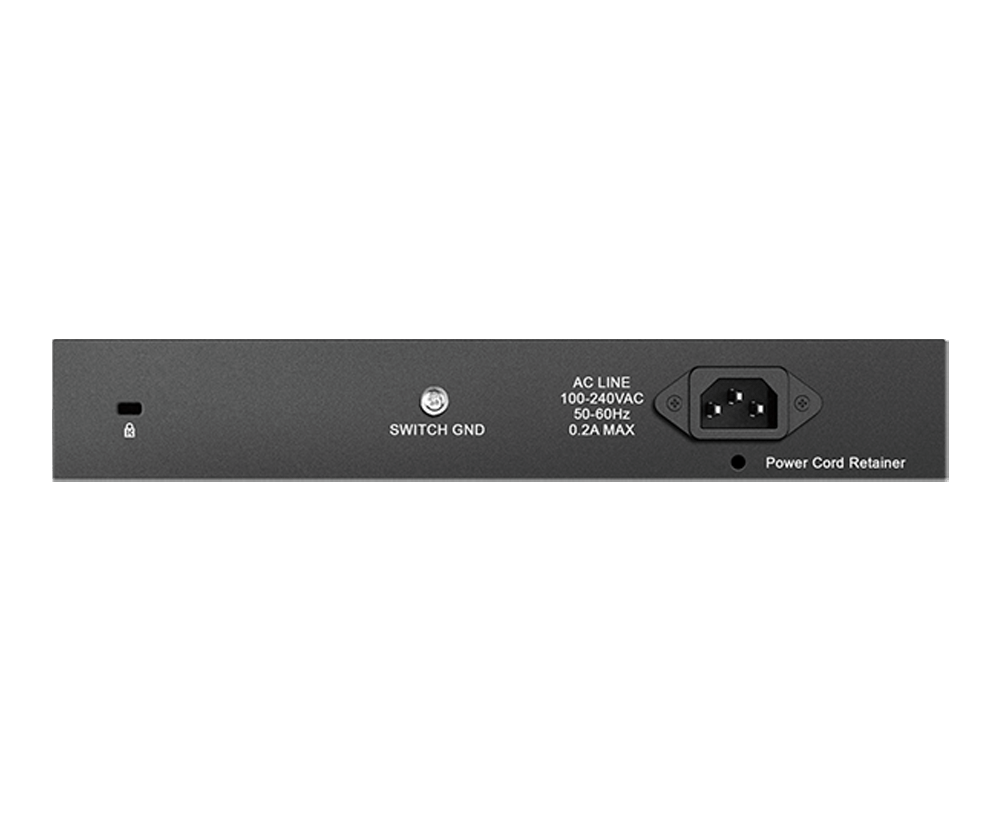

Power Input: AC 100–240V (universal)
Max. Power Consumption: 10.07W
Standby Power Consumption: 3.02W
Max. Heat Dissipation: 34.3 BTU/h
MTBF: 1,882,372 hours
Surge / Lightning Protection: AC Power Input: ±1kV | All Ethernet Ports: ±1kV
ESD Protection: Air Discharge: 8kV | Contact Discharge: 4kV
Dimensions: 280 × 125 × 44mm (W × D × H)
Weight: 1.023 kg
Operating Temperature: 0°C to 40°C
Storage Temperature: -10°C to 70°C
Operating Humidity: 0% to 95% RH
Storage Humidity: 0% to 95% RH
Certification: MTCTE Certified (India), RoHS 6, WEEE

System Requirements: Compatible with any device featuring a standard 10/100/1000 Mbps Ethernet RJ-45 port; universal AC 100–240V power input — no separate adapter required; no software configuration required — plug-and-play out of the box; DIP switch on front panel provides hardware-level toggle of EEE, Flow Control, Port Isolation, and Storm Control without software

Setup: Connect power cable to AC outlet, connect devices via standard Ethernet cables to any of the 16 ports; use front-panel 3-pin DIP switch to enable/disable EEE, Flow Control, Port Isolation, or Storm Control as needed; cable diagnostics accessible without external tools; wall-mounting optional with included hardware

Mounting Options: Desktop placement (rubber feet included) or wall mounting (hardware included); compact metal chassis for server room, shelf, or desk deployment

Usage Environment: Ideal for SOHO environments, small and medium offices, educational labs, retail stores, NAS and file server networks, IP surveillance installations, and any wired network requiring reliable fanless 16-port Gigabit switching with surge protection and real-time DIP switch-controlled network management features
