Cooler Master Elite 690 Wood Edition Mid-Tower Case

The Cooler Master Elite 690 Wood Edition brings together the warmth of real wood and the performance of a modern airflow chassis. It combines sustainable aesthetics with engineering precision, offering full-sized build capability, efficient cooling, and refined visual design for high-end workstations and gaming systems.

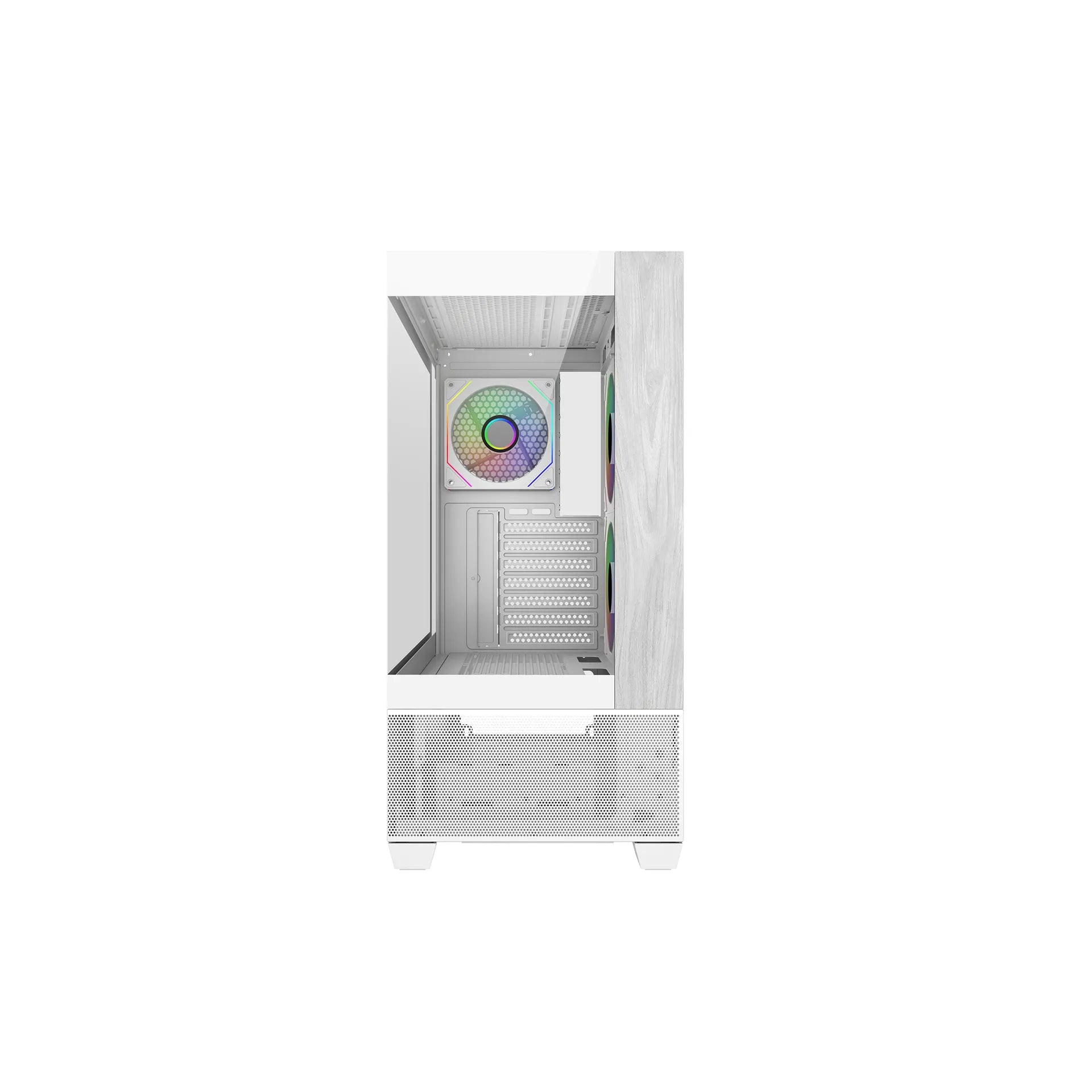

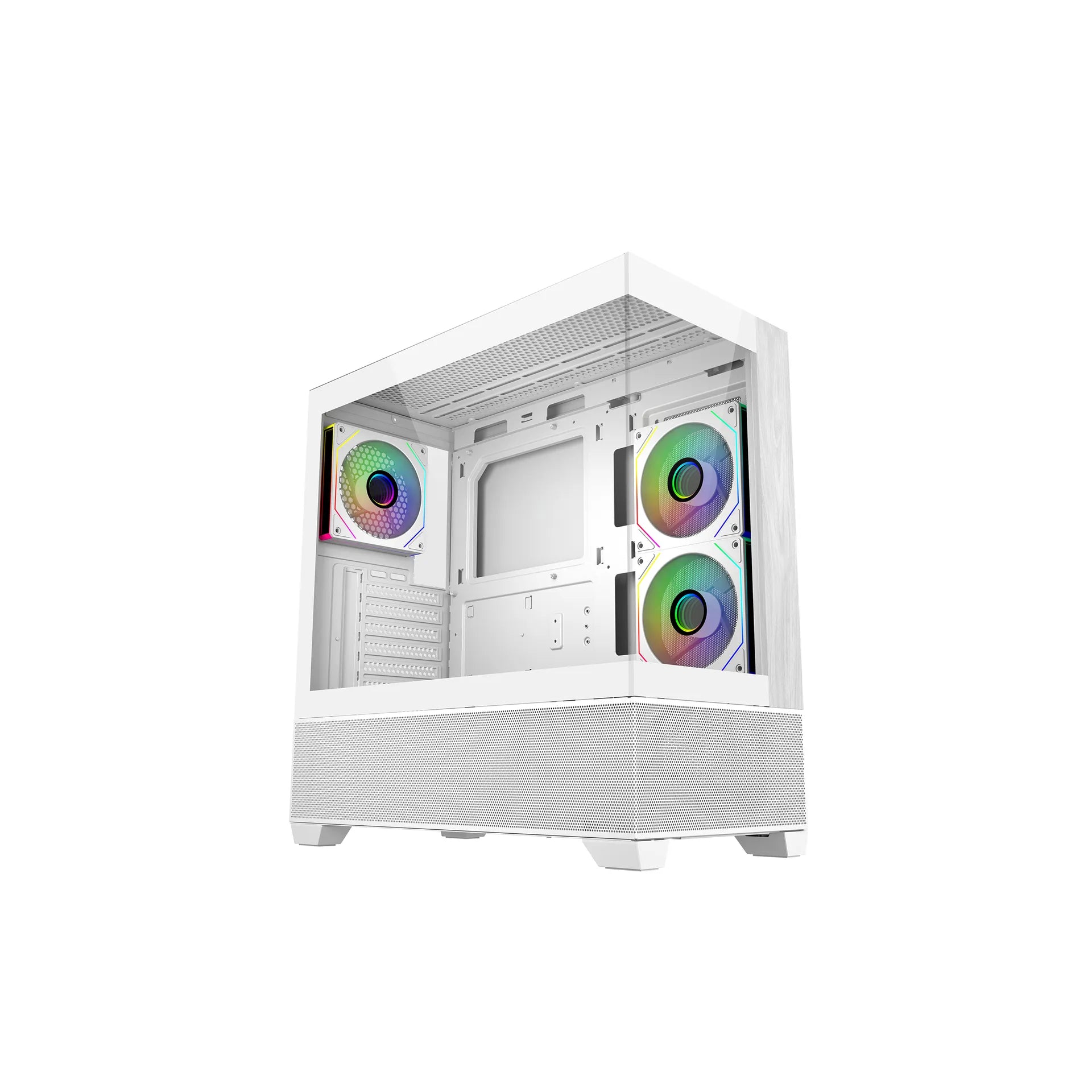

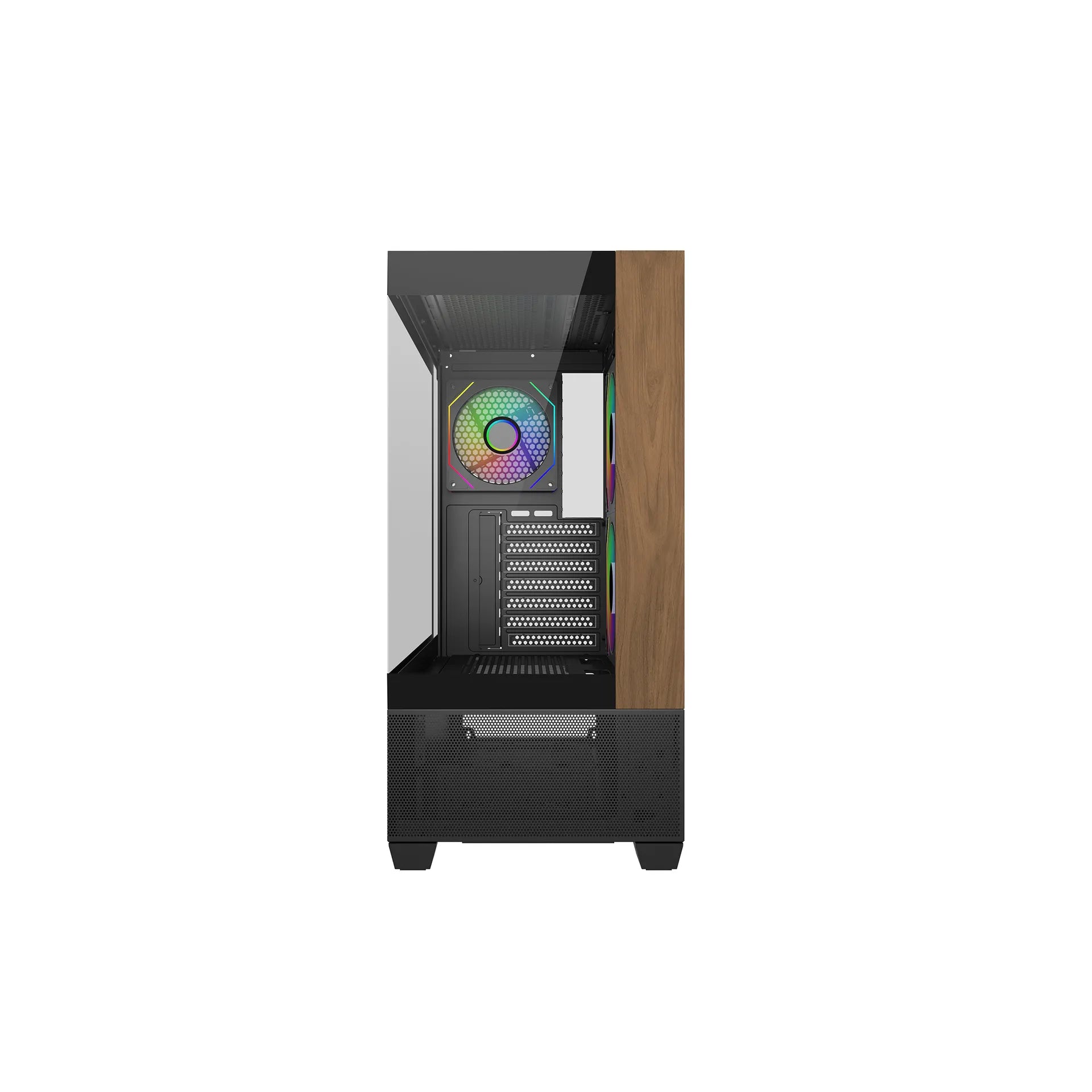

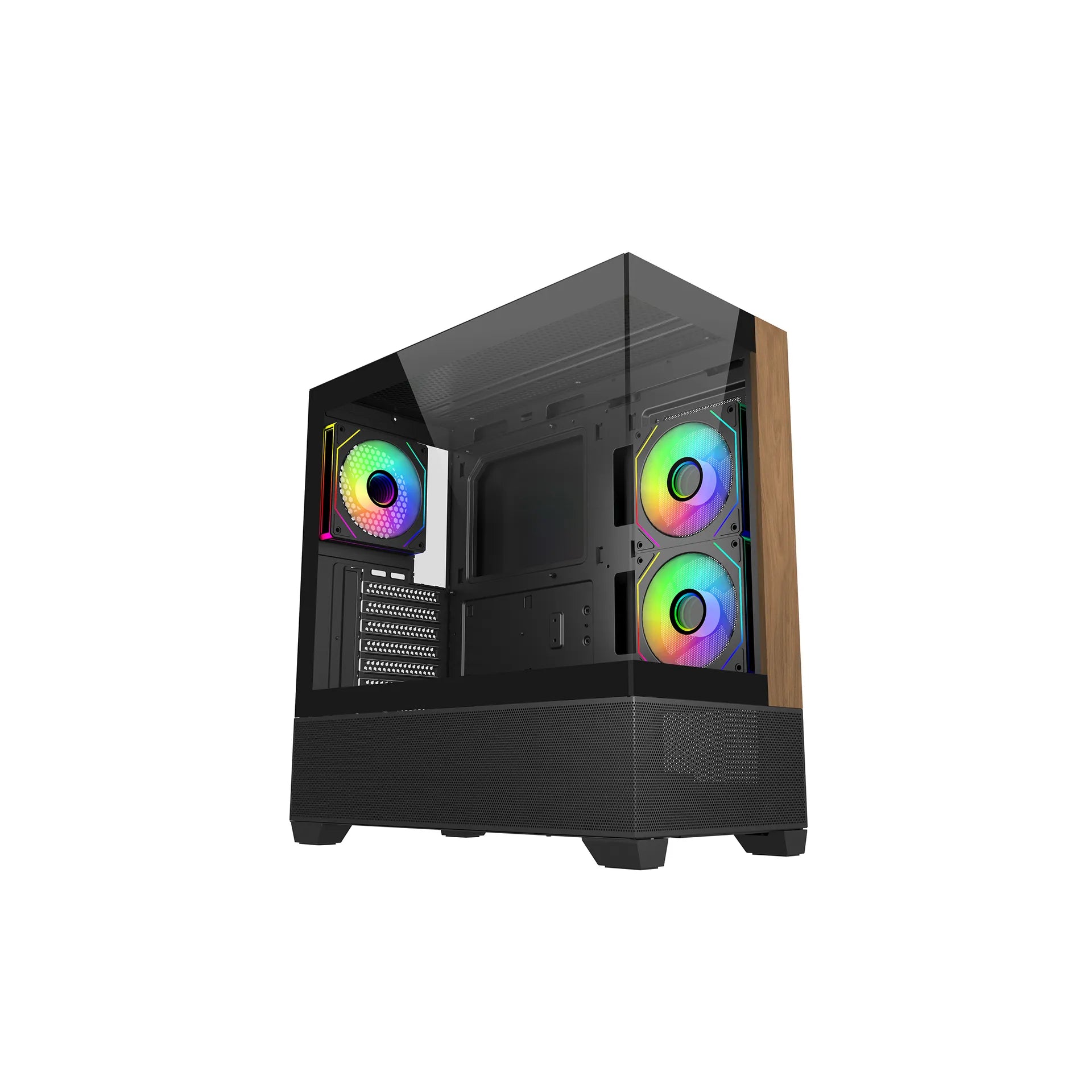

The Elite 690 Wood Edition features a real wood front panel, durable steel chassis, and dual tempered-glass side panels for 270° visibility. Its dual-chamber layout separates power delivery and cooling for better thermal efficiency and easier cable routing. Despite its refined design, it supports E-ATX motherboards, 410 mm GPUs, and 360 mm radiators for both front and top placement. Available in both Matte Black and Matte White finishes, it offers a clean, natural aesthetic that complements any modern workspace or gaming setup.

Form Factor: Mid-Tower
Motherboard Support: E-ATX, ATX, Micro-ATX, Mini-ITX
Materials: Steel chassis, real wood front panel, tempered glass side panels
Dimensions (Approx): 495 × 240 × 480 mm
Maximum GPU Length: 410 mm
Maximum CPU Cooler Height: 170 mm
Radiator Support: Front – up to 360 mm | Top – up to 360 mm | Rear – 120 mm
Fan Support: Front – up to 3 × 120 mm or 2 × 140 mm | Top – 3 × 120 mm or 2 × 140 mm | Rear – 1 × 120 mm
Drive Support: 2 × 2.5″ and 2 × 3.5″
Front I/O Ports: 1 × USB 3.2 Gen 2×2 Type-C (20 Gbps), 2 × USB 3.0 Type-A, Audio In/Out
Colour Options: Black / White with Natural Wood Front

System Requirements: Compatible E-ATX or smaller motherboard, ATX PSU, and cooling components within clearance limits.
Usage Environment: High-performance gaming PCs, professional workstations, and creative setups requiring style, airflow, and cable optimization.
Included Accessories: Case chassis, wood front panel, dual glass panels, mounting accessories, and dust filters.
