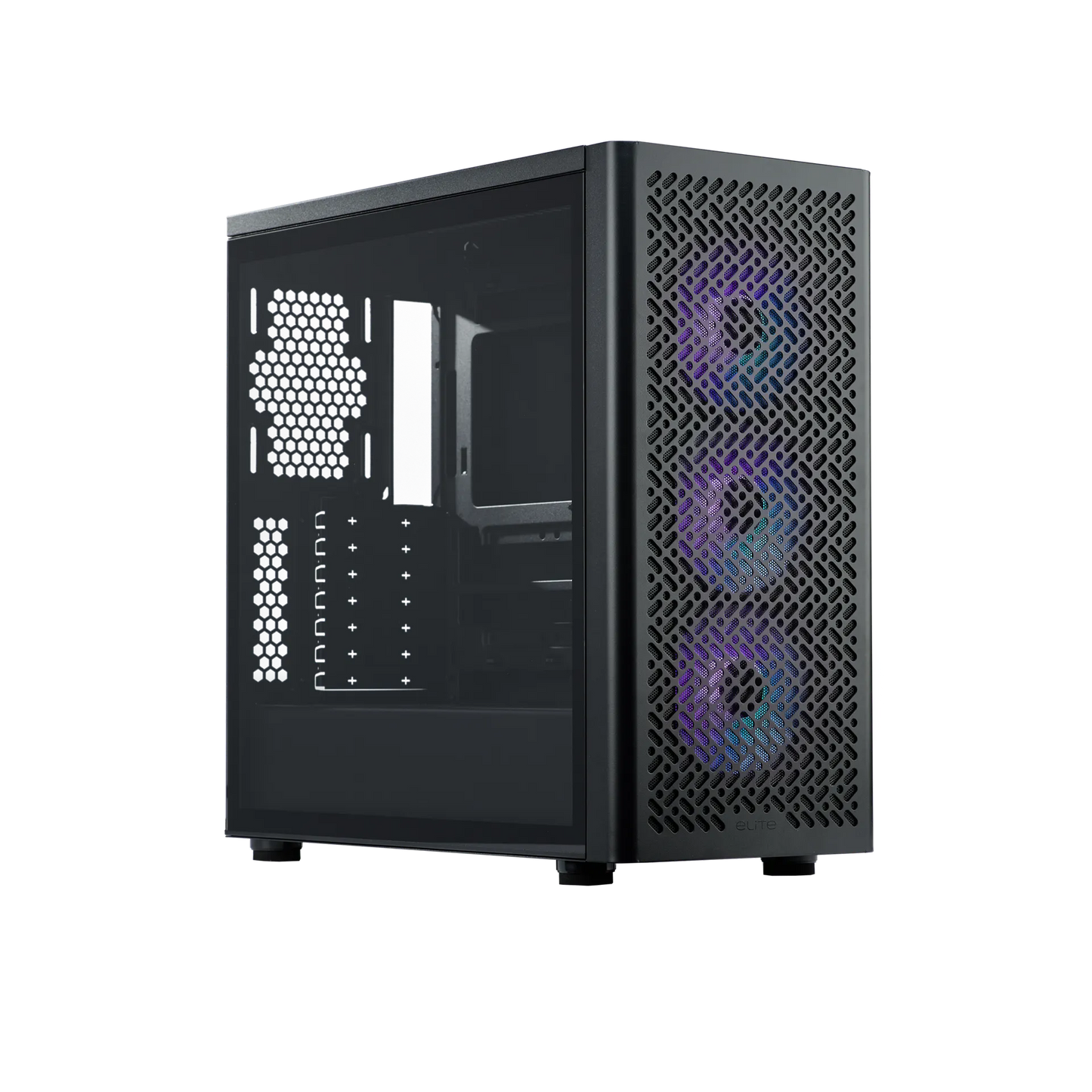

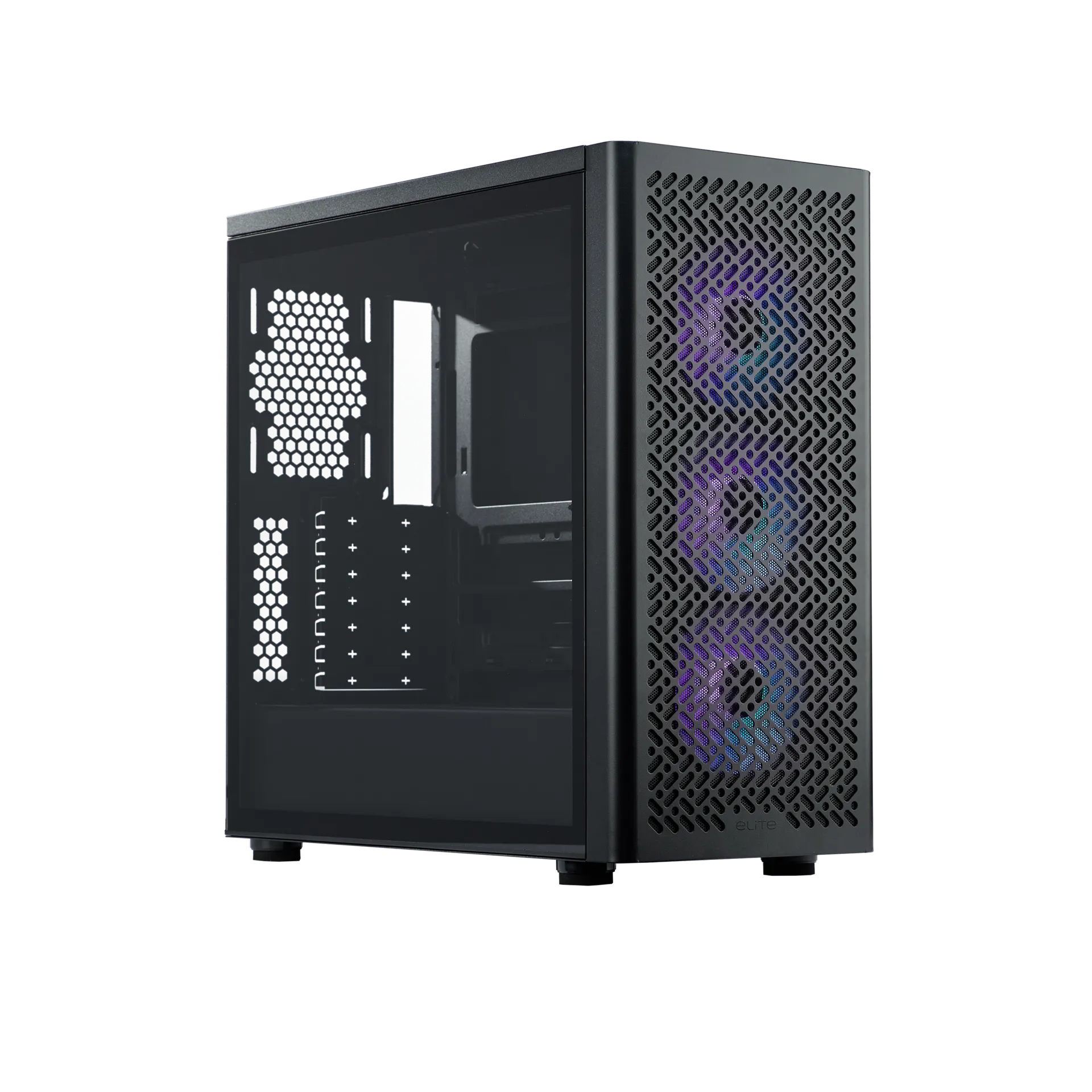

Cooler Master Elite 502 Micro-ATX Mini-Tower Case

The Cooler Master Elite 502 combines elegant design with performance engineering. Featuring a dual-chamber layout, mesh front panel, and tempered-glass side, it provides exceptional airflow and easy cable management in a compact footprint — perfect for space-conscious gaming and workstation builds.

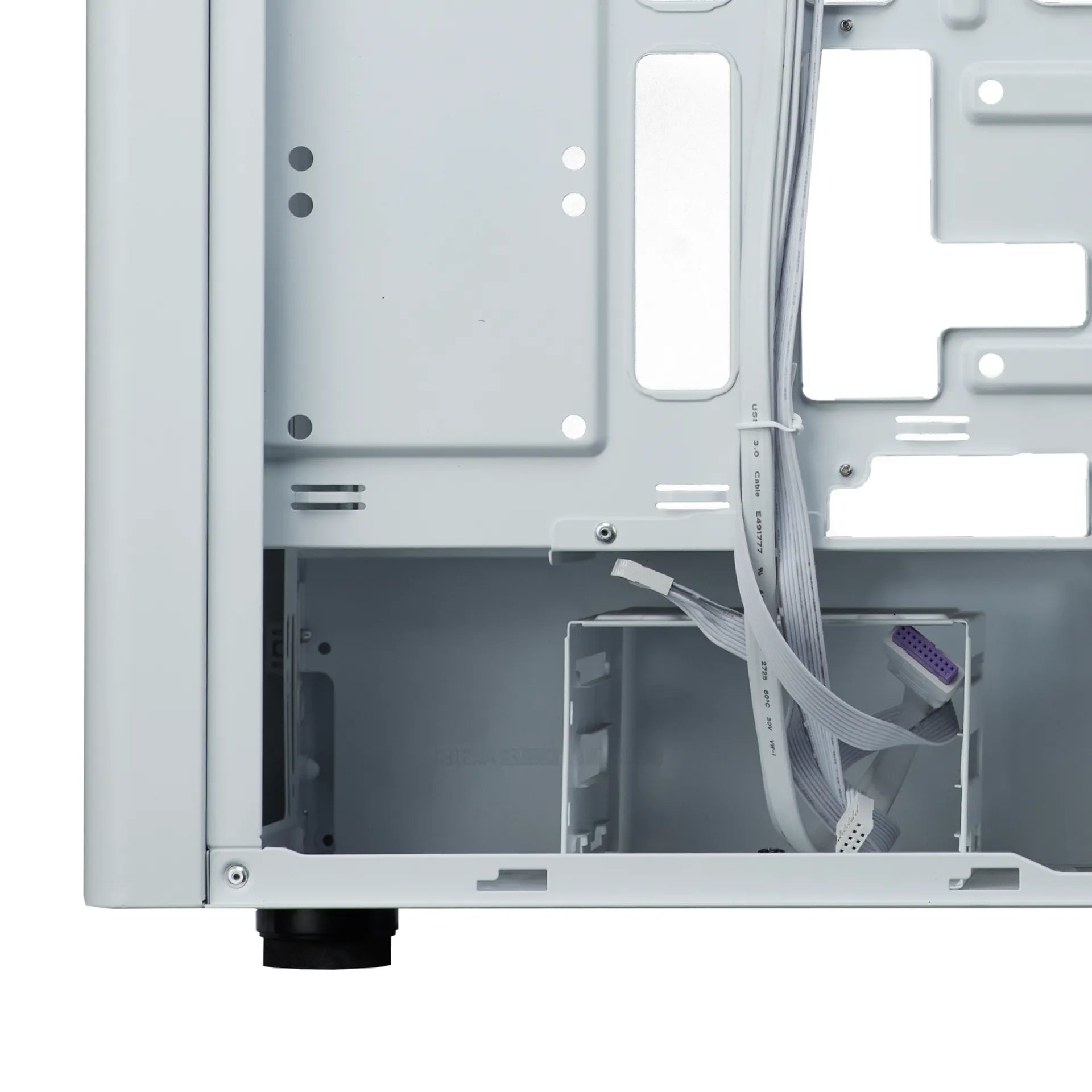

The Elite 502 features a dual-chamber design separating PSU and storage from the motherboard area for cleaner airflow and simplified assembly. Its FineMesh front panel maximizes air intake while filtering dust, and the case supports full-length GPUs up to 410 mm and radiators up to 360 mm. Available in both Matte Black and Matte White finishes, it offers a minimalist look suited for both gaming and professional spaces.

Form Factor: Micro-ATX / Mini-ITX
Materials: Steel chassis with mesh front and tempered glass side panel
Motherboard Support: Micro-ATX, Mini-ITX
Maximum GPU Length: 410 mm
Maximum CPU Cooler Height: 165 mm
Radiator Support: Front – up to 360 mm | Top – up to 240 mm | Rear – 120 mm

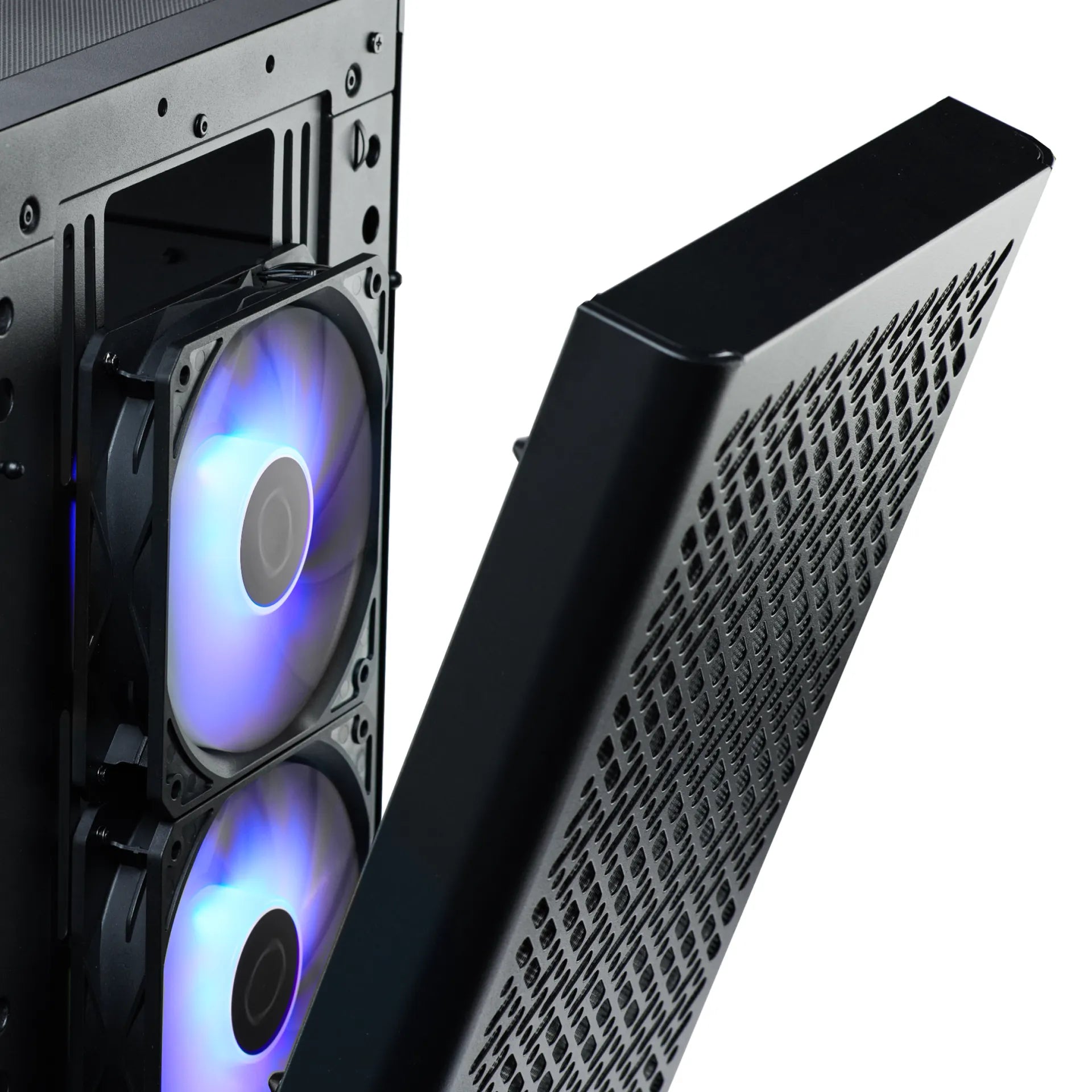

Fan Support: Front – 3 × 120 mm or 2 × 140 mm | Top – 2 × 120 mm | Rear – 1 × 120 mm
Drive Support: 2 × 2.5″ and 2 × 3.5″ (adjustable brackets)

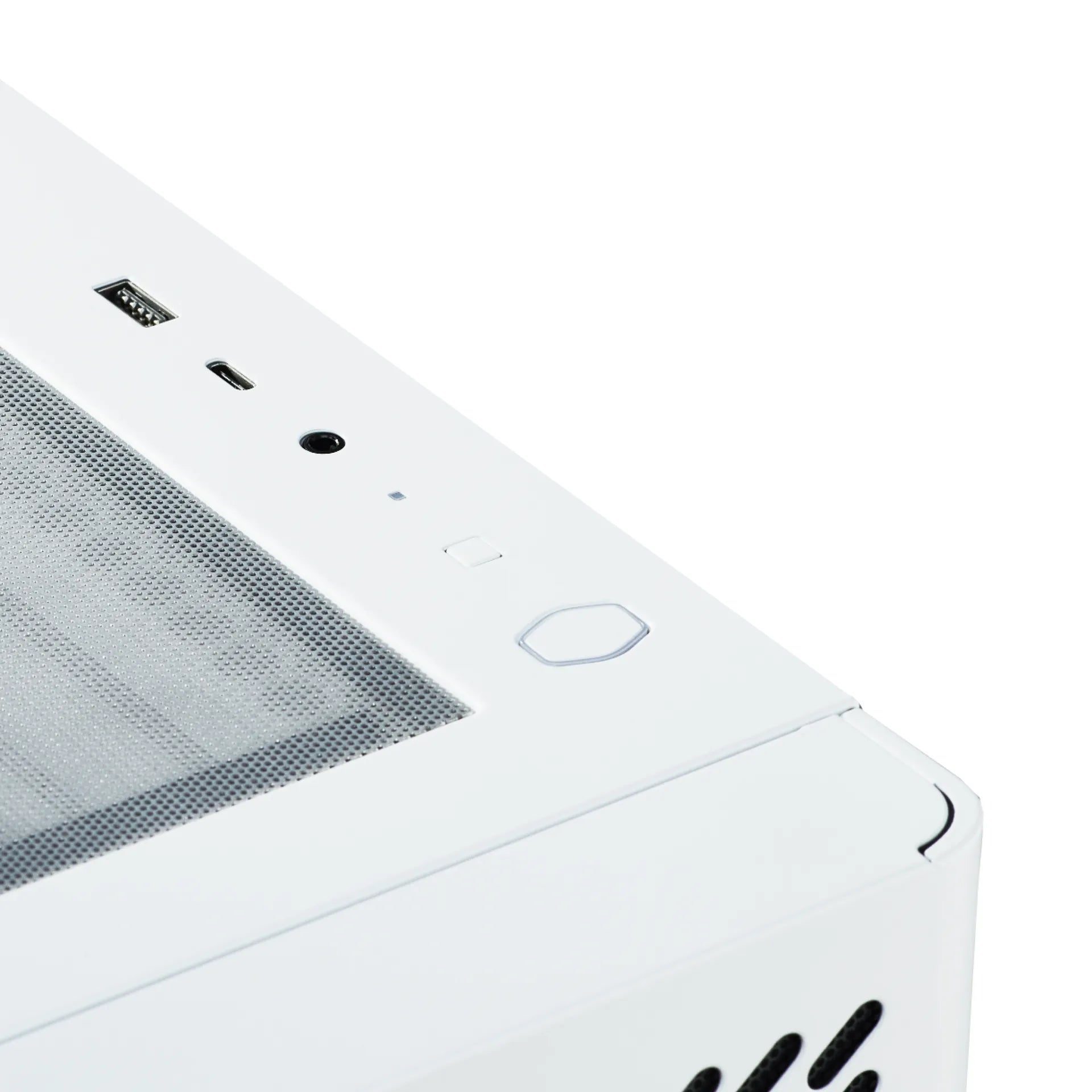

Front I/O Ports: 1 × USB 3.2 Gen 2×2 Type-C (20 Gbps), 2 × USB 3.0 Type-A, Audio In/Out
Colour Options: Black / White

System Requirements: Micro-ATX or Mini-ITX motherboard, ATX power supply, and components within clearance limits.
Usage Environment: Compact gaming PCs, creator workstations, and premium home desktops requiring clean design and airflow optimization.
Included Accessories: Case chassis, tempered glass side panel, mesh front panel, mounting accessories and dust filters.
