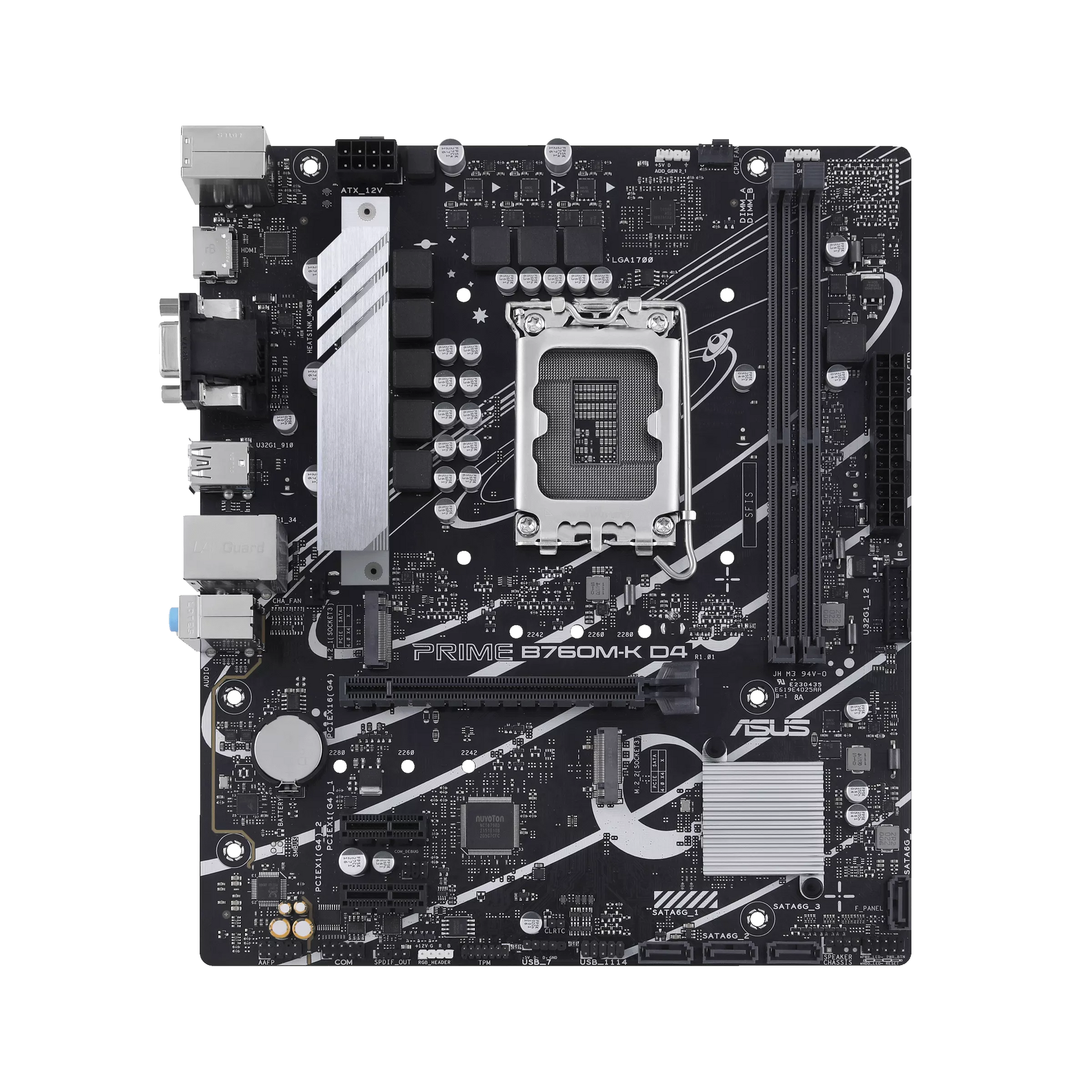

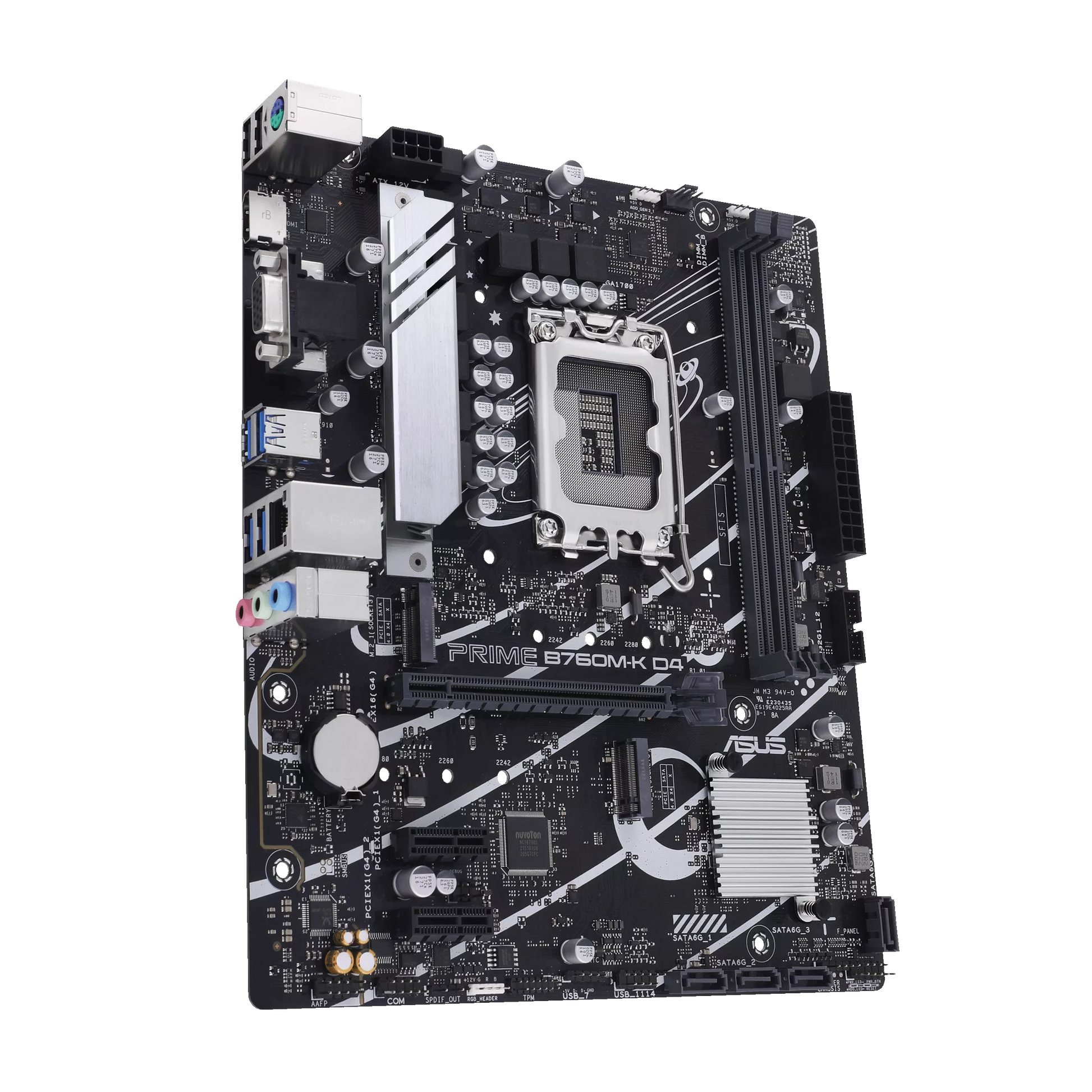

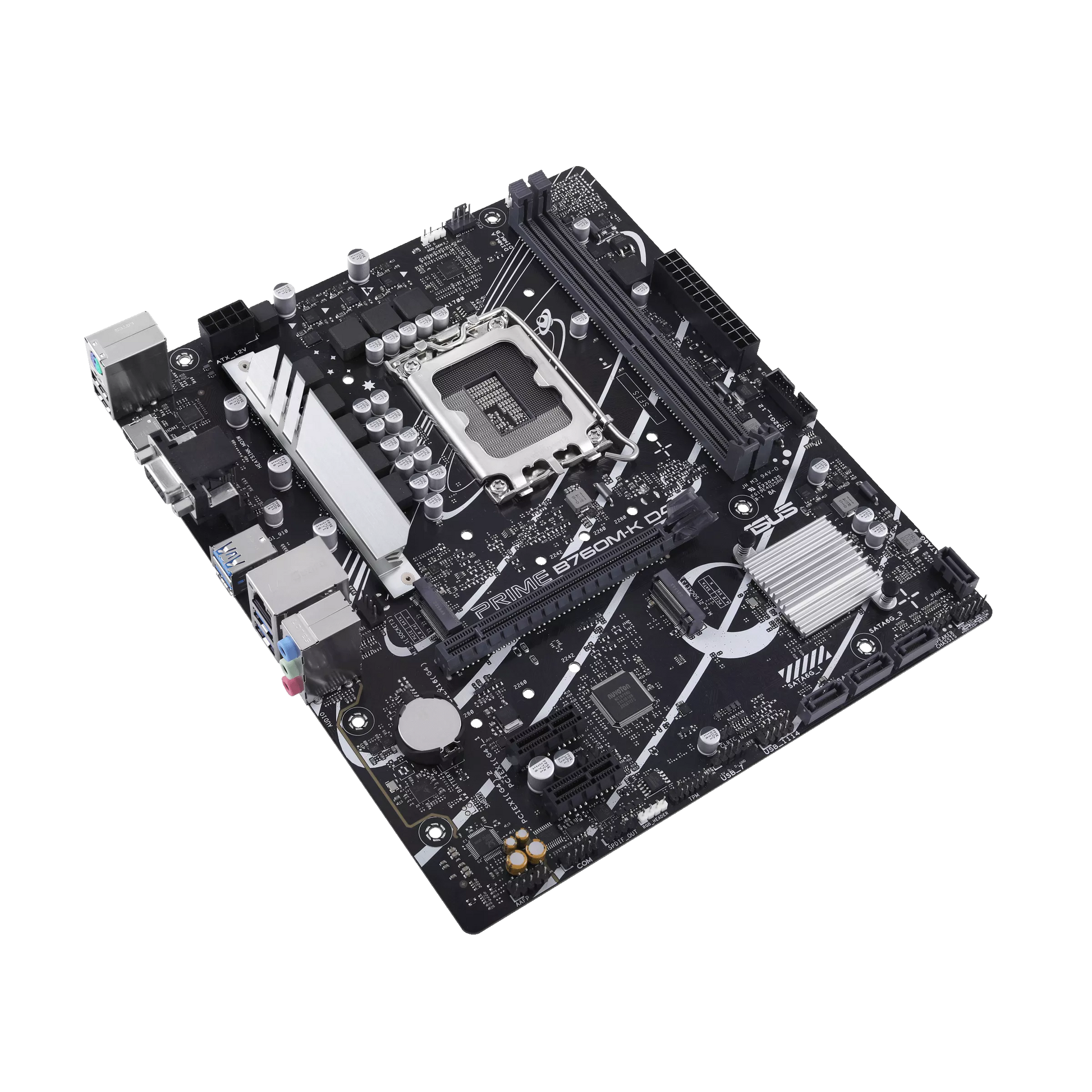

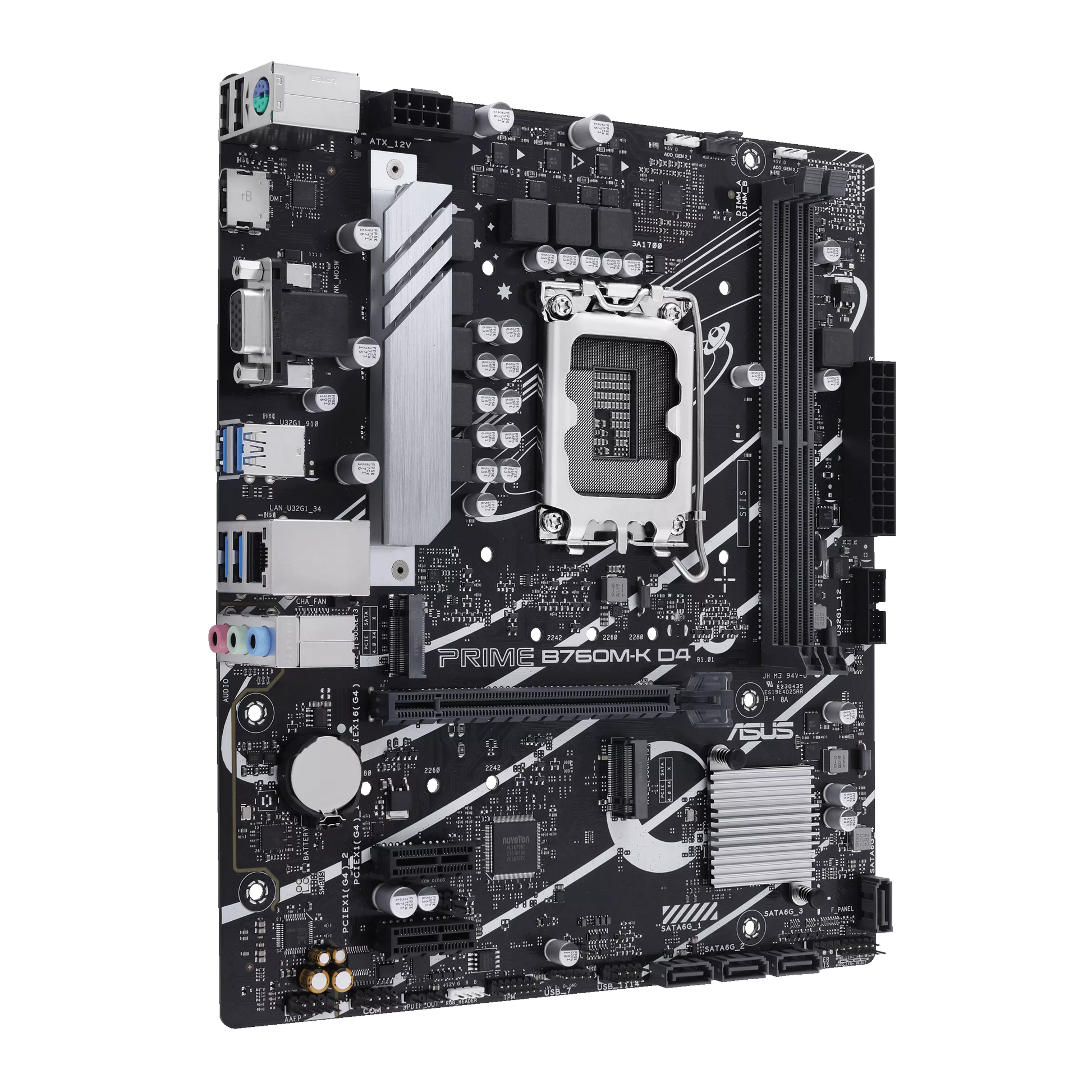

ASUS PRIME B760M-K D4 Intel B760 Micro-ATX Motherboard — LGA1700 | DDR4 | 2.5GbE | PCIe 4.0 | Aura Sync

The ASUS PRIME B760M-K D4 is built for budget-conscious PC builders, home and office users, students, and everyday assemblers who want a stable Intel B760 Micro-ATX platform with DDR4 memory compatibility — preserving existing DDR4 kit investments — alongside dual M.2 NVMe slots, PCIe 4.0 GPU support, 2.5GbE wired networking, and ASUS's comprehensive reliability ecosystem without the premium cost of a Wi-Fi or DDR5 board. It is well-suited for Intel 12th, 13th, and 14th Gen Core everyday builds, office workstations, home computing upgrades, student systems, and compact ATX case configurations where reliability, DDR4 compatibility, and value are equally prioritised.

The PRIME B760M-K D4 delivers a PCIe 4.0 x16 slot with SafeSlot Core reinforced protection for PCIe 4.0 graphics cards, alongside two PCIe 4.0 x1 slots for additional expansion. Dual PCIe 4.0 x4 M.2 slots — one CPU-direct (M.2_1) and one chipset (M.2_2) — support NVMe SSDs up to M.2 2280, complemented by 4 SATA 6Gb/s ports with RAID 0/1/5/10 support. DDR4 memory across 2 DIMM slots supports up to 64GB at DDR4-4800+ (OC) with XMP profile support for performance tuning. HDMI and VGA rear display outputs accommodate both modern and legacy monitor connectivity without a discrete GPU. Realtek 2.5GbE LAN with ASUS LANGuard hardware network protection ensures fast, stable, and surge-protected wired connectivity. Realtek S1220A HD Audio codec delivers 7.1-channel surround sound with 120dB SNR line-out, Two-Way AI Noise Cancellation, audio shielding, premium audio capacitors, and dedicated audio PCB layers. ASUS 5X Protection III includes Digi+ VRM digital power control, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-Steel Back I/O for comprehensive hardware protection. A ProCool solid-pin 8-pin CPU power connector ensures stable power delivery to the CPU under sustained load. Q-LED Core diagnostic LED provides visual POST status feedback for fast troubleshooting. Two Addressable Gen 2 ARGB headers and one Aura RGB header enable Aura Sync ecosystem RGB customisation.

Form Factor: Micro-ATX (mATX) — 24.4 cm × 24.4 cm
Socket: Intel LGA1700
Chipset: Intel B760
Supported CPUs: Intel Core 14th / 13th / 12th Gen; Pentium Gold; Celeron (LGA1700)

Memory Slots: 2× DDR4 DIMM (Dual Channel)
Max Memory: 64GB
Memory Speed: DDR4-4800+ (OC) / 4600 / 4400 / 4266 / 4133 / 4000 / 3866 / 3800 / 3733 / 3600 / 3466 / 3400 / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz; Intel XMP supported
Memory Type: Non-ECC Unbuffered DDR4

PCIe Slots:
1× PCIe 4.0 x16 (CPU) — SafeSlot Core
2× PCIe 4.0 x1 (Chipset)

M.2 Slots:
M.2_1 — Key M, type 2242/2260/2280, PCIe 4.0 x4 (CPU direct)
M.2_2 — Key M, type 2242/2260/2280, PCIe 4.0 x4 (Chipset)

SATA Ports: 4× SATA 6Gb/s (RAID 0/1/5/10 support)
Display Output: 1× HDMI (up to 4K@30Hz) | 1× VGA (D-Sub)
Audio: Realtek S1220A HD Audio CODEC, 7.1-channel, 120dB SNR (line-out), 113dB SNR (line-in), Two-Way AI Noise Cancellation, Audio Shielding, Dedicated Audio PCB Layers, Premium Audio Capacitors, S/PDIF Out, DTS:X Ultra
LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) + LANGuard
Wireless: None (no Wi-Fi built-in)

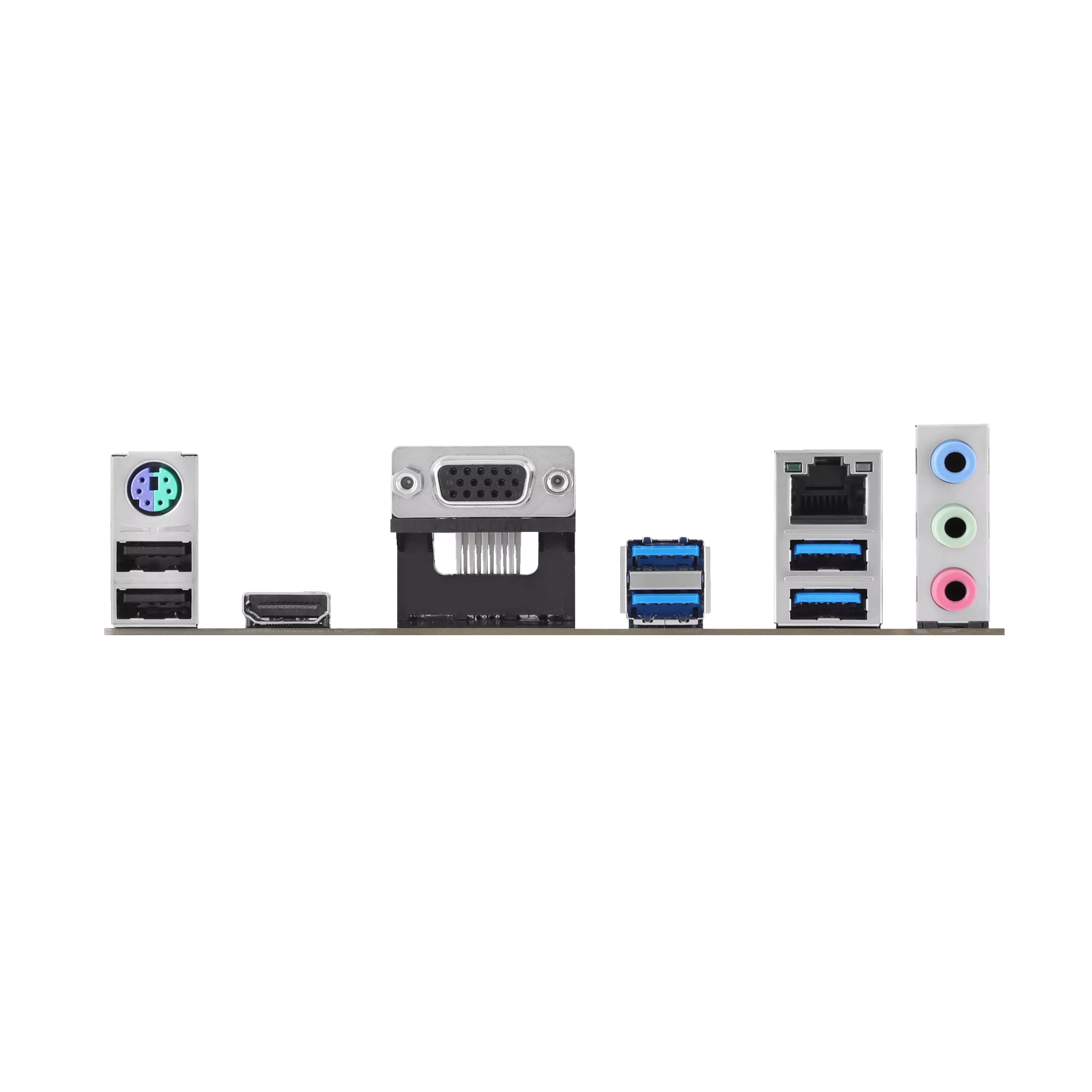

Back Panel USB:
4× USB 3.2 Gen 1 Type-A (5 Gb/s)
2× USB 2.0 Type-A
1× HDMI
1× VGA (D-Sub)
1× Realtek 2.5GbE
3× Audio Jacks
1× PS/2 Keyboard/Mouse Combo

Internal Headers:
1× USB 3.2 Gen 1 header (2 additional USB 3.2 Gen 1 ports)
2× USB 2.0 headers (3 additional USB 2.0 ports)
2× Addressable Gen 2 ARGB headers
1× Aura RGB header
1× 4-pin CPU fan | 1× 4-pin Chassis fan
1× 24-pin ATX Main | 1× 8-pin +12V CPU (ProCool Solid Pin)
1× Front panel audio (AAFP) | 1× S/PDIF Out | 1× Speaker header | 1× COM port
1× SPI TPM header (14-1 pin) | 1× Clear CMOS | 1× 10-1 pin System Panel header

Special Features: ASUS 5X Protection III (Digi+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O), Q-DIMM, Q-LED Core, Q-Slot, ProCool, VRM Heatsink
BIOS: 128Mb Flash ROM, UEFI AMI BIOS, CrashFree BIOS 3, EZ Flash 3, EZ Mode + Advanced Mode
Software: Armoury Crate (Aura Sync, Fan Xpert, Power Saving), AI Suite 3 (Digi+ VRM), ASUS CPU-Z, MyAsus
OS: Windows 11 / Windows 10 64-bit

System Requirements: LGA1700 CPU (Intel Core 12th/13th/14th Gen, Pentium Gold, or Celeron); DDR4 memory required (DDR5 not supported on this board — choose PRIME B760M-K for DDR5 support); verify memory QVL on ASUS website; Intel B760 does not support CPU overclocking — multiplier is locked for K-series CPUs; BIOS update may be required for 14th Gen CPU support; no Wi-Fi built-in — use USB Wi-Fi adapter or PCIe Wi-Fi card if wireless connectivity is needed

Setup: Standard Micro-ATX installation; ProCool 8-pin CPU power connector; Fan Xpert configurable via Armoury Crate or UEFI BIOS; XMP profile activation in BIOS for rated DDR4 OC speeds; HDMI supports integrated GPU display output without discrete GPU

Mounting Options: Micro-ATX form factor (24.4 × 24.4 cm); compatible with Micro-ATX and full-size ATX cases

Usage Environment: Ideal for budget home and office desktop builds, student systems, DDR4-preserving upgrades, compact ATX builds, and everyday Intel 12th/13th/14th Gen gaming and productivity systems requiring a reliable, value-focused B760 DDR4 Micro-ATX platform
