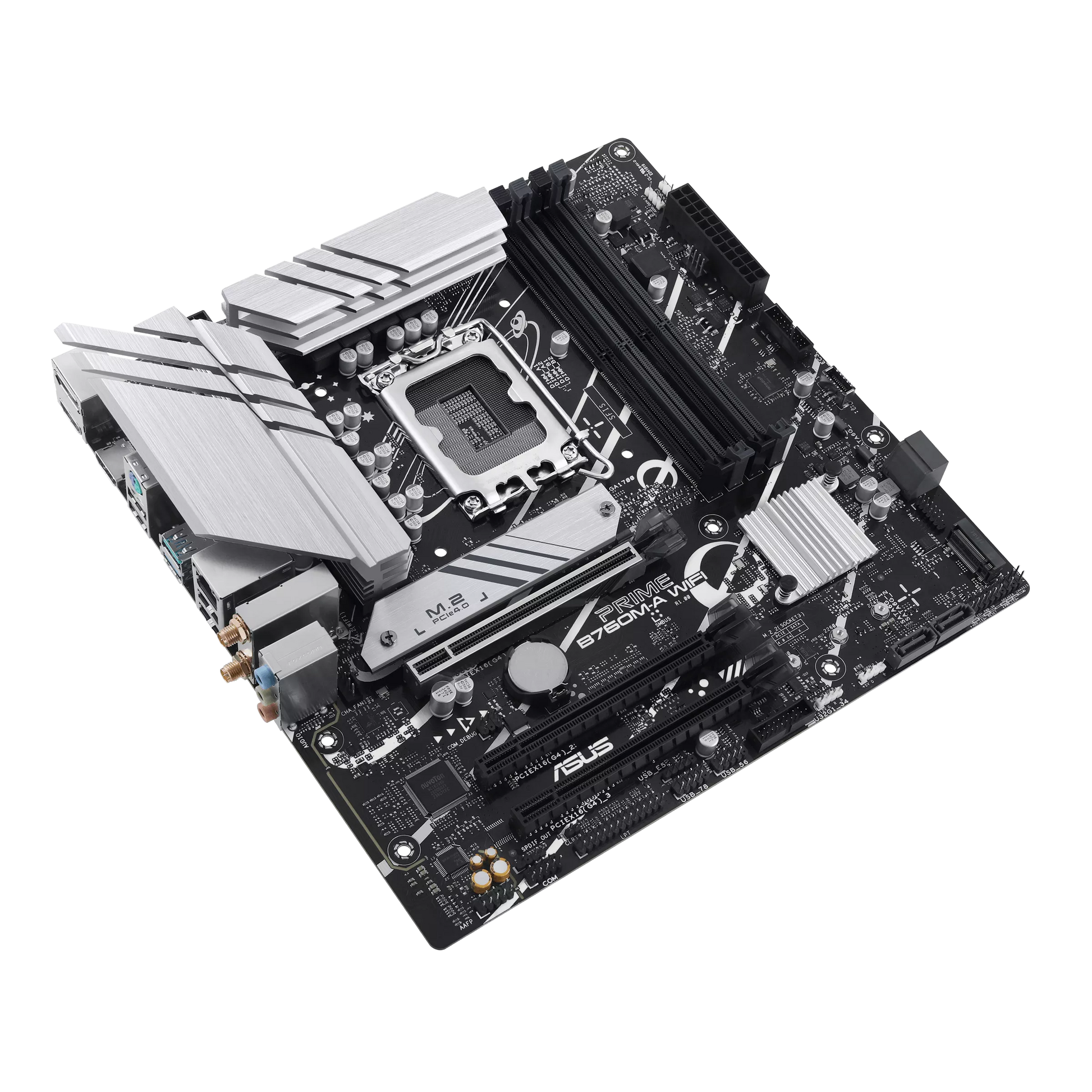

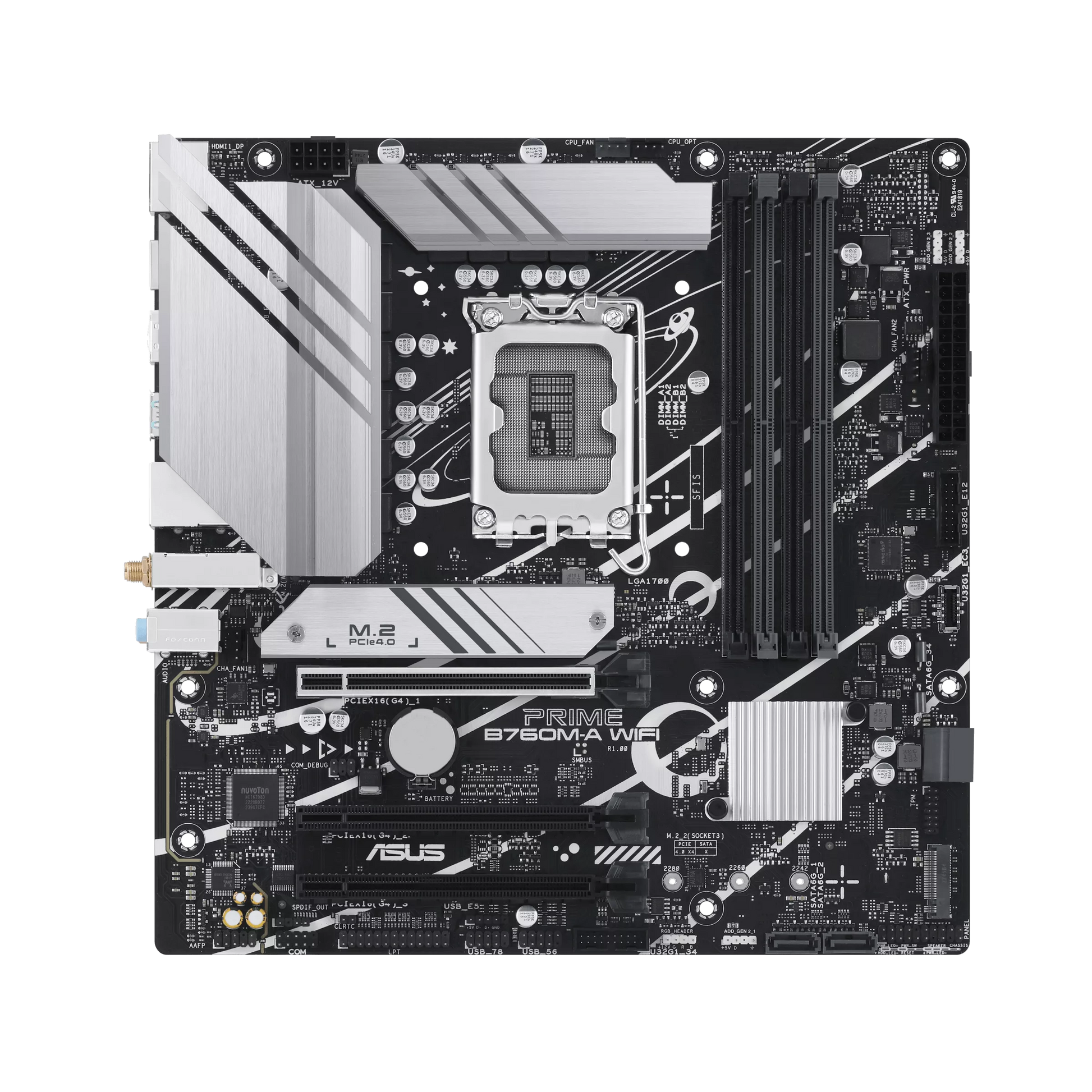

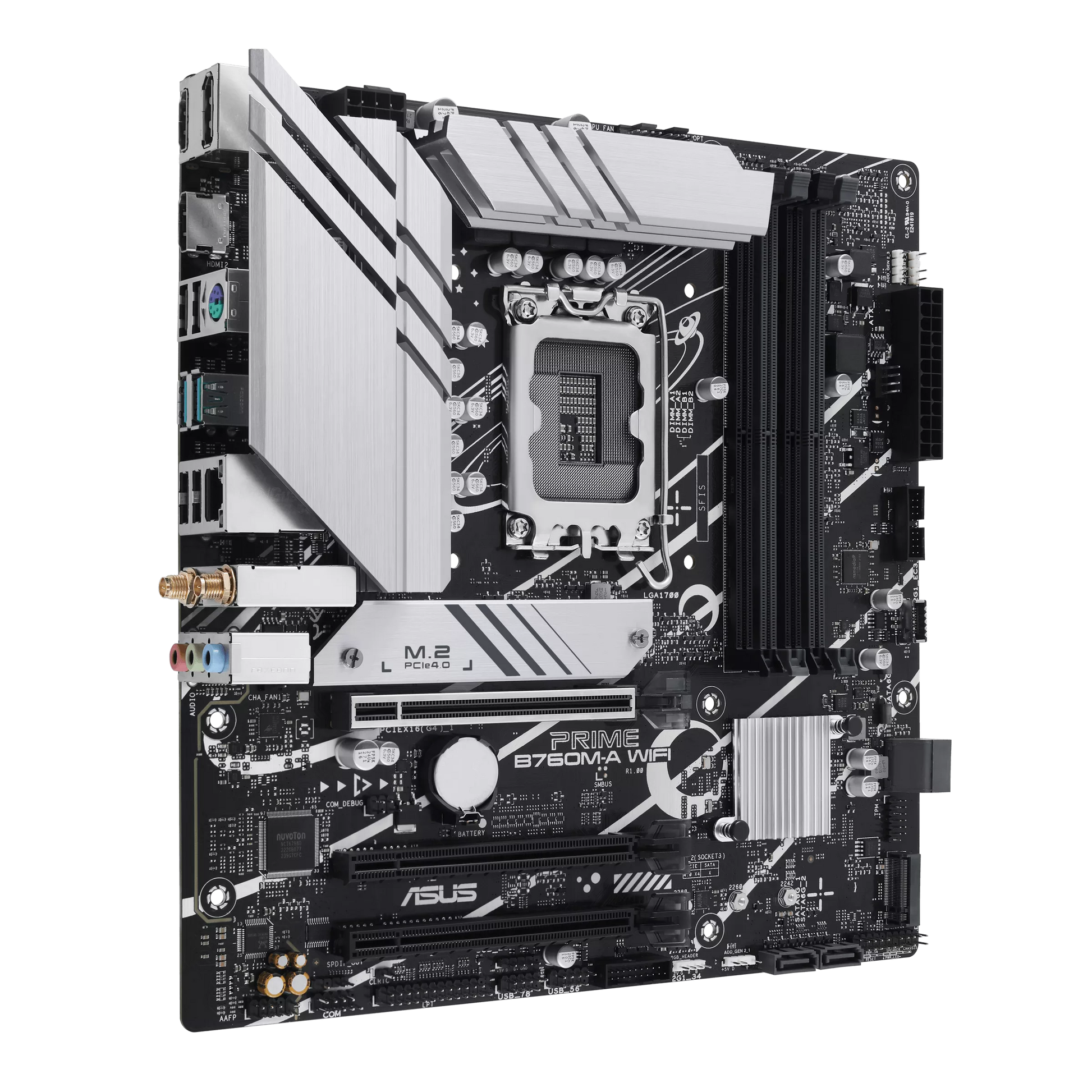

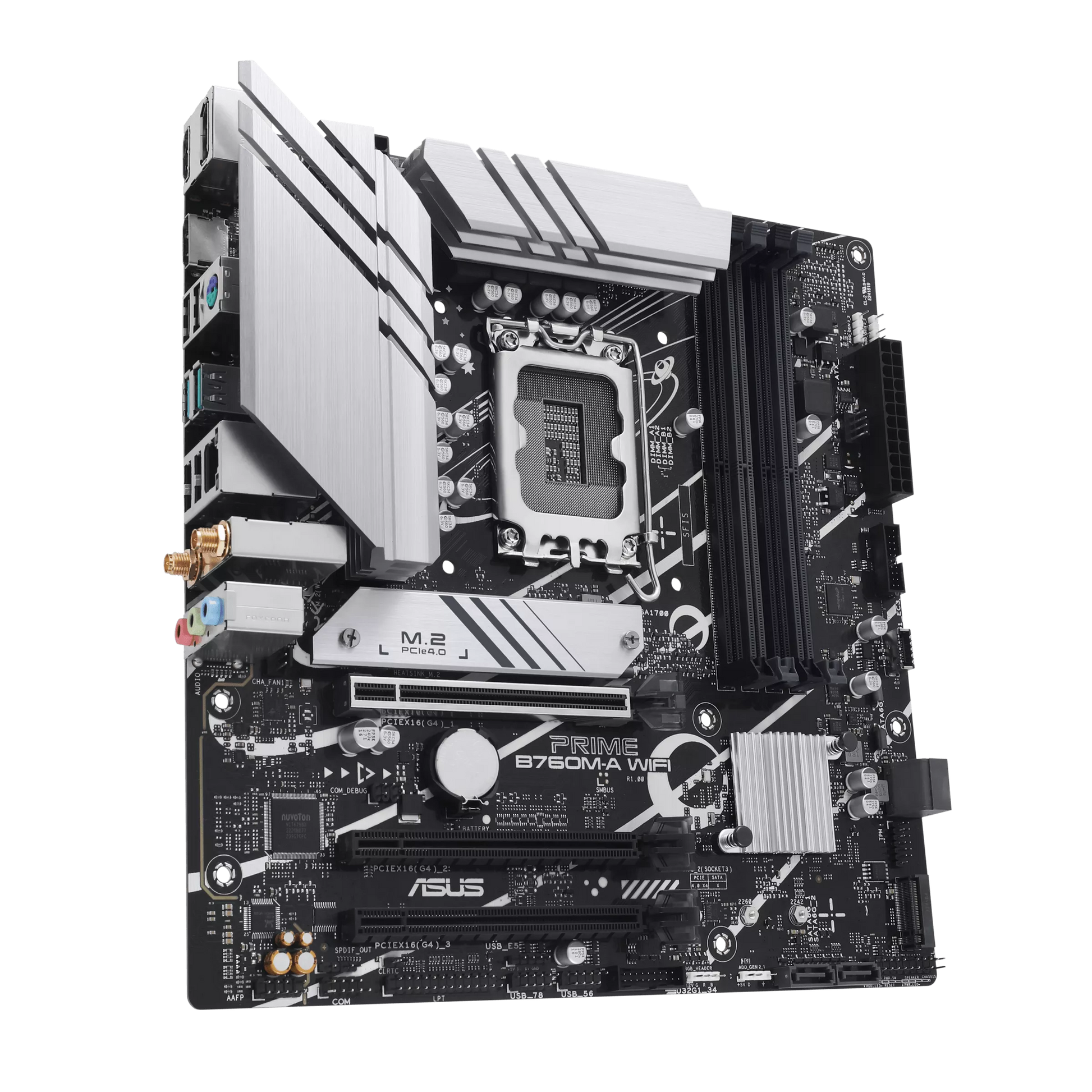

ASUS PRIME B760M-A WIFI Intel B760 Micro-ATX Motherboard — LGA1700 | DDR5 | Wi-Fi 6 | 2.5GbE | PCIe 4.0 | Aura Sync

The ASUS PRIME B760M-A WIFI is built for mainstream gamers, home and office PC builders, students, and everyday users who want a stable, well-connected Intel B760 Micro-ATX platform with Wi-Fi 6 and 2.5GbE networking built-in, dual M.2 NVMe SSD support, DDR5 memory headroom, PCIe 4.0 GPU support, and ASUS's comprehensive reliability and software ecosystem without stepping up to a premium Z790 board. It is well-suited for Intel 12th, 13th, and 14th Gen Core gaming builds, home office workstations, streaming PCs, student builds, and compact ATX case systems where a reliable, well-featured, wireless-ready B760 platform is the ideal value proposition.

The PRIME B760M-A WIFI delivers Wi-Fi 6 (802.11 a/b/g/n/ac/ax) across 2.4GHz and 5GHz bands with Bluetooth 5.2 for fast, low-latency wireless connectivity, alongside Realtek 2.5GbE LAN with ASUS LANGuard hardware-level network protection for stable, high-throughput wired networking. Dual M.2 slots — one CPU-direct PCIe 4.0 x4 and one chipset PCIe 4.0 x4 — support NVMe SSDs up to M.2 2280, complemented by 4 SATA 6Gb/s ports with RAID 0/1/5/10 support for flexible storage configurations. Three PCIe 4.0 slots — one x16, one x16 at x4 mode, and one x16 at x1 mode — provide comprehensive expansion for GPUs, capture cards, and other PCIe peripherals. ASUS OptiMem II technology carefully routes memory signals across PCB layers with reduced vias and enhanced shielding zones for improved DDR5 stability and compatibility, while AEMP II exclusively unlocks optimised overclocking profiles for PMIC-restricted DDR5 modules up to 7200+ MHz (OC). The ASUS 5X Protection III hardware reliability suite includes Digi+ VRM for precise digital power management, LANGuard for network surge protection, Overvoltage Protection circuitry, SafeSlot Core+ reinforced PCIe slot with stainless-steel shielding for heavyweight GPU support, and Stainless-Steel Back I/O with 3× corrosion resistance. A ProCool solid-pin 8-pin CPU power connector ensures stable 12V delivery directly to the CPU power stage. Realtek S1220A audio codec delivers 120dB SNR stereo line-out and 113dB SNR line-in with DTS:X Ultra spatial audio, AI Noise Cancellation via Two-Way AI noise filtering, dedicated audio PCB layers, premium audio capacitors, and audio shielding for pristine 7.1-channel performance. Three Addressable Gen 2 ARGB headers and one Aura RGB header enable comprehensive Aura Sync ecosystem lighting. Fan Xpert 2+ controls all fan headers with auto-tuning, multiple temperature source monitoring, and Extreme Quiet mode for whisper-silent operation.

Form Factor: Micro-ATX (mATX) — 24.4 cm × 24.4 cm (9.6 × 9.6 inch)
Socket: Intel LGA1700
Chipset: Intel B760
Supported CPUs: Intel Core 14th / 13th / 12th Gen; Pentium Gold; Celeron (LGA1700)

Memory Slots: 4× DDR5 DIMM (Dual Channel)
Max Memory: 192GB
Memory Speed: DDR5-4800 / 5000 / 5200 / 5400 / 5600 / 5800 / 6000 / 6200 / 6400 / 6600 / 6800 / 7000 / 7200+ MHz (OC); Intel XMP supported; ASUS AEMP II; OptiMem II
Memory Type: Non-ECC Unbuffered DDR5 (On-Die ECC supported)

PCIe Slots:
1× PCIe 4.0 x16 (CPU) — SafeSlot Core+
1× PCIe 4.0 x16 at x4 mode (Chipset)
1× PCIe 4.0 x16 at x1 mode (Chipset)

M.2 Slots:
M.2_1 — Key M, type 2242/2260/2280, PCIe 4.0 x4 (CPU direct)
M.2_2 — Key M, type 2242/2260/2280, PCIe 4.0 x4 (Chipset)
Both slots include M.2 heatsink

SATA Ports: 4× SATA 6Gb/s (RAID 0/1/5/10 support)
Display Output: 1× DisplayPort 1.4 (max 4K@60Hz) | 2× HDMI 2.1 (max 4K@60Hz)
Audio: Realtek S1220A HD Audio CODEC, 7.1-channel surround, 120dB SNR (line-out), 113dB SNR (line-in), Audio Shielding, Dedicated Audio PCB layers, Premium Audio Capacitors, S/PDIF Out, DTS:X Ultra, Two-Way AI Noise Cancellation
LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) + LANGuard
Wireless: Wi-Fi 6 — 802.11 a/b/g/n/ac/ax, 2×2, 2.4/5GHz | Bluetooth 5.2

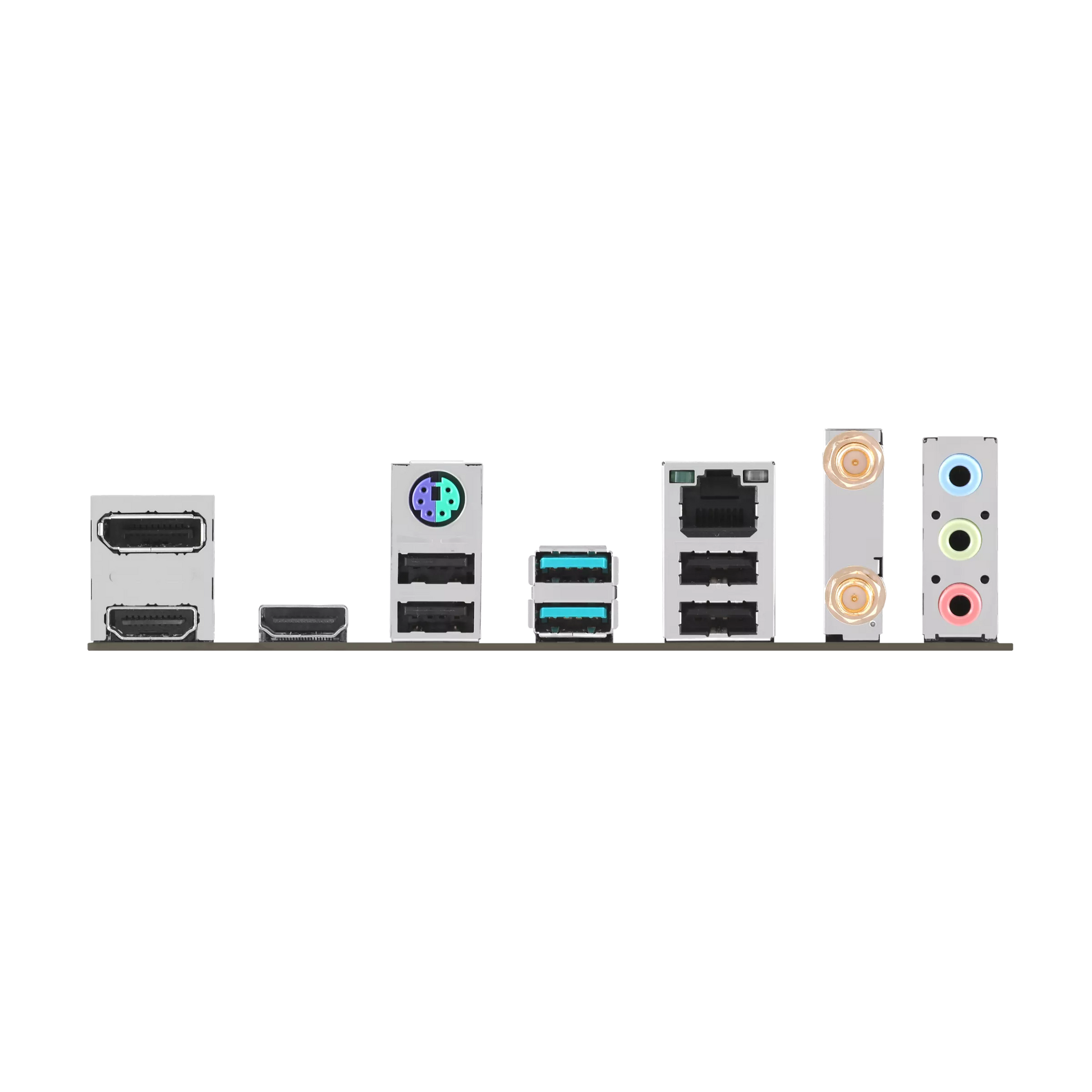

Back Panel USB:
2× USB 3.2 Gen 2 Type-A (10 Gb/s)
4× USB 2.0 Type-A
1× DisplayPort 1.4
2× HDMI 2.1
1× Wi-Fi Module
1× Realtek 2.5GbE
3× Audio Jacks
1× PS/2 Keyboard/Mouse Combo

Internal Headers:
2× USB 3.2 Gen 1 headers (4 additional USB 3.2 Gen 1 ports)
1× USB 3.2 Gen 1 Type-C connector (5 Gb/s)
2× USB 2.0 headers (4 additional USB 2.0 ports)
1× USB 2.0 header (1 additional USB 2.0 port)
3× Addressable Gen 2 ARGB headers
1× Aura RGB header
1× 4-pin CPU fan | 1× 4-pin CPU OPT fan | 2× 4-pin Chassis fan
1× 24-pin ATX Main | 1× 8-pin +12V CPU (ProCool Solid Pin)
1× Front panel audio (AAFP) | 1× S/PDIF Out | 1× COM port
1× SPI TPM header (14-1 pin) | 1× Clear CMOS | 1× LPT header

BIOS: 128Mb Flash ROM, UEFI AMI BIOS, CrashFree BIOS 3, EZ Flash 3, EZ Mode + Advanced Mode
Special Features: ASUS 5X Protection III (Digi+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), Q-DIMM, Q-LED Core, Q-Slot, ProCool, M.2 Heatsink, VRM Heatsink, AEMP II, OptiMem II
Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving), AI Suite 3 (Digi+ VRM, PC Cleaner), ASUS CPU-Z, MyAsus
OS: Windows 11 / Windows 10 64-bit

System Requirements: LGA1700 CPU (Intel Core 12th/13th/14th Gen, Pentium Gold, or Celeron); DDR5 memory required (DDR4 not supported on this variant — see PRIME B760M-A WIFI D4 for DDR4 support); verify memory QVL on ASUS website; Intel B760 does not support CPU overclocking — multiplier is locked for K-series CPUs; Wi-Fi 6 covers 2.4/5GHz (no 6GHz band — this is Wi-Fi 6, not Wi-Fi 6E); BIOS update may be required for 14th Gen CPU support

Setup: Standard Micro-ATX installation; M.2 heatsink pre-installed — remove for SSD installation; ProCool 8-pin CPU power connector; Fan Xpert 2+ configurable via Armoury Crate software or UEFI BIOS; AEMP II profiles activate via UEFI BIOS memory settings for DDR5 OC

Mounting Options: Micro-ATX form factor (24.4 × 24.4 cm); compatible with Micro-ATX and full-size ATX cases

Usage Environment: Ideal for everyday gaming builds, home office workstations, streaming PCs, student systems, and compact ATX builds requiring a reliable, wireless-ready Intel B760 Micro-ATX platform with DDR5, dual M.2 NVMe, PCIe 4.0, and ASUS 5X Protection III reliability
