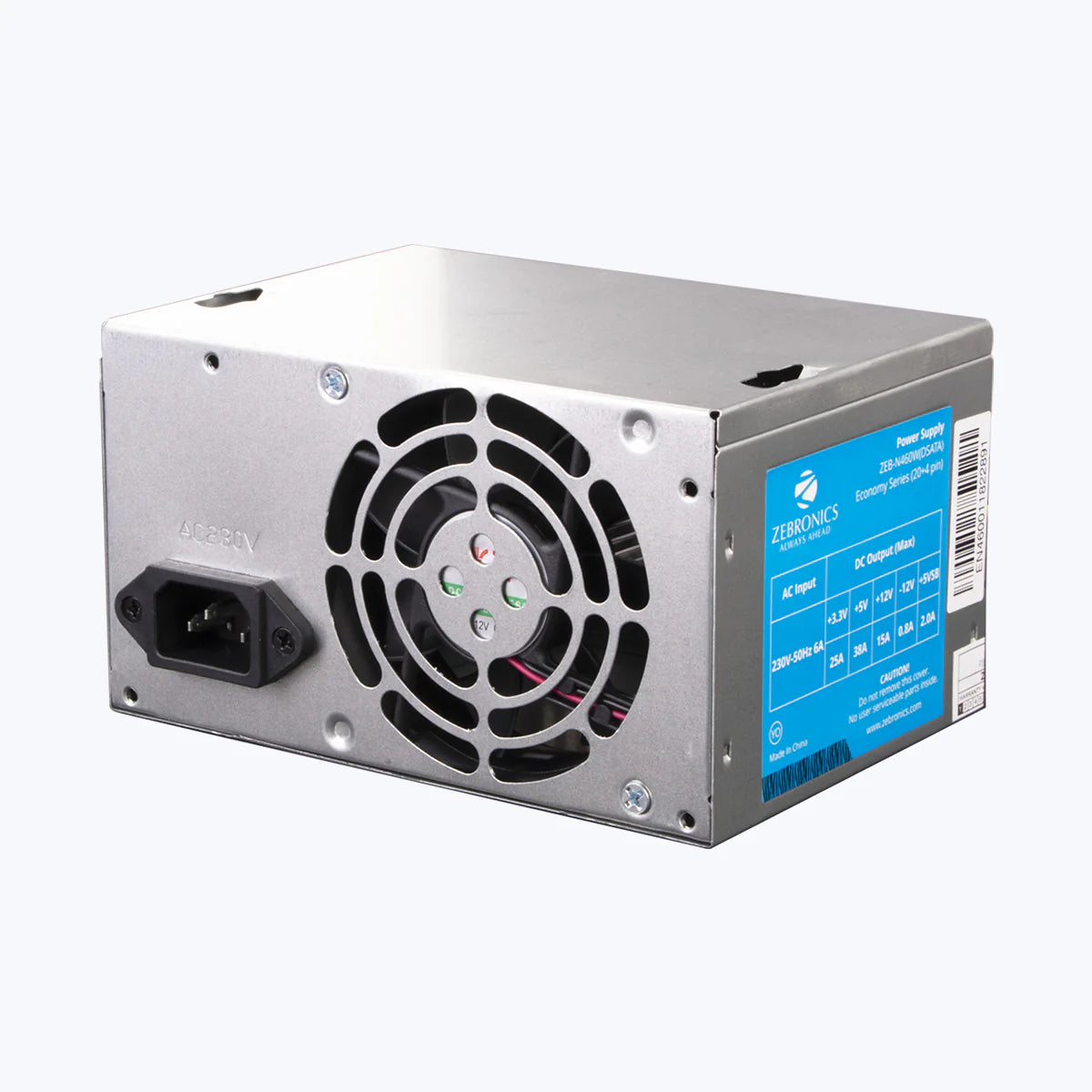

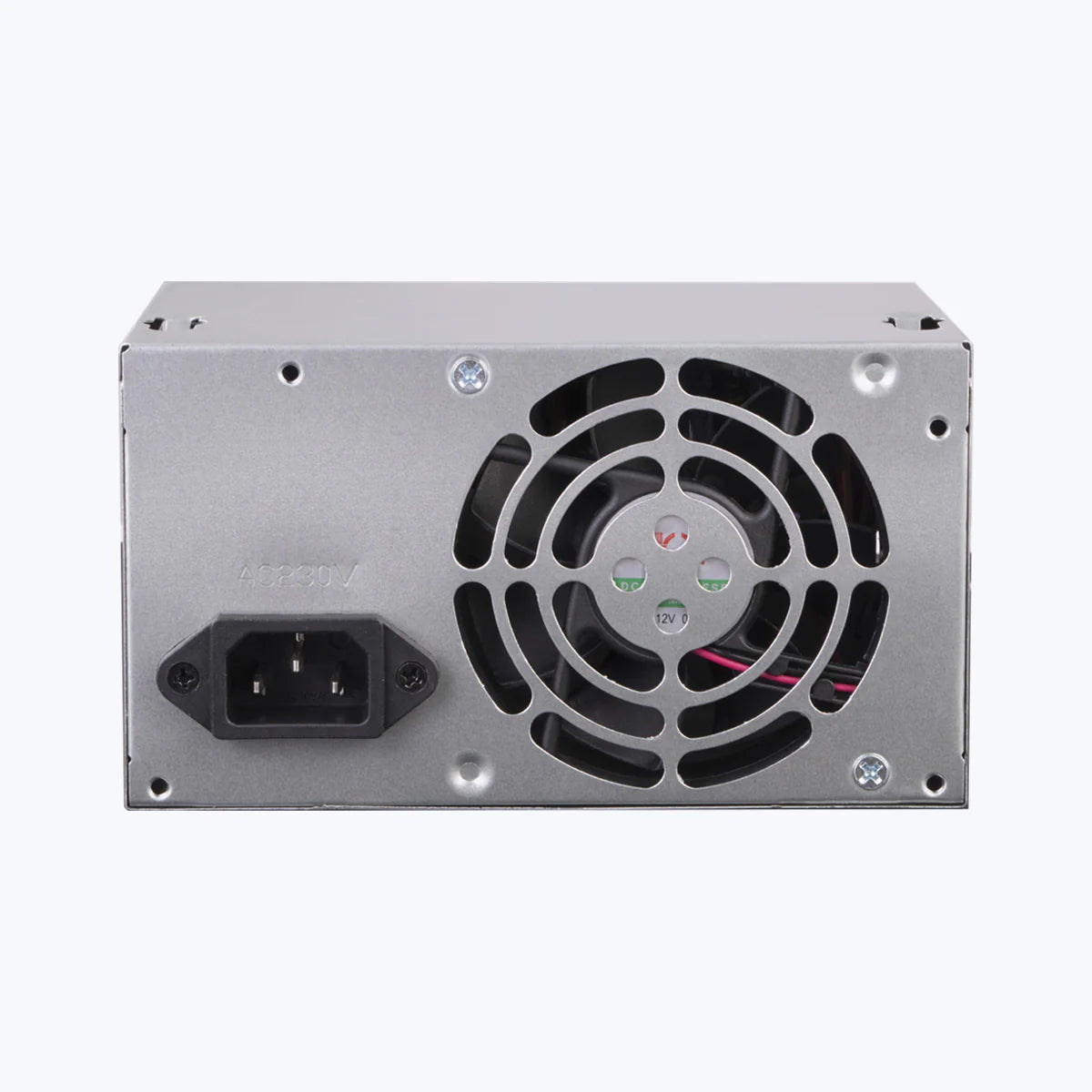

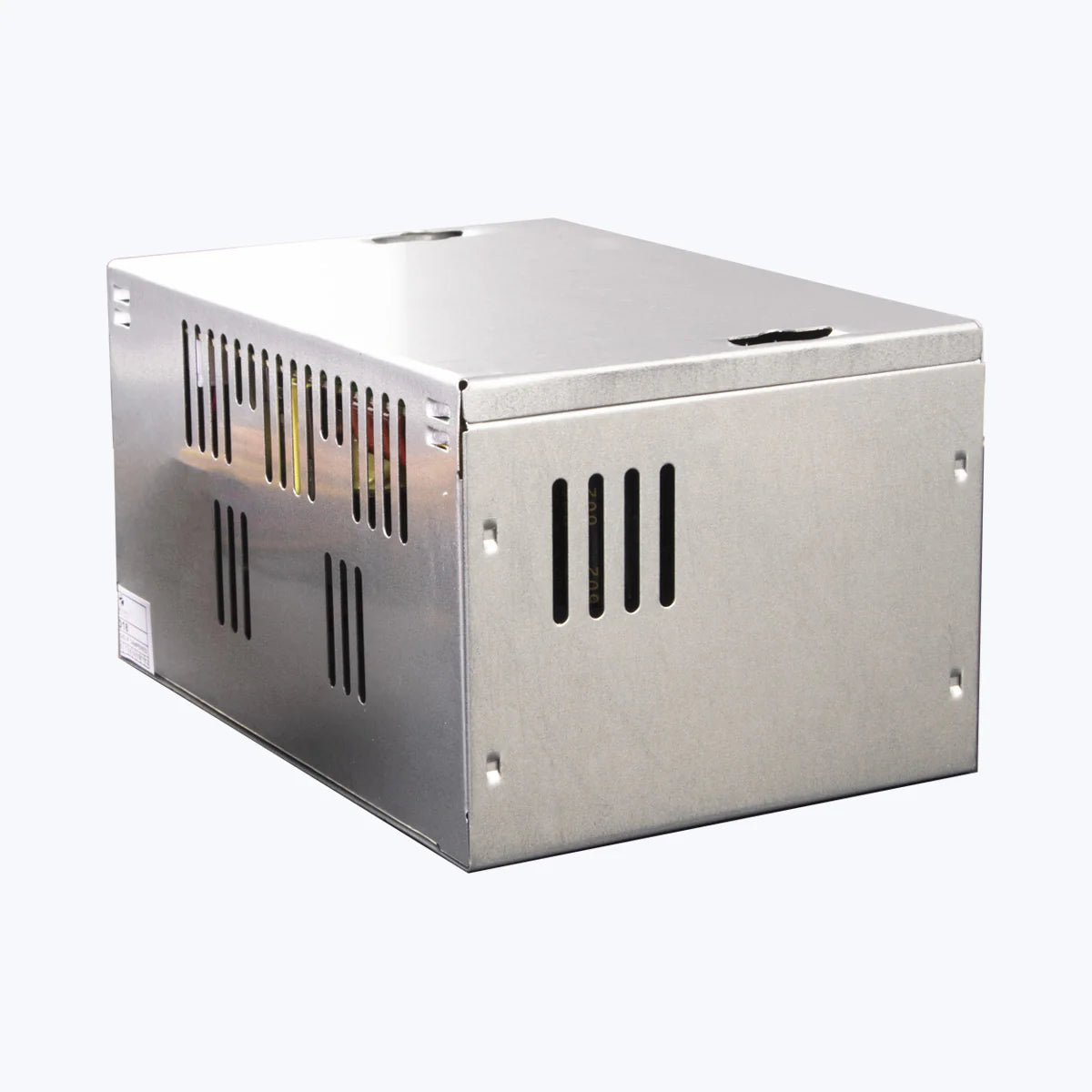

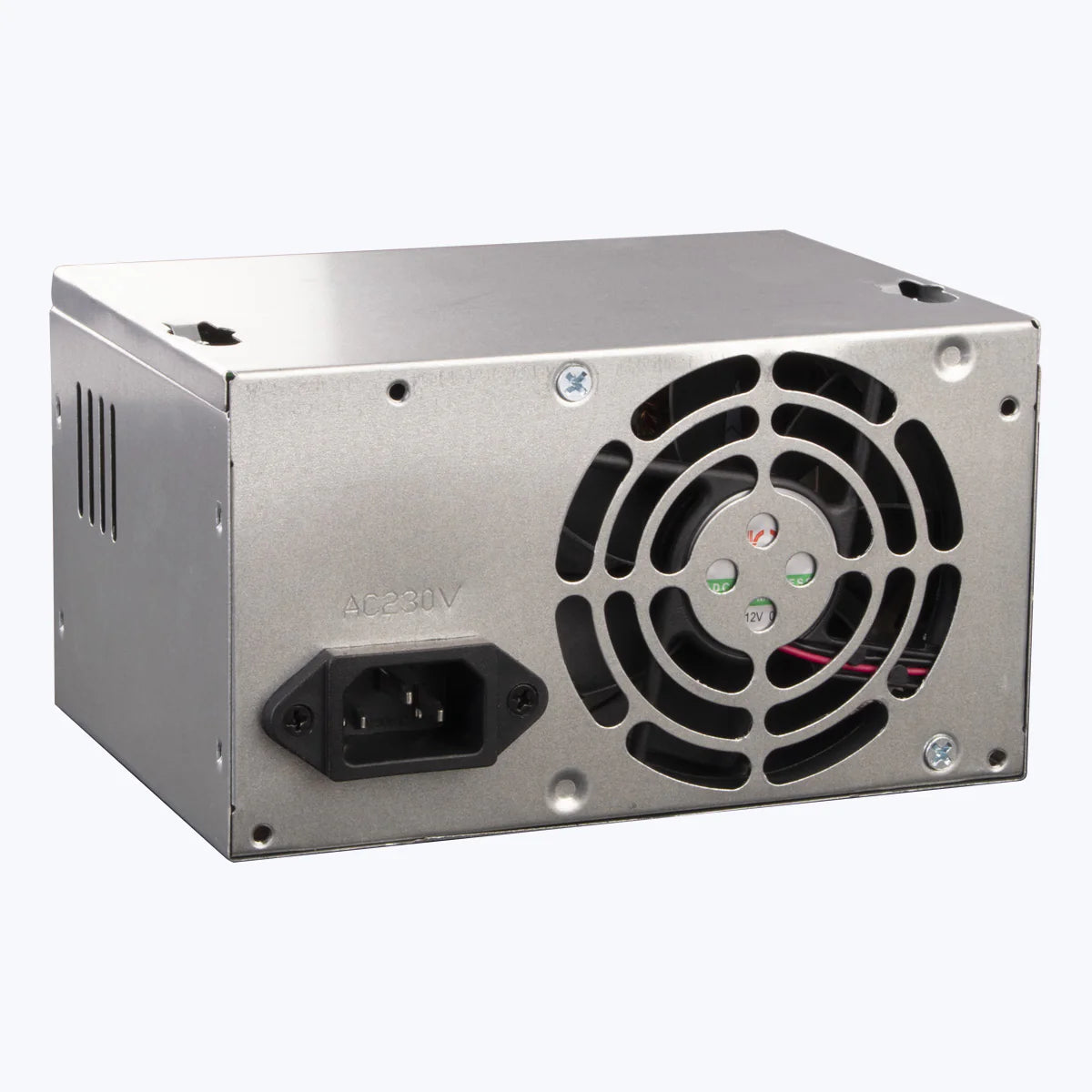

Zebronics Zeb-N450W (DSATA) 450W Economy Series Non-Modular Power Supply — ATX

The Zebronics Zeb-N450W (DSATA) is built for home users, office professionals, students, and budget PC builders who need a dependable, no-fuss 450W power supply for entry-level to mainstream ATX desktop builds without a discrete GPU or with a basic entry-level graphics card. It is well-suited for everyday productivity desktops, home computing systems, office workstations, and budget builds where stable power delivery at minimal cost is the priority.

The Zeb-N450W (DSATA) delivers 450W of power across multiple output rails — +3.3V at 25A, +5V at 38A, +12V at 15A, -12V at 0.8A, and +5VSB at 2A — covering all standard ATX desktop power requirements for CPU, motherboard, storage, and peripherals. An 80mm exhaust fan provides consistent airflow through the PSU for efficient heat dissipation during operation. The 20+4 pin ATX main connector supports both older 20-pin and modern 24-pin motherboards for broad platform compatibility. SATA power connectors enable direct connection to SATA HDDs and SSDs without additional adapters. Built-in Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP) safeguard connected components against electrical faults. A 3-pin power cable is included in the box for immediate use.

SKU: PS53-ZEB N450W - DSATA POWER SUPPLY (ECONOMY SERIES)
Wattage: 450W
Series: Economy Series
Modular: Non-Modular
Form Factor: ATX
AC Input: 230V – 50Hz, 6A
Fan Size: 80mm Exhaust Fan
DC Output Rails:
+3.3V: 25A | +5V: 38A | +12V: 15A | -12V: 0.8A | +5VSB: 2.0A
Protections: OVP (Over Voltage), OCP (Over Current), SCP (Short Circuit)
Connectors: 1× 20+4 Pin ATX Main | 1× 4-Pin ATX 12V CPU | 2× SATA | 1× Molex (4-Pin Peripheral)
Power Cable: 3-Pin Power Cable (included)
Country of Origin: China

System Requirements: Compatible with standard ATX desktop cases (150mm PSU depth); 230V AC input — suitable for Indian power standards; 450W capacity suitable for entry-level to mainstream desktop builds with integrated graphics or basic entry-level discrete GPUs; not recommended for mid to high-end GPU configurations — verify total system TDP before purchase

Setup: Non-modular PSU — all cables are permanently attached; route unused cables neatly using cable ties; standard ATX PSU mount in compatible desktop or mid-tower case; 3-pin power cable included for immediate installation

Mounting Options: Standard ATX PSU form factor; fits any case with a standard ATX PSU bay (bottom or rear mount depending on case design)

Usage Environment: Ideal for everyday home and office desktop PCs, budget productivity builds, student systems, and mainstream entry-level desktop builds requiring stable 450W power delivery
