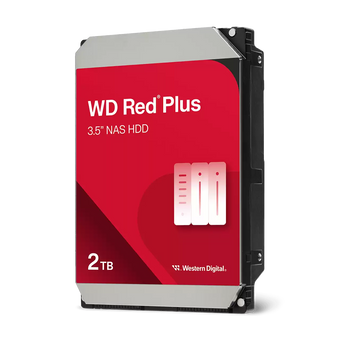

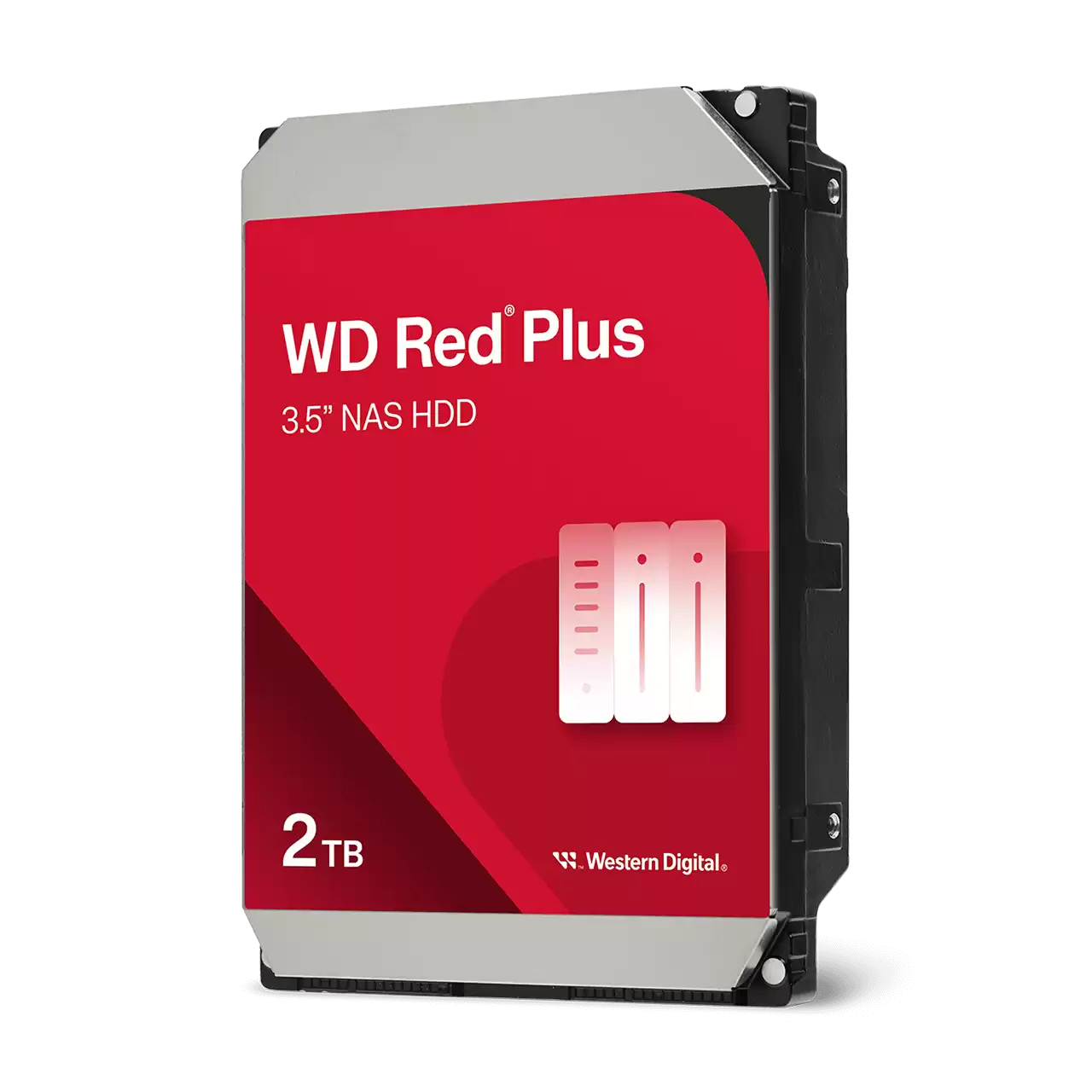

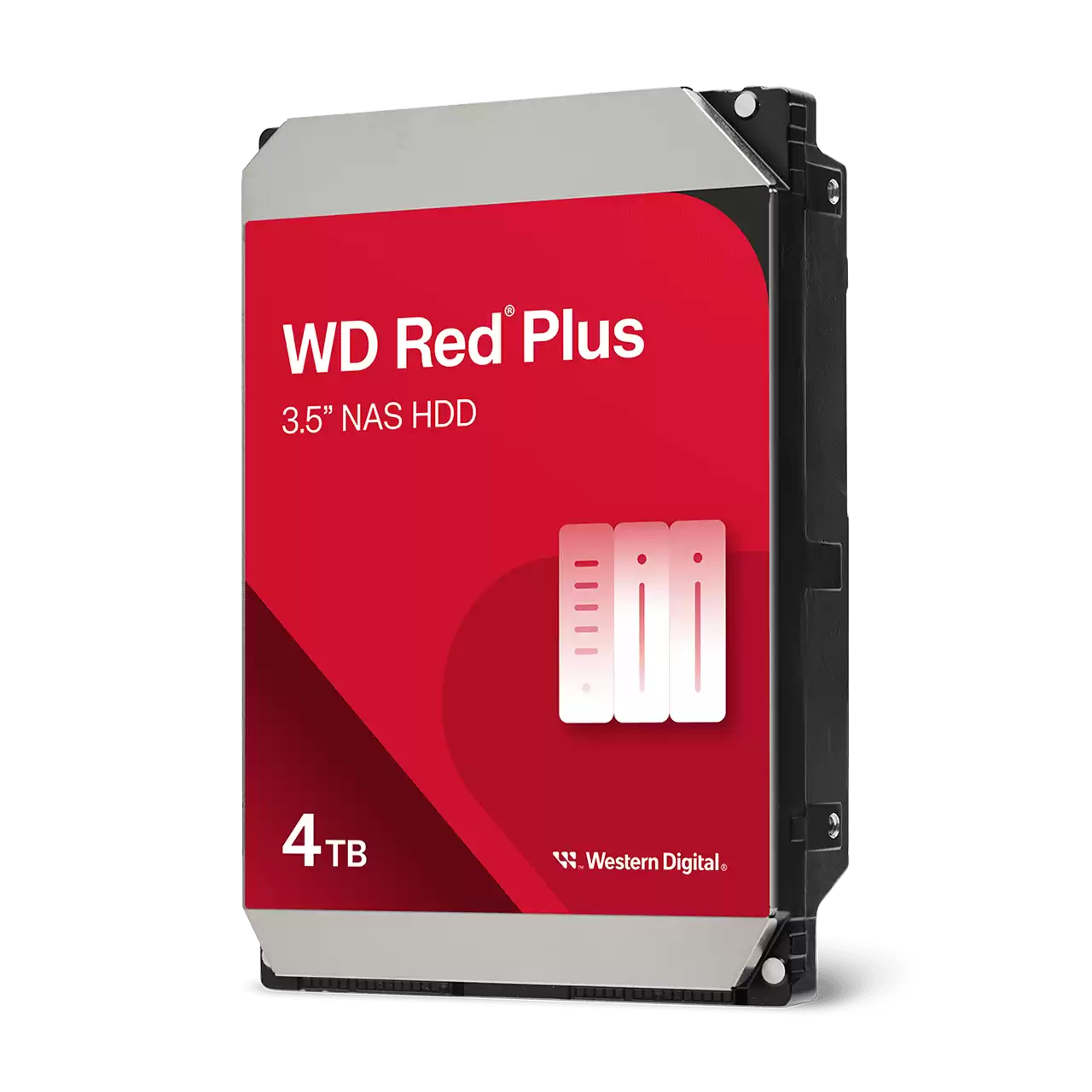

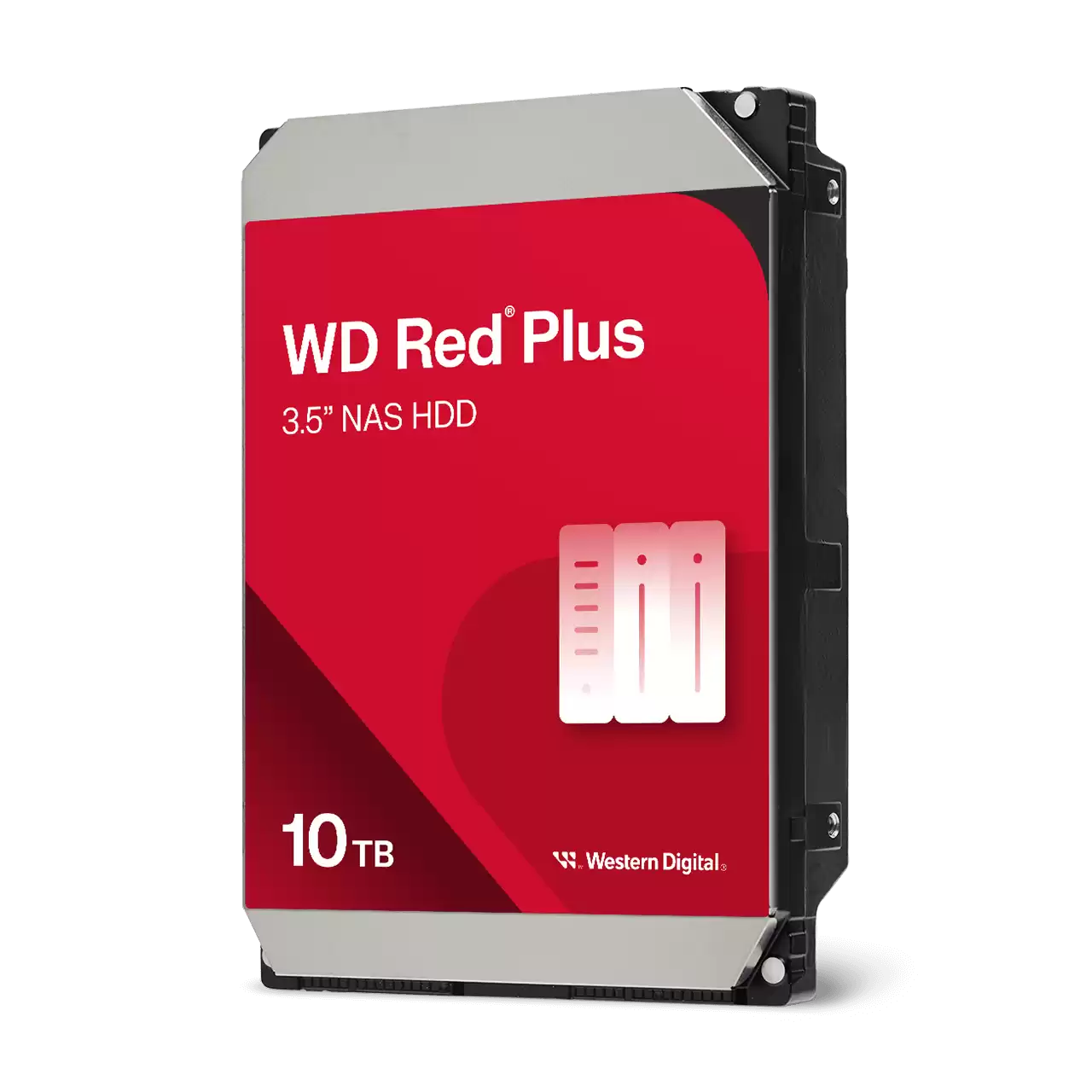

WD Red Plus Internal NAS HDD 3.5" (2Tb, 4Tb, 6Tb, 8Tb, 10Tb and 12Tb)

The WD Red Plus is engineered for always-on NAS systems, small business file servers, and multi-drive storage environments. It’s ideal for users who need reliable, continuous access to data in RAID-optimized setups—whether for shared media libraries, active backups, or surveillance recordings.

The WD Red Plus drive supports high-workload, 24×7 operation with a rated 180 TB/year workload rate and 1 million-hour MTBF, making it designed for multi-drive NAS systems. It features ∼5400 RPM rotational speed, 64 MB cache (in the 2 TB model), CMR (Conventional Magnetic Recording) technology for consistent performance, and the proprietary NASware™ firmware for enhanced compatibility and stability in NAS enclosures. It’s optimized to run cooler, more quietly, and more efficiently in RAID-based systems with up to 8 bays.

Capacities: 2 TB, 3 TB, 4 TB, 6 TB (and higher)
Form Factor: 3.5-inch internal HDD
Interface: SATA 6 Gb/s (SATA III)
Rotational Speed: 5400 RPM class
Cache Size: 64 MB (2 TB model; varies by capacity)
Recording Technology: CMR
Workload Rate: Up to 180 TB/year
MTBF: 1 million hours
Drive Bay Support: Up to 8-bay NAS systems
Operating Temperature: 0 °C to 65 °C
Non-Operating Temperature: –40 °C to 70 °C
Dimensions: 147 mm (L) × 101.6 mm (W) × 26.1 mm (H)
Weight: Approx. 570 g (varies by capacity)

Drive Bay Compatibility: Fits standard 3.5-inch internal drive bays in NAS, server, or desktop chassis
Interface Requirement: SATA 6 Gb/s host interface (backward compatible with SATA 3 Gb/s)
System Compatibility: Designed for RAID, NAS, and always-on multi-drive systems; compatible with major NAS enclosures and RAID controllers
Power & Mounting: Requires standard SATA data and power connections; built to handle vibration and 24×7 usage in multi-drive arrays
Operating Environments: Suitable for continuous operation in networked storage systems with cooling and vibration control
Reformatting Required: Use in systems supporting SATA drives; not limited to any particular OS since NAS controllers handle the drive
