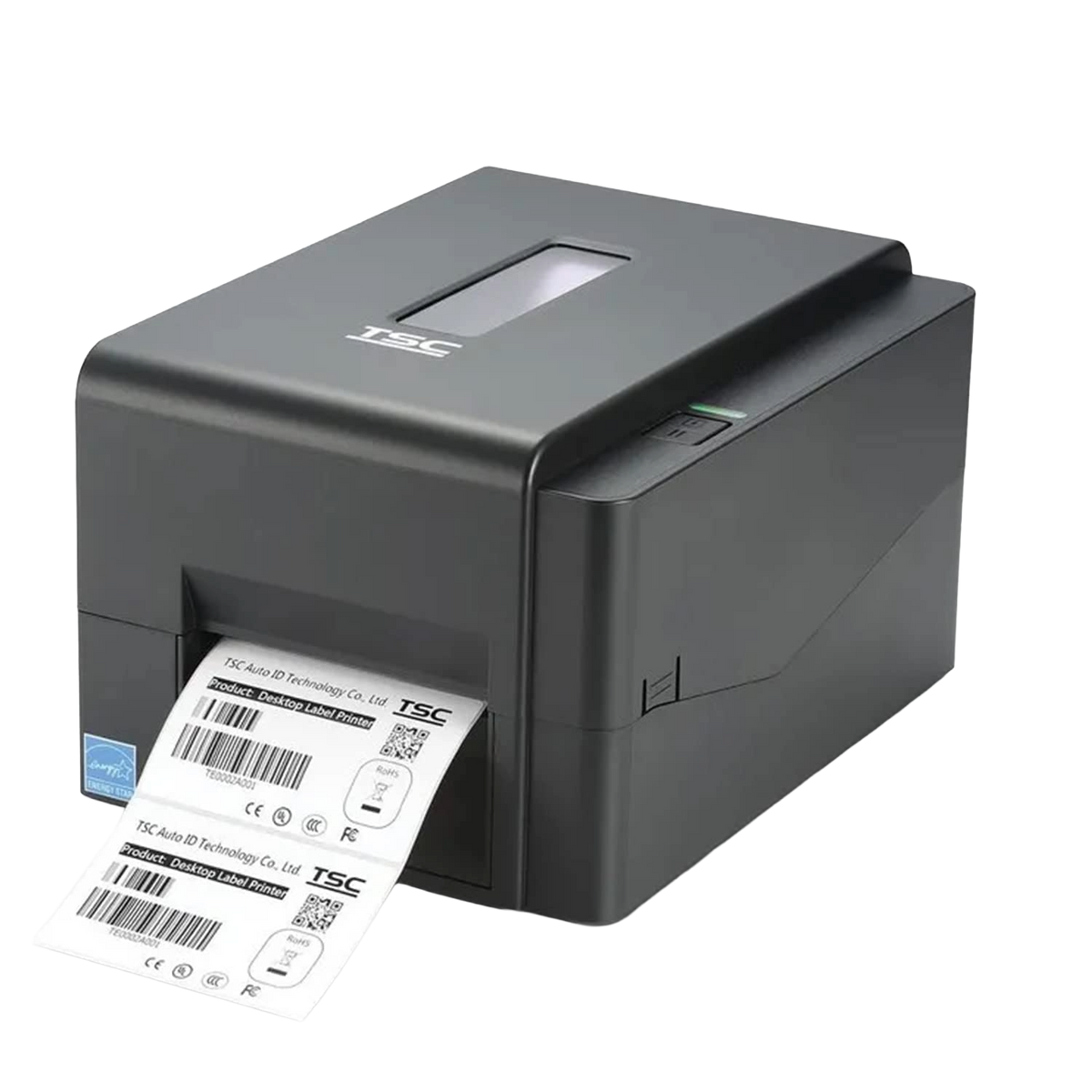

TSC TTP-244 Pro Desktop Thermal Transfer & Direct Thermal Barcode Label Printer — 203 DPI | 5 IPS | 4.25" Print Width | USB 2.0 + RS-232 | 300m Ribbon | ZPL/EPL Compatible | 2-Year Warranty

The TSC TTP-244 Pro is built for retail store operations (price tags, shelf labels), warehouse and inventory management (bin labels, shipping labels, GS1 barcodes), logistics and dispatch (courier labels, packing slips), manufacturing (part labels, WIP tracking), healthcare (specimen labels, pharmacy labels), and any small-to-medium business application requiring reliable, high-volume desktop thermal barcode and label printing.

The dual Thermal Transfer and Direct Thermal printing modes in one unit provide complete media flexibility — Thermal Transfer for durable, long-lasting labels using wax, wax-resin, or resin ribbons for outdoor, chemical-resistant, and archival labelling, and Direct Thermal for short-term labels such as shipping labels, receipts, and queue tickets without the need for ribbon. The 300-metre ribbon capacity on a 25.4mm (1-inch) core is one of the largest in its class — meaning fewer ribbon changes during high-volume print runs, reducing downtime and per-label cost. A 110mm (4.33-inch) OD internal media supply with optional external roll mount supporting 214mm (8.4-inch) OD label rolls on a 76.2mm (3-inch) core accommodates the widest range of label roll sizes. The 127mm/s (5 IPS) print speed delivers fast label output for time-sensitive operations without sacrificing print quality. 8MB SDRAM and 4MB Flash memory with optional SD card expansion (up to 4GB) enables large graphics, font, and format storage for complex label templates. TSPL-EZ native language plus ZPL (Zebra) and EPL (Eltron/Zebra) emulation ensures seamless migration from existing Zebra printer installations without software changes. The 32-bit RISC CPU ensures fast label processing and rendering even for complex barcodes and graphics. USB 2.0 and RS-232 serial interfaces are standard, covering both modern USB-connected PCs and legacy serial-connected systems. Bundled Windows labelling software and drivers are included for immediate out-of-box deployment without additional software purchase.

Brand: TSC Auto-ID Technology
Model: TTP-244 Pro
Print Method: Thermal Transfer / Direct Thermal (selectable)
Resolution: 203 DPI (8 dots/mm)
Print Speed: 127mm/s (5 IPS)
Max. Print Width: 108mm (4.25")
Max. Print Length: 2,286mm (90")
CPU: 32-bit RISC
Memory: 8MB SDRAM + 4MB Flash | Optional SD card up to 4GB

Ribbon:
Length: 300m (984')
Core: 25.4mm (1") coated side out

Media:
Label Roll Capacity (internal): 110mm (4.33") OD
Media Width: 25.4–112mm (1.0"–4.4")
Media Thickness: 0.06–0.19mm (2.36–7.48 mil)
Media Core Diameter: 25.4–76.2mm (1"–3")
Label Length: 10–2,286mm (0.39"–90")
Media Type: Continuous | Die-cut | Black mark | Fan-fold | Notched

Fonts: 8 internal alpha-numeric bitmap fonts | Monotype Imaging True Type font engine (CG Triumvirate Bold Condensed scalable font) | Downloadable fonts from PC
Barcodes: 1D and 2D barcodes | Rotation: 0°, 90°, 180°, 270°
Printer Languages: TSPL-EZ | ZPL (Zebra emulation) | EPL (Eltron emulation)

Interfaces: USB 2.0 | RS-232C

Physical Dimensions (W×H×D): 232 × 156 × 288mm
Enclosure: ABS Plastic
Weight: 2.5kg (5.51 lbs)

Power: Input AC 100–240V, 2.5A, 50/60Hz | Output DC 24V, 2.5A (external universal switching power supply)
Operating Environment: 5°C–40°C | 25–85% RH non-condensing
Storage: –40°C–60°C | 10–90% RH non-condensing

Certifications: FCC Class A | CE Class A | C-Tick Class A | TÜV/Safety | CCC | RoHS | WEEE

Compatible with Windows (XP/7/8/10/11) via included USB and RS-232 drivers; ZPL and EPL emulation for direct Zebra label format compatibility; compatible with most barcode label design software (BarTender, NiceLabel, LabelMark, etc.)
