TP-Link Omada ES208G 8-Port Gigabit Easy Managed Switch — Fanless | VLAN | QoS | Omada Cloud | Metal

The TP-Link Omada ES208G is built for small businesses, retail stores, home offices, and surveillance network administrators who need a simple 8-port Gigabit switch with essential managed features — VLAN traffic separation, QoS prioritization, IGMP snooping for multicast streams, and loopback protection — alongside optional free Omada cloud centralized management for remote monitoring and zero-touch provisioning. It is well-suited for IP surveillance deployments, small office wired networks, hospitality setups, and any environment that needs more than an unmanaged switch but wants to avoid the complexity and cost of a full-feature managed switch.

The ES208G delivers eight 10/100/1000 Mbps auto-negotiation Gigabit ports with Auto MDI/MDIX for seamless cable connection without crossover cables, across a 16 Gbps non-blocking switching fabric at 11.9 Mpps forwarding rate for wire-speed performance. The fully fanless design operates in complete silence, making it ideal for desk environments, retail counters, and any location where fan noise is unacceptable. A durable metal casing with desktop and wall-mounting flexibility allows flexible deployment across a variety of installation scenarios. Omada Cloud integration via Omada Central Essentials (free) provides lifetime cloud management, visualized topology, automatic device discovery, one-click adoption, batch configuration and firmware upgrades, Zero-Touch Provisioning (ZTP), and remote management via the Omada app — all without ongoing subscription fees. Port-Based VLAN, MTU VLAN, and 802.1Q Tag VLAN (up to 32 groups) enable effective traffic separation and isolation — particularly useful in surveillance deployments to separate camera traffic from office data. 802.1p DSCP QoS with 8 priority queues and WRR scheduling ensures real-time video and voice traffic is prioritized for smooth, latency-free delivery. IGMP Snooping (v1/v2/v3) with Fast Leave efficiently manages multicast traffic for multi-camera surveillance or streaming environments. Static Link Aggregation (up to 2 groups, 4 ports per group) enables bandwidth bonding between the switch and an uplink device. Loopback Detection automatically prevents network loops without requiring STP configuration. Port Mirroring enables non-intrusive traffic monitoring for troubleshooting. ±6kV surge protection across all ports and the AC input safeguards connected equipment against lightning and electrical surges. Cable Diagnostics (available in standalone mode) provide quick copper cable fault detection for on-site troubleshooting.

Model: ES208G
Switch Type: Easy Managed (Omada Agile Series)
Interfaces: 8× 10/100/1000 Mbps RJ45 (Auto-Negotiation / Auto MDI/MDIX)
Switching Capacity: 16 Gbps
Packet Forwarding Rate: 11.9 Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4 Mbit
Jumbo Frame: 15 KB
Transmission Method: Store-and-Forward
Cooling: Fanless
Power Supply: AC/DC Adapter (Input: 100–240V AC | Output: 5V DC / 0.6A)
Surge Protection: ±6kV (All ports + AC input)
Installation: Desktop / Wall Mounting
Physical Security Lock: Yes
Dimensions: 158 × 101 × 25 mm (W × D × H)
Weight: 0.45 kg
Operating Temperature: -5°C to 45°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 90% (non-condensing)
Storage Humidity: 5% to 90% (non-condensing)

VLAN: Port-Based VLAN, MTU VLAN, 802.1Q Tag VLAN (max 32 groups, 4K VID)
QoS: 802.1p DSCP, 8 Priority Queues, WRR Scheduling, Port-Based Rate Limiting, Storm Control (Broadcast / Multicast / Unknown-Unicast)
L2 Features: Static Link Aggregation (2 groups / 4 ports), Loopback Detection, 802.3x Flow Control, Port Mirroring (One-to-One / Many-to-One / Ingress/Egress), Port Statistics, 802.1ab LLDP
L2 Multicast: IGMP Snooping v1/v2/v3, Fast Leave
Management: Web-Based GUI, DHCP Client, Cable Diagnostics△, Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller, Omada App, Zero-Touch Provisioning (ZTP)†
Certifications: FCC, CE, RoHS

System Requirements: Compatible with any 10/100/1000 Mbps Ethernet-equipped device; AC/DC adapter required (included); Omada Cloud management requires Omada Controller (Cloud-Based, Hardware, or Software); Zero-Touch Provisioning requires Omada Cloud-Based Controller (Omada Cloud Standard or Omada Central Essentials); Cable Test and Port QoS available in standalone mode only

Setup: Plug-and-play for instant basic connectivity; additional features configurable via web GUI or Omada
Controller; wall-mount hardware included; automatic device discovery and one-click adoption via Omada Controller for centralized management; Omada app (iOS/Android) for mobile management

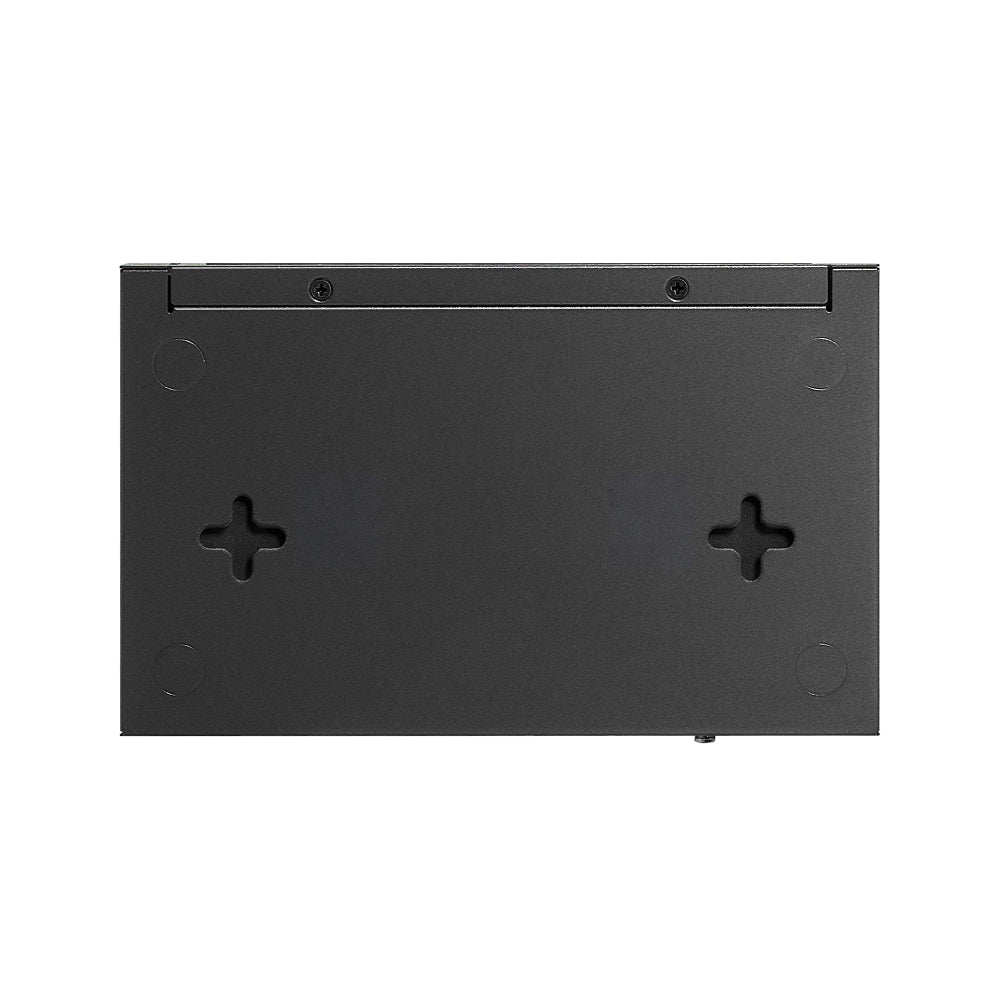

Mounting Options: Desktop placement (rubber feet included) or wall mounting (screws included); compact 158×101×25mm form factor fits most surface and wall locations

Usage Environment: Ideal for small offices, retail stores, surveillance networks, hospitality setups, home office wired expansions, and any environment requiring easy managed Gigabit switching with optional free cloud management
