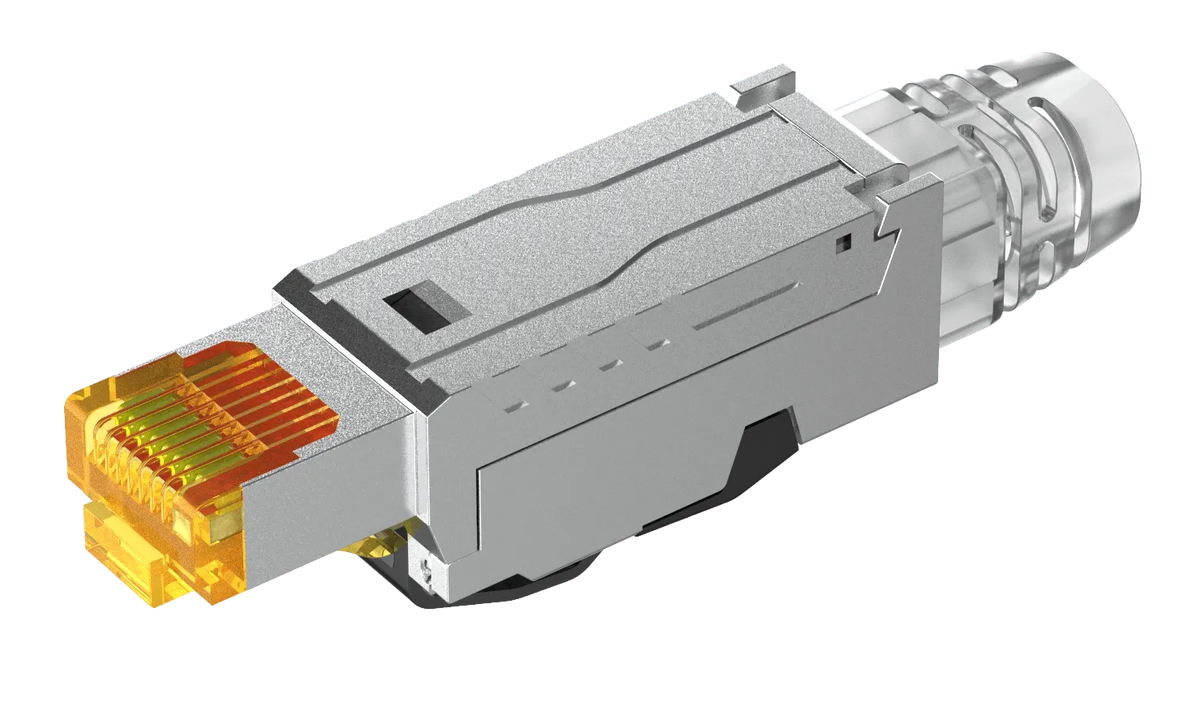

RiT Tech CAT6A STP Field Termination Plug — Shielded | 10GBase-T | ANSI/TIA-568.2-E | 22–24 AWG | PoE++ Type IV 100W | IEC 60603-7 | Gold-Plated Contacts (R3296001)

The RiT Tech R3296001 CAT6A STP Field Termination Plug is built for structured cabling installers, IT infrastructure engineers, AV/security integrators, and network technicians who need to terminate Cat.6A shielded cabling directly at a device endpoint — such as a security camera, wireless access point, PoE switch port, or network device — where a field-terminated plug is required rather than a factory-assembled patch cord. It is well-suited for security camera runs, enterprise access point installations, PoE++ device drops, and any application where cables must be terminated on-site with a Cat.6A plug certified to the latest ANSI/TIA and ISO/IEC standards.

The R3296001 is compliant with ANSI/TIA-568.2-E:2024 — the latest revision of the TIA standard governing balanced twisted-pair telecommunication cabling — ensuring the terminated link meets current 10GBase-T performance requirements up to 100 metres. The fully shielded metal housing, constructed from zinc die-cast with nickel plating and backed by copper foil EMI shielding tape, provides comprehensive immunity against external electromagnetic interference and alien crosstalk from adjacent cables — critical for maintaining 10G signal integrity in dense cable environments. RJ45 plug contacts are finished with 50 micro-inch gold plating over phosphor bronze with nickel underplating — providing outstanding corrosion resistance, low contact resistance, and excellent signal conductivity through 750+ plug-jack mating cycles. IDC contacts use titanium copper with tin plating for reliable field termination of both solid and stranded 22–24 AWG conductors with 5–20 termination cycle durability. PoE compatibility covers IEC 60512-99-002 Type III 60W and Type IV 100W — enabling use with the full PoE++ power class spectrum. The innovative paired-conductor plug design keeps cable pairs together throughout the termination process, reducing wiring errors and streamlining installation. Backward compatible with Category 6 infrastructure. Supports T568A and T568B wiring standards. Accepts cables up to 8.5mm OD.

Part Number: R3296001
Description: CAT6A STP Field Termination Plug
Category: Category 6A (Shielded)
Connector Type: RJ45 Field Termination Plug

RJ45 Plug Metal Housing: Zinc die-cast, Nickel plated
RJ45 Plug Plastic Housing: PC, UL 94-V0, Clear
RJ45 Plug Contacts: Phosphor bronze, Nickel plated
RJ45 Plug Contact Finish: 50 micro-inch Gold plated
RJ45 Plug Boot: PC, UL 94-V0, Clear
IDC Plastic Housing: PC, White, UL 94V-0
IDC Metal Contacts: Titanium Copper, Tin plated
Grounding Spring Contact: Zinc die-cast, Nickel plated
PCB: FR4, UL94 V0
EMI Shielding: Back adhesive Copper foil tape
Wire Organiser: PC, White, UL 94V-0
Wiring: T568A and T568B
Conductor Acceptance: 22–24 AWG solid and stranded
Cable OD: Up to Ø 8.5mm
Dimensions (W×D×H): 13.8 × 63.0 × 18.4mm

RJ45 Jack Dimensions: Per IEC 60603-7-5
Plug Insertion Force: 3.1 kg max (IEC 60603-7-81)
Patch Cord Retention Strength: 7.7 kg max (IEC 60603-7-5)
RJ45 Jack Durability: ≥750 plug-jack mating cycles (IEC 60603-7-81)
IDC Durability: 22 AWG ≥5 termination cycles | 23–24 AWG ≥20 termination cycles
Operating Temperature: -10°C to +60°C (ISO/IEC 11801-9901 Class 1)
PoE Compatibility: IEC 60512-99-002 Type III 60W and Type IV 100W
RoHS: Yes

Standards Compliance:
ANSI/TIA-568.2-E:2024
ISO/IEC 11801
IEC 60512-99-002
IEC 60603-7
Backward Compatible: Category 6

Manufacturer: RiT Tech (Intelligence Solutions) Ltd., Kfar Saba, Israel

System Requirements: Compatible with Cat.6A STP (Shielded Twisted Pair) cables with conductors in the 22–24 AWG range and cable OD up to 8.5mm; suitable for termination at device endpoints including security cameras, wireless access points, PoE switches, and network equipment; T568A and T568B wiring supported; backward compatible with Cat.6 infrastructure; PoE++ Type IV 100W compatible for high-power PoE device deployments; field termination tool or punch-down tool required for IDC termination (not included); grounding of shielded housing must be connected to earth ground via compatible shielded jack or device port for full EMI shielding effectiveness

Installation: Strip cable jacket to appropriate length; organise conductors per T568A or T568B wiring label; insert conductors into wire organiser keeping pairs together per plug design; seat plug body and terminate IDC contacts; verify continuity and shielding continuity before deployment

Usage Environment: Enterprise structured cabling, security camera direct-termination drops, wireless access point deployments, PoE++ device runs, and any 10GBase-T application requiring field-terminated Cat.6A STP RJ45 plugs compliant with ANSI/TIA-568.2-E
