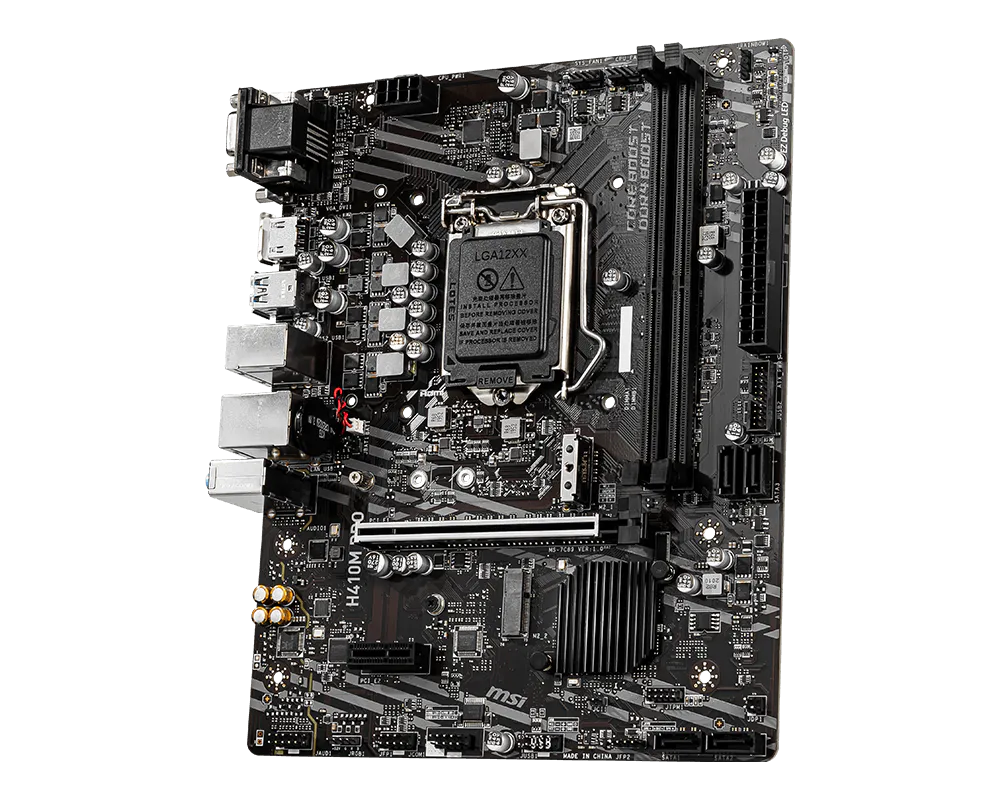

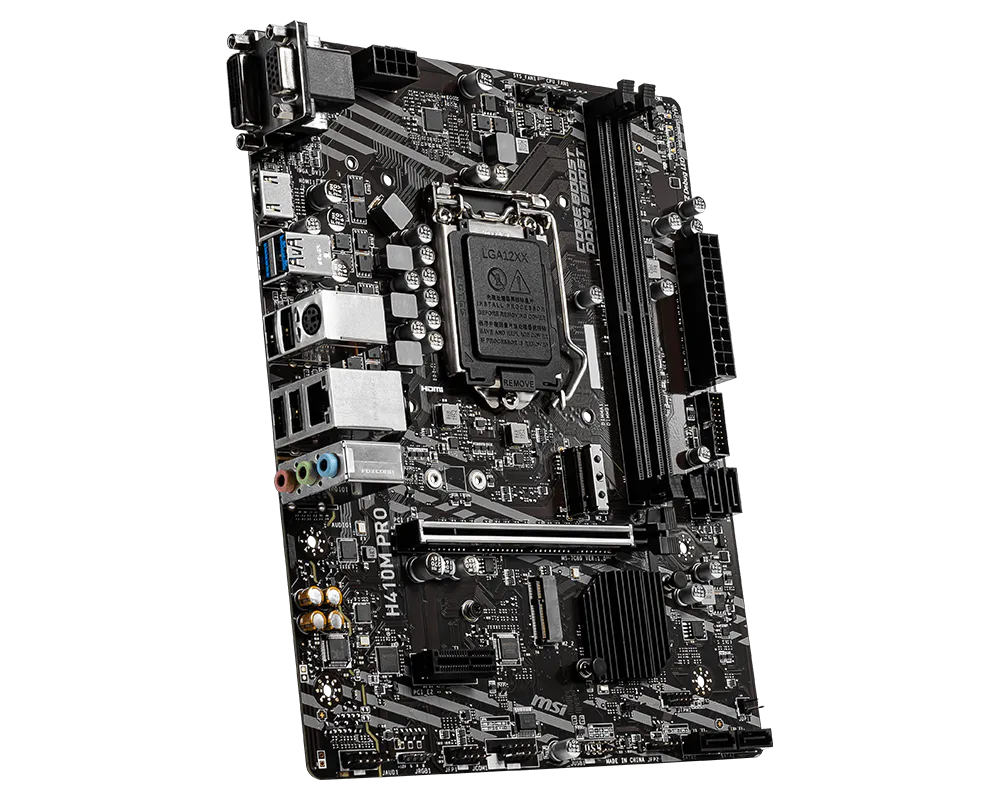

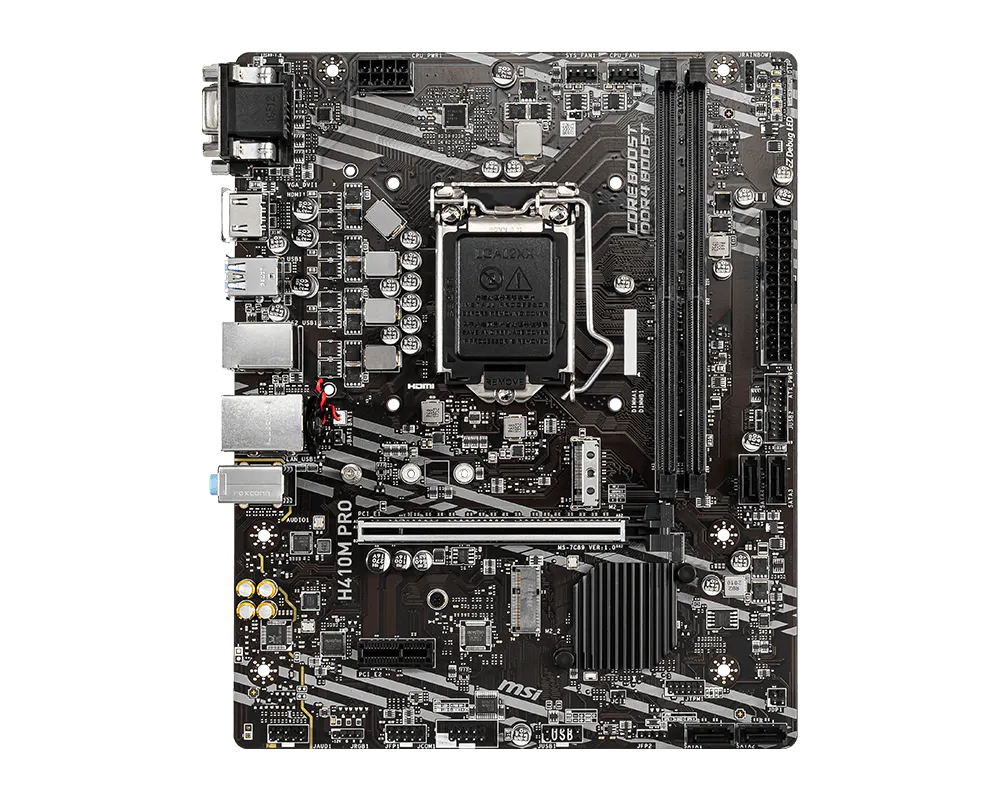

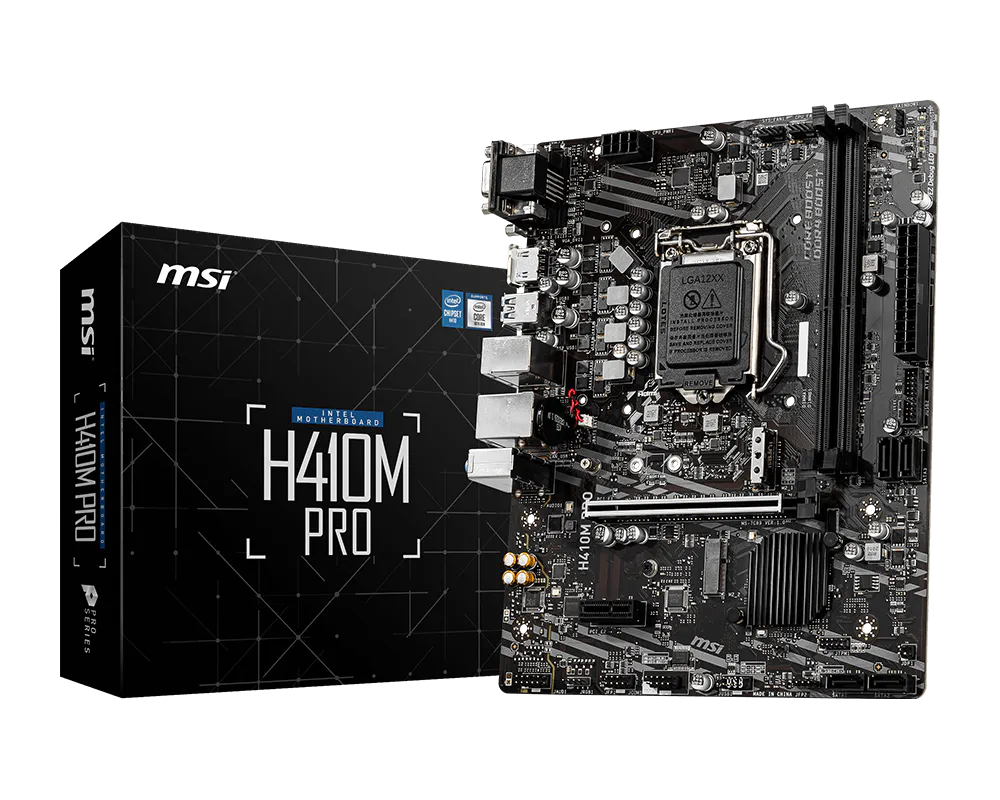

MSI H410M PRO Intel H410 Micro-ATX Motherboard — LGA1200 | DDR4 | PCIe 3.0 | M.2 | HDMI + DVI-D + VGA | Intel GbE

The MSI H410M PRO is built for budget-conscious home users, office PC assemblers, students, and everyday system builders who need a stable Intel H410 LGA1200 Micro-ATX platform for everyday productivity, document work, web browsing, video streaming, and general computing with Intel 10th Gen Core, Pentium Gold, or Celeron processors — without the premium cost of B460 or Z490 boards.

The H410M PRO features MSI Core Boost VRM technology with premium layout and digital power design for stable CPU power delivery, alongside DDR4 Boost for improved memory signal integrity. One PCIe 3.0 x16 CPU-direct GPU slot accommodates all standard discrete graphics cards. One M.2 Key-M slot (M2_1) supporting PCIe 3.0 x4 and SATA 6Gb/s modes up to 2280 length provides fast primary NVMe or SATA M.2 SSD storage, complemented by 4 SATA 6Gb/s ports for additional HDD and SSD expansion. Three rear display outputs — HDMI 1.4 (4K@30Hz), DVI-D (1920×1200@60Hz), and VGA (1920×1200@60Hz) — cover all modern and legacy monitor connectivity for dual or single integrated graphics display configurations. Intel I219V Gigabit LAN provides reliable wired network connectivity. Realtek ALC892/ALC897 Audio Boost delivers 7.1-channel HD audio with high-quality capacitors and dedicated audio PCB layers. One M.2 Key-E slot accommodates an optional Wi-Fi module (not included) for wireless connectivity. One RGB LED header and one RAINBOW (ARGB) header enable basic lighting ecosystem integration. EZ Debug LEDs provide CPU, DRAM, VGA, and BOOT POST diagnostic feedback. A Clear CMOS jumper and TPM header support standard security and reset requirements.

Form Factor: Micro-ATX — 23.6 × 19.0 cm (9.3 × 7.5 inches)
Socket: Intel LGA1200
Chipset: Intel H410

Memory Slots: 2× DDR4 DIMM (Dual Channel)
Max Memory: 64GB
Memory Speed: DDR4-2933 (Core i7/i9) | DDR4-2666 (Core i5 and below)
Memory Type: Non-ECC Unbuffered DDR4 | Intel XMP supported

PCIe Slots:
1× PCIe 3.0 x16 (CPU)
1× PCIe 3.0 x1 (Chipset)

M.2 Slots:
M2_1 (Chipset): PCIe 3.0 x4 / SATA, Key M, 2242/2260/2280
1× M.2 Key-E (WiFi module only — no module included)

SATA: 4× SATA 6Gb/s

Onboard Display:
1× HDMI 1.4 (max 4096×2160 @ 30Hz)
1× DVI-D (max 1920×1200 @ 60Hz)
1× VGA (max 1920×1200 @ 60Hz / 2048×1280 @ 60Hz / 2048×1536 @ 50Hz)

Audio: Realtek ALC892/ALC897 | 7.1-Channel HD Audio | Audio Boost
LAN: Intel I219V Gigabit Ethernet (1 Gbps / 100 Mbps / 10 Mbps)
Wireless: None built-in (M.2 Key-E slot for optional WiFi module)

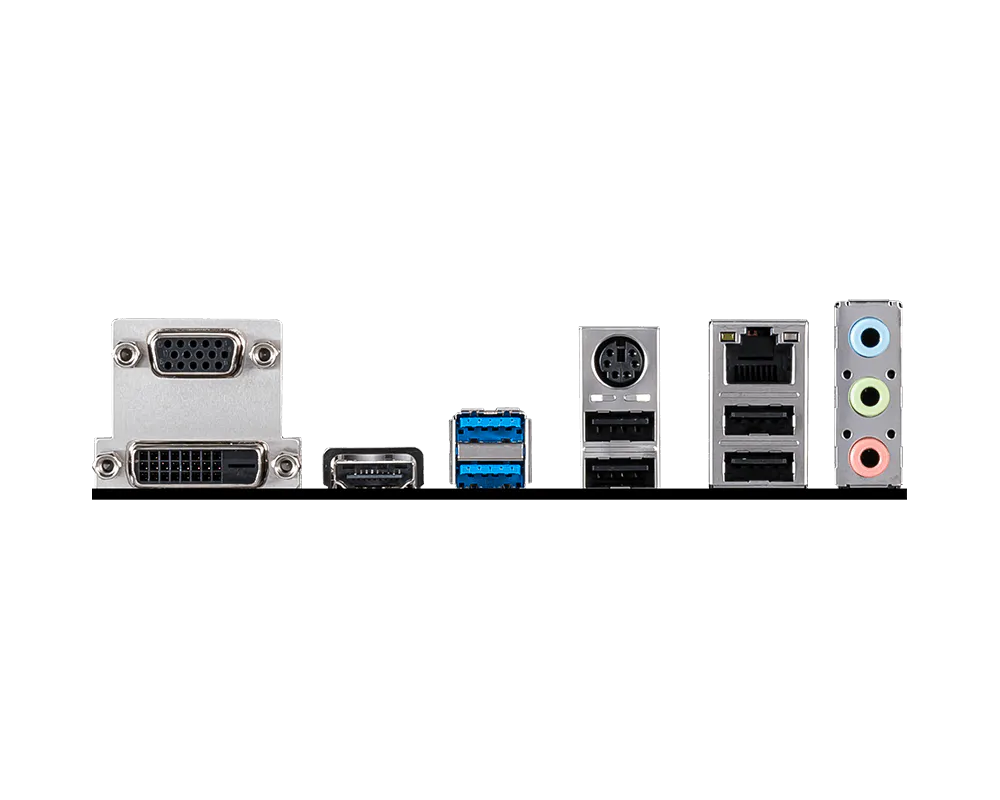

Back Panel USB:
2× USB 3.2 Gen 1 Type-A (5 Gbps)
4× USB 2.0 Type-A
1× HDMI 1.4 | 1× DVI-D | 1× VGA
Intel I219V GbE | PS/2 (Keyboard/Mouse) | 3× Audio Jacks

Internal Headers:
1× USB 3.2 Gen 1 (2 additional 5Gbps ports)
1× USB 2.0 (2 additional USB 2.0 ports)
1× CPU Fan (4-pin) | 1× System Fan (4-pin)
1× RGB LED (JRGB — 12V 4-pin)
1× RAINBOW LED (JRAINBOW — ARGB 3-pin)
4× EZ Debug LEDs (CPU / DRAM / VGA / BOOT)
1× Front Panel Audio | 2× Front Panel Connectors
1× Serial Port | 1× TPM Header | 1× Chassis Intrusion | 1× Clear CMOS
1× 24-pin ATX Main | 1× 8-pin ATX 12V CPU Power

Mounting Holes: 6
OS: Windows 10 64-bit

System Requirements: LGA1200 CPU (Intel Core 10th Gen, Pentium Gold, or Celeron); DDR4 memory required; Intel H410 does not support CPU overclocking; onboard display outputs (HDMI, DVI-D, VGA) require an integrated graphics-capable CPU — disabled with F-SKU (no iGPU) processors; BIOS update may be required for some CPU revisions; no Wi-Fi built-in — optional M.2 Key-E WiFi module required for wireless

Setup: Standard Micro-ATX installation; EZ Debug LEDs for POST fault diagnosis; Clear CMOS jumper for BIOS reset; XMP activation in BIOS for rated DDR4 speeds; RGB and RAINBOW headers for lighting accessories

Mounting Options: Micro-ATX form factor (23.6 × 19.0 cm); compatible with Micro-ATX and ATX cases; 6 mounting holes

Usage Environment: Ideal for budget home and office desktop builds, student systems, everyday productivity PCs, and Intel 10th Gen LGA1200 deployments requiring a reliable, value-priced Micro-ATX H410 platform with triple display output and M.2 NVMe storage
