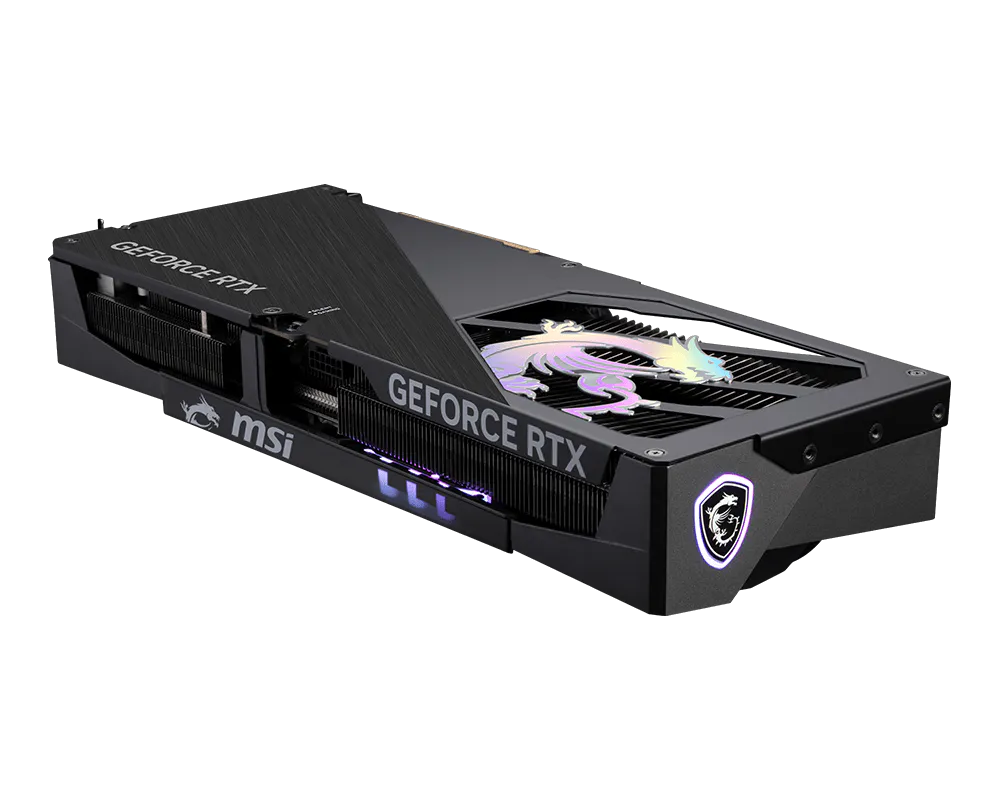

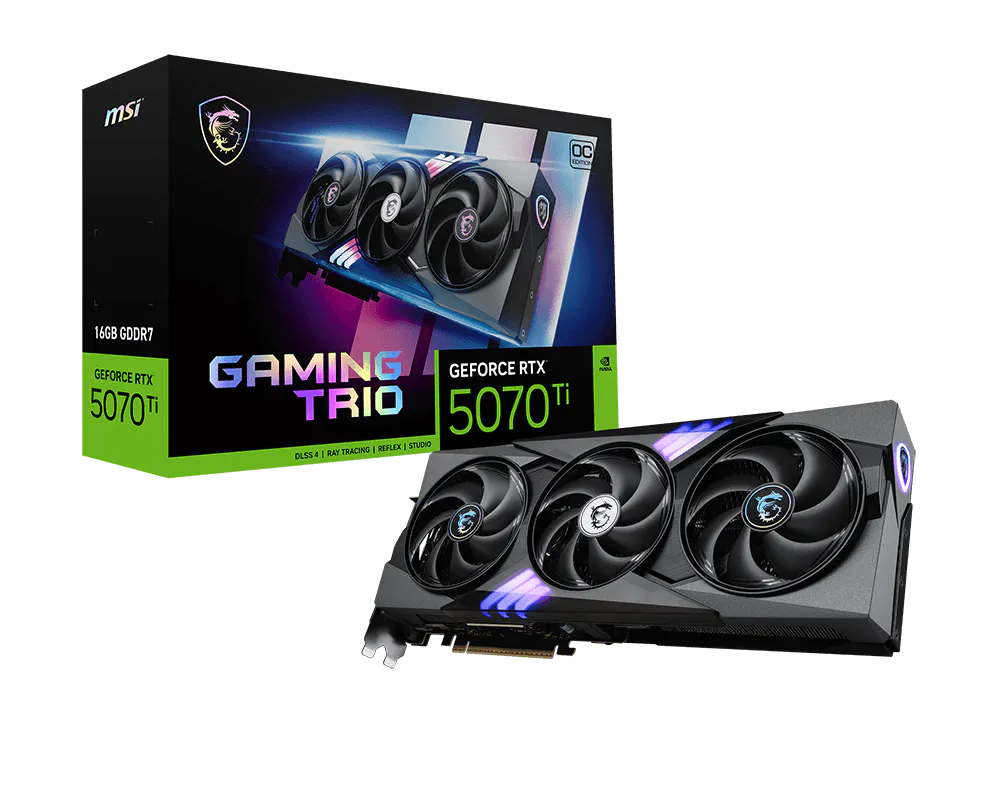

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC Graphics Card — NVIDIA Blackwell | 16GB GDDR7 | PCIe 5.0 | 2580 MHz

The MSI RTX 5070 Ti 16G GAMING TRIO OC is built for enthusiast gamers, 4K and 8K gaming enthusiasts, content creators, video editors, 3D artists, and AI-accelerated workload users who demand the best gaming performance alongside cutting-edge DLSS 4.5 Dynamic Multi Frame Generation, full ray tracing with neural rendering, and NVIDIA Studio creative acceleration. It is ideal for 4K ultra-high refresh rate gaming, full ray tracing AAA titles, DLSS 4.5-enhanced esports at extreme frame rates, 8K gaming via DSC, and professional creative workflows in video editing, 3D rendering, and AI-assisted content generation.

The RTX 5070 Ti GAMING TRIO OC is powered by NVIDIA's Blackwell architecture — the most advanced GPU architecture for gaming and AI — featuring 8960 CUDA Cores for exceptional parallel compute throughput, fourth-gen RT Cores for ultra-fast hardware ray tracing and Mega Geometry support, and fifth-gen Tensor Cores with FP4 precision enabling DLSS 4.5's Dynamic Multi Frame Generation and AI-enhanced neural rendering across supported titles. DLSS 4.5 uses Multi Frame Generation to generate up to three additional AI frames per rendered frame, dramatically multiplying effective frame rates with maintained visual quality and minimal latency increase when combined with NVIDIA Reflex 2 and Frame Warp for competitive responsiveness. MSI's TRI FROZR 4 thermal design combines three upgraded STORMFORCE fans — featuring seven claw-textured blades and a circular arc concentration design — with dual ball bearings, a nickel-plated copper baseplate, square-contact Core Pipes for maximum GPU heat capture, Wave Curved 4.0 precision fin geometry, Air Antegrade Fin 2.0 V-shaped cutout fins, and high-quality clay-based thermal pads on critical board components, delivering exceptional thermal performance and near-silent operation. Zero Frozr stops all fans completely at low temperatures for silent idle and light-load operation. Dual BIOS enables instant switching between GAMING mode for maximum performance at 2572 MHz boost and SILENT mode for priority quiet operation at the same clock. MSI Center software provides real-time monitoring, AI Tuning, and Extreme Performance mode at 2580 MHz. A reinforced metal backplate with thermal pads and airflow exhaust vents enhances structural rigidity and rear-side thermal dissipation. DrMOS power stages deliver efficient, precise power delivery with 2oz copper PCB for improved reliability. The bundled GPU support stand attaches to the PC case to prevent PCIe slot sag under the card's weight.

Model: G507T-16GTC
GPU: NVIDIA GeForce RTX 5070 Ti
Architecture: NVIDIA Blackwell
CUDA Cores: 8960
Core Clock — Extreme Performance: 2580 MHz (MSI Center)
Core Clock — Boost: 2572 MHz (GAMING & SILENT Mode)
Memory: 16GB GDDR7
Memory Speed: 28 Gbps
Memory Bus: 256-bit
Interface: PCI Express Gen 5
DirectX: 12 Ultimate
OpenGL: 4.6

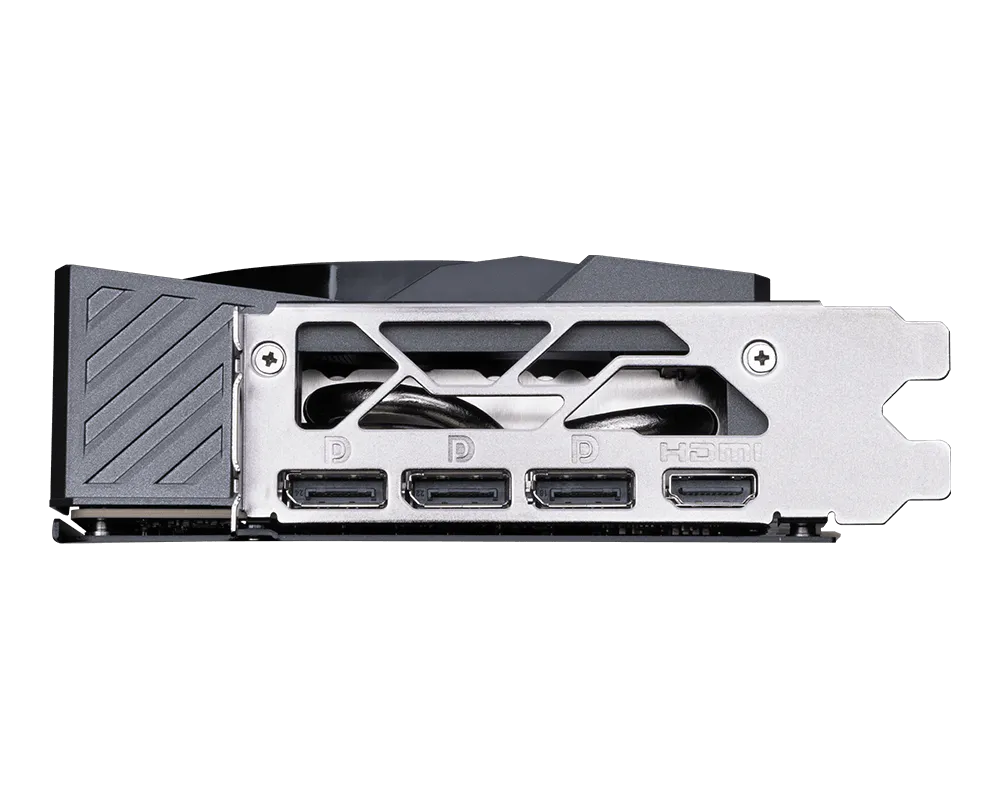

Display Outputs: 3× DisplayPort 2.1b | 1× HDMI 2.1b
Maximum Resolution: 7680 × 4320 (8K)
HDMI Capability: Up to 4K@480Hz or 8K@120Hz with DSC, Gaming VRR, HDR
Maximum Displays: 4
G-SYNC: Supported
HDCP: Supported
Power Consumption (TDP): 300W
Power Connector: 1× 16-pin (ATX 3.1 PSU recommended)
Recommended PSU: 750W
Card Dimensions: 338 × 140 × 50mm
Card Weight: 1296g
Package Weight: 1819g

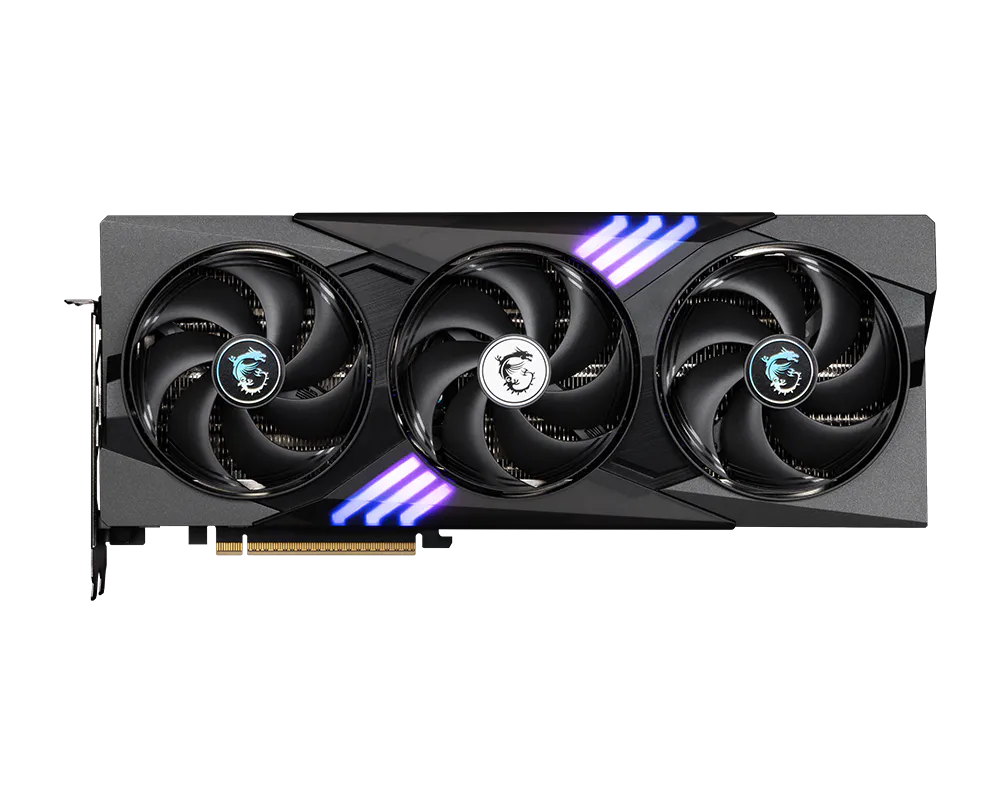

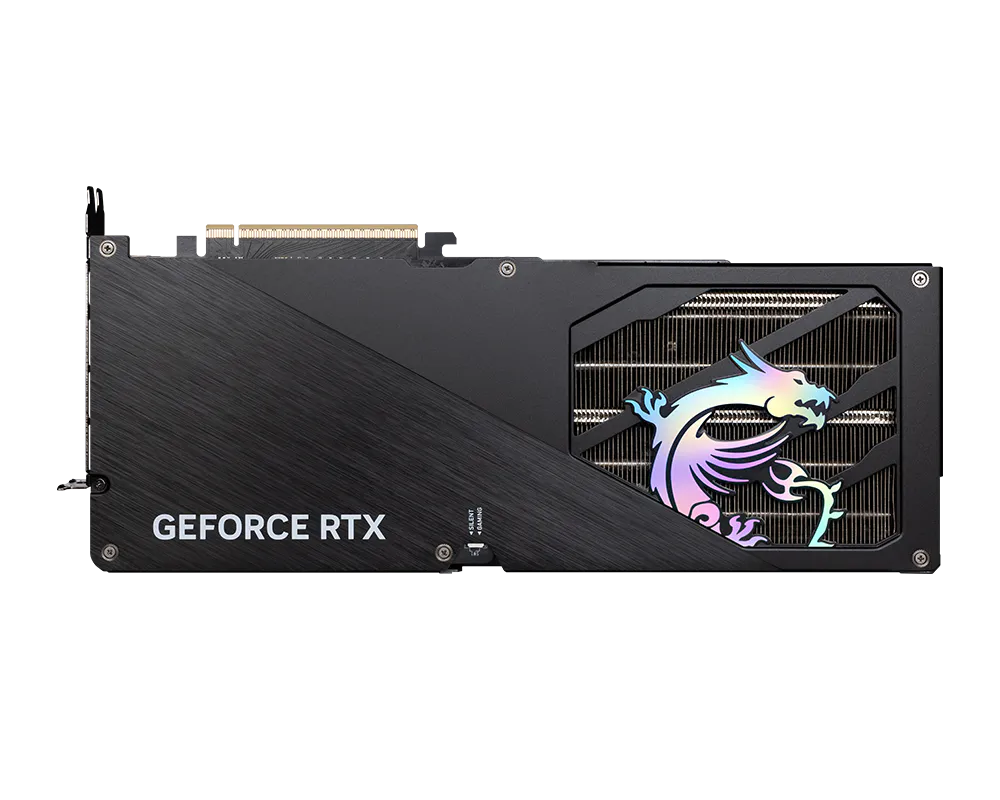

Cooling: TRI FROZR 4 | 3× STORMFORCE Fan (7-blade, claw texture, circular arc) | Dual Ball Bearings | Zero Frozr | Nickel-Plated Copper Baseplate | Core Pipes | Wave Curved 4.0 | Air Antegrade Fin 2.0 | Metal Backplate with Thermal Pads & Airflow Vents

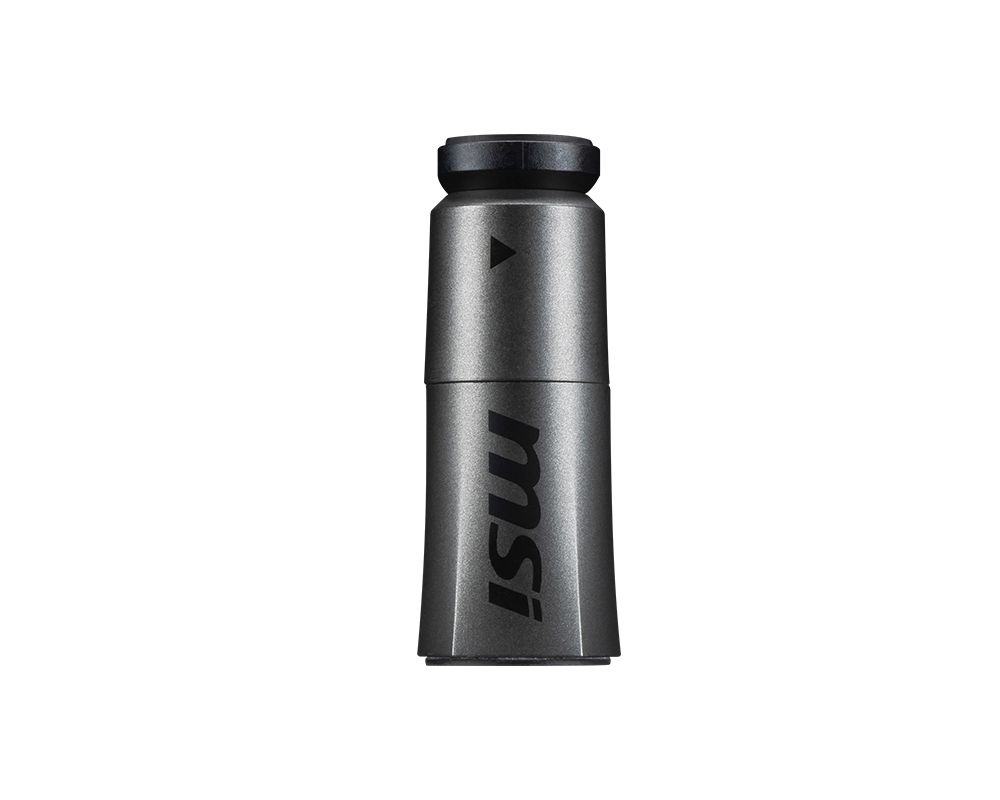

Features: Dual BIOS (GAMING / SILENT) | DrMOS | 2oz Copper PCB | Additional Fuse Protection | Clay-Based Thermal Pads | GPU Support Stand
Software: MSI Center | MSI Afterburner | MSI App Player

NVIDIA Features: DLSS 4.5 (Dynamic Multi Frame Generation) | 4th Gen RT Cores | 5th Gen Tensor Cores | NVIDIA Reflex 2 (Frame Warp) | NVIDIA ACE | NVIDIA Broadcast | 9th Gen NVIDIA Encoder | NVIDIA Studio | G-SYNC

System Requirements: PCIe Gen 5 x16 slot required (backward compatible with PCIe 4.0/3.0); minimum 750W PSU recommended (ATX 3.1 preferred for native 16-pin connector support; non-ATX 3.1 PSUs require adapter); 1× 16-pin power connector; verify case GPU length clearance for 338mm card length and 50mm width (3-slot) before installation; DLSS 4.5 Dynamic Multi Frame Generation requires supported games and NVIDIA app with Game Ready Driver

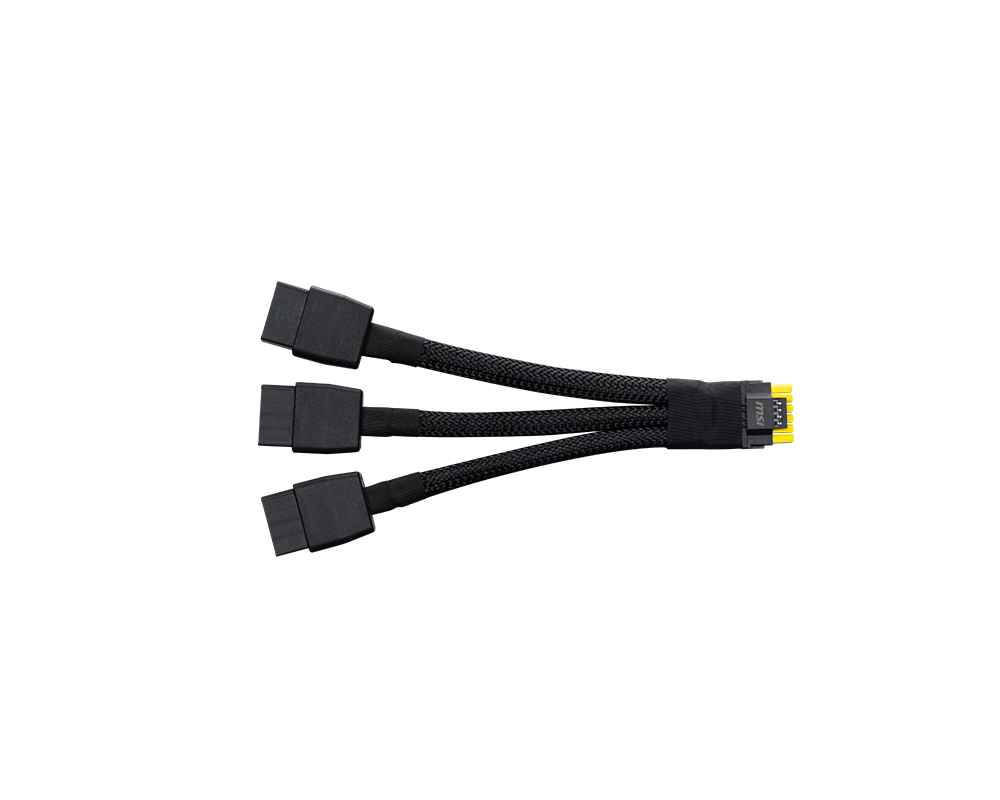

Setup: Standard PCIe installation; connect 16-pin power connector (use bundled adapter if PSU does not have native 16-pin); install GPU support stand into case for sag prevention; switch BIOS mode via physical switch on card edge; MSI Center required for Extreme Performance mode at 2580 MHz and AI Tuning features; NVIDIA app required for DLSS 4.5 and driver management

Mounting Options: Standard PCIe 3-slot installation; bundled GPU support stand attaches to PC case (verify case compatibility); verify case clearance for 338×140×50mm footprint

Usage Environment: Ideal for 4K ultra-high refresh rate gaming PCs, full ray tracing enthusiast builds, DLSS 4.5 gaming systems, 8K display setups, creative workstations for video editing and 3D rendering, AI-accelerated desktop builds, and flagship gaming rigs demanding the best Blackwell GPU performance
