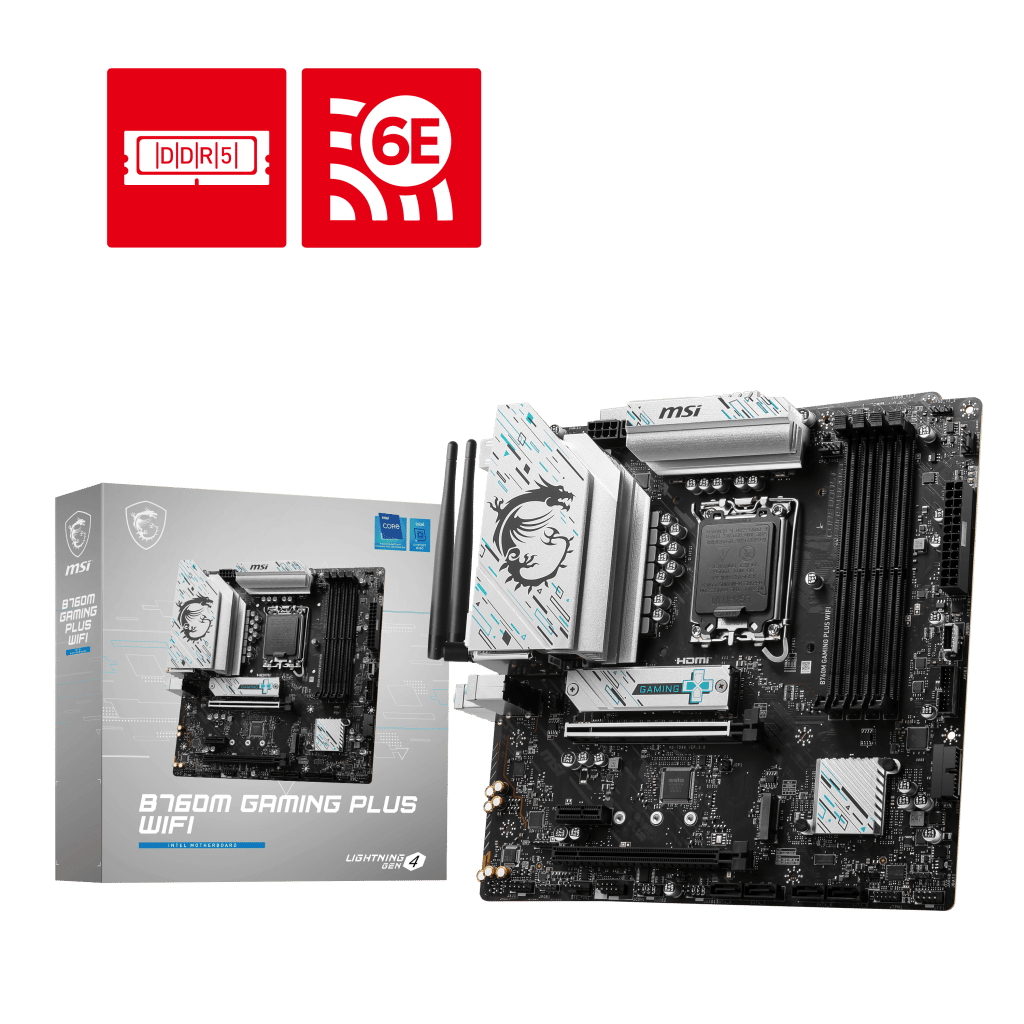

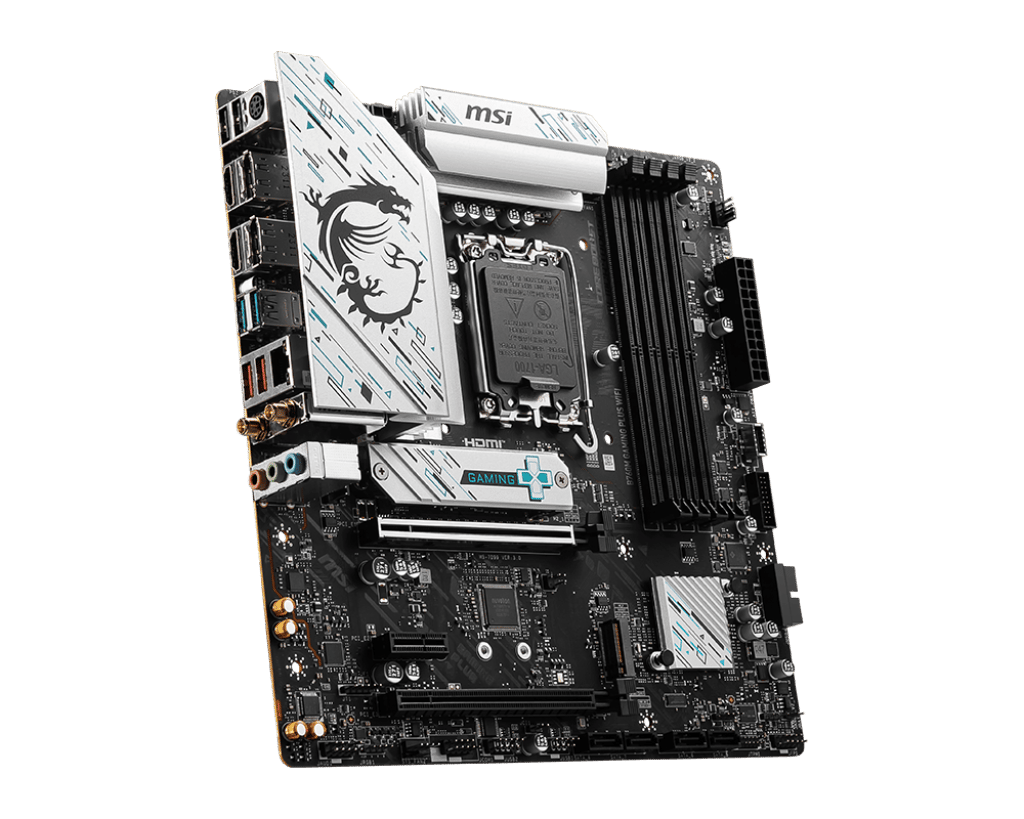

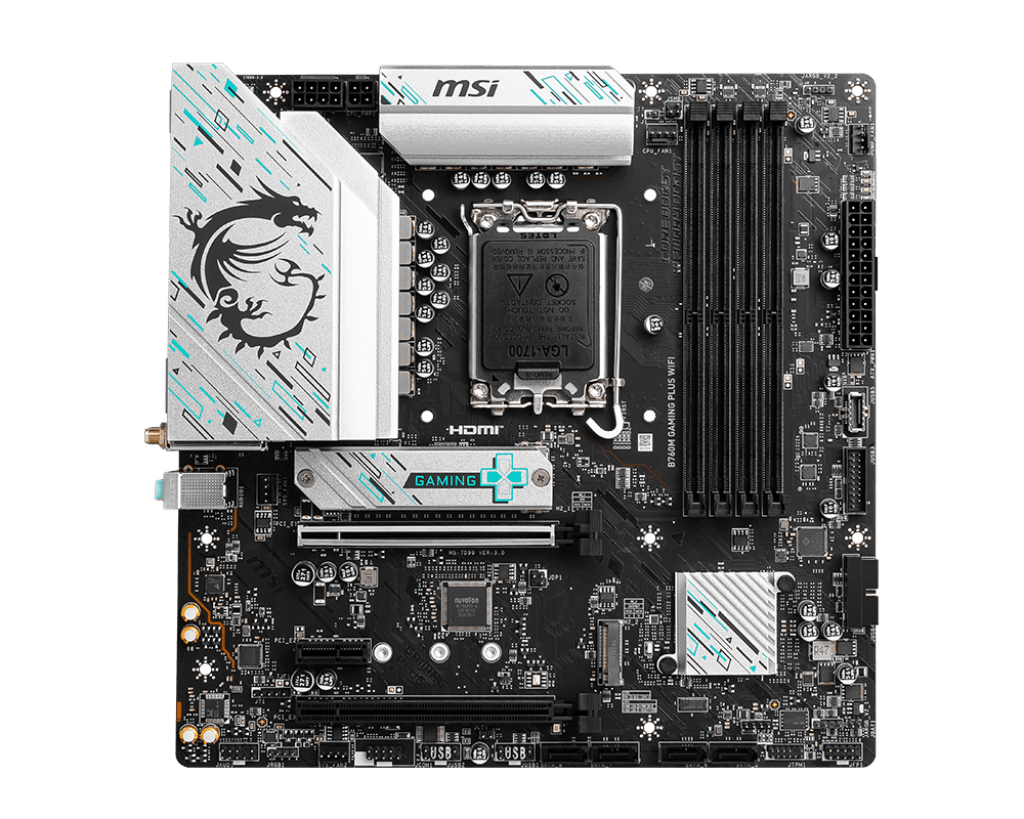

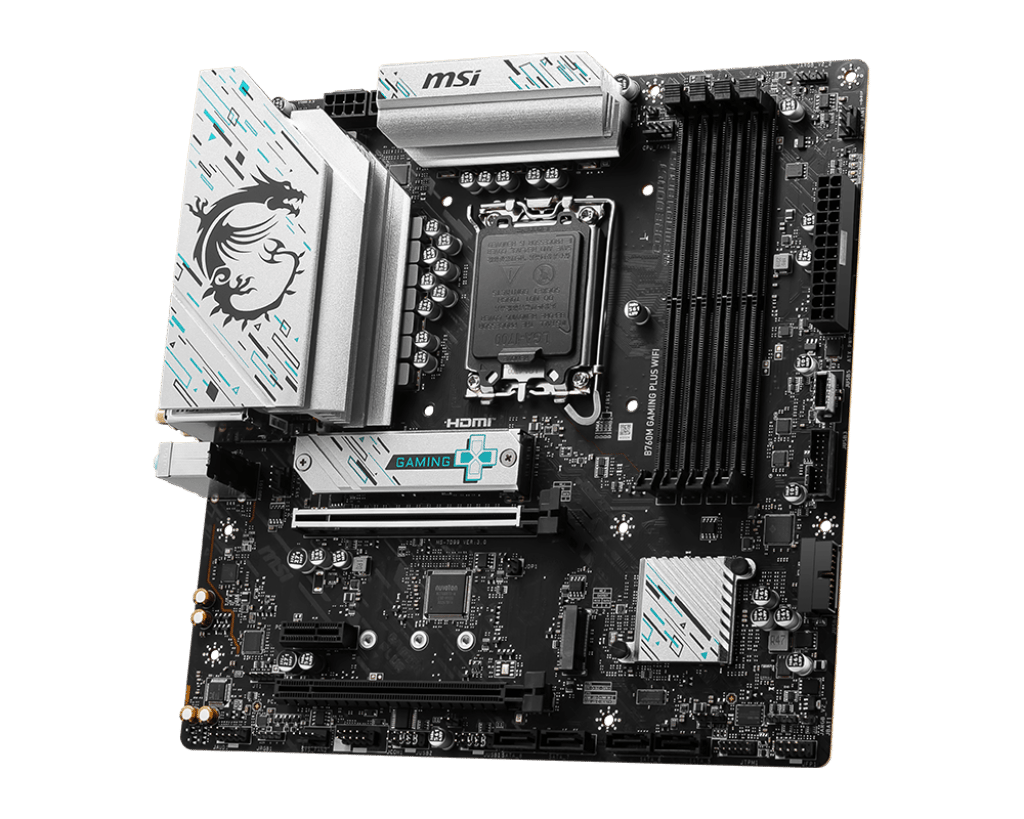

MSI B760M GAMING PLUS WIFI Intel B760 Micro-ATX Motherboard — LGA1700 | DDR5 | PCIe 4.0 | Wi-Fi 6E | 2.5GbE | Mystic Light

The MSI B760M GAMING PLUS WIFI is built for gamers, home office users, content creators, and everyday PC builders who want a feature-rich Intel B760 DDR5 Micro-ATX platform with Wi-Fi 6E and 2.5GbE networking built-in, dual M.2 NVMe storage with thermal shielding, a strong 12-phase VRM for stable power delivery, PCIe 4.0 GPU support, and Mystic Light RGB ecosystem integration — without stepping up to a premium Z790 board. Well-suited for Intel 12th, 13th, and 14th Gen Core gaming builds, streaming systems, home office workstations, and compact ATX case gaming builds.

The B760M GAMING PLUS WIFI features a 12+1+1 Duet Rail Power System with P-PAK power stages — dual 8-pin and 4-pin CPU power connectors, MSI Core Boost, Extended Heatsink with 7W/mK MOSFET thermal pads, additional choke thermal pads, and a Heavy Plated VRM Heatsink — delivering stable, sustained power delivery for Intel 12th through 14th Gen processors under all workloads. Two PCIe 4.0 M.2 slots — M.2_1 (CPU direct, PCIe 4.0 x4, up to 2280) and M.2_2 (Chipset, PCIe 4.0 x4 / SATA, up to 2280) — both covered by M.2 Shield Frozr heatsinks for thermal protection during sustained NVMe transfers. Four DDR5 DIMM slots support up to 256GB at DDR5-6800+ (OC) in 1DPC 1R configuration with Intel XMP 3.0 and MSI Memory Boost. Intel Wi-Fi 6E (802.11ax, 2.4/5/6 GHz, up to 2.4 Gbps, 160MHz) with Bluetooth 5.3 delivers fast, low-latency wireless in the pre-installed M.2 Key-E slot. Realtek RTL8125BG 2.5GbE LAN provides fast wired connectivity. Dual HDMI 2.1 (4K@60Hz) and Dual DisplayPort 1.4 (4K@60Hz) rear outputs support up to 4 simultaneous display outputs via integrated graphics. Realtek ALC897 Audio Boost delivers 7.1-channel HD audio with isolated audio PCB layout, high-quality capacitors, and Isolated Analogy Structure for clean audio output. A PCIe 4.0 x16 Steel Armor reinforced primary slot secures heavy GPU installations with extra solder points. EZ M.2 Clip enables tool-free M.2 SSD installation. EZ Debug LEDs provide instant POST fault diagnosis. Double ESD Protection and TVS (Transient Voltage Suppressors) safeguard all critical circuits. Mystic Light with 2× Addressable Gen 2 ARGB and 1× RGB header enables comprehensive lighting synchronisation. Frozr AI Cooling automatically adjusts fan speeds based on CPU and GPU temperature using MSI AI Engine. 6-layer PCB made with 2oz thickened copper for improved thermal performance and circuit reliability. Resizable BAR support maximises GPU performance on compatible configurations.

Form Factor: Micro-ATX (243.84 × 243.84mm)
Socket: Intel LGA1700
Chipset: Intel B760
Supported CPUs: Intel Core 14th / 13th / 12th Gen | Pentium Gold | Celeron (LGA1700)
VRM Design: 12+1+1 Duet Rail Power System with P-PAK | Core Boost | 8-pin + 4-pin CPU Power (Solid Pin)

Memory Slots: 4× DDR5 DIMM (Dual Channel)
Max Memory: 256GB
Memory Speed: DDR5-6800+ (OC) / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 MHz | Intel XMP 3.0 | MSI Memory Boost
Memory Configurations: 1DPC 1R up to 6800+ MHz | 1DPC 2R up to 6400+ MHz | 2DPC 1R up to 6000+ MHz | 2DPC 2R up to 5600+ MHz
Memory Type: Non-ECC Unbuffered DDR5

PCIe Slots:
1× PCIe 4.0 x16 (CPU) — Steel Armor (PCI_E1)
1× PCIe 4.0 x4 (Chipset) — (PCI_E3)
1× PCIe 3.0 x1 (Chipset) — (PCI_E2)

M.2 Slots:
M.2_1 — PCIe 4.0 x4 (CPU direct), type 2242/2260/2280 — M.2 Shield Frozr | EZ M.2 Clip
M.2_2 — PCIe 4.0 x4 / SATA (Chipset), type 2242/2260/2280 — M.2 Shield Frozr | EZ M.2 Clip
Note: SATA8 unavailable when M.2_2 slot has a SATA SSD installed

SATA Ports: 4× SATA 6Gb/s (RAID 0/1/5/10)
Display Output: 2× HDMI 2.1 (max 4K@60Hz) | 2× DisplayPort 1.4 (max 4K@60Hz)
Audio: Realtek ALC897 | 7.1-Channel HD Audio | Audio Boost | Isolated Analogy Structure | High-Quality Capacitors
LAN: Realtek RTL8125BG 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless: Intel Wi-Fi 6E — 802.11a/b/g/n/ac/ax | 2.4/5/6 GHz | 160MHz | up to 2.4 Gbps | Bluetooth 5.3

Back Panel USB:
2× USB 3.2 Gen 2 Type-A (10 Gbps)
2× USB 3.2 Gen 1 Type-A (5 Gbps)
2× USB 2.0 Type-A
2× HDMI 2.1 | 2× DisplayPort 1.4
1× Realtek 2.5GbE
1× Wi-Fi 6E Module
3× Audio Jacks
1× PS/2 (Keyboard/Mouse)

Internal Headers:
4× USB 2.0 (Front)
4× USB 5Gbps Type-A (Front)
1× USB 5Gbps Type-C (Front)
2× Addressable Gen 2 ARGB (JARGB_V2 — 5V 3-pin)
1× RGB LED (JRGB — 12V 4-pin)
4× EZ Debug LEDs (CPU / DRAM / VGA / BOOT)
1× CPU Fan | 1× Pump Fan | 2× System Fan
1× COM Port (JCOM) | 1× Chassis Intrusion (JCI) | 1× TPM Header (TPM 2.0)
Power: 1× 24-pin ATX | 1× 8-pin CPU + 1× 4-pin CPU (Solid Pin)

Protection: OCP (USB, DDR, PWM IC, CPU) | TVS | Double ESD | Steel Armor PCIe | Stainless Steel I/O | Solid Pin Power Connectors
PCB: 6-Layer | 2oz Thickened Copper
BIOS: AMI UEFI BIOS | Click BIOS 5 | MSI Driver Utility Installer | Resizable BAR Support
Software: MSI Center (Frozr AI Cooling, Mystic Light, Memory Boost, Core Boost) | AIDA64 Extreme (60-day) | Norton 360 Deluxe (60-day) | Voicemod PRO (30-day) | DigiME (30-day)
OS: Windows 11 / Windows 10 64-bit

System Requirements: LGA1700 CPU (Intel Core 12th/13th/14th Gen, Pentium Gold, or Celeron); DDR5 memory required (DDR4 not supported); verify memory QVL on MSI's website; Intel B760 does not support CPU overclocking — K-series CPU multiplier is locked; BIOS update may be required for 14th Gen support on some board revisions; Wi-Fi 6E 6GHz band requires Windows 11; Bluetooth 5.3 requires Windows 10 Build 21H1 or Windows 11; dual HDMI/DP outputs require integrated graphics-capable CPU

Setup: Standard Micro-ATX installation; EZ M.2 Clip enables tool-free M.2 SSD installation; MSI Driver Utility Installer auto-detects and installs drivers on first internet-connected boot; Frozr AI Cooling and Mystic Light configurable via MSI Center; XMP 3.0 activation in BIOS for rated DDR5 memory speed

Mounting Options: Micro-ATX form factor (243.84 × 243.84mm); compatible with Micro-ATX and full-size ATX cases

Usage Environment: Ideal for gaming PCs, streaming and content creation systems, home office workstations, and mainstream Intel 12th/13th/14th Gen DDR5 builds requiring Wi-Fi 6E, 2.5GbE, dual M.2 NVMe, PCIe 4.0, Mystic Light RGB, and a strong 12-phase VRM in a compact Micro-ATX form factor
