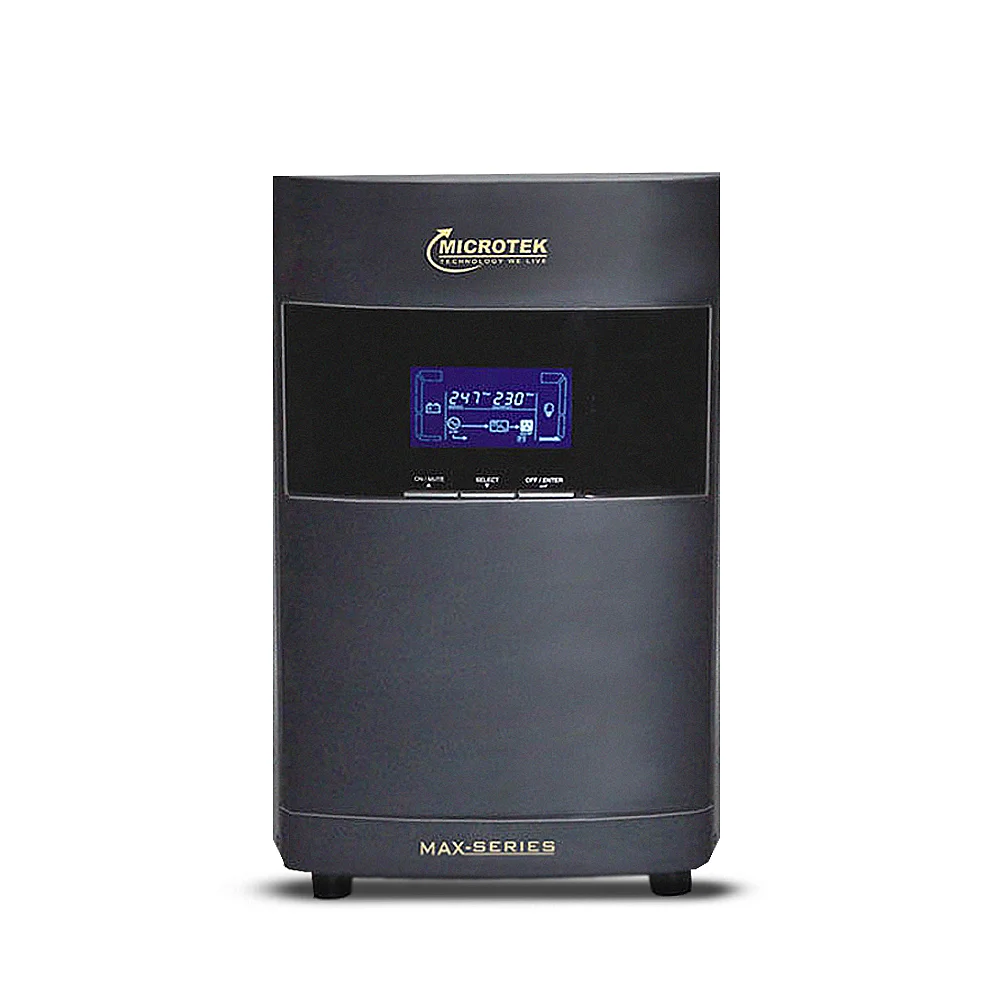

Microtek On Line UPS 3KVA

The IB-MAX 3 kVA Online UPS is designed for critical systems where power continuity, uninterruptible operation and high-quality waveform are essential. It is ideal for key IT infrastructure, server racks, networking equipment, medical instrumentation and small-scale data centres requiring single-phase input/output with full online double-conversion technology.

The IB-MAX 3 kVA features true online double-conversion topology (AC-DC-AC) ensuring regulated output regardless of input fluctuations and zero transfer time between mains and battery. With a 72 V battery configuration it provides extended runtime in compact installations. Input/output are single-phase, making it suitable for standard office wiring. The model supports generator input, smart battery management, parallel expandability and has an LCD display with status monitoring for professional use.

Capacity: 3 kVA (single-phase input and output)

Battery Configuration: 72 V battery bank (number of internal/external battery modules may vary)

Topology: Online double-conversion with pure sine wave output

Input Voltage Range: Wide range input with built-in AVR and filters (typically ~150–300 V)

Output Voltage: 230 V AC nominal (single-phase)

Output Frequency: 50 Hz nominal (±0.5 Hz)

Efficiency: High efficiency in online mode (typically > 90%)

Transfer Time: 0 ms (continuous online mode)

Display / Monitoring: LCD panel showing load, battery status, voltages, frequency and alarms

Communication: RS-232/USB or optional SNMP card support for remote monitoring

Operating Environment: 0 °C to 40 °C, 0-90% RH non-condensing

System Requirements: Suitable for servers, network appliances, storage systems and sensitive electronics rated within 3 kVA capacity; ensure total load does not exceed rated capacity

Installation: Requires stable electrical wiring, proper ventilation, battery placement adjacent to unit, periodic battery maintenance/replacement as per manufacturer guidelines

Usage Environment: Ideal for server rooms, network closets, small data centre racks, lab equipment areas and mission-critical branch office setups

Included Accessories: UPS unit, battery bank (72 V modules), power cables, monitoring software/manual (battery bank configuration may vary by region)
