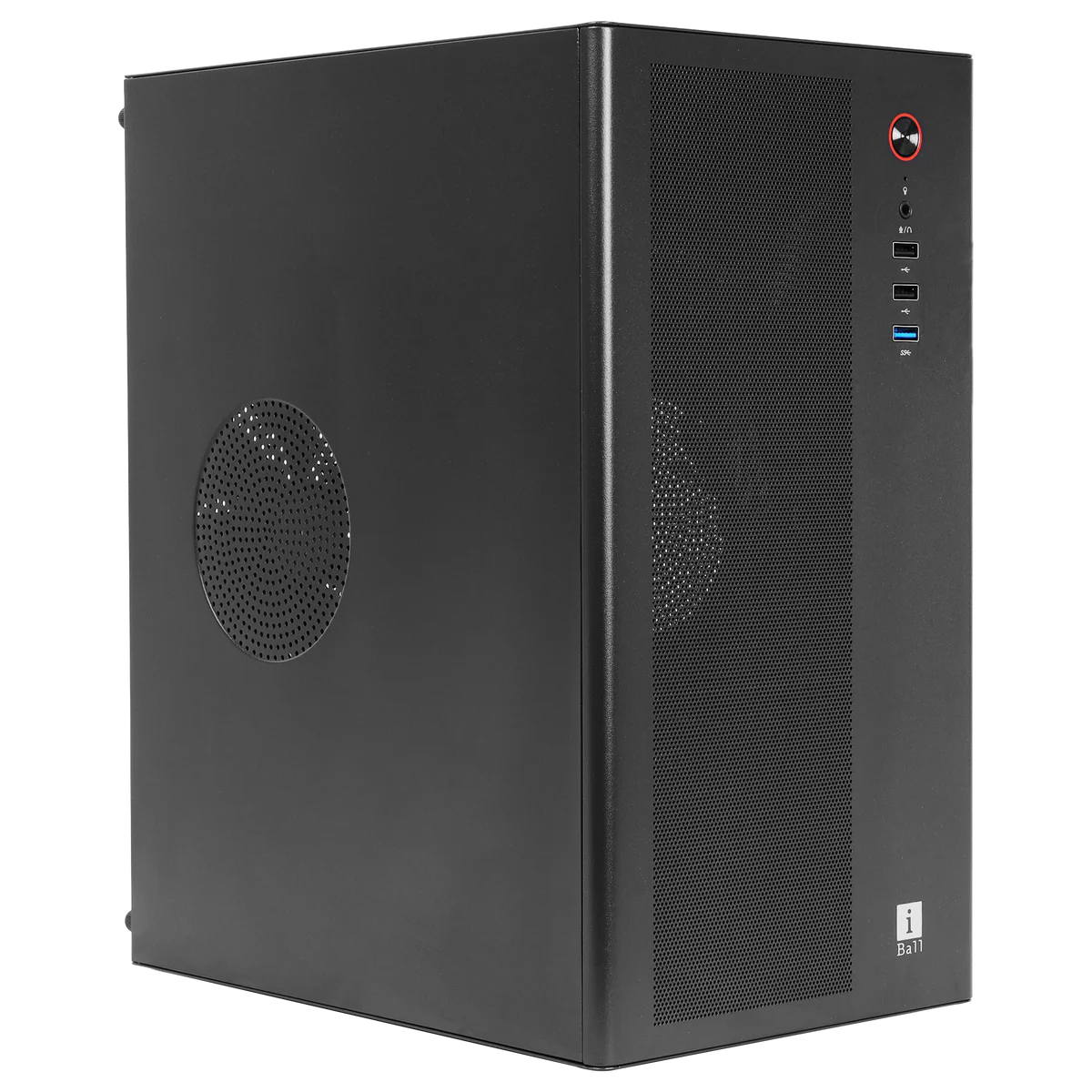

iBall MT:20 Mini-Tower Micro-ATX / Mini-ITX PC Cabinet with SMPS — Black / White

iBall MT:20 Mini-Tower Micro-ATX / Mini-ITX PC Cabinet with SMPS — Black / White

₹2,349.00
₹2,349.00
Tax included. Shipping calculated at check out.
Color: Black

The iBall MT:20 is a compact, dependable mini-tower PC cabinet with a pre-installed SMPS engineered for home users, office professionals, and space-conscious builders seeking a clean, complete, and ready-to-assemble chassis solution for Micro-ATX and Mini-ITX builds. Available in Black and White colour variants, it features a pre-installed 120mm rear fan, GPU clearance up to 240mm, CPU cooler height support up to 160mm, a top-mounted bundled SMPS, and a front I/O panel with USB 3.0 and hybrid audio connectivity, delivering a straightforward and reliable compact desktop build experience in one affordable package. An excellent mini-tower all-in-one chassis for dependable everyday Micro-ATX and Mini-ITX home and office desktop builds.

  • Non-Returnable
  • Quality product
  • Free Shipping available

Use Case

The iBall MT:20 is built for home users, office professionals, students, and budget PC builders who want a compact and complete cabinet with a bundled SMPS in a choice of Black or White to complement their workspace. It is well-suited for small-footprint home computing setups, office workstations, and entry-level compact builds using Micro-ATX or Mini-ITX motherboards where ease of assembly, desk space efficiency, and out-of-the-box readiness are the priorities.

Key Features

The MT:20 features a sturdy all-steel mini-tower body available in Black and White, designed for home and office environments. A top-mounted bundled SMPS is pre-installed and ready for out-of-the-box assembly, simplifying the build process considerably. A pre-installed 120mm rear exhaust fan provides reliable baseline airflow for everyday computing workloads. GPU clearance of up to 240mm and CPU cooler height support up to 160mm accommodate a wide range of entry-level graphics cards and compact air coolers. Four expansion slots support discrete GPU, sound, and other PCIe add-in cards. Up to 1× 3.5" HDD and 2× 2.5" SSDs can be installed for flexible everyday storage configurations. The front I/O panel includes USB 3.0, two standard USB ports, and a hybrid 3.5mm headphone and mic jack for convenient daily connectivity.

Specifications

Model: MT:20

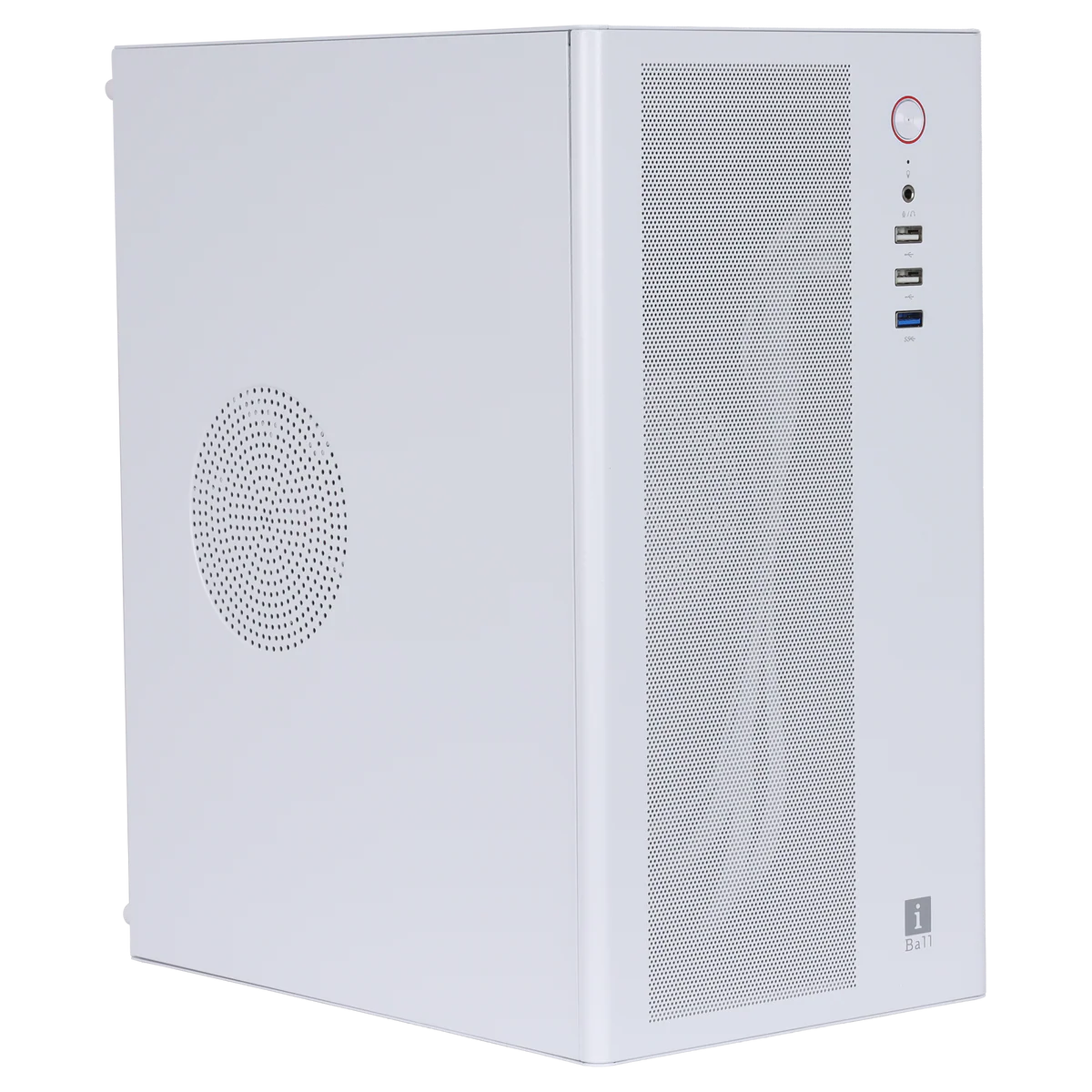

Available Colours: Black / White
Body Material: Steel
Form Factor: Mini-Tower

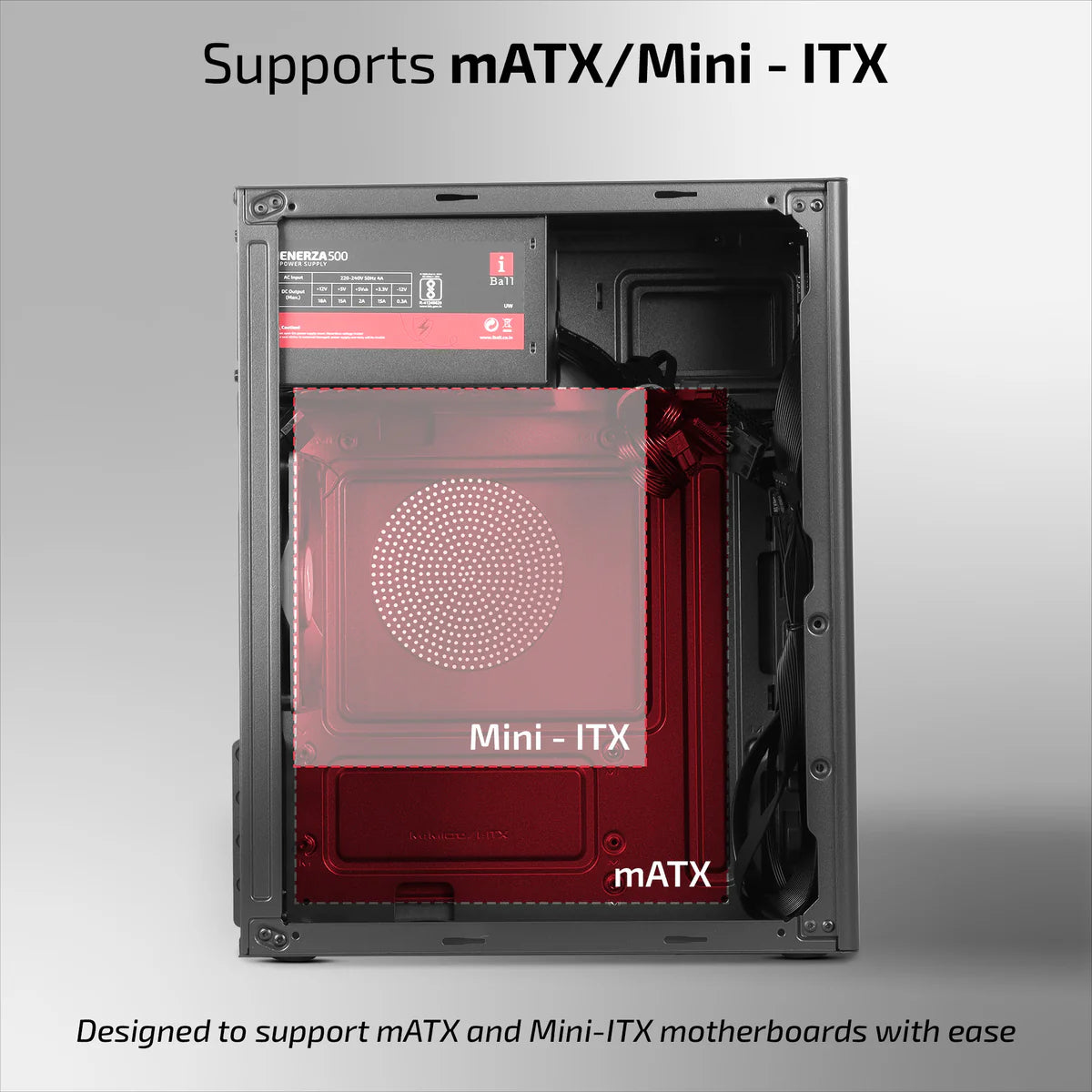

Motherboard Support: Micro-ATX, Mini-ITX

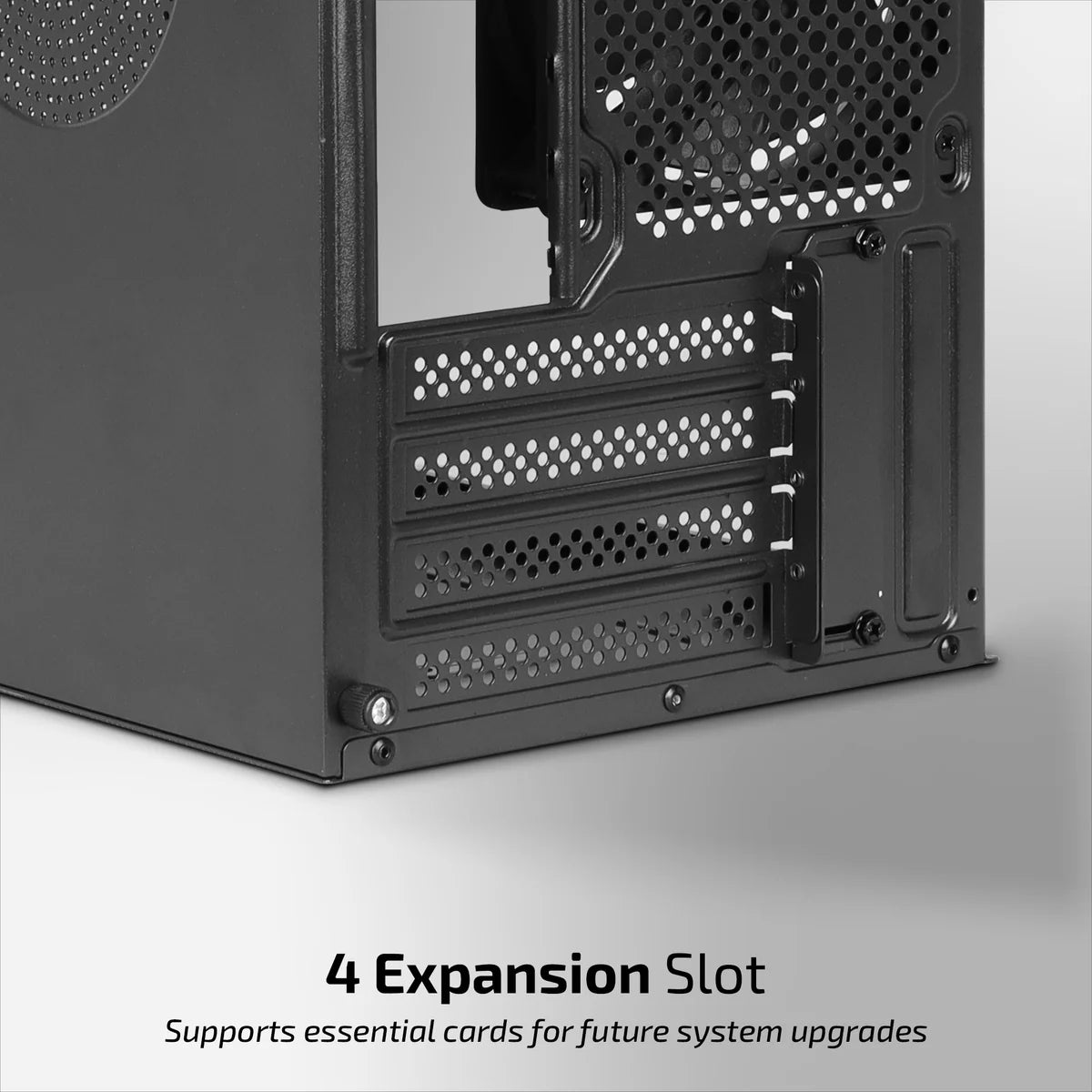

Expansion Slots: 4
Max GPU Length: 240mm
Max CPU Cooler Height: 160mm

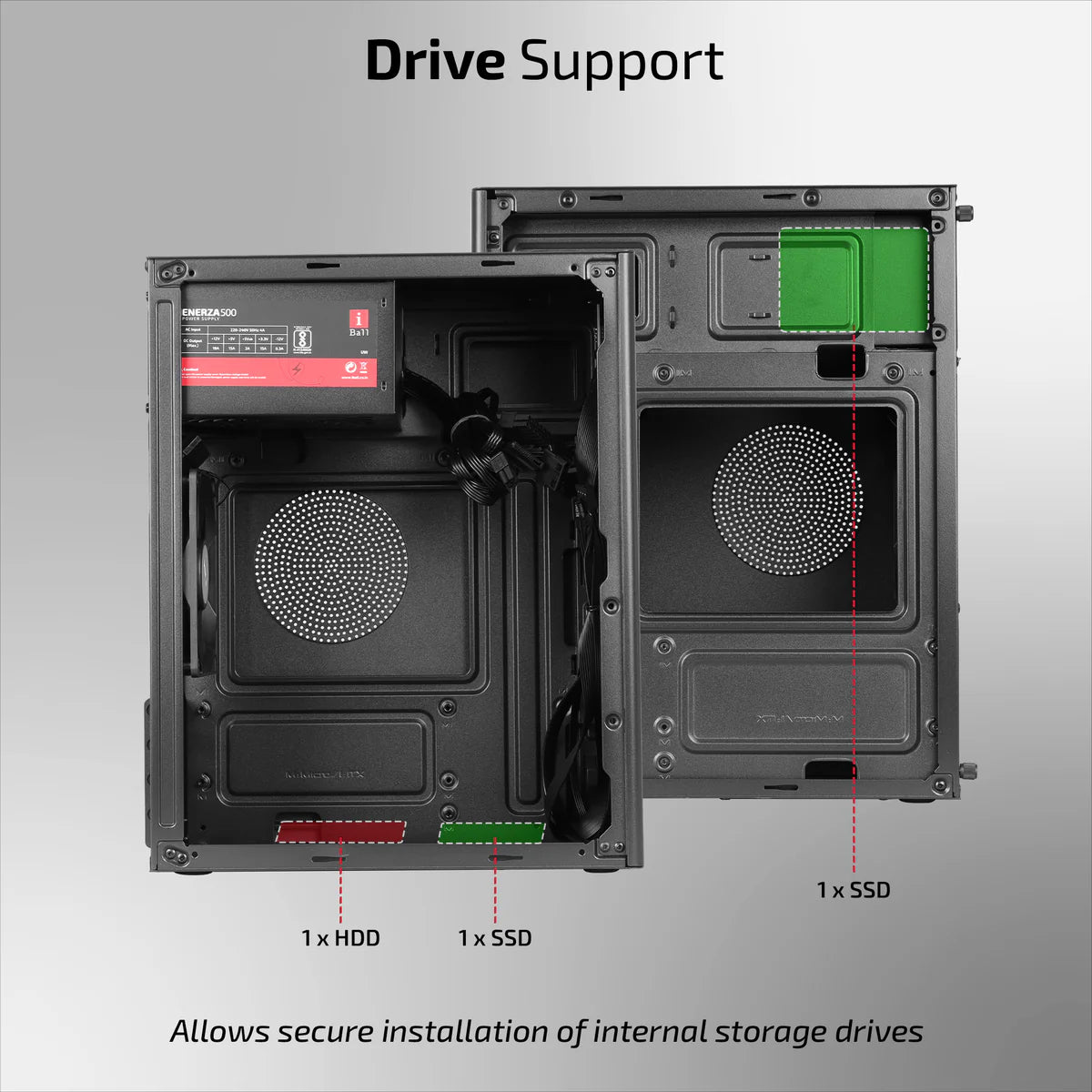

Drive Bays: 1× 3.5" HDD + 2× 2.5" SSD (Max.)
5.25" Bay: None

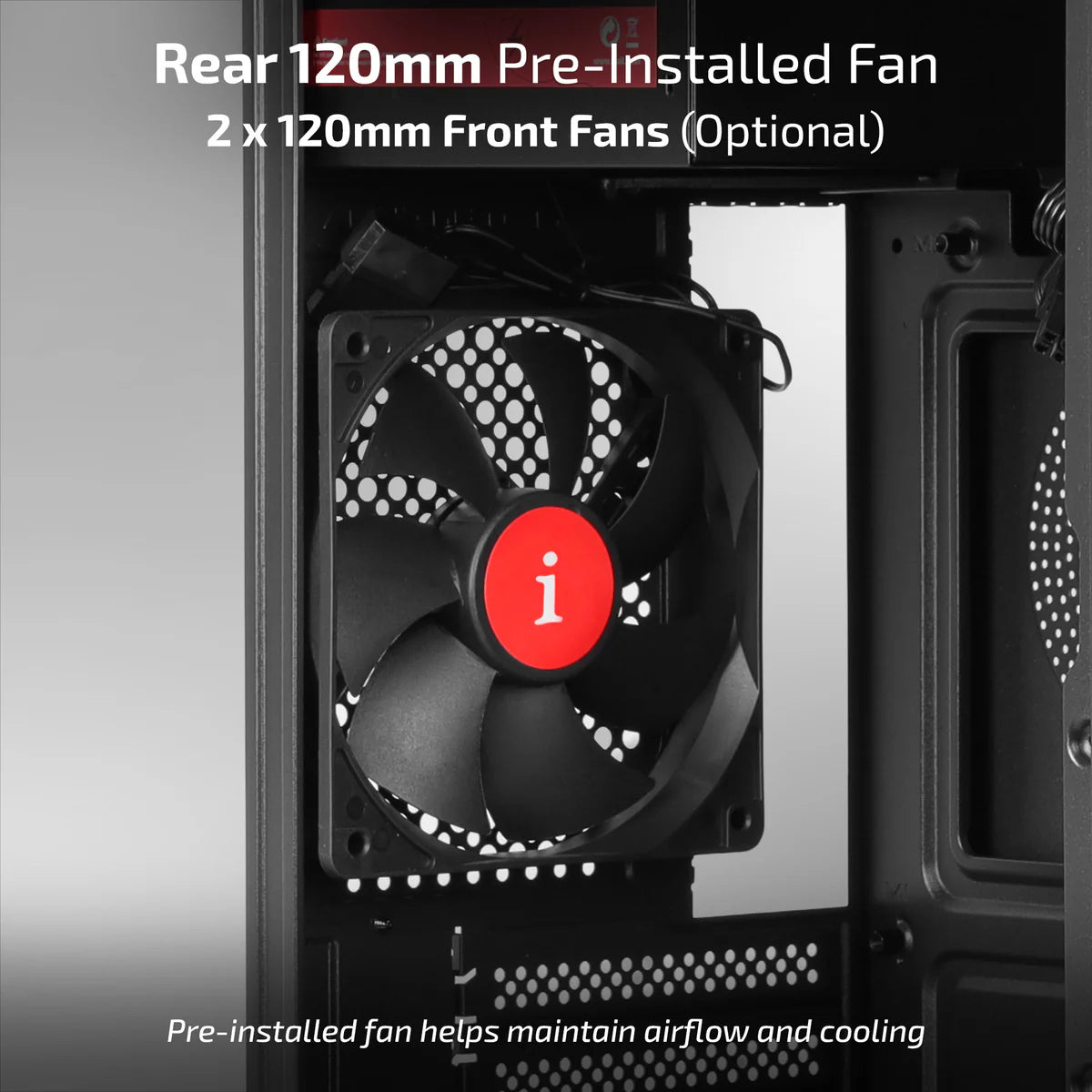

Pre-Installed Fan: 1× Rear 120mm
Fan Support — Rear: 1× 120mm (Pre-installed)
PSU Mount: Top

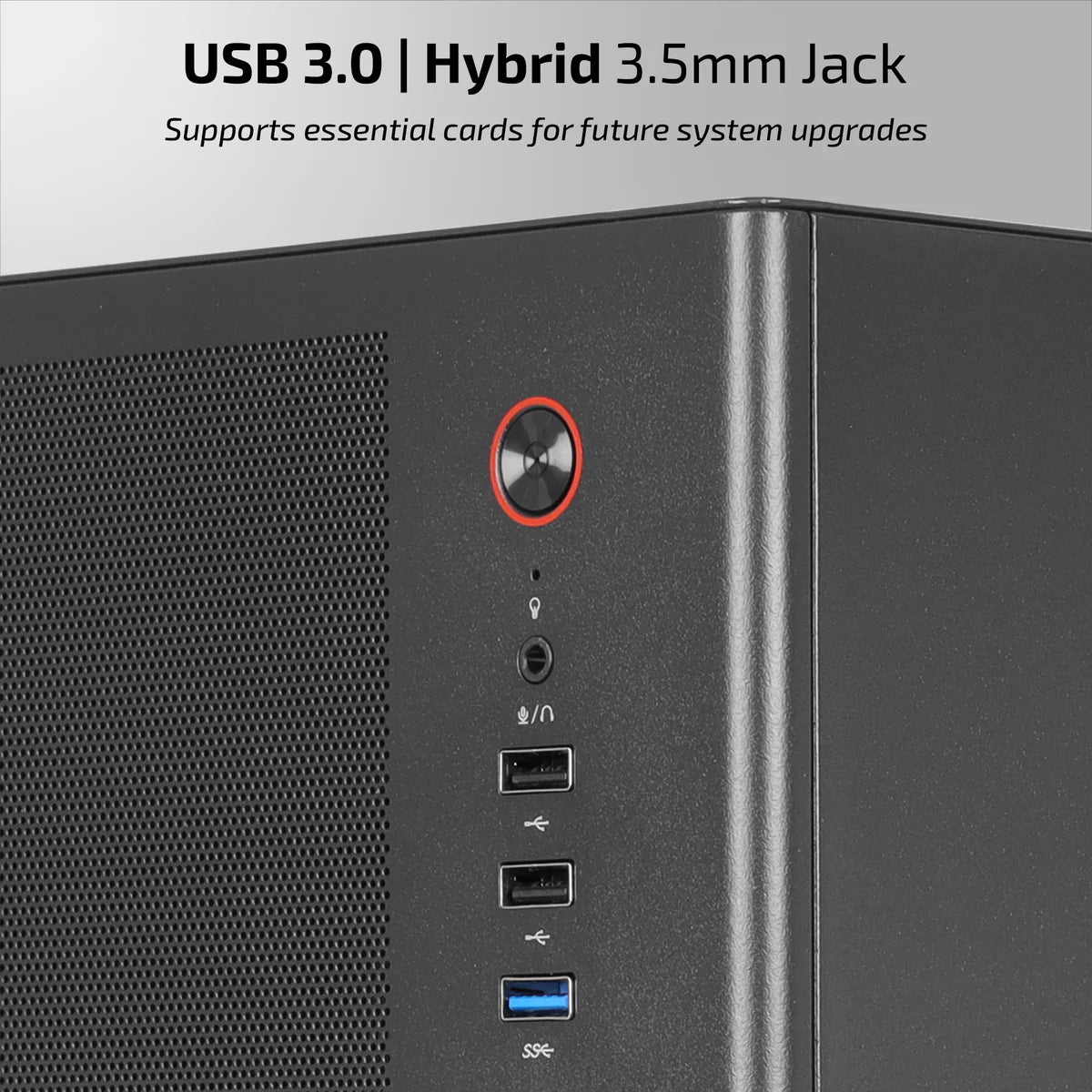

I/O Panel: 1× USB 3.0, 2× USB, 1× Hybrid 3.5mm Headphone & Mic Jack
Product Dimensions (W×D×H): 19 × 29 × 35 cm
Net Weight: 3.0 kg

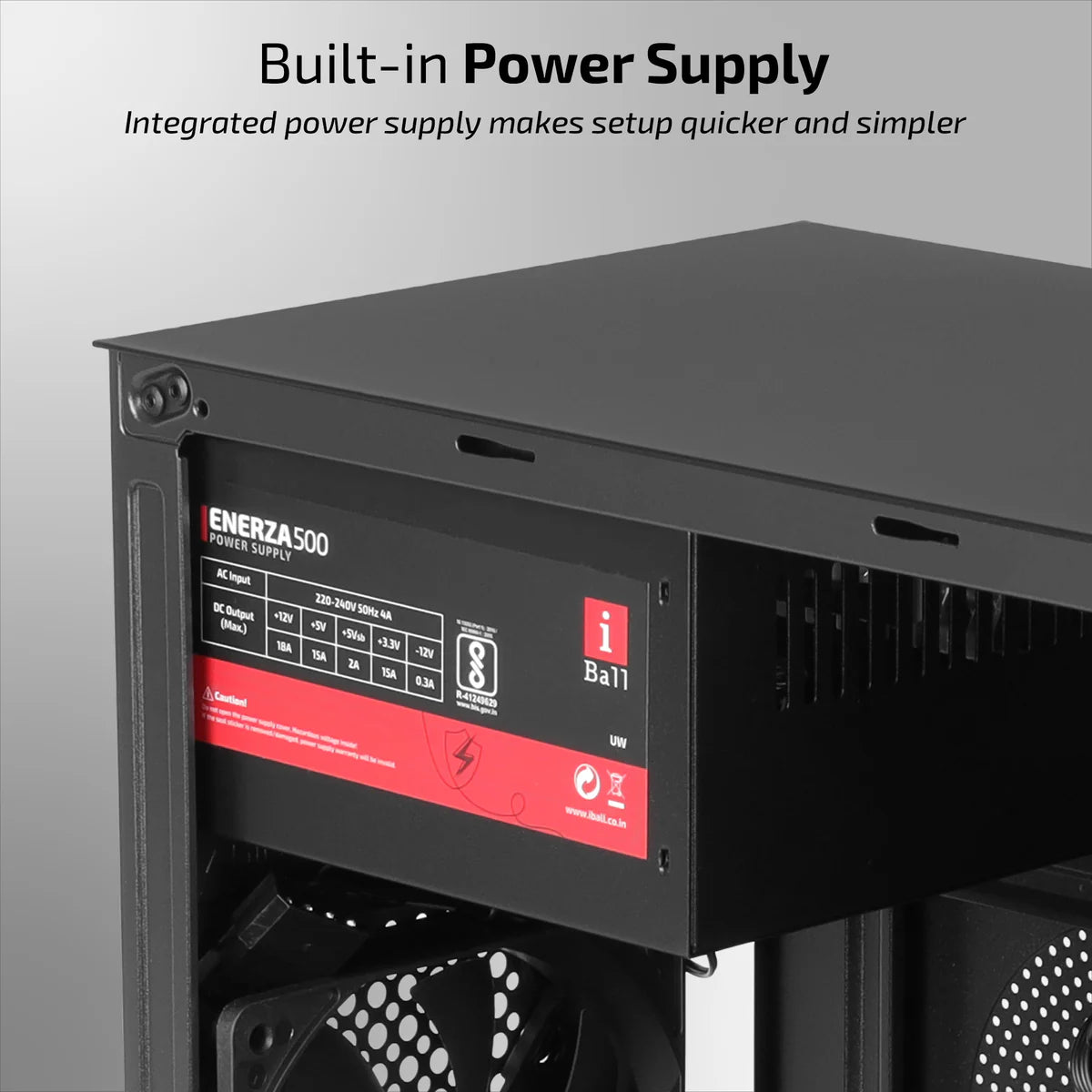

Bundled SMPS
AC Input: 220–240V, 50Hz, 4A
DC Output (+12V): 18A | (+5V): 15A | (+3.3V): 15A | (+5Vsb): 2A | (-12V): 0.3A
Connectors: 20+4 Pin ATX × 1, 4 Pin CPU × 1, SATA × 2, IDE × 1

Compatibility & Requirements

System Requirements: Compatible with Micro-ATX and Mini-ITX motherboards on Intel and AMD platforms; standard ATX power connector from bundled SMPS; verify GPU length does not exceed 240mm before installation

Setup: Bundled SMPS pre-installed and ready; front panel USB 3.0 header connection to motherboard required for front port functionality; no optional front fan slot — rear 120mm fan handles all cooling out of the box

Mounting Options: Compact mini-tower desktop placement; available in Black and White to suit home and office workspace aesthetics

Usage Environment: Ideal for compact home desktops, office workstations, student builds, and space-constrained Micro-ATX or Mini-ITX systems requiring a neat, complete cabinet and SMPS bundle in a choice of Black or White

Warranty

1-Year Limited Warranty
