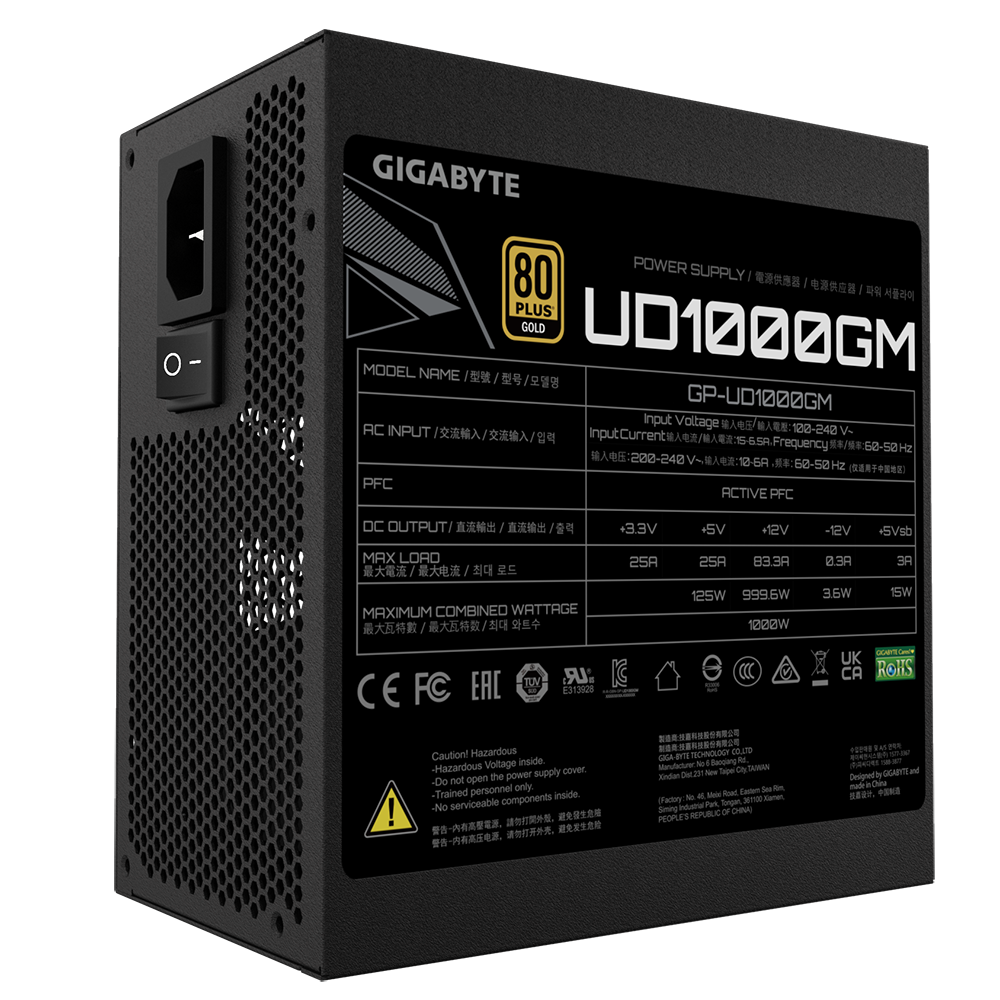

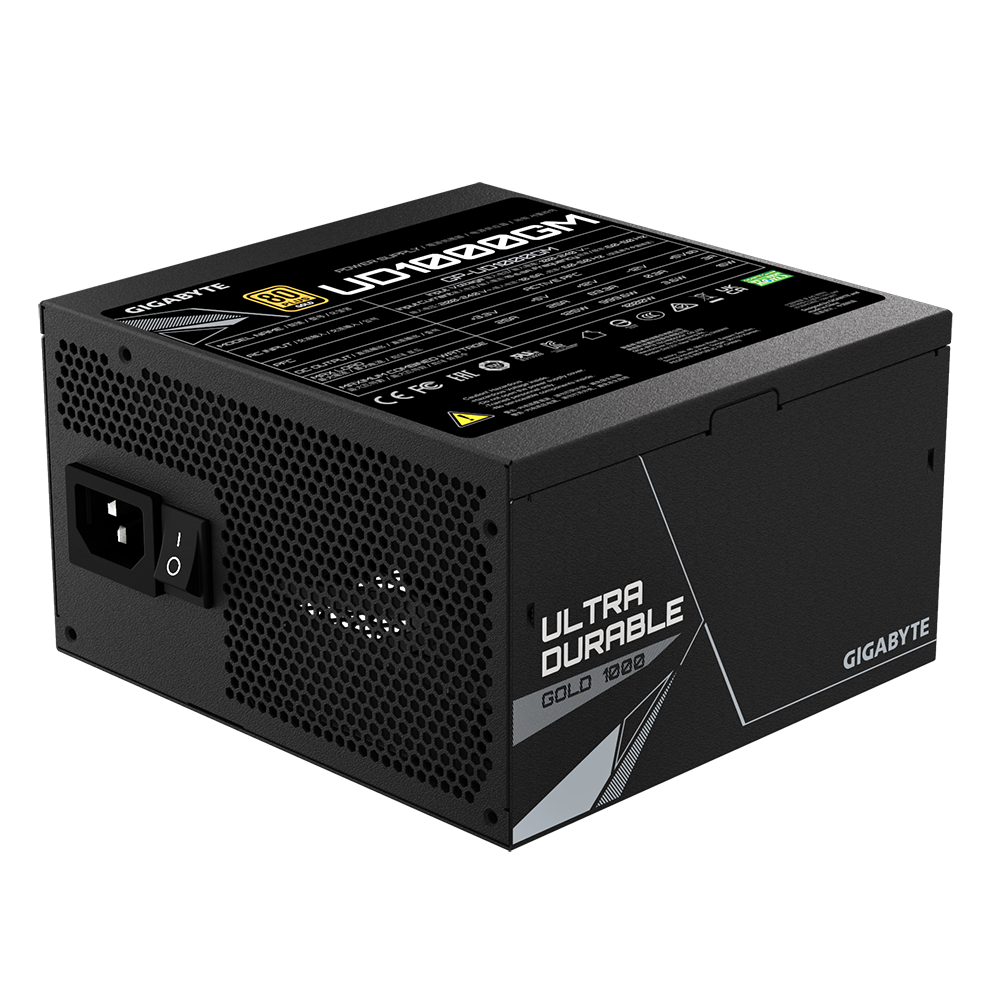

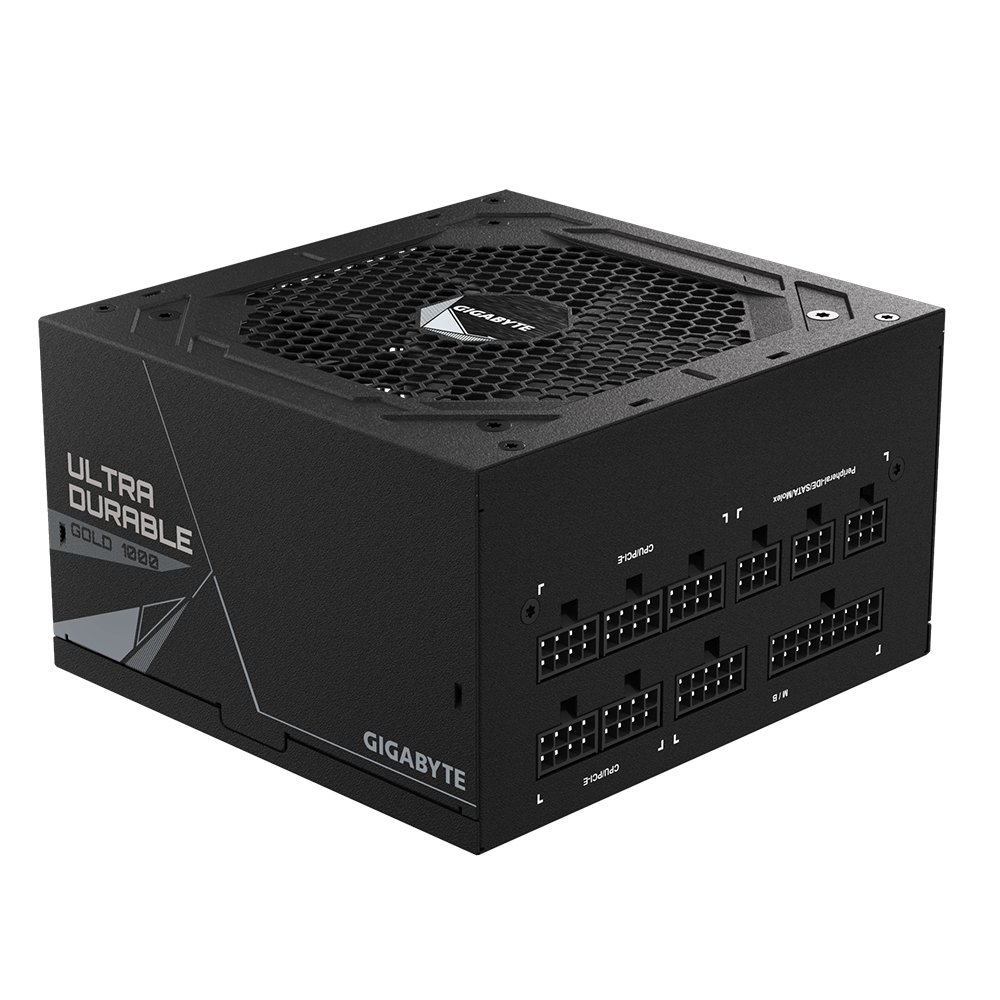

Gigabyte UD1000GM Power Supply

The Gigabyte UD1000GM is a 1000 W 80 Plus Gold certified power supply designed for extreme gaming and workstation builds. It delivers consistent, clean power to handle high-end GPUs and multi-core CPUs, making it ideal for enthusiasts who demand top-tier reliability, efficiency, and thermal performance.

The UD1000GM provides 1000 W continuous output with 80 Plus Gold efficiency for reduced energy loss and lower operating temperature. It features a 120 mm smart hydraulic-bearing fan for near-silent cooling and uses 100% Japanese capacitors for enhanced stability and lifespan. Fully modular flat cables simplify installation and airflow management. Engineered with advanced protection circuits—OVP, UVP, OPP, SCP, and OTP—it ensures the safety of all connected components and stable performance even under heavy GPU loads.

Wattage: 1000 W
Efficiency: 80 Plus Gold Certified
Certification: ErP Lot 6 2013 Compliant
Modularity: Fully Modular
Input Voltage: 100 – 240 V AC, 50–60 Hz

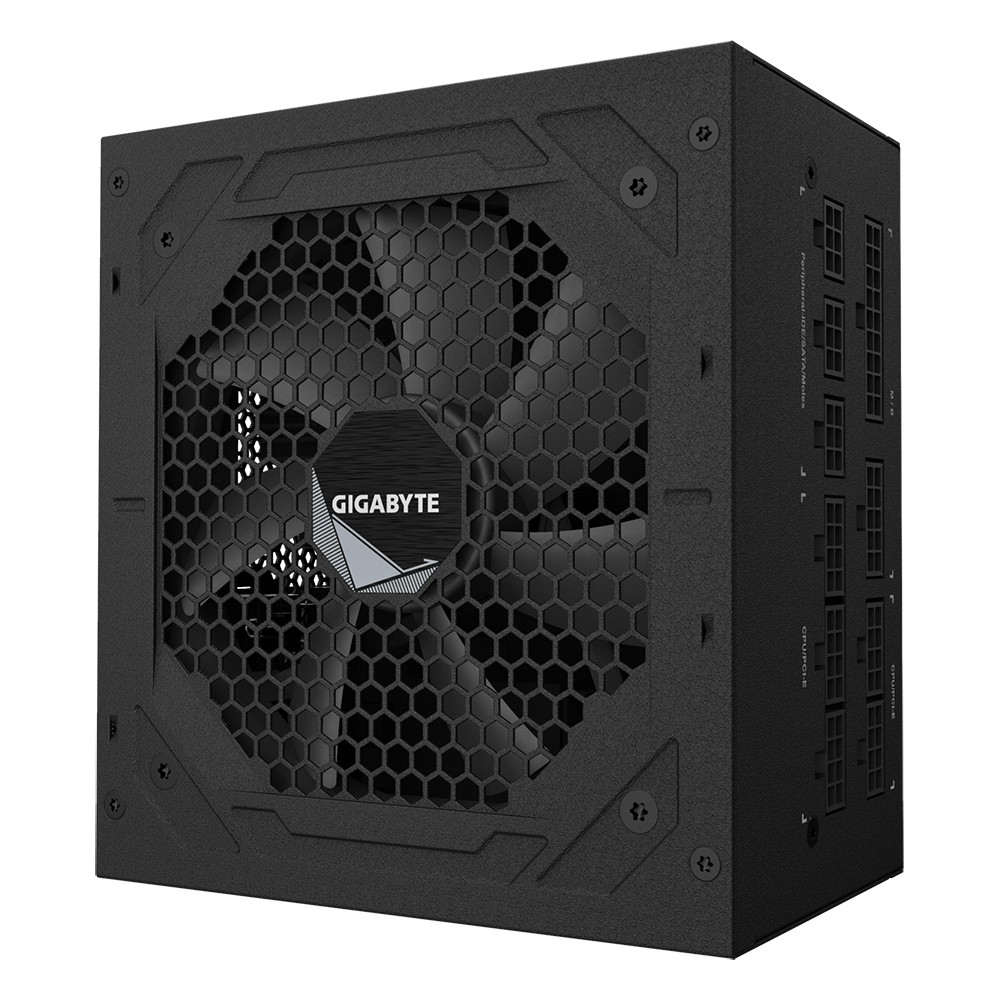

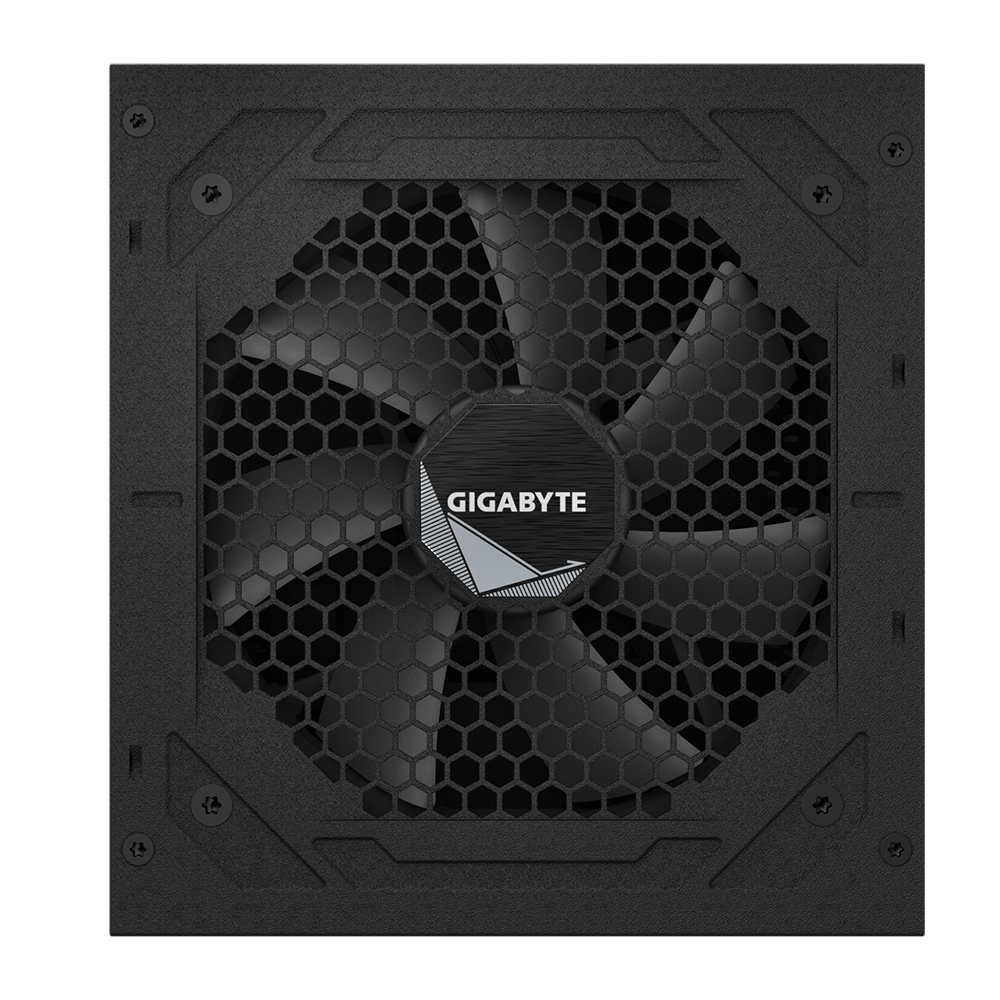

Fan: 120 mm Hydraulic Bearing Smart Fan

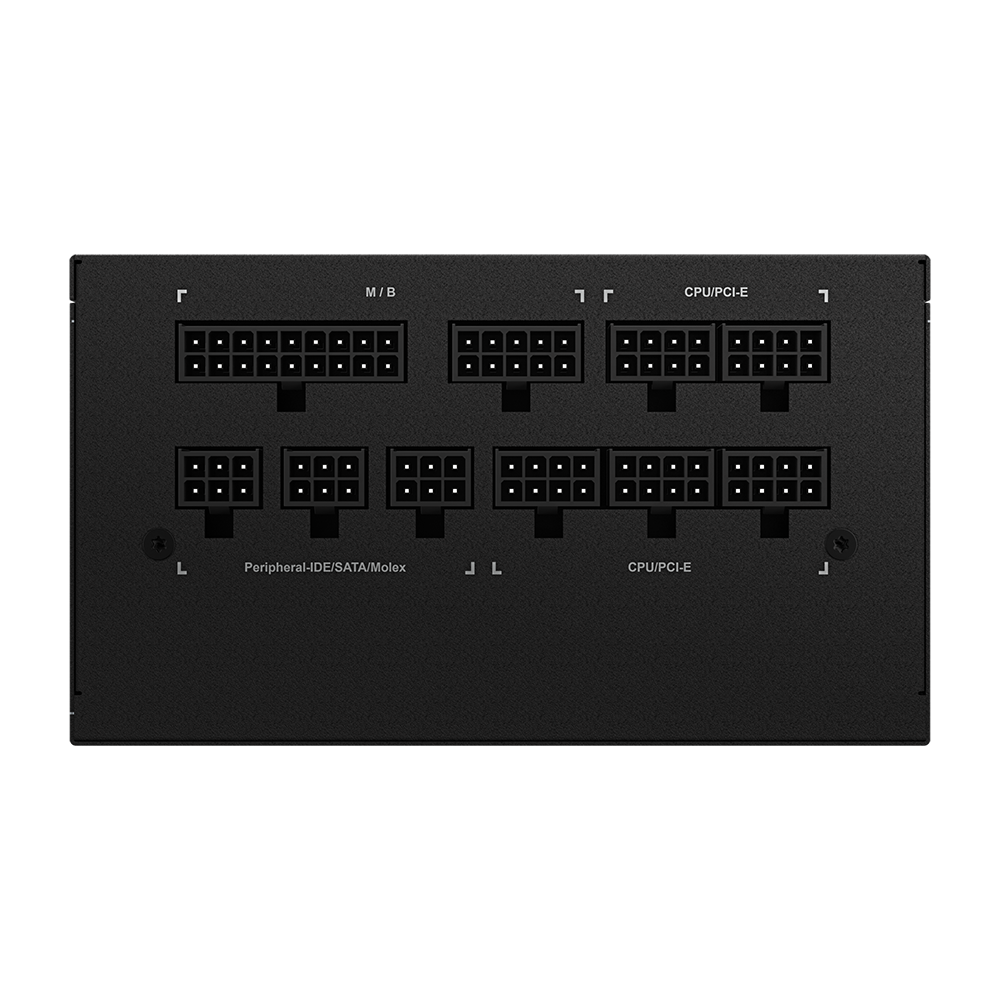

Connectors: 1 × 24-Pin ATX, 2 × 8-Pin CPU (4+4), 6 × PCI-E (6+2), 8 × SATA, 3 × Molex
Protections: OVP, UVP, OPP, SCP, OTP
Form Factor: ATX 12 V v2.31

System Requirements: ATX chassis with standard PSU mount, 24-pin motherboard connector, and compatible 8-pin CPU/GPU power headers.
Usage Environment: Enthusiast gaming towers, professional editing stations, and multi-GPU setups requiring 1000 W continuous output.

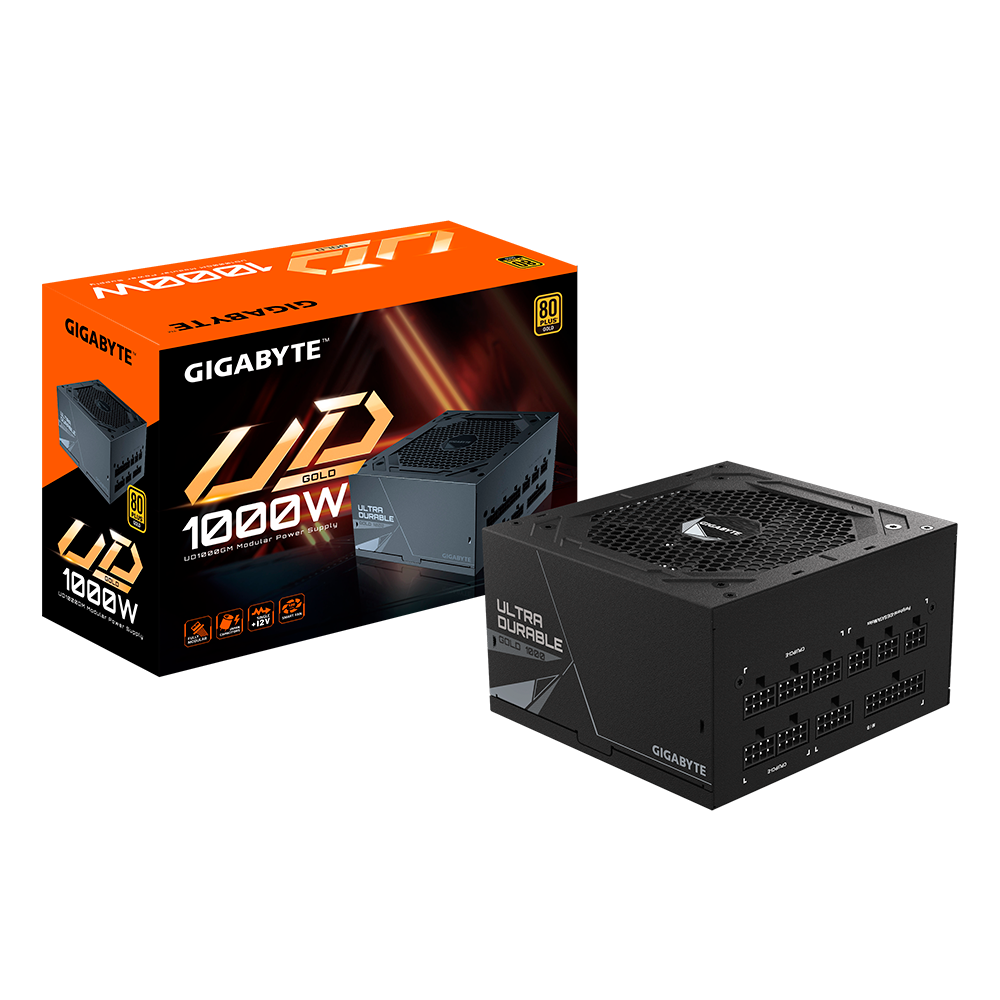

Included Accessories: Power supply unit, modular cables, AC power cord, mounting screws, user manual.
