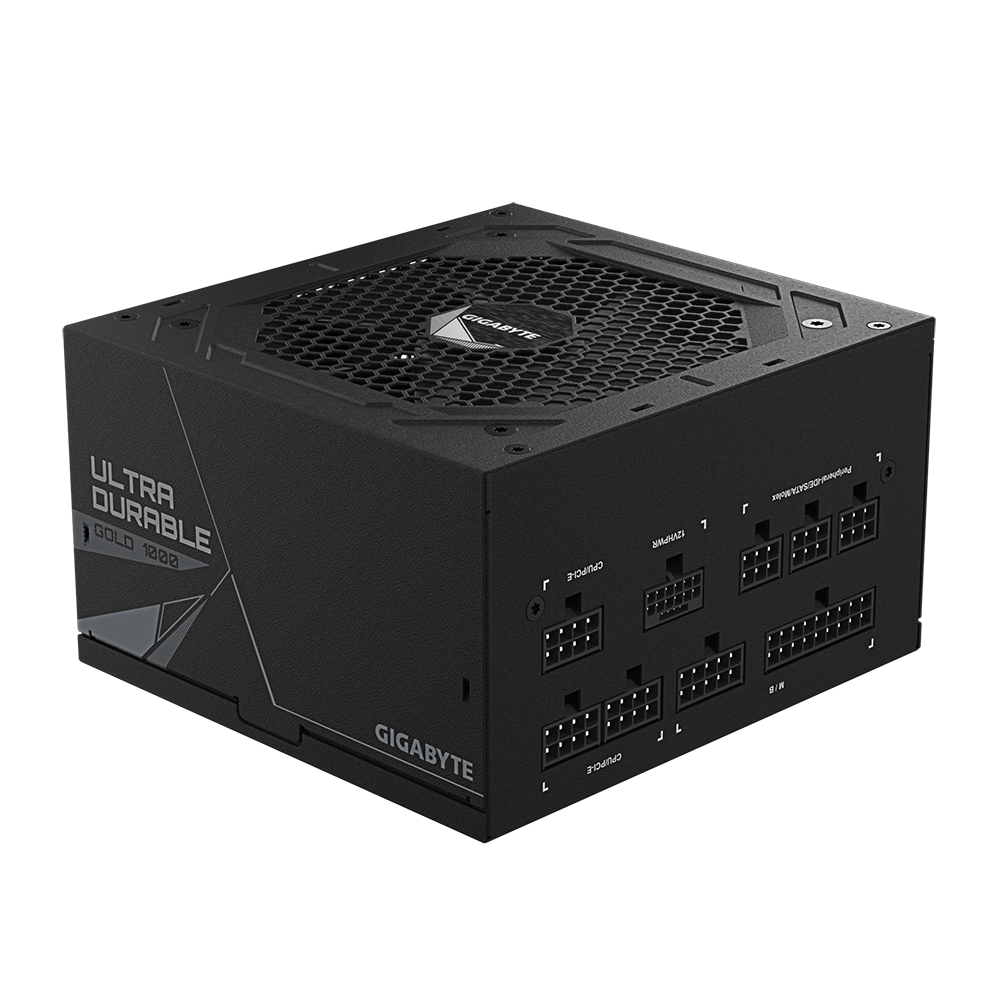

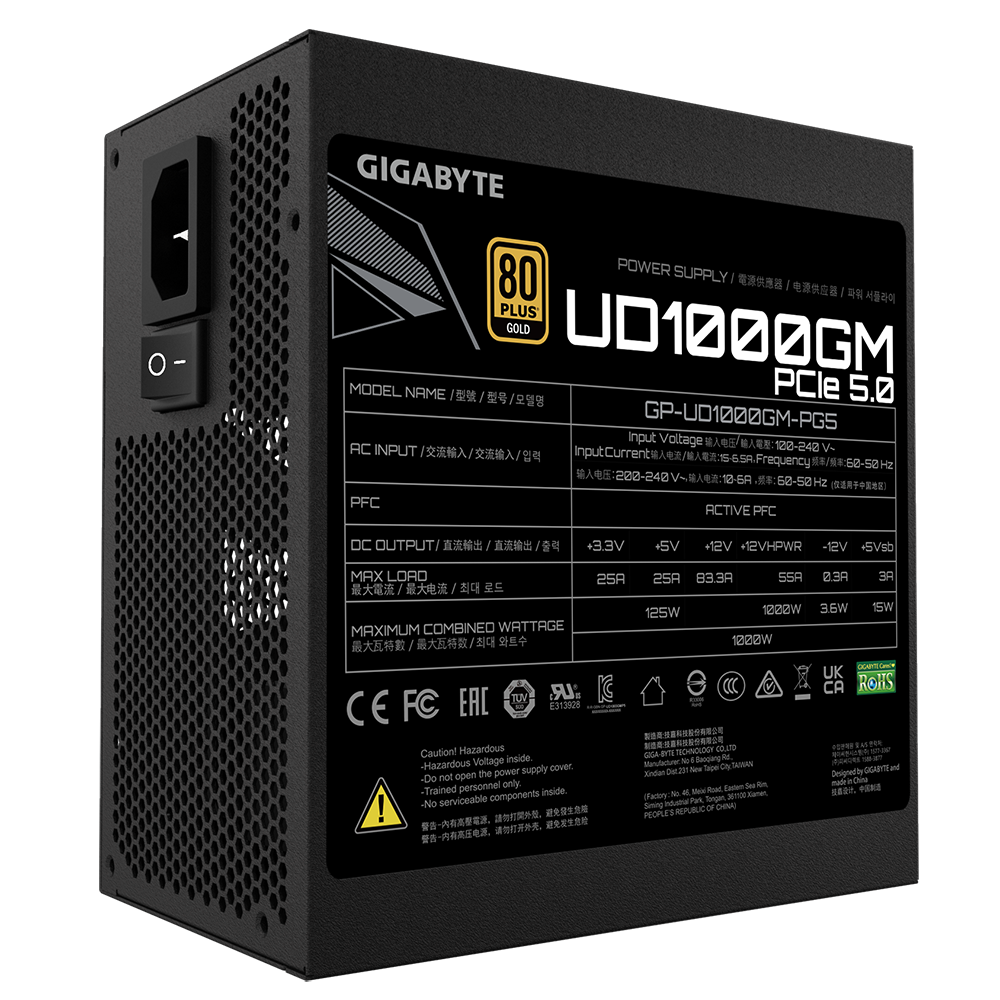

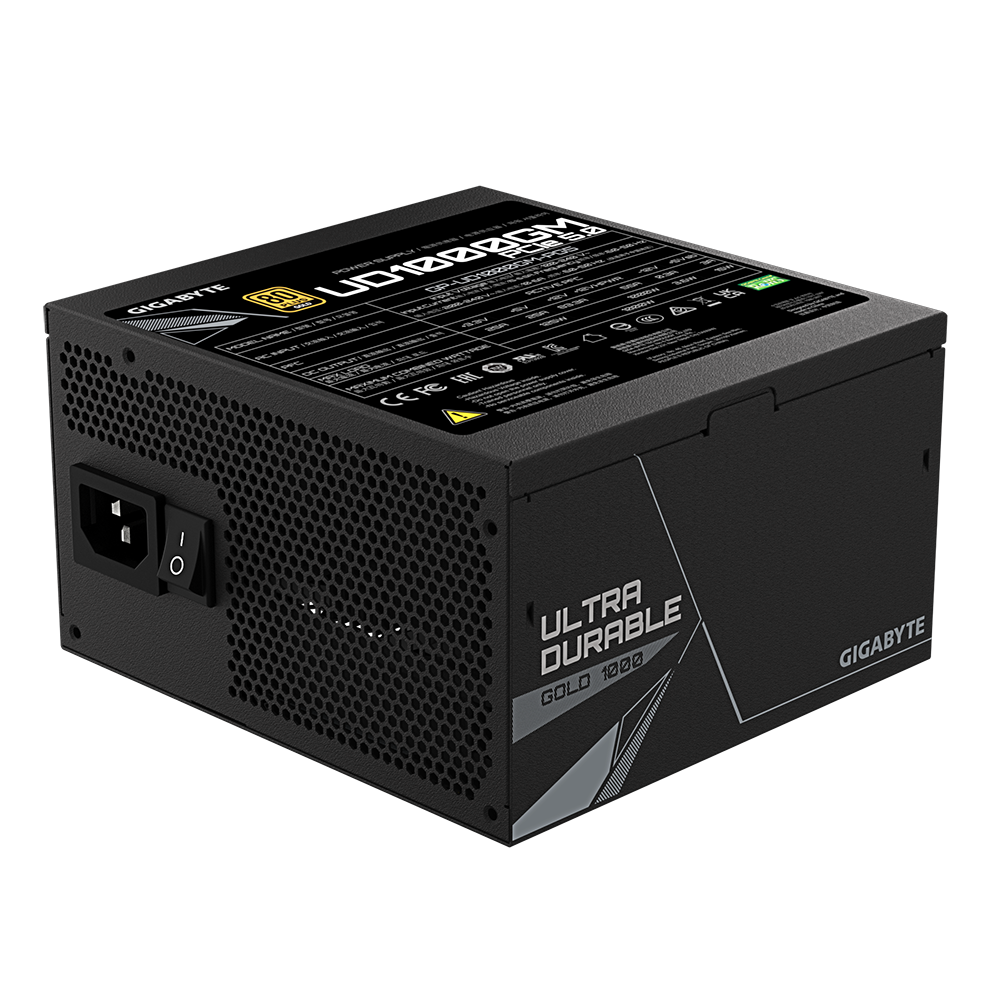

Gigabyte UD1000GM PG5 Power Supply

The Gigabyte UD1000GM PG5 is a 1000 W 80 Plus Gold fully modular power supply built for extreme gaming PCs, workstations, and creator systems. Engineered with the latest ATX 3.0 and PCIe 5.0 standards, it delivers ultra-stable power for next-generation GPUs and CPUs, ensuring reliability and efficiency even under sustained high loads.

The UD1000GM PG5 provides 1000 W continuous output with 80 Plus Gold efficiency for reduced energy loss and cooler operation. It features a 120 mm smart hydraulic-bearing fan for silent, adaptive cooling and 100 % Japanese capacitors for exceptional reliability. Its native 16-pin (12VHPWR) PCIe 5.0 connector supports next-gen GPUs directly, while a full suite of protections—OVP, UVP, OCP, OPP, SCP, OTP—ensures safety and stability. The fully modular flat-cable design simplifies installation, improves airflow, and keeps your build clean and organized.

Wattage: 1000 W
Efficiency: 80 Plus Gold Certified
Certification: ATX 3.0 / PCIe 5.0 Compliant
Modularity: Fully Modular
Input Voltage: 100 – 240 V AC, 50–60 Hz

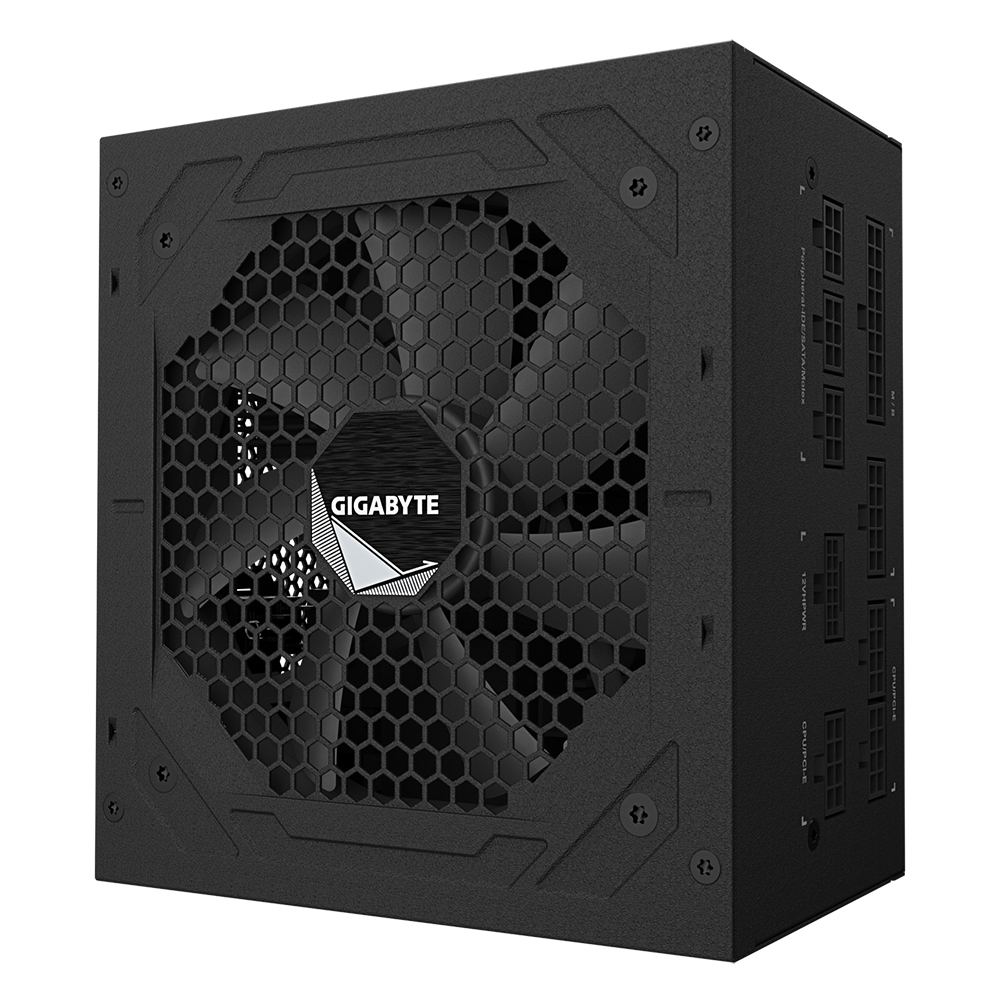

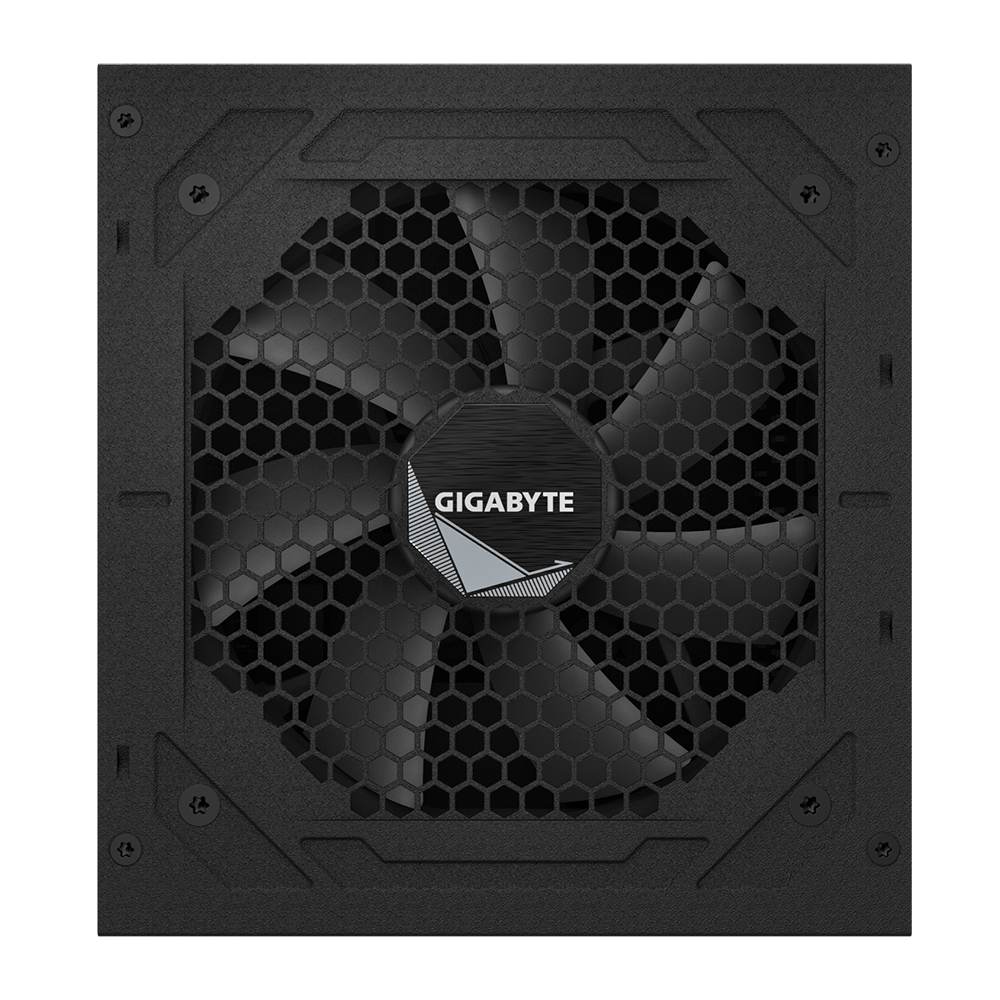

Fan: 120 mm Hydraulic Bearing Smart Fan

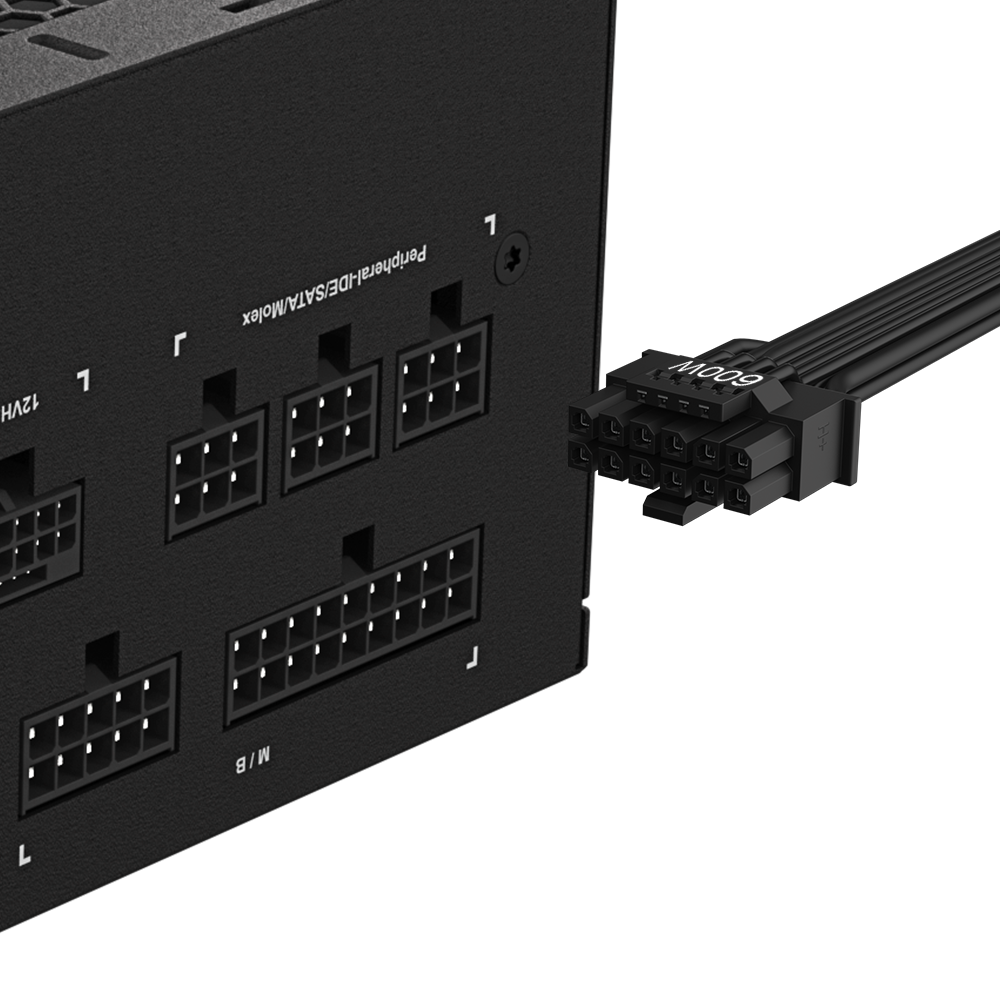

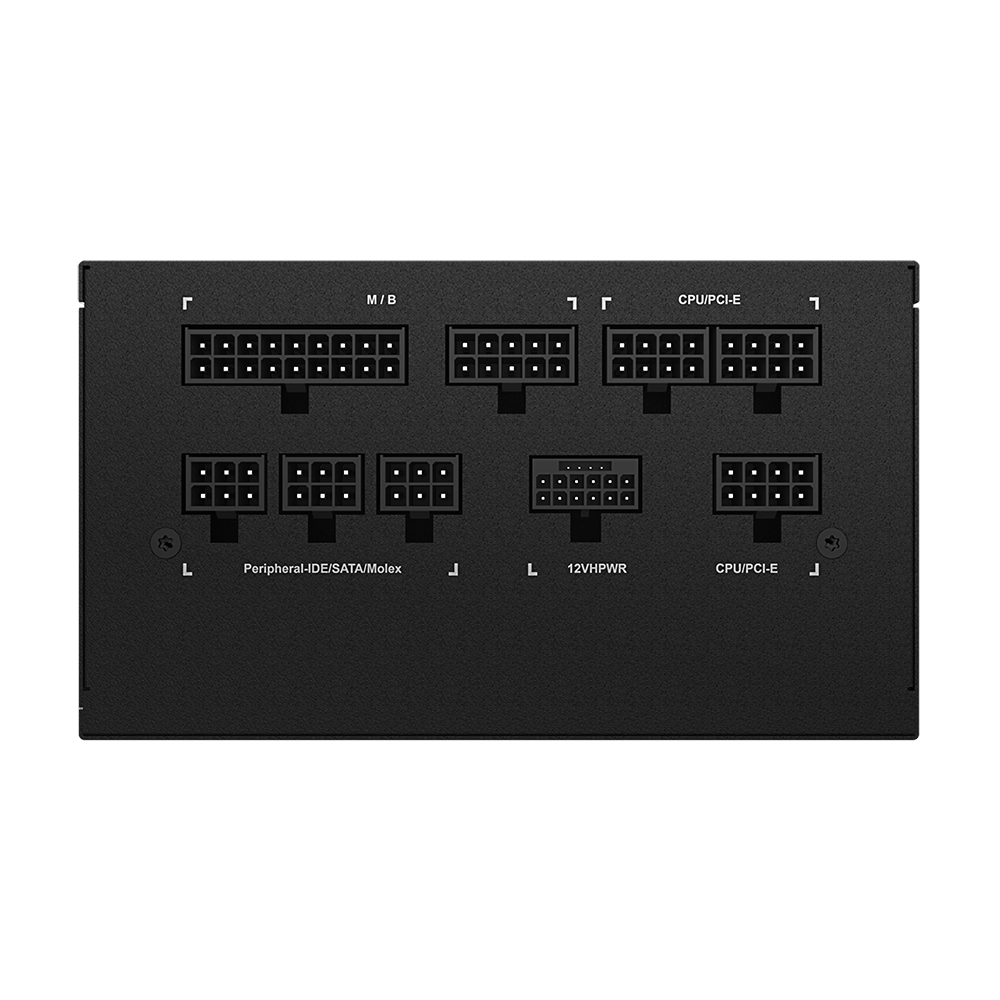

Connectors: 1 × 24-Pin ATX, 2 × 8-Pin CPU (4+4), 4 × PCI-E (6+2), 1 × 16-Pin (12VHPWR), 8 × SATA, 3 × Molex
Protections: OVP, UVP, OCP, OPP, SCP, OTP
Form Factor: ATX 12 V v2.52

System Requirements: ATX chassis with standard PSU mount, 24-pin motherboard connector, compatible 8-pin CPU header, and GPU with PCIe 5.0 (16-pin) or adapter.
Usage Environment: High-performance gaming rigs, 3D rendering and AI workstations, and multi-GPU configurations demanding stable 1000 W output.
Included Accessories: Power supply unit, fully modular cables, AC power cord, mounting screws, user manual.
