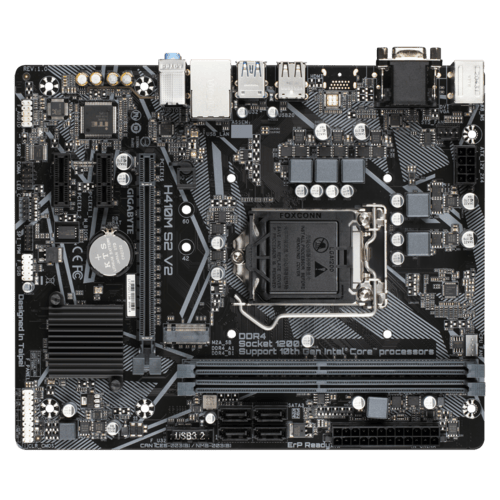

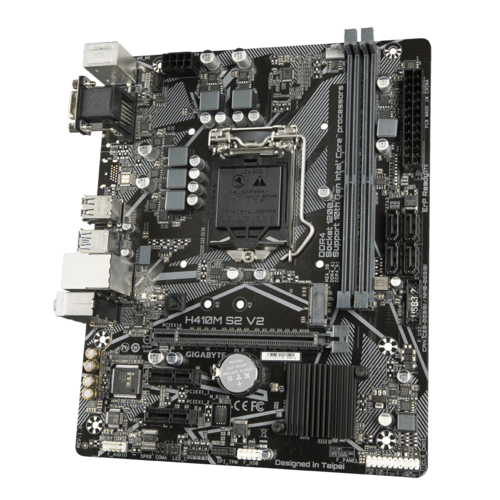

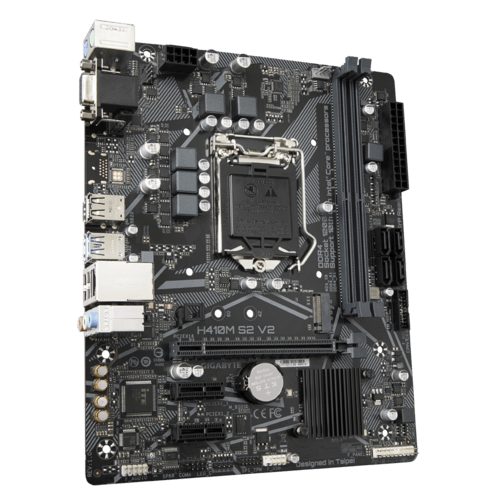

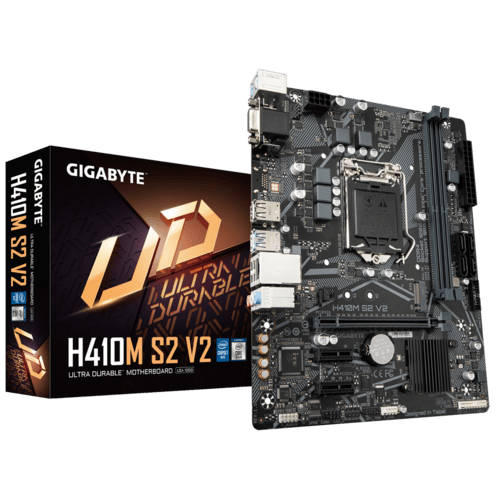

Gigabyte H410M S2 V2 Motherboard

The H410M S2 V2 is designed for budget-friendly Intel desktop systems, offering reliable performance for productivity, media consumption and general-purpose computing. With support for 10th generation Intel Core processors and dual DDR4 memory, it is an efficient foundation for home PCs, office rigs and compact builds.

The H410M S2 V2 supports Intel LGA 1200 socket for 10th generation Core processors, dual-channel DDR4 memory support up to 64 GB, an M.2 slot for NVMe SSDs, multiple SATA ports, USB 3.2 ports and HDMI + D-Sub video outputs for onboard graphics support. With GIGABYTE’s Ultra Durable design, Smart Fan features and a micro-ATX form factor, it delivers solid value for mainstream desktop builds.

Socket: Intel LGA 1200

Chipset: Intel H410 Express

CPU Support: 10th generation Intel Core (Comet Lake-S)

Memory Support: 2 × DDR4 DIMM slots, up to 64 GB, non-ECC, un-buffered

Storage Interfaces: 4 × SATA 6 Gb/s + 1 × M.2 slot (PCIe 3.0 ×4 / SATA mode)

Expansion Slots: 1 × PCIe 3.0 ×16 slot + 1 × PCIe ×1 slot (varies by board revision)

Graphics Outputs: HDMI + D-Sub (VGA) via CPU graphics support

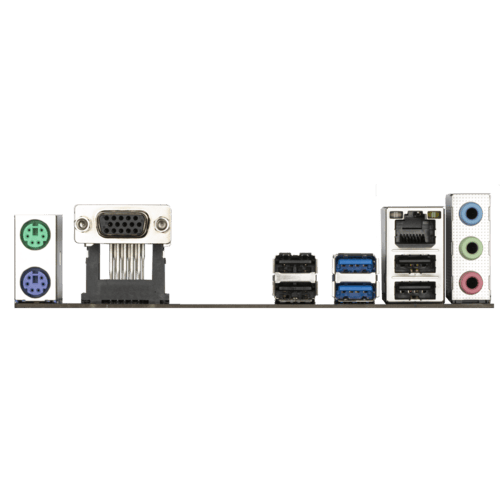

USB Ports: USB 3.2 Gen1 + USB 2.0 (rear I/O and internal headers)

Networking: Realtek Gigabit LAN (spec depending on region)

Audio: Realtek 8-channel HD audio

Form Factor: Micro-ATX (~ 224 × 170 mm)

System Requirements: Case compatible with micro-ATX motherboard, ATX power supply with 24-pin main + 8-pin CPU power connector, Intel LGA 1200 socket CPU, DDR4 memory modules

Setup: Install CPU and cooler, insert memory modules, mount board in case, connect storage and front-panel connections, update BIOS for full CPU support if required

Usage Environment: Home and office desktops for web, productivity, media, light gaming; compact builds where cost matters

Included Accessories: Motherboard unit, I/O shield, SATA cables (typically 2), user manual
