Gigabyte GeForce RTX™ 3060 Windforce 12GB Graphic Card (GV-N3060WF2OC)

The Gigabyte GeForce RTX™ 3060 Windforce 12GB (GV-N3060WF2OC) is crafted for gamers and creators seeking smooth, high-quality performance at 1080p and 1440p resolutions. Built on NVIDIA’s Ampere architecture, it combines 2nd-generation RT Cores and 3rd-generation Tensor Cores to deliver realistic lighting, shadows, and AI-powered rendering. With Gigabyte’s signature Windforce cooling and factory overclocking, it ensures sustained performance with optimal thermals and acoustic efficiency.

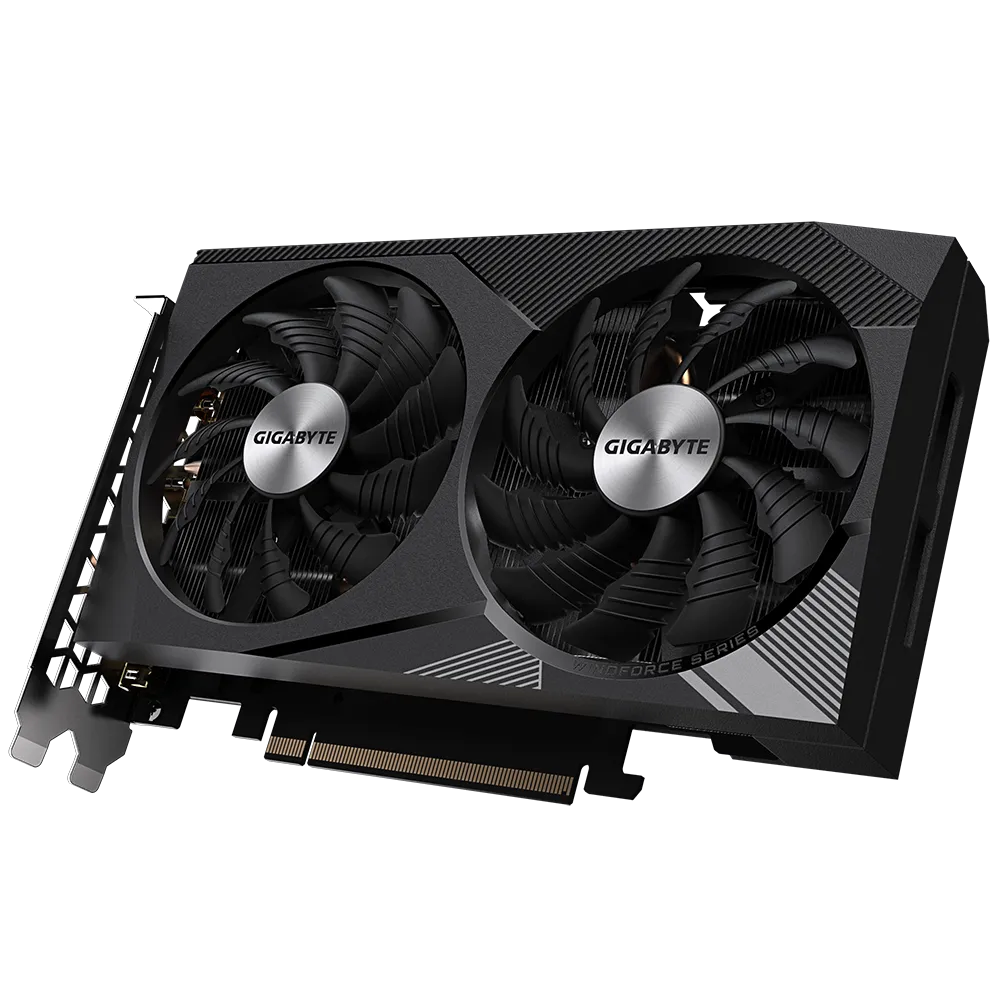

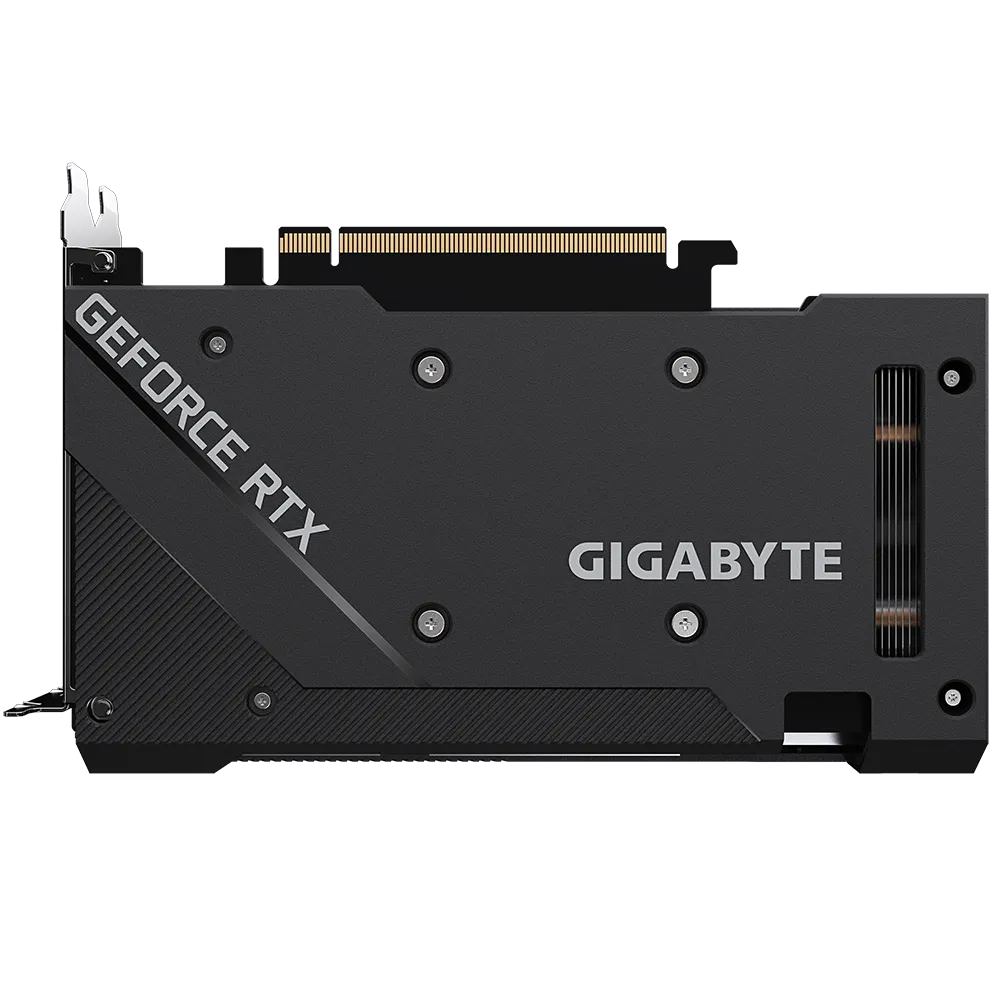

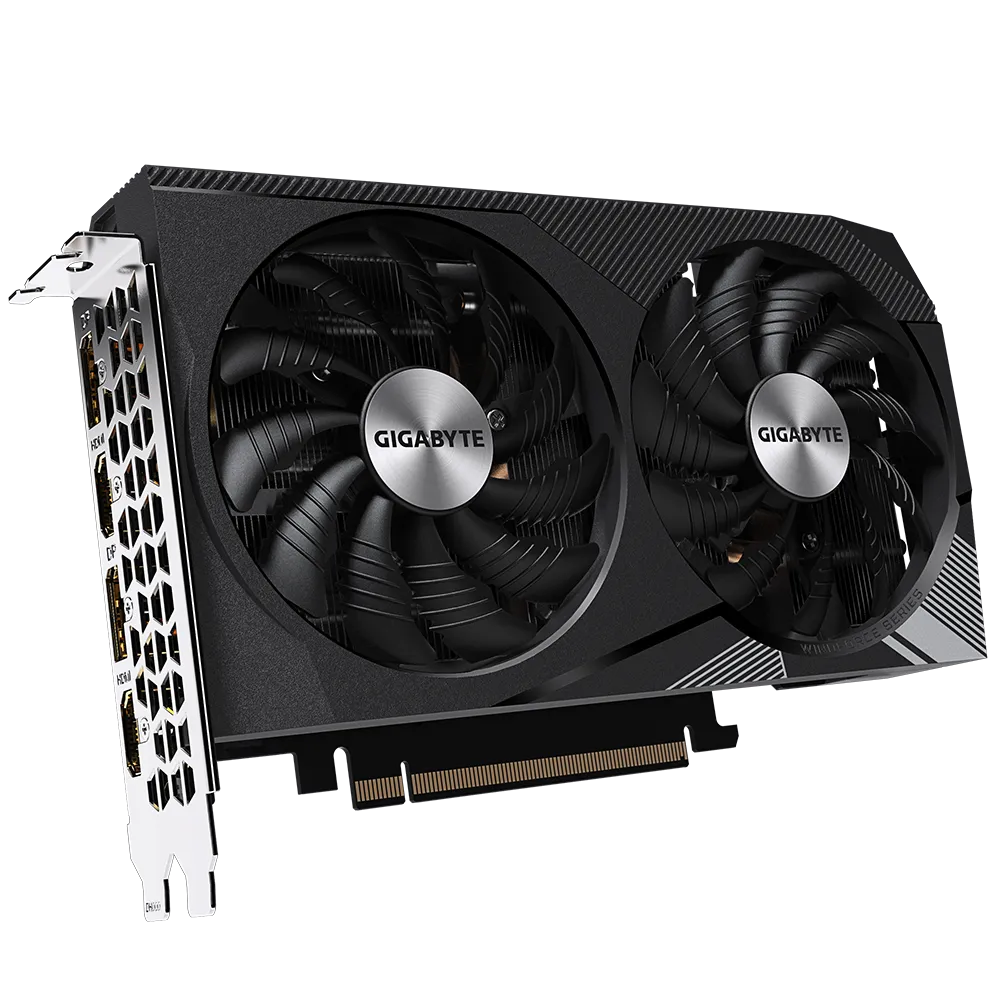

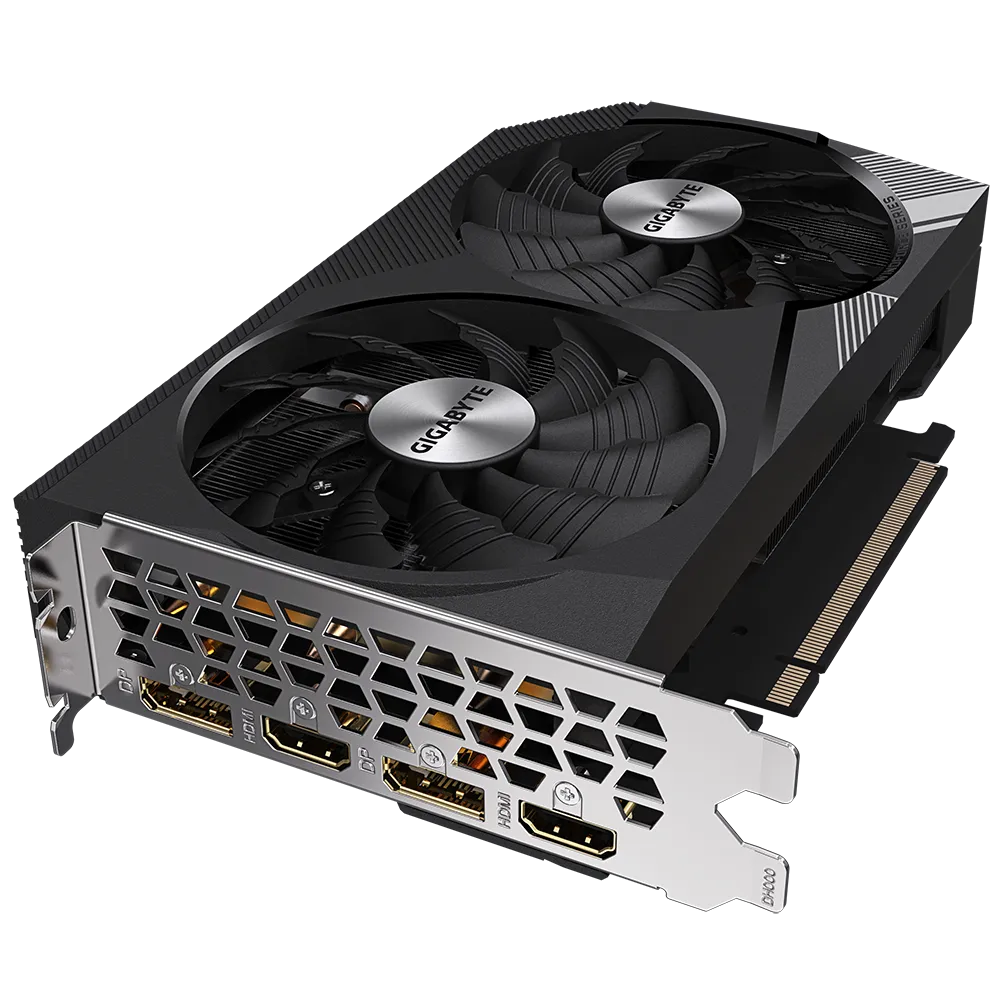

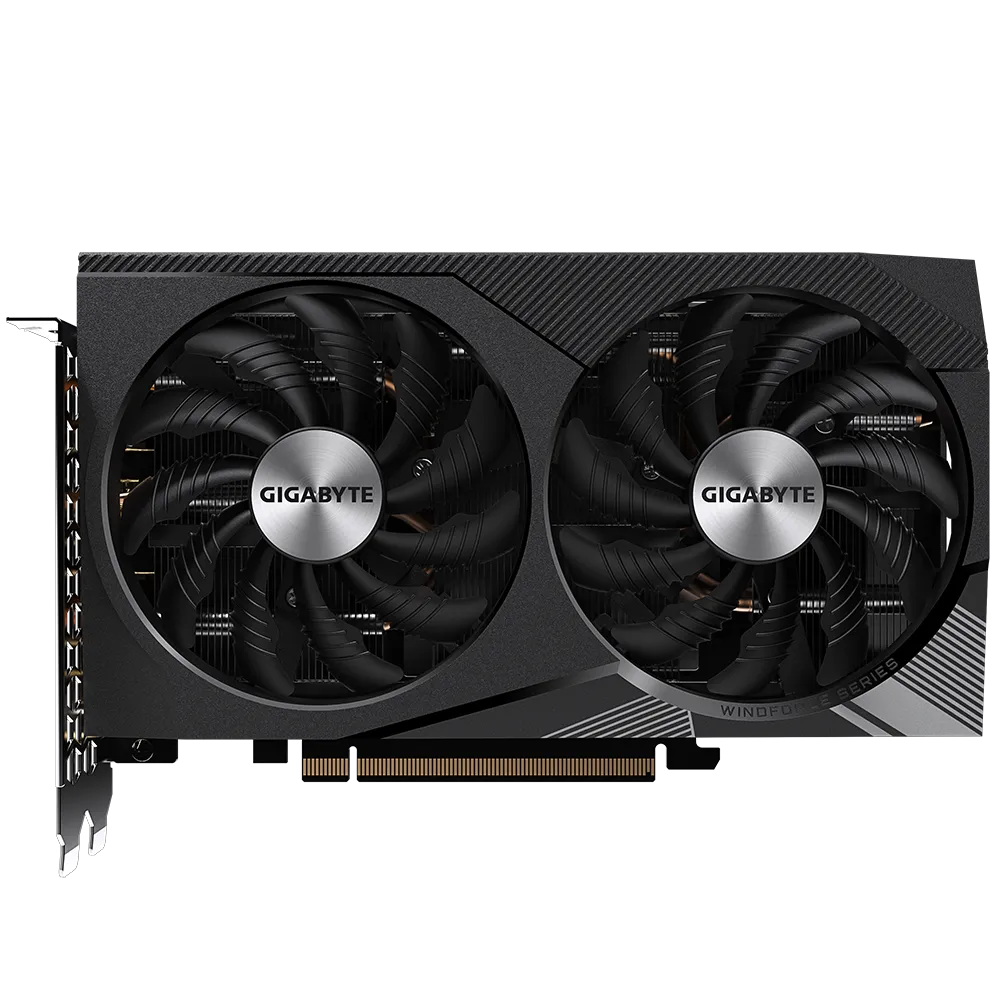

The RTX 3060 Windforce 12GB OC features Gigabyte’s dual 90 mm Windforce cooling system, with alternate spinning fans and 3D active fan control for consistent airflow and lower noise levels. The unique screen-cooling design enhances heat dissipation across the aluminum backplate. The card also comes factory overclocked for superior performance out of the box. Backed by NVIDIA’s Ampere architecture, it supports DLSS, Ray Tracing, Reflex, and AV1 decoding, delivering efficient, next-gen visual fidelity in modern games and creative workloads.

Graphics Engine: NVIDIA GeForce RTX™ 3060 (Ampere Architecture)
CUDA Cores: 3,584
Boost Clock: 1,792 MHz (OC Mode)
Memory: 12 GB GDDR6
Memory Speed: 15 Gbps
Memory Interface: 192-bit
Ray Tracing Cores: 2nd Generation
Tensor Cores: 3rd Generation

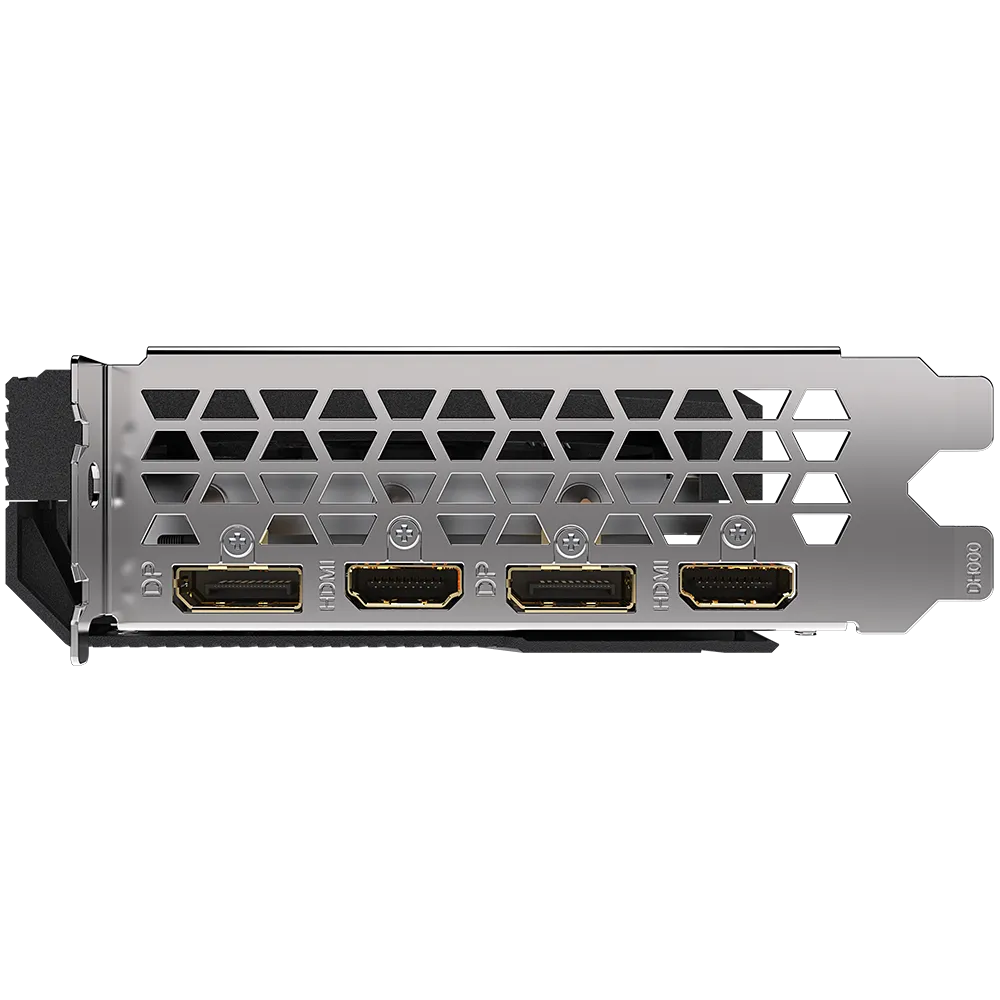

Output Ports: 2 × HDMI 2.1, 2 × DisplayPort 1.4a
Maximum Resolution: 7680 × 4320 (8K UHD)
DirectX Support: 12 Ultimate
OpenGL Support: 4.6
PCI Express: Gen 4.0 ×16
Cooling System: Dual 90 mm Windforce Fans with Alternate Spinning

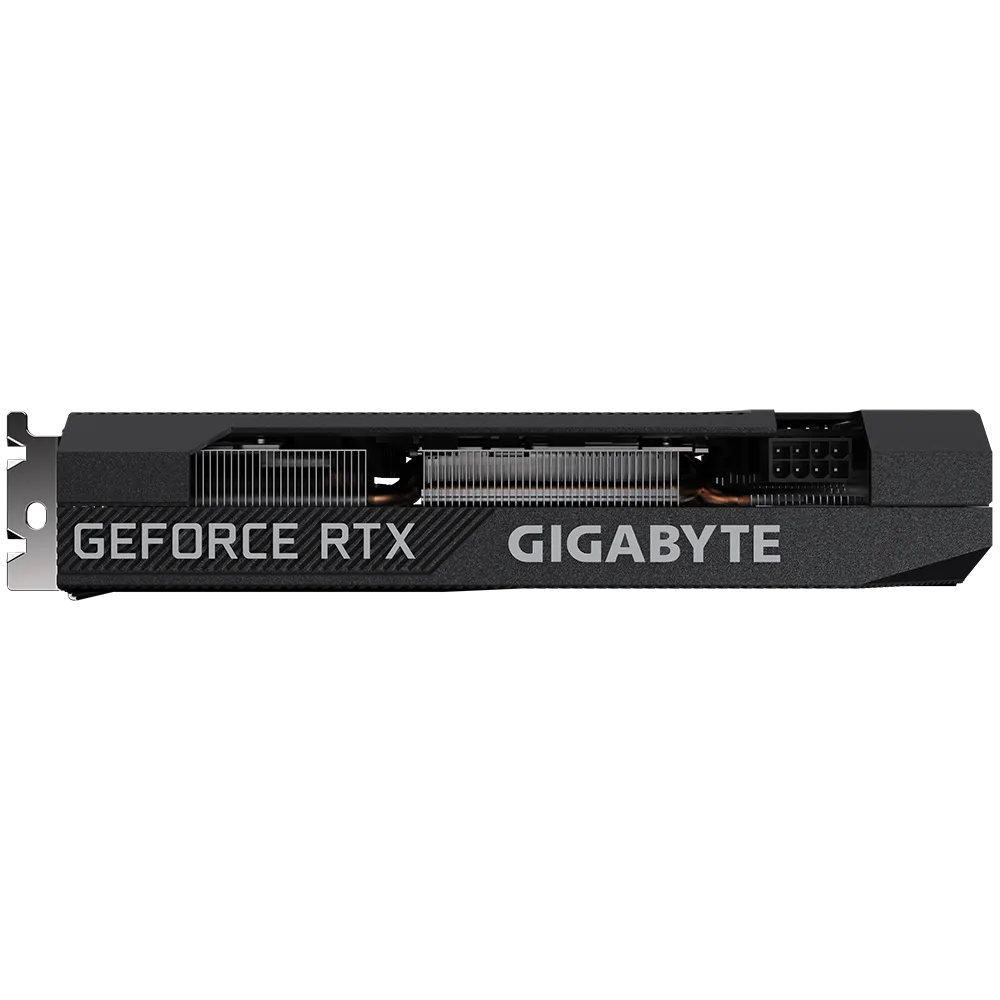

Power Connector: 1 × 8-pin
Recommended PSU: 550 W or higher
Dimensions: 198 × 121 × 39 mm
Weight: ≈ 620 g
Software Support: Gigabyte Control Center, NVIDIA GeForce Experience

System Requirements: PCI Express 4.0 ×16 slot, minimum 550 W PSU with 8-pin PCIe connector
Display Support: Up to four simultaneous displays (8K HDR ready)
Software Support: Gigabyte Control Center, NVIDIA GeForce Experience
Usage Environment: 1080p/1440p gaming rigs, content creation PCs, and compact mid-tower builds

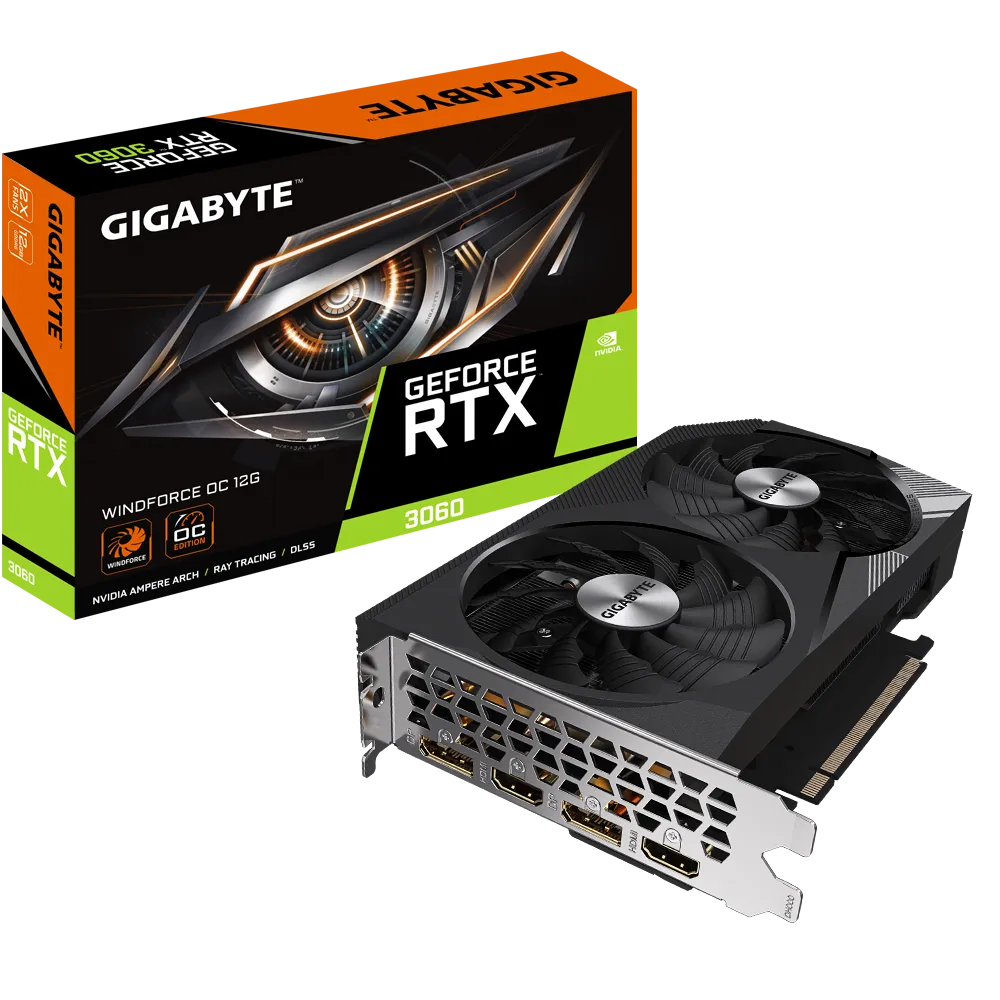

Included Accessories: Graphics card, quick start guide, driver documentation
