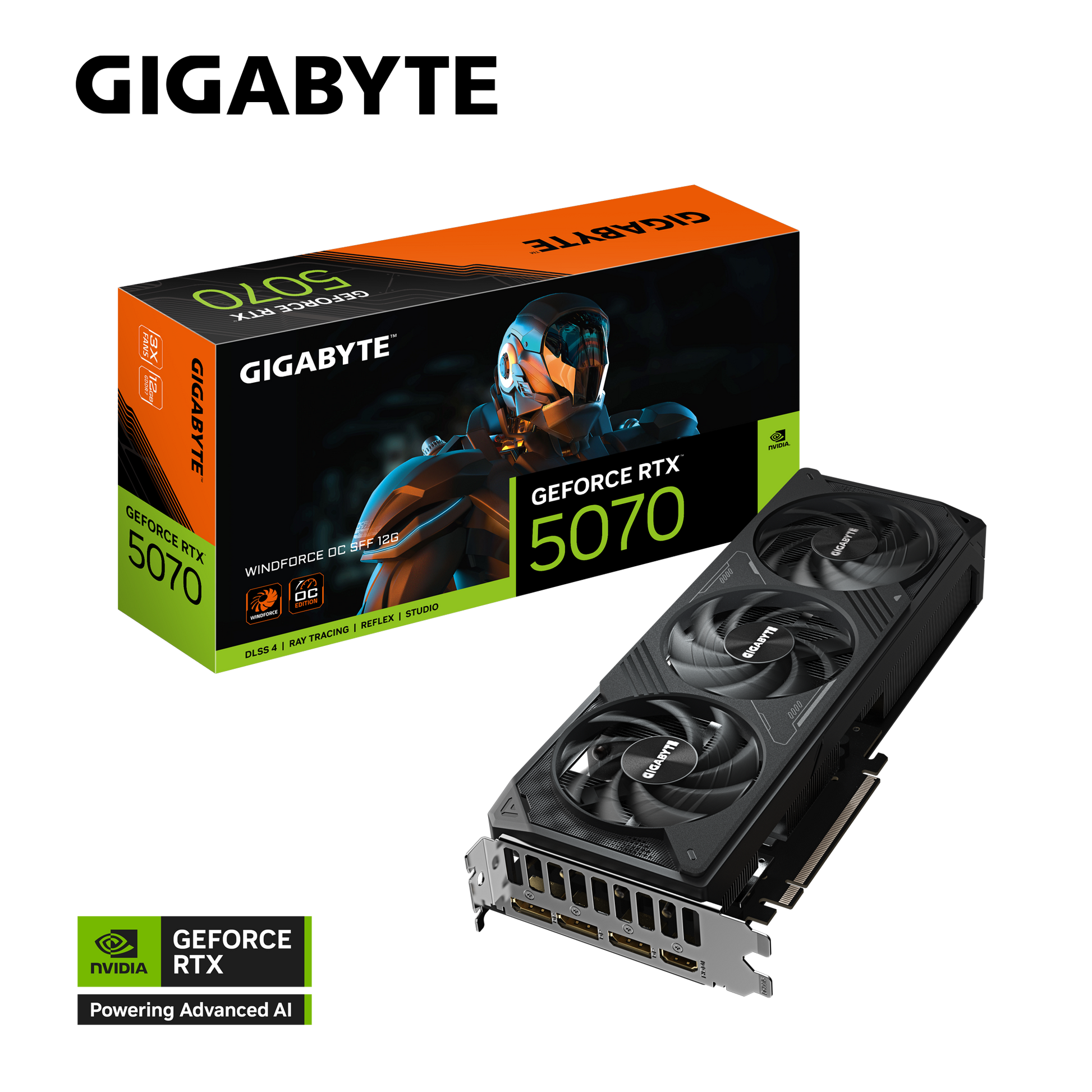

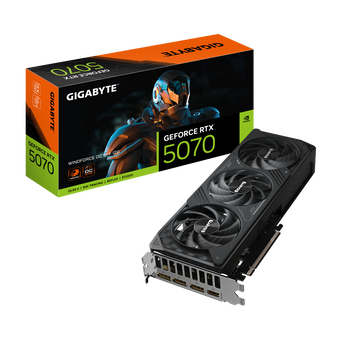

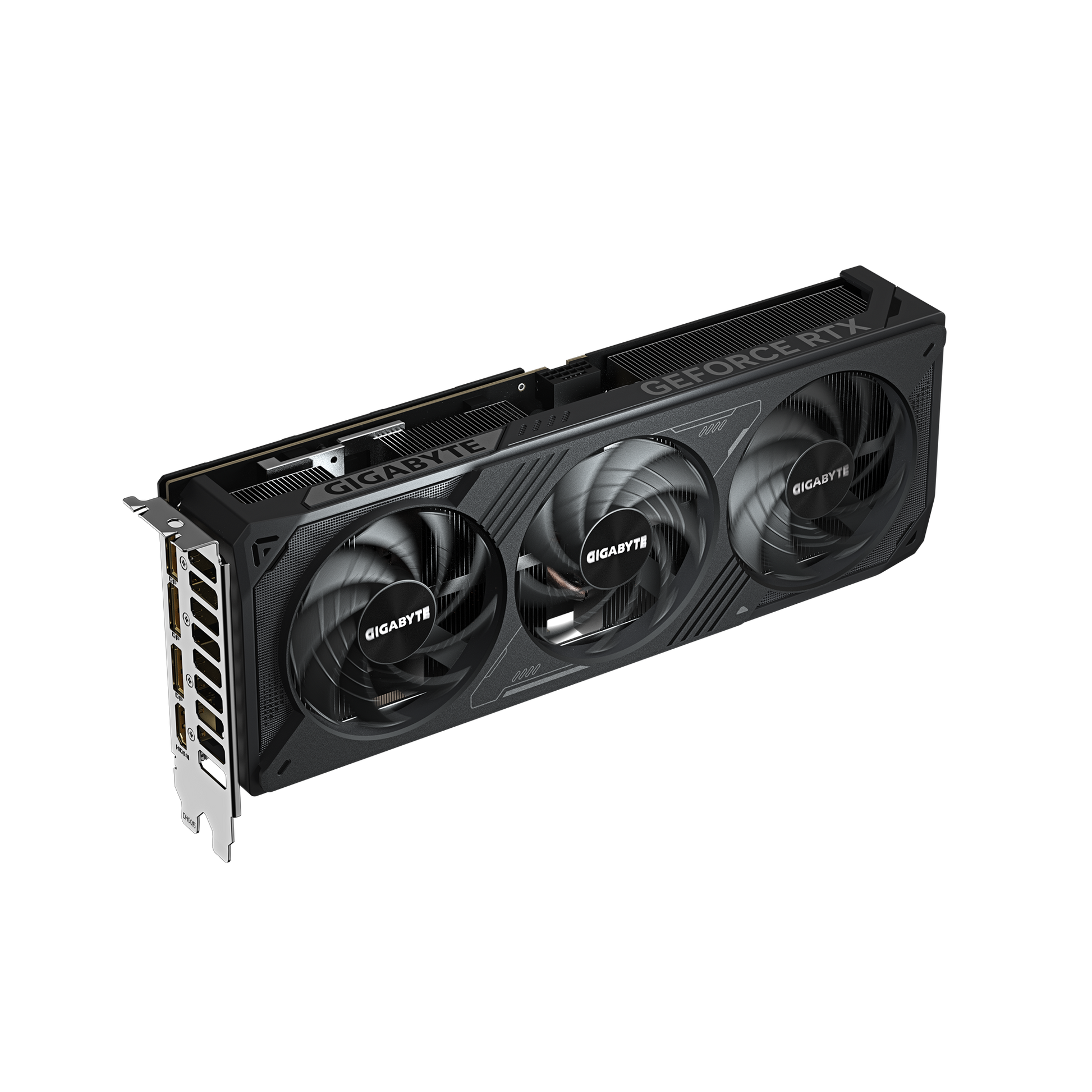

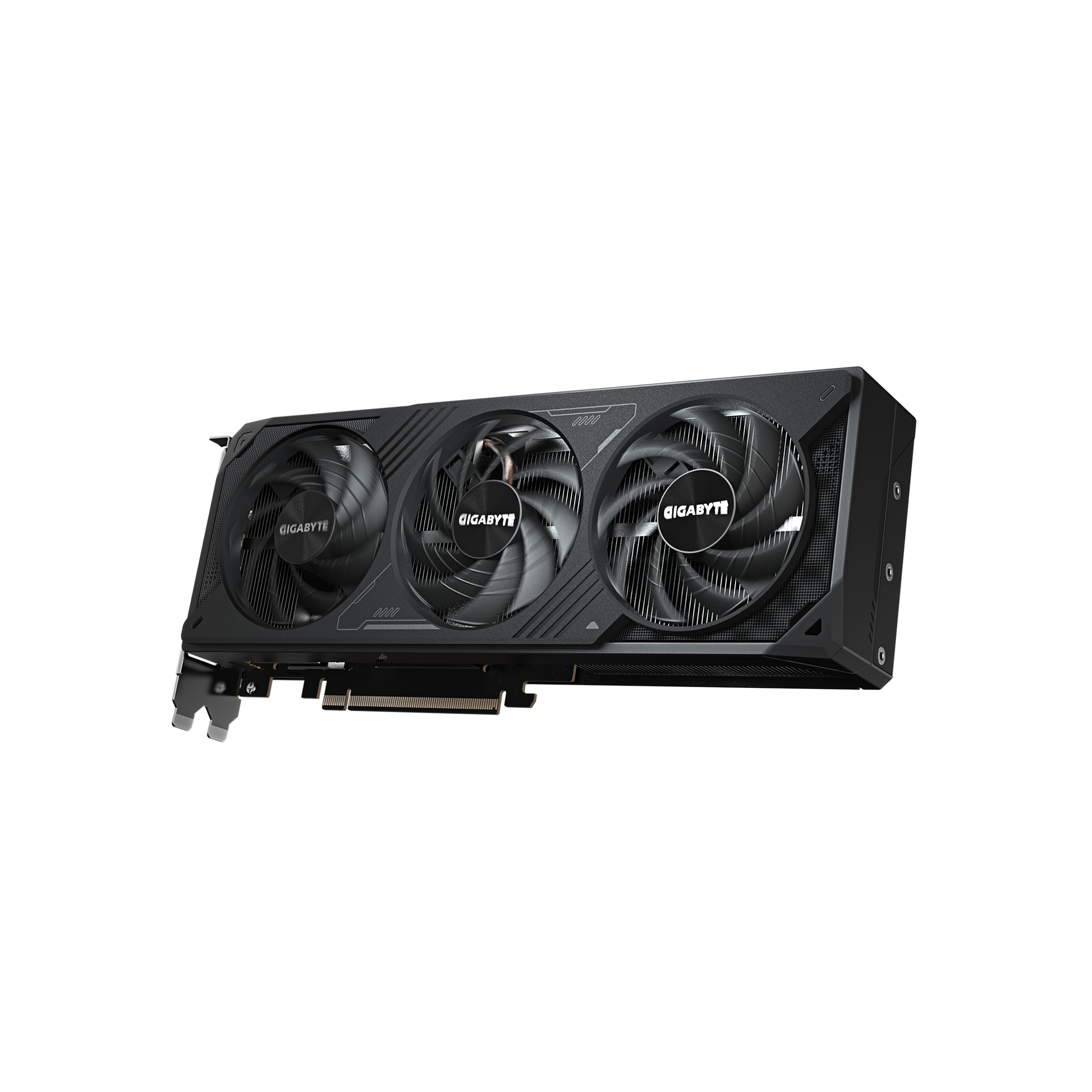

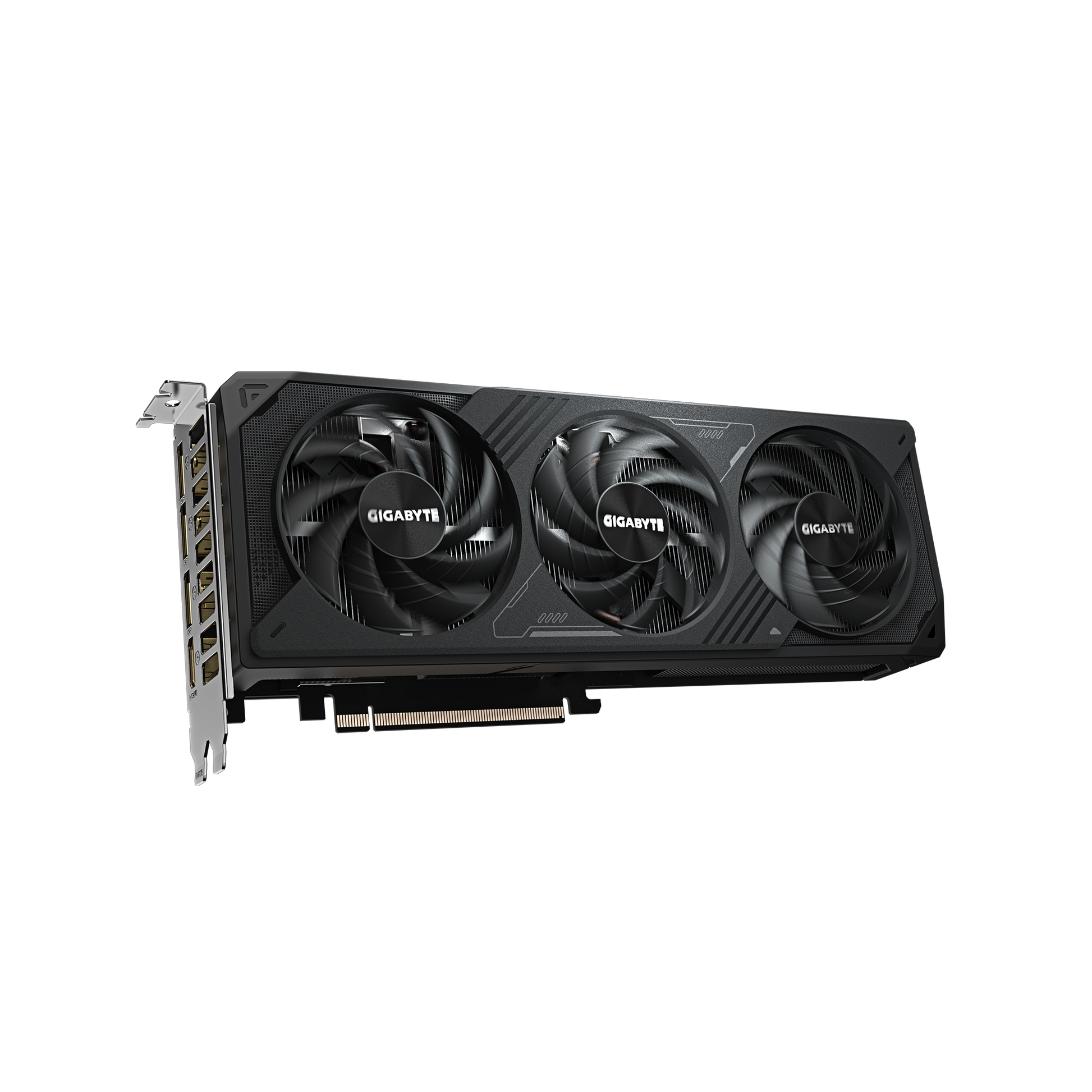

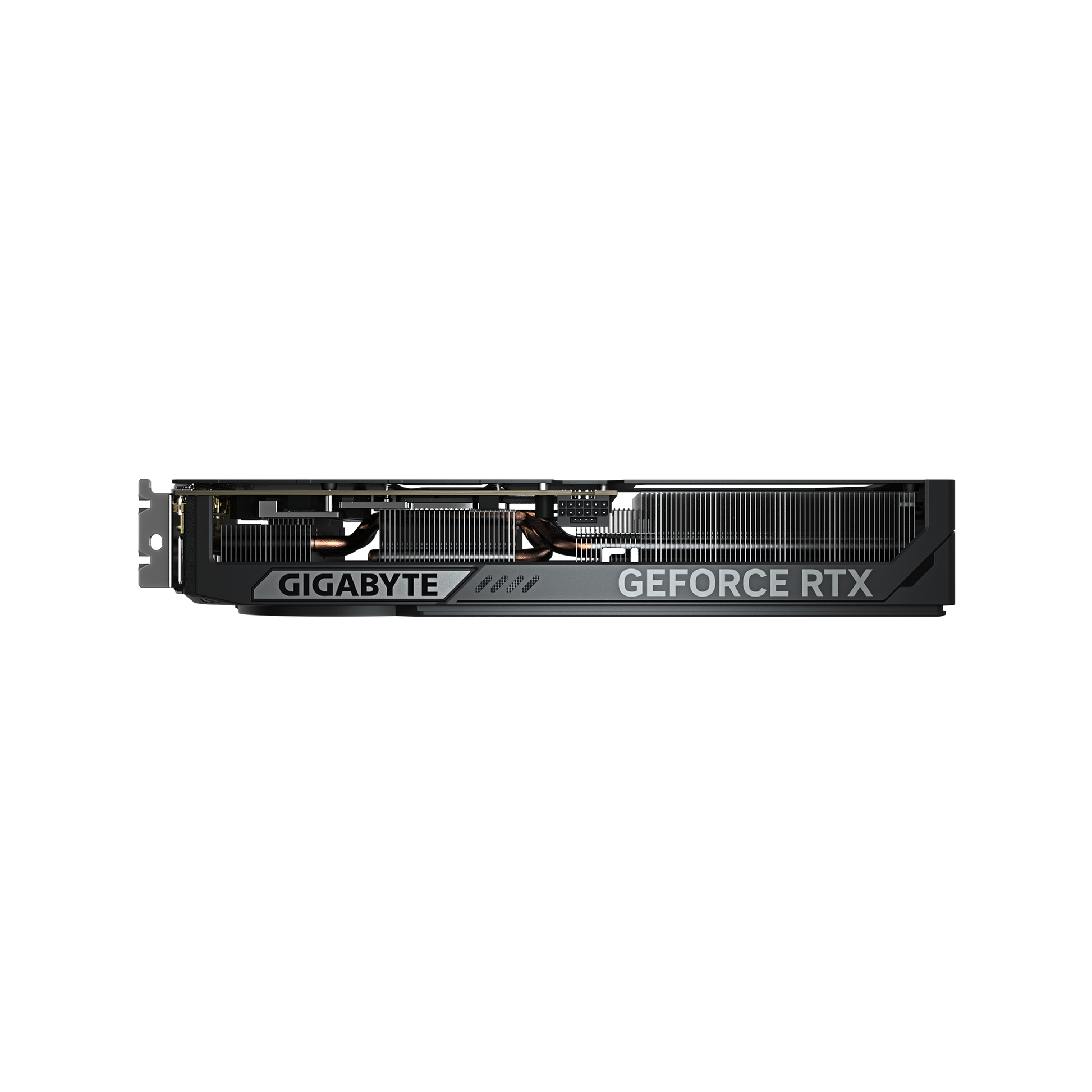

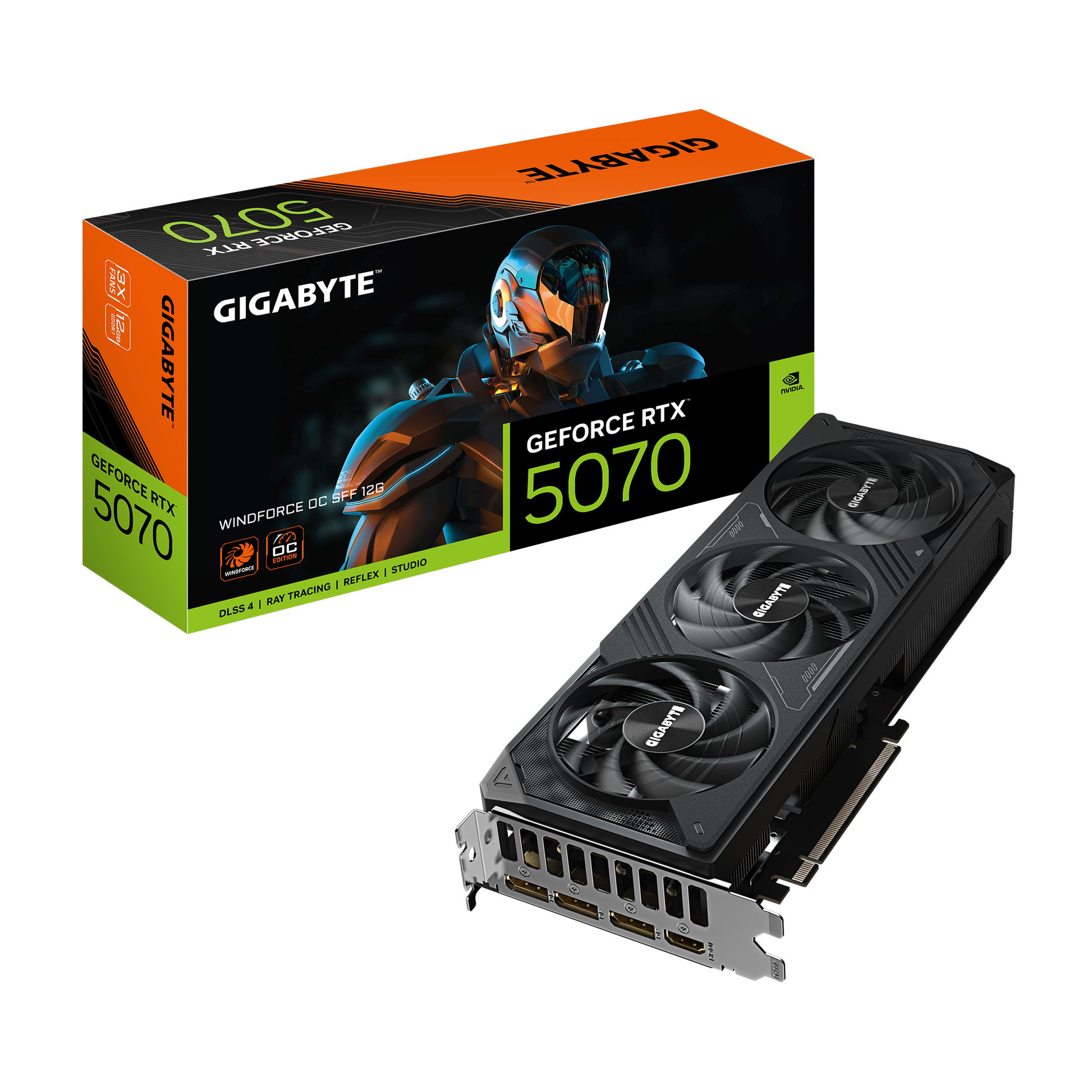

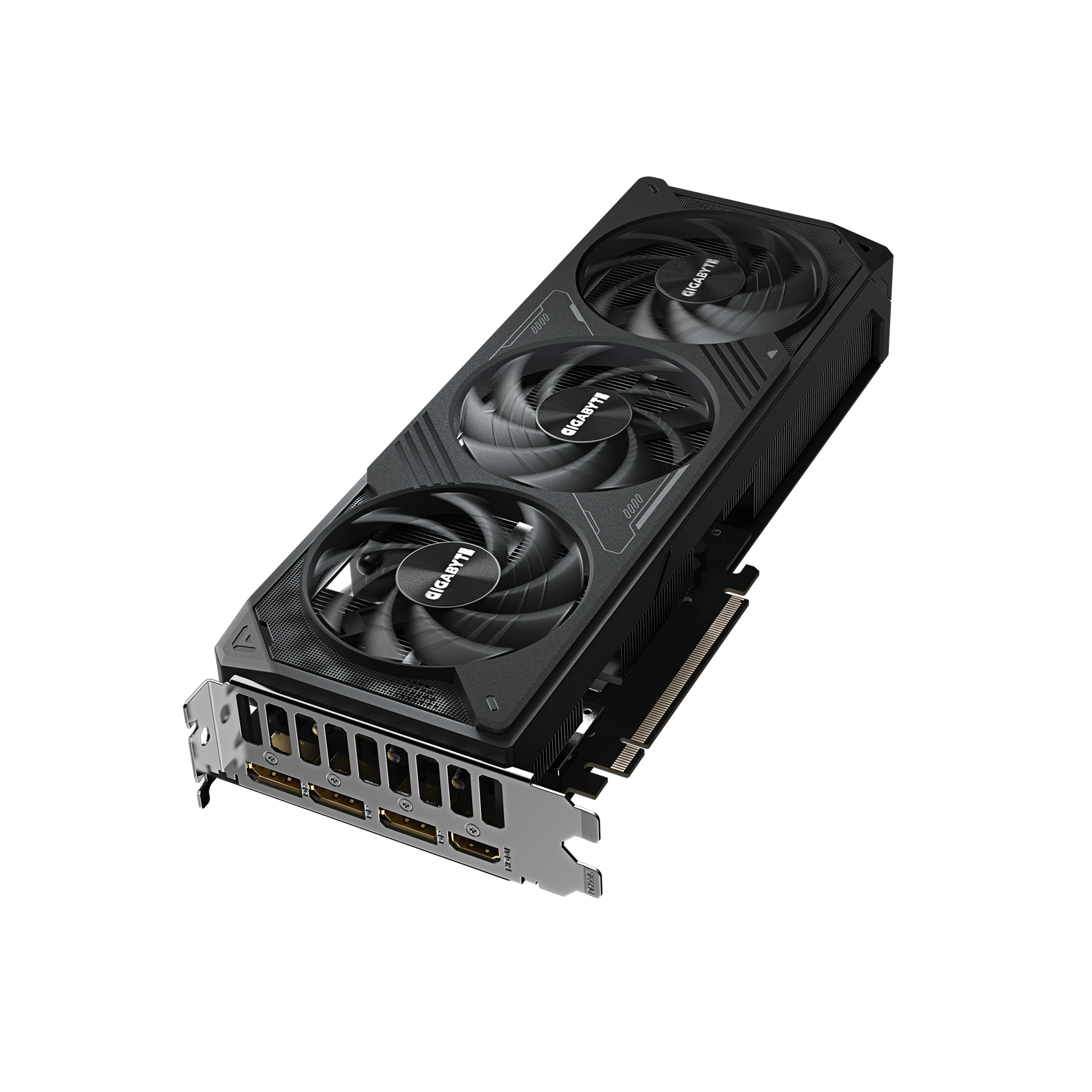

Gigabyte GeForce RTX™ 5070 WINDFORCE OC SFF 12G Graphic Card (GV-N5070WF3OC-12GD)

The Gigabyte RTX 5070 WINDFORCE OC SFF is a compact powerhouse designed for high-end gaming and creative workloads. Built on NVIDIA’s latest Blackwell architecture with next-generation GDDR7 memory and PCIe 5.0 support, it delivers cutting-edge visuals, lightning-fast frame rates, and advanced AI-accelerated performance in a small form factor.

NVIDIA Blackwell Architecture with 6,144 CUDA cores and 12 GB of ultra-fast GDDR7 memory

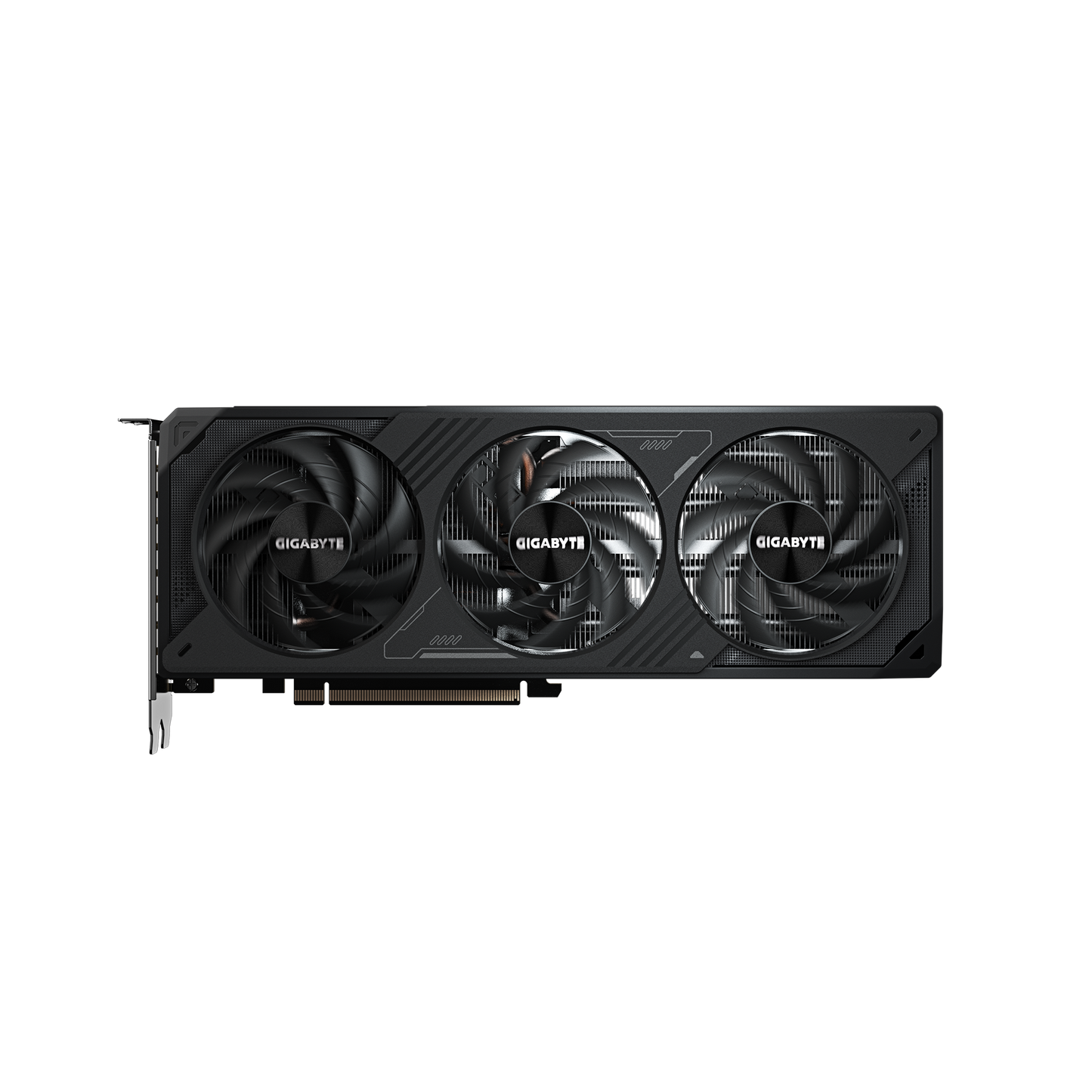

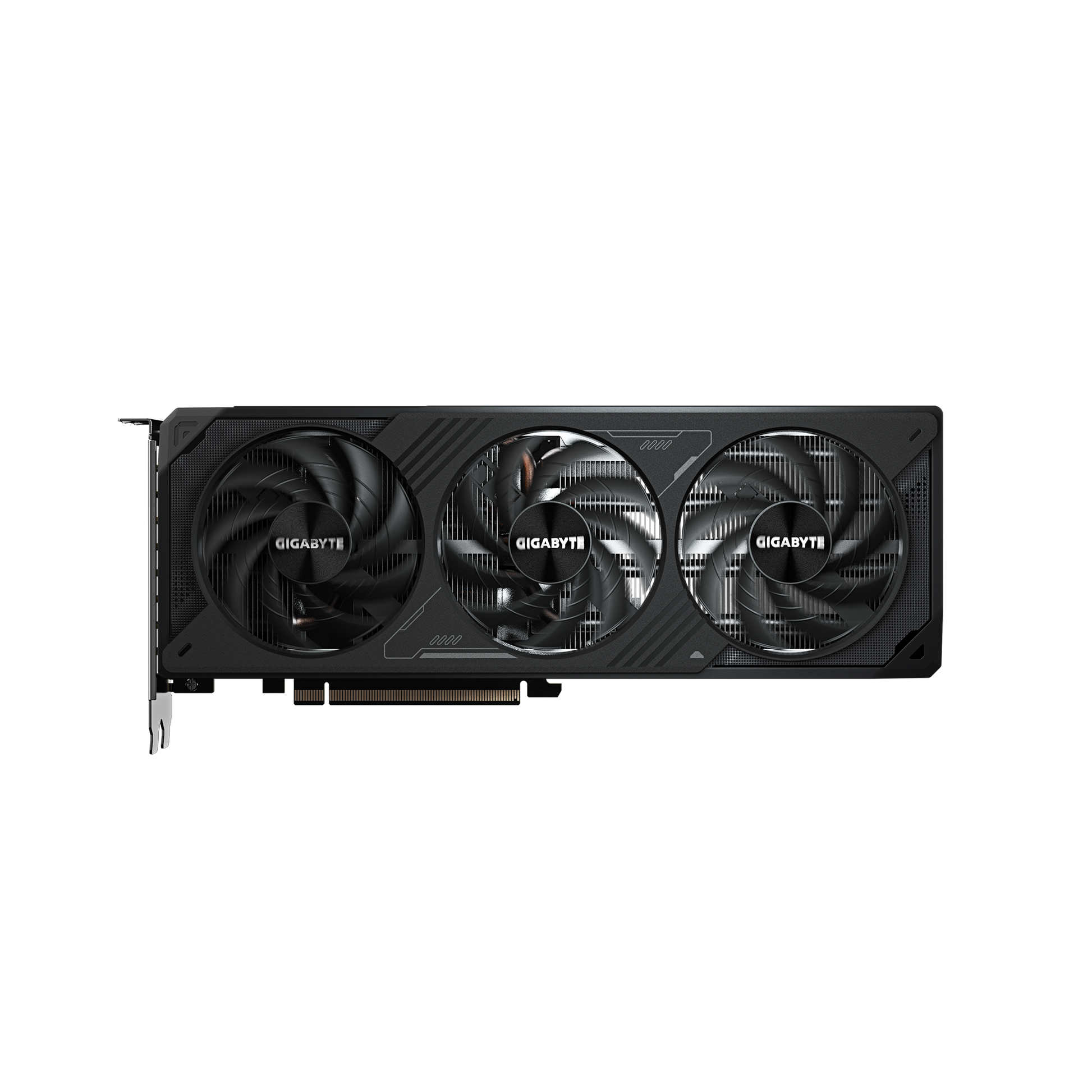

WINDFORCE Cooling System with three optimized 80 mm fans, composite copper heat pipes, and extended heatsink design for maximum cooling efficiency

Compact SFF Design (only 282 mm long), perfect for small-form-factor gaming builds

Factory Overclocked for improved boost performance and stable operation under heavy load

Next-Gen Connectivity: PCIe 5.0 x16 interface, 3 × DisplayPort 2.1, and 1 × HDMI 2.1b supporting up to 8K resolution

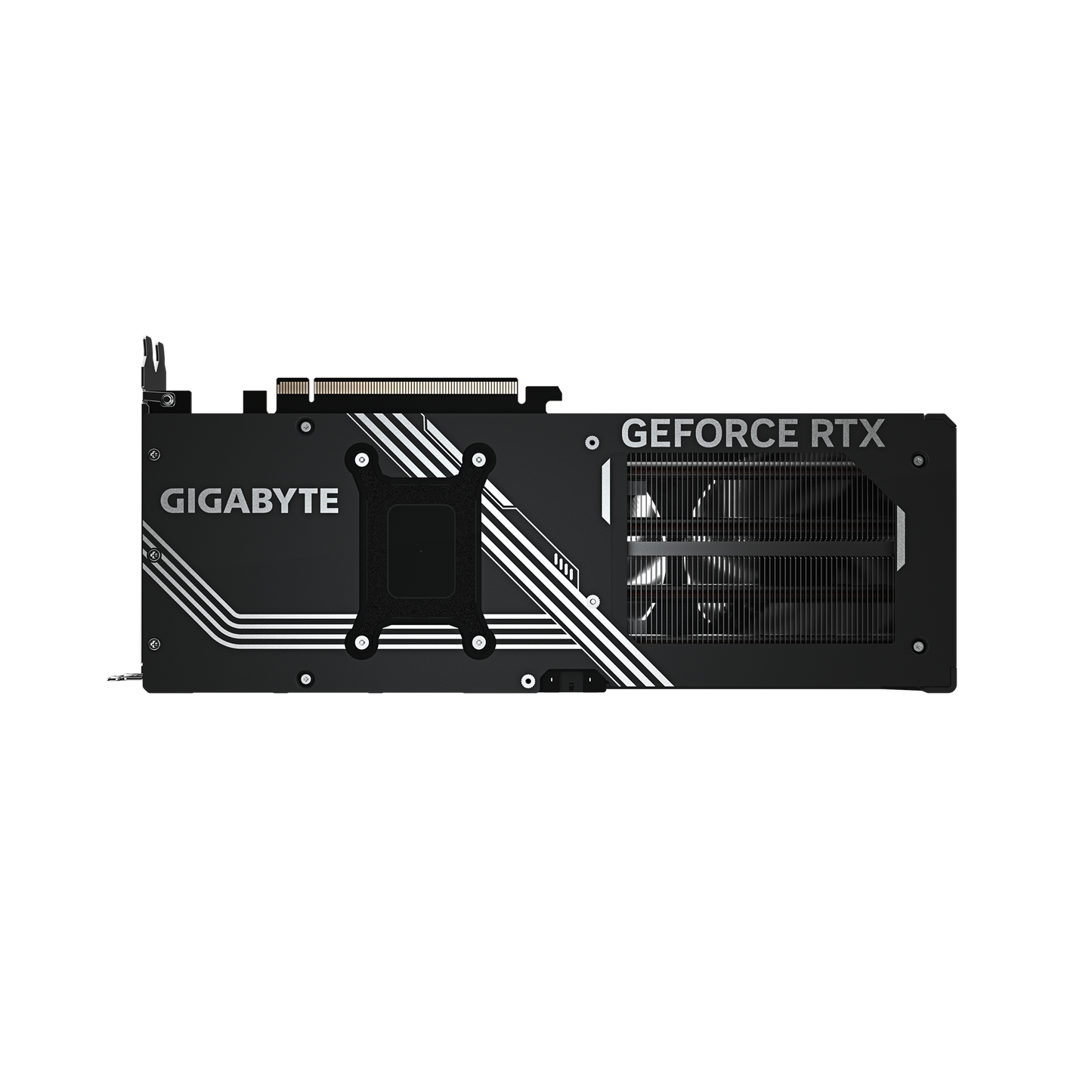

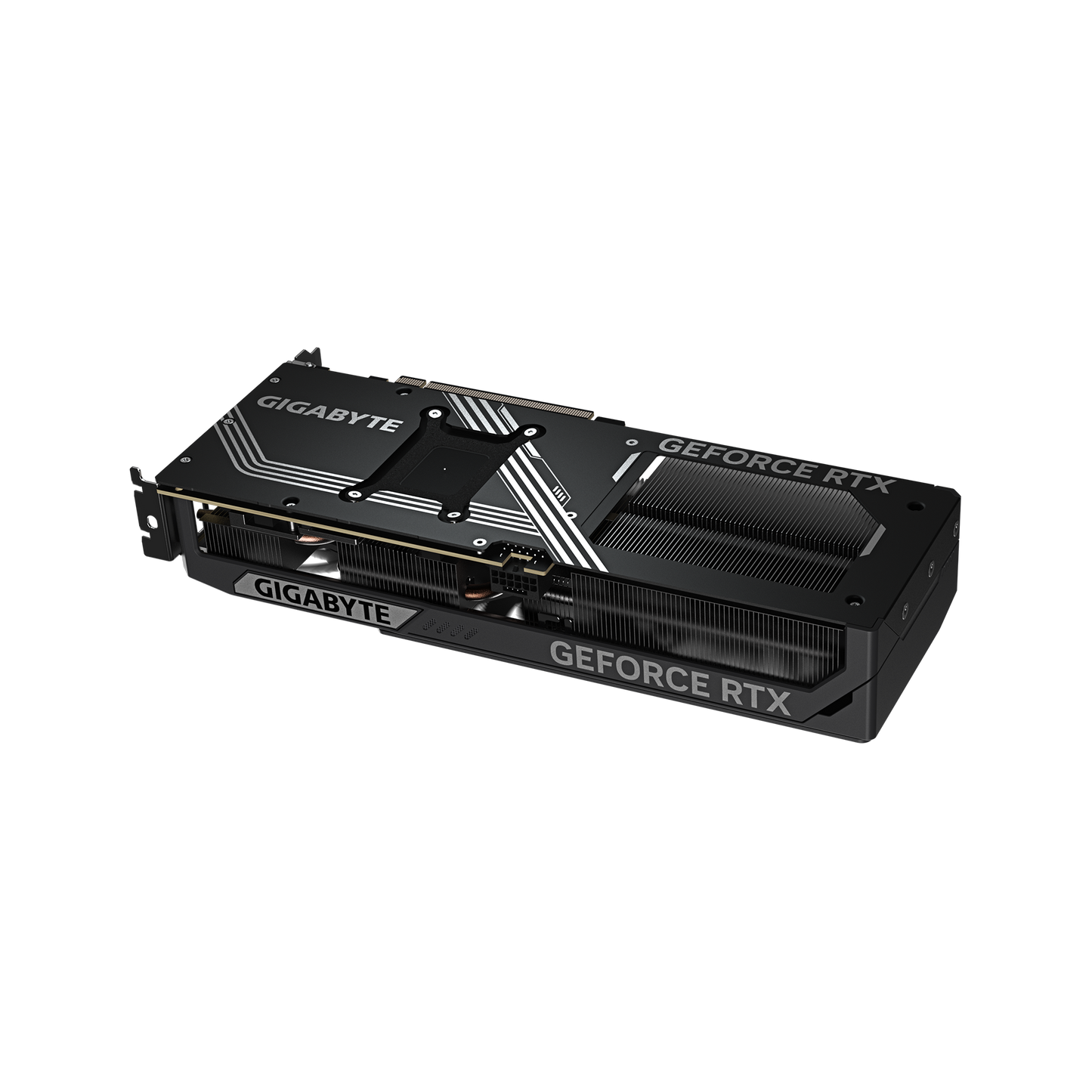

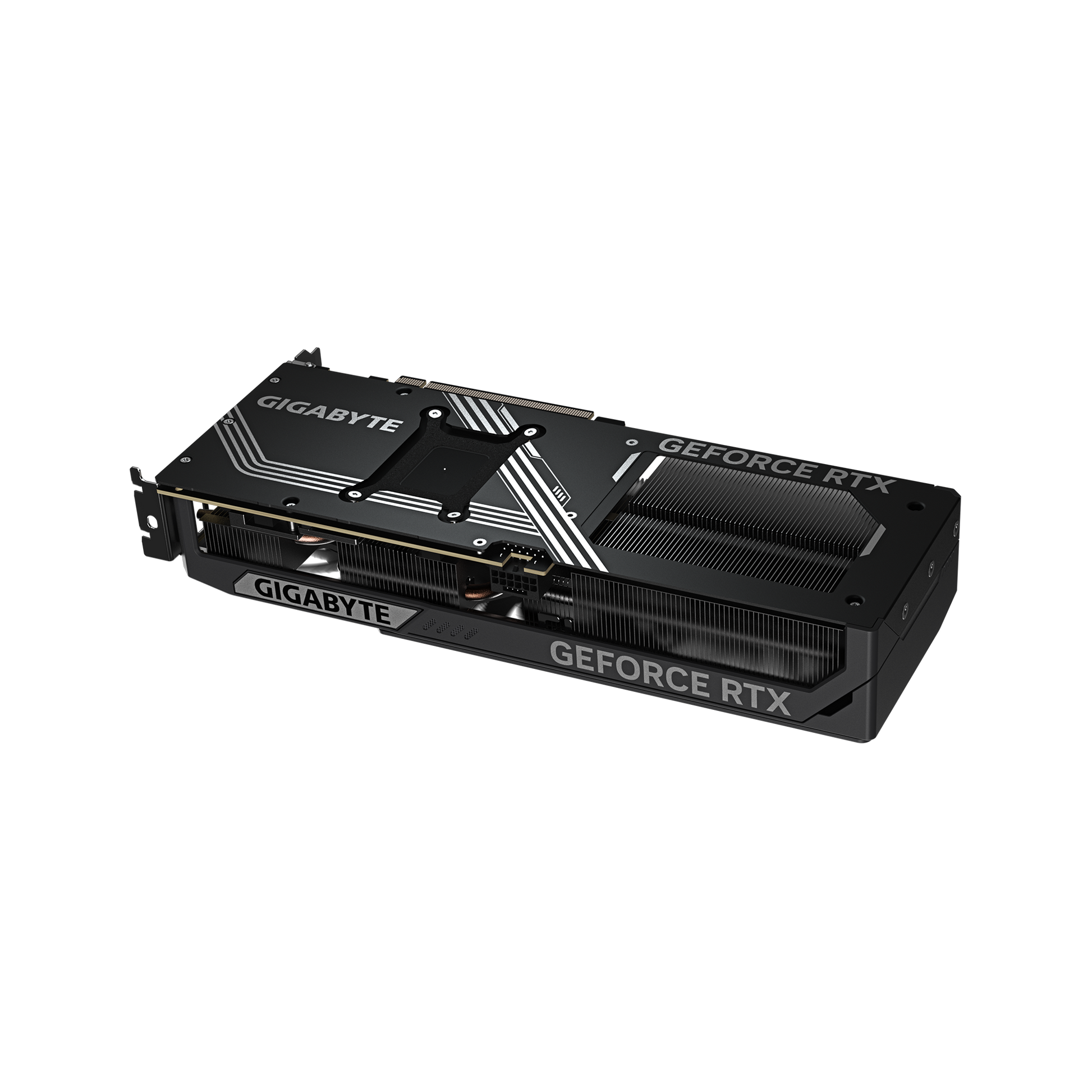

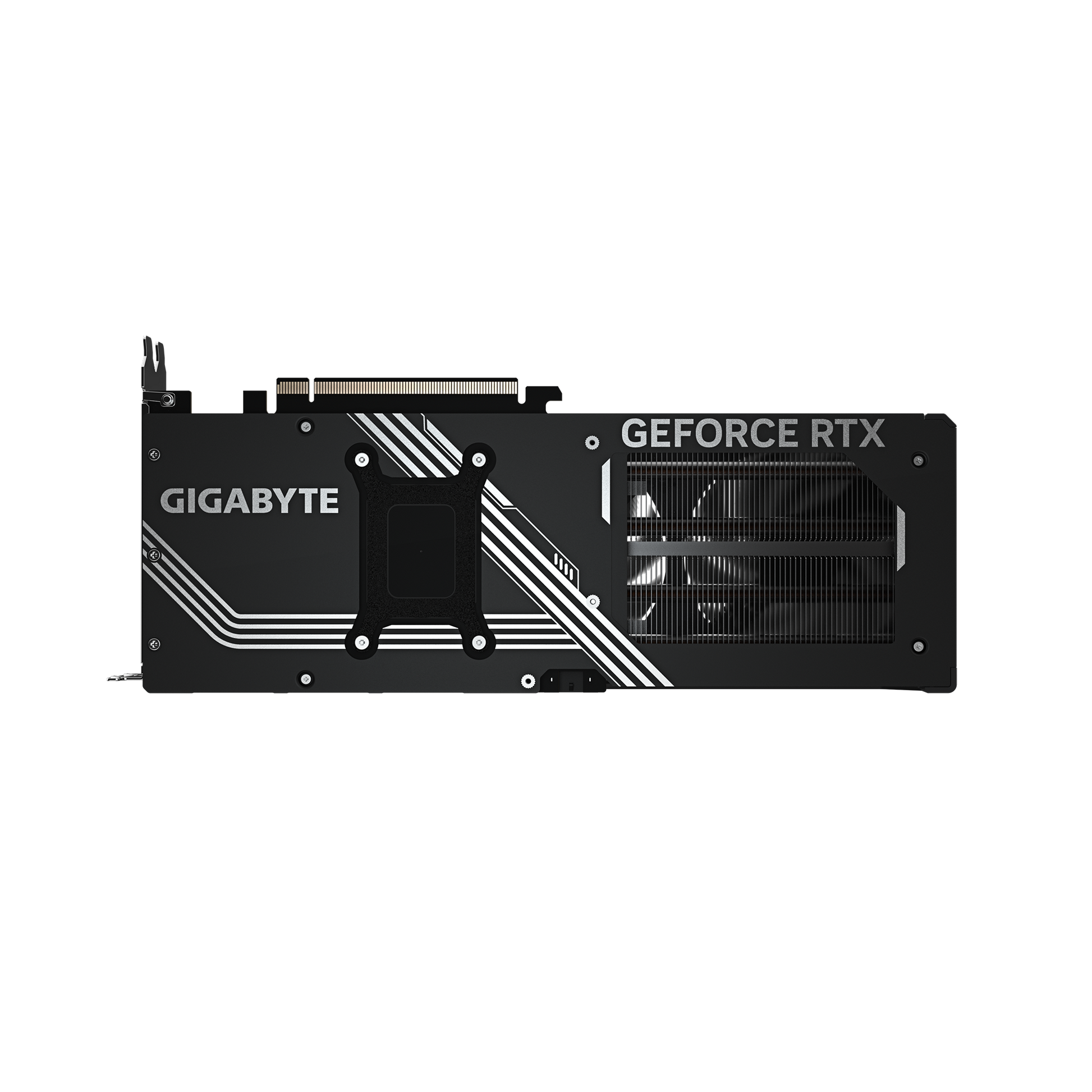

Reinforced metal backplate for structural rigidity and stylish aesthetics

GPU: NVIDIA GeForce RTX 5070
CUDA Cores: 6,144
Boost Clock: Up to 2,542 MHz (OC Mode)
Memory: 12 GB GDDR7
Memory Bus: 192-bit
Memory Speed: 28 Gb/s
Interface: PCIe 5.0 x16

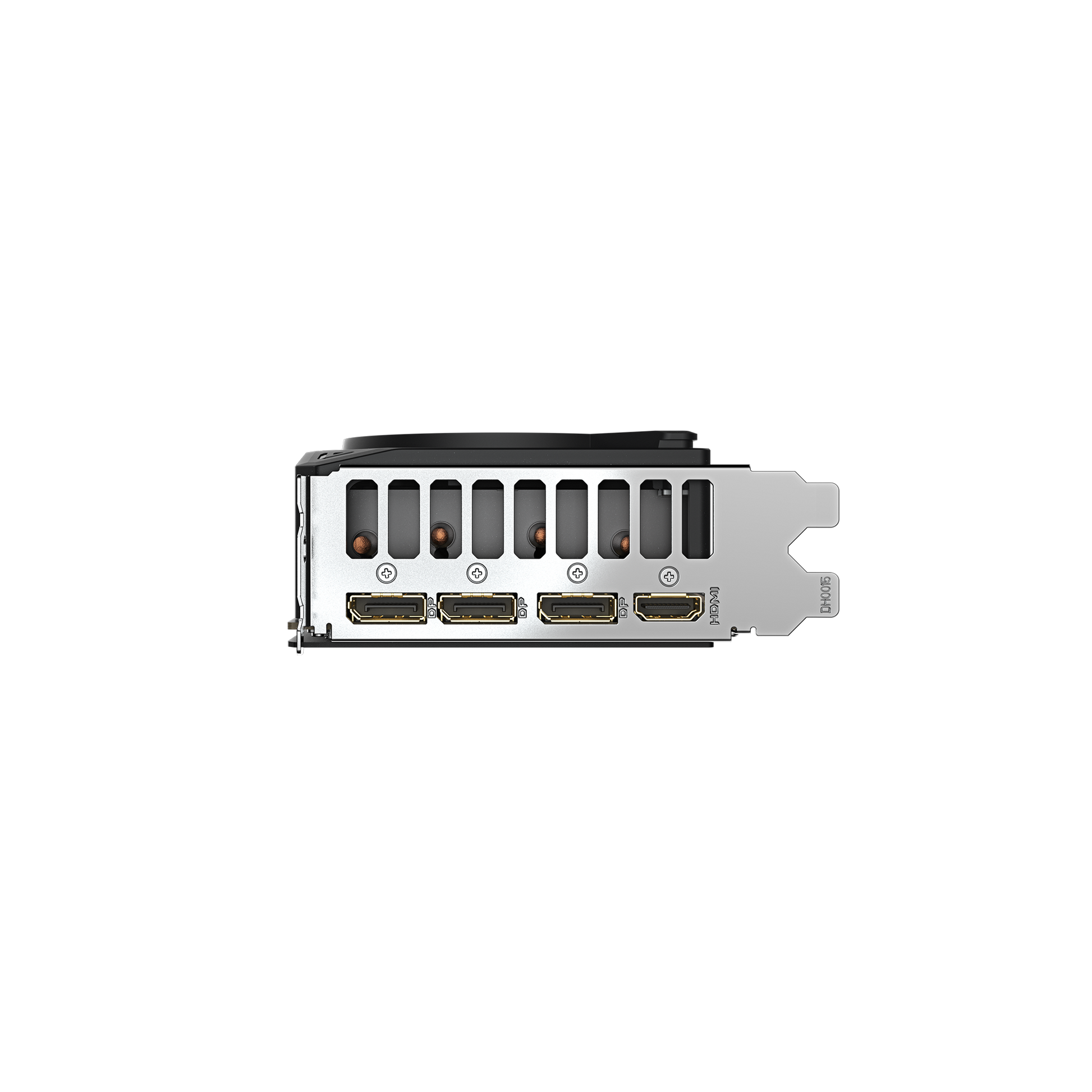

Outputs: 3 × DisplayPort 2.1, 1 × HDMI 2.1b
Recommended PSU: 750 W
Card Dimensions: 282 mm (L) × 110 mm (W) × 50 mm (H)
Power Connector: 1 × 16-Pin (12V-2×6)
Colour: Matte Black

System Requirements: PCIe 5.0 x16 slot (backward compatible with PCIe 4.0), minimum 750 W power supply, and adequate airflow in case for triple-fan design.
Usage Environment: Compact gaming PCs, creator workstations, and AI-enabled systems requiring next-gen graphics and power efficiency.
Included Accessories: Graphics card unit, 16-pin power adapter (12V-2×6 to 2×8-pin), user documentation.
