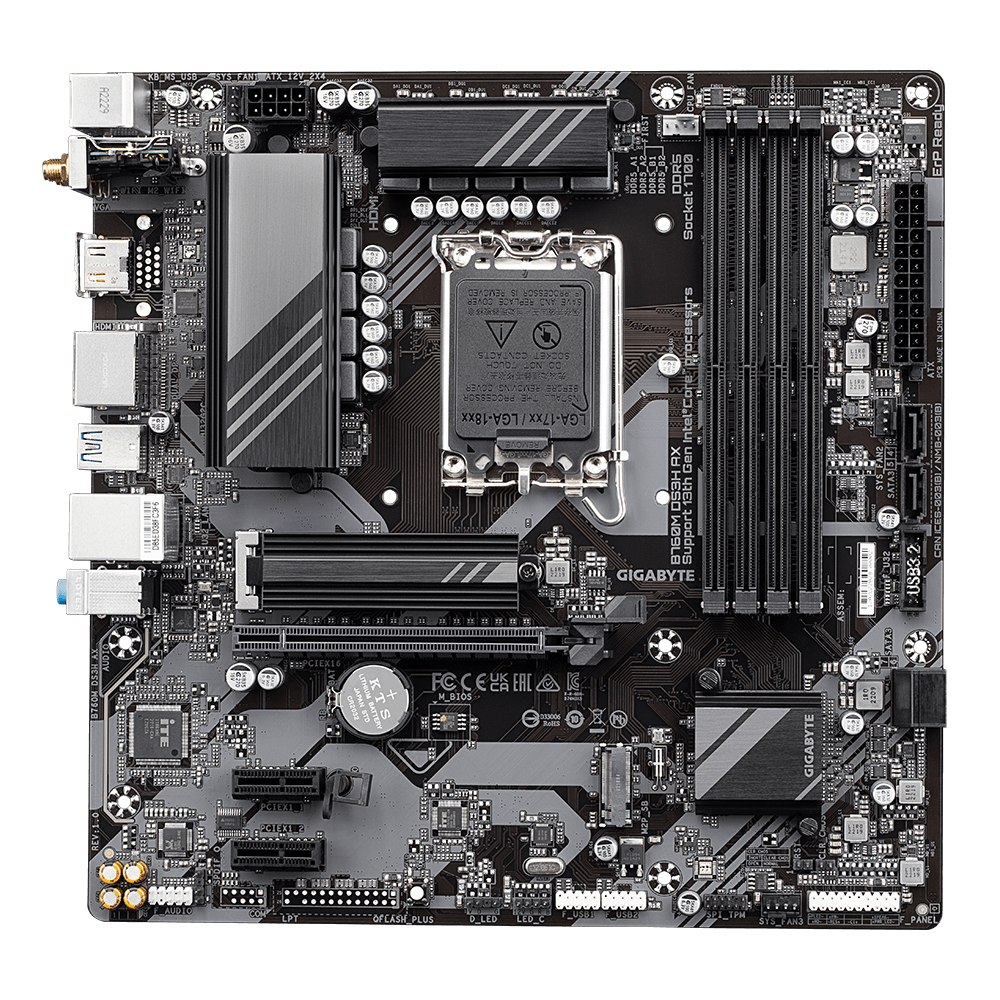

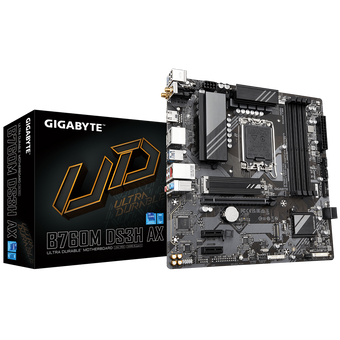

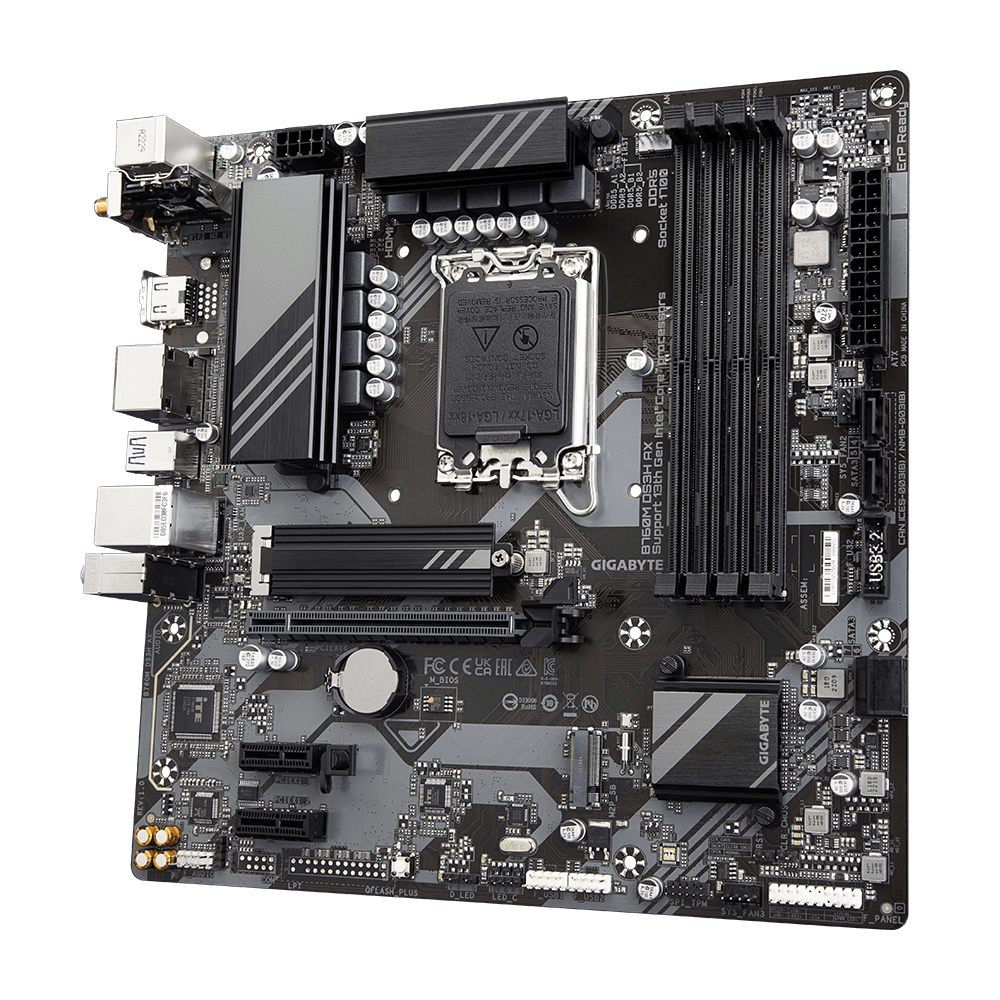

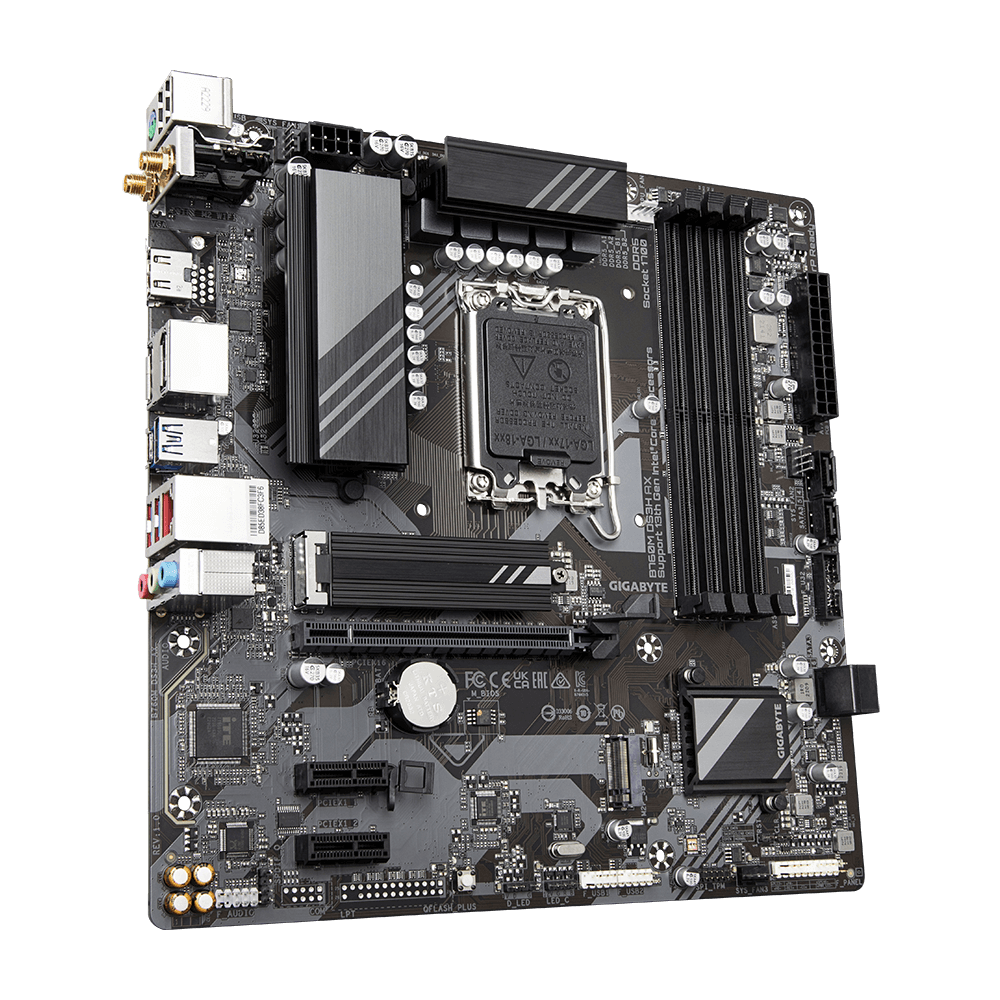

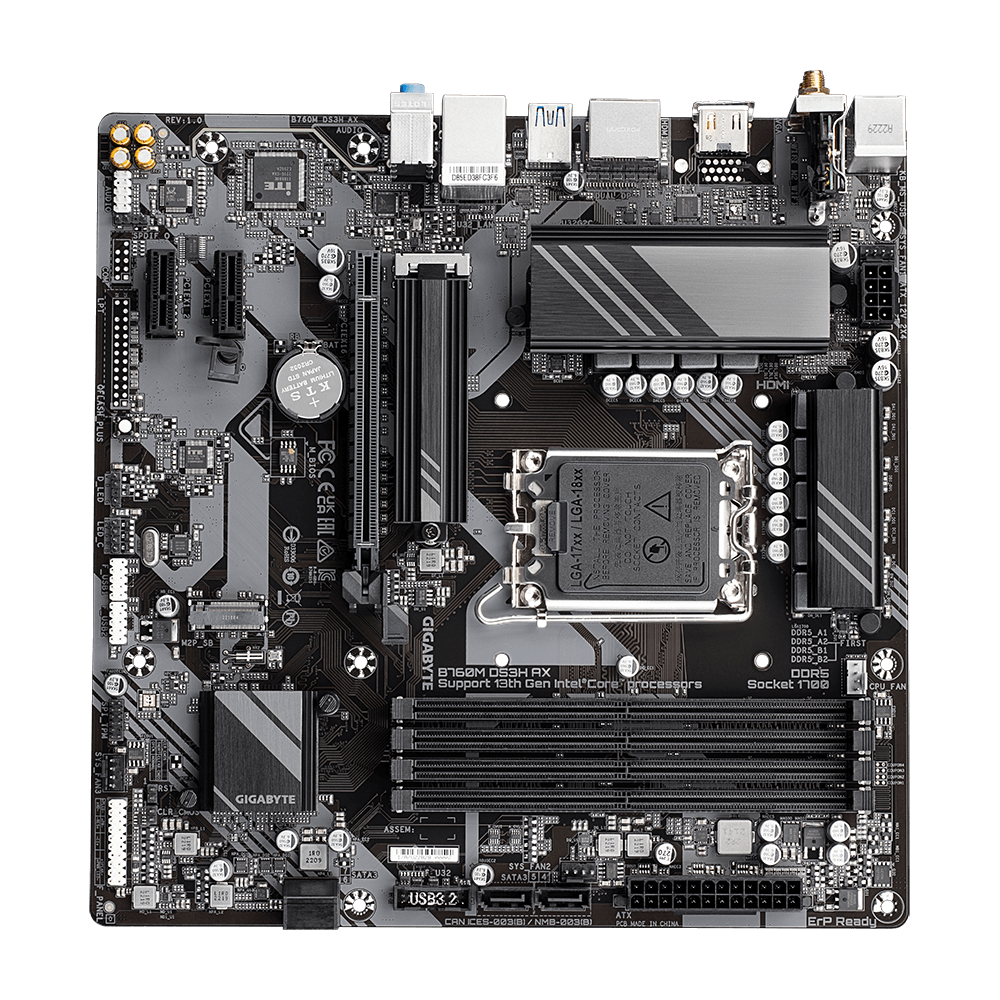

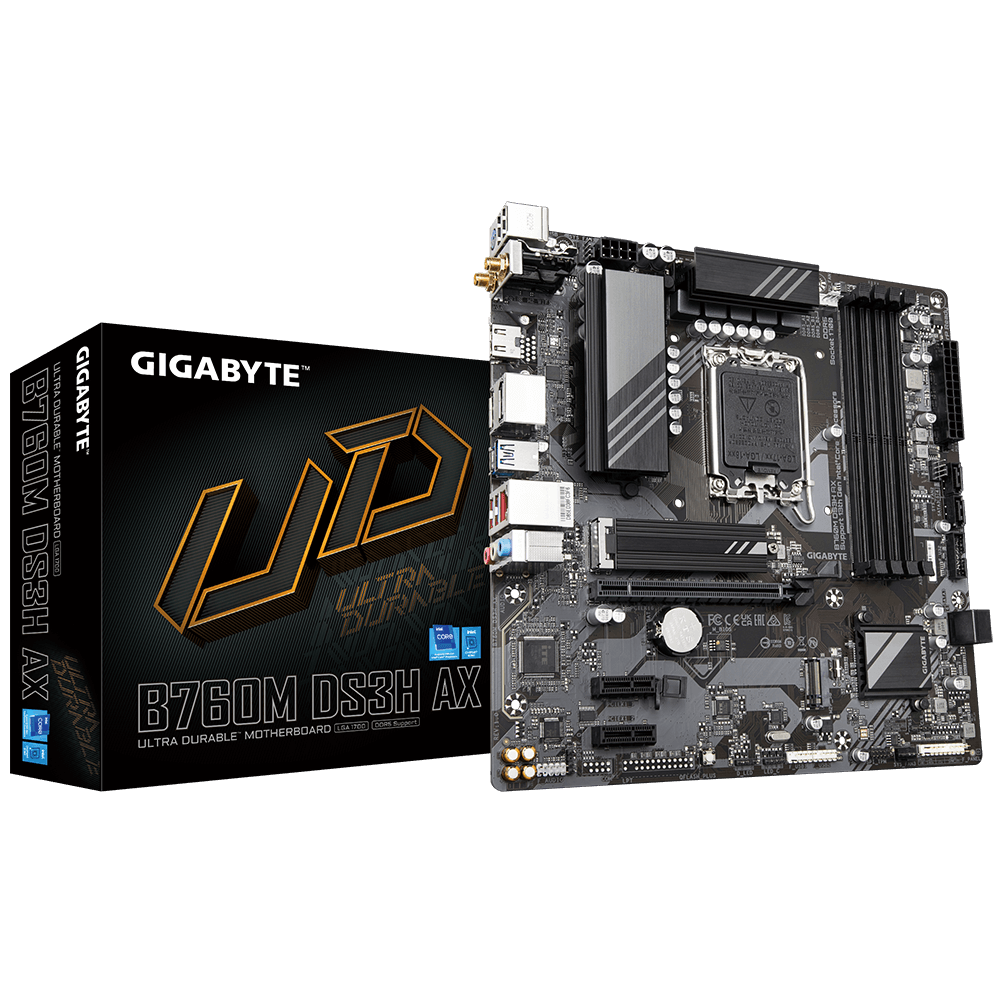

Gigabyte B760 M DS3H AX DDR5 Motherboard

Gigabyte B760 M DS3H AX DDR5 Motherboard

Rs. 13,927.00
Rs. 13,927.00
Tax included. Shipping calculated at check out.
  • Free 30 day return policy
  • Quality product
  • Shipping available | Estimated Delivery time: 02 August 2025

Use Case

The Gigabyte B760M DS3H AX DDR5 is built for versatile Intel desktop systems that require DDR5 memory support, built-in Wi-Fi, fast NVMe storage and reliable networking — all in a micro-ATX layout. Ideal for home, office and entry-level gaming builds.

Key Features

The B760M DS3H AX DDR5 supports Intel LGA1700 processors with dual-channel DDR5 memory, includes NVMe M.2 slots for high-speed storage, integrated Wi-Fi and Gigabit LAN, HDMI + DisplayPort for processor graphics and a micro-ATX design that fits a wide range of cases — delivering reliable flexibility for many use cases.

Specifications

Socket: Intel LGA1700
Chipset: Intel B760
CPU Support: Intel 12th / 13th / 14th Gen Core Series
Memory Support: 4 × DDR5 DIMM slots, dual-channel, up to 128 GB
Storage Interfaces: M.2 PCIe NVMe + SATA 6Gb/s ports
Expansion Slots: PCIe x16 (graphics) + additional PCIe slot
Graphics Outputs: HDMI + DisplayPort
USB Connectivity: USB Type-C + USB 3.2 Gen1 + USB 2.0
Networking: Wi-Fi + Bluetooth + Gigabit Ethernet LAN
Audio: High-Definition audio codec
Form Factor: Micro-ATX

Compatibility & Requirements

System Requirements: Micro-ATX compatible case, ATX PSU (24-pin + CPU power connector), Intel LGA1700 CPU, DDR5 memory
Setup: Install CPU + cooler → insert DDR5 RAM → mount board → connect storage, GPU or display, power → update BIOS if required
Usage Environment: Compact gaming PCs, home entertainment desktops, business productivity systems
Included Accessories: Motherboard, Wi-Fi antennas, SATA cables, I/O shield, documentation (may vary by region)

Warranty

3-Year Limited Warranty
