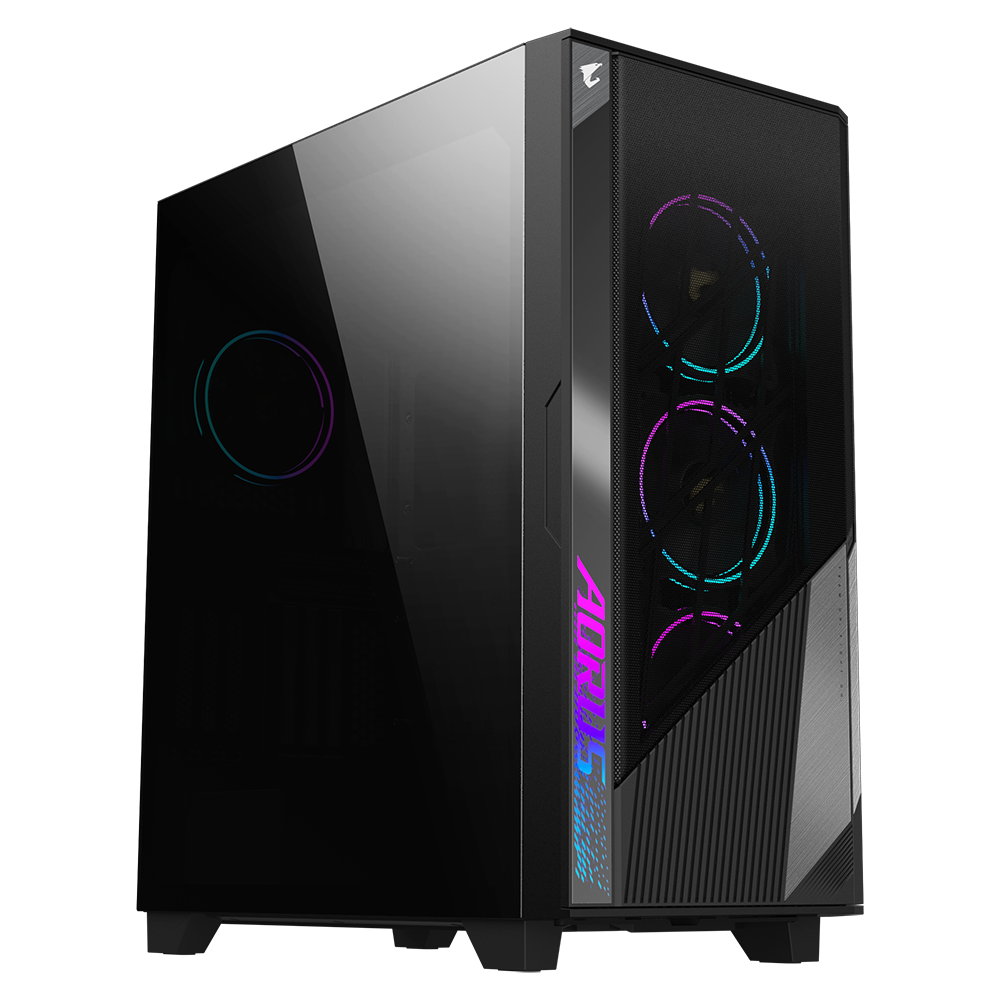

Gigabyte AORUS C500 GLASS Mid-Tower E-ATX / ATX / Micro-ATX / Mini-ITX Gaming Cabinet — Black (4× 120mm ARGB Fans)

The Gigabyte AORUS C500 GLASS is built for AORUS ecosystem builders, flagship gaming PC enthusiasts, overclockers, and content creation workstation builders who need a premium mid-tower chassis with the maximum possible radiator size support (420mm front), generous GPU and CPU cooler clearance, an integrated ARGB and PWM hub for multi-fan builds, and vertical GPU mounting capability — all tied together with GIGABYTE's RGB Fusion 2.0 lighting ecosystem. It is ideal for high-end AORUS gaming rigs, multi-radiator custom loop and AIO liquid cooling builds, showcase vertical GPU configurations, and builds pushing the limits of mainstream mid-tower hardware compatibility.

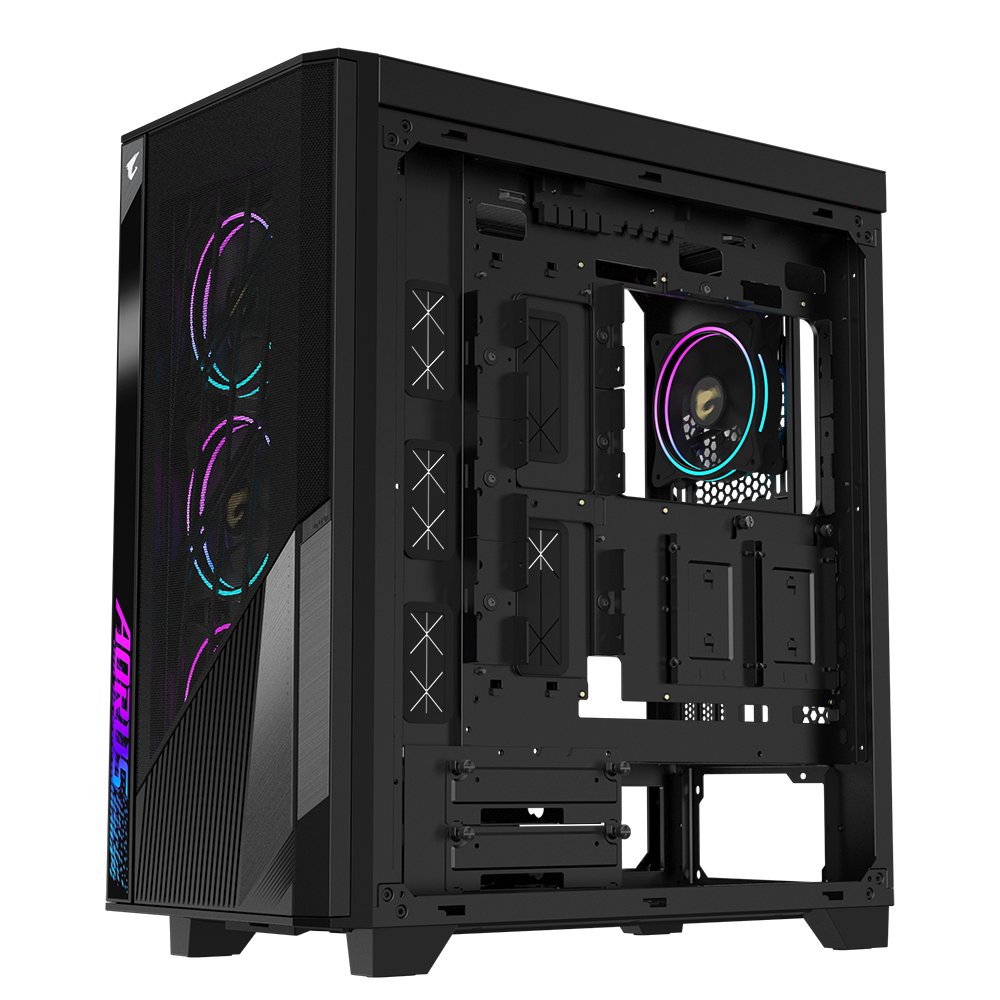

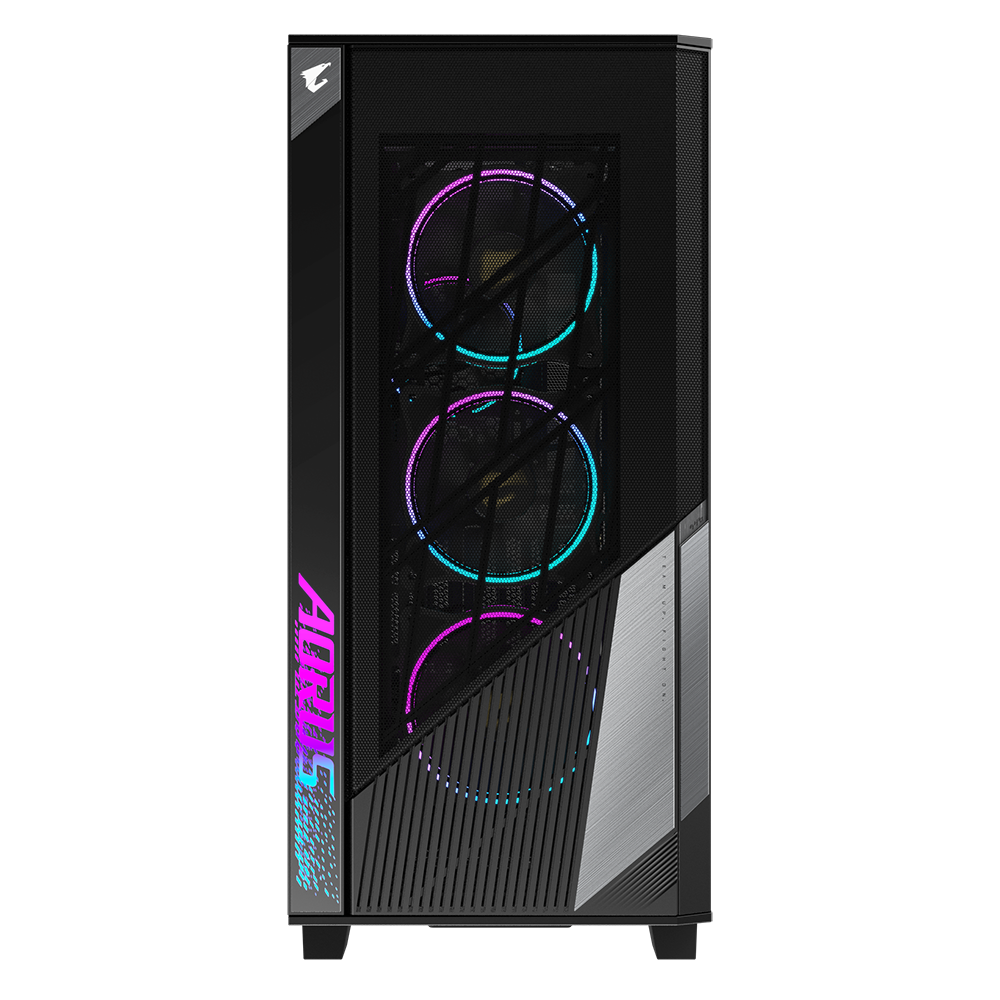

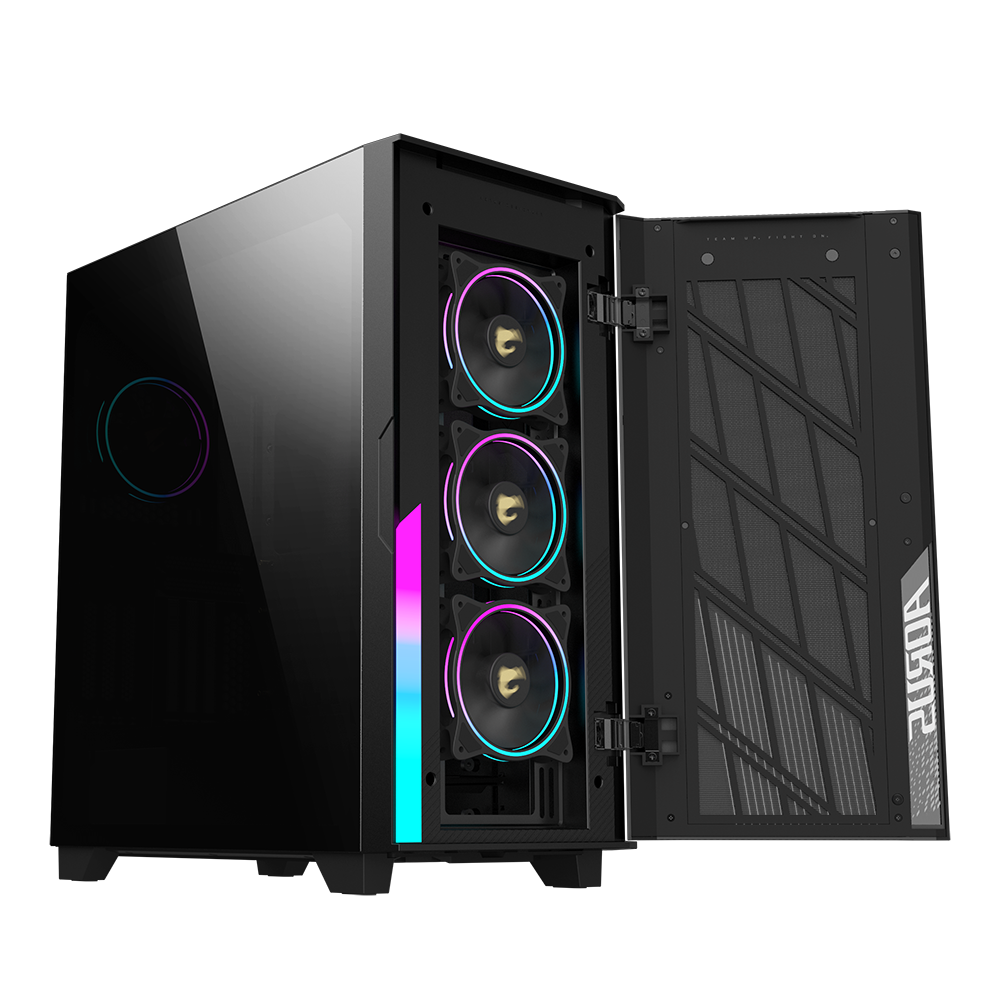

The AORUS C500 GLASS features an optimized airflow design with a large mesh front panel and vented top panel that together deliver generous, unrestricted fresh air intake to internal components while maintaining a clean, premium aesthetic. Four pre-installed 120mm ARGB and PWM fans — three front intake and one rear exhaust — provide impressive out-of-the-box airflow coverage with fully addressable ARGB lighting synced to the AORUS RGB Fusion 2.0 ecosystem. The 420mm front radiator support is among the highest in any mid-tower chassis, making the C500 GLASS fully compatible with AORUS AIO coolers and even large custom loop radiators for the most extreme cooling setups. A built-in ARGB and PWM connector hub — equipped with 5× 5V 3-pin ARGB connectors and 5× PWM fan connectors — allows users to expand with additional RGB strips, fans, and accessories without cluttering the motherboard headers. Vertical GPU mount support provides two VGA holder bracket options accommodating 73mm and 160mm total GPU thickness, enabling a stunning side-facing GPU showcase. The swing door design on the front panel allows easy access to the front dust filter and fans without detaching the entire panel, reducing the risk of accidental cable disconnection. Grooves and cutouts behind the board and along case edges ensure clean, organized cable management with short build times. Three-sided dust filters — top, front, and bottom — keep the interior clean across all major intake positions. The non-drilled 4mm tempered glass side panel is designed to be removed from the top-first to prevent accidental drops. A PSU bracket allows quick and easy sliding-in of the power supply.

Part Number: GB-AC500G ST
Case Type: Mid-Tower
Colour: Black
Material: Steel, Plastic, Tempered Glass
Motherboard Support: E-ATX, ATX, Micro-ATX, Mini-ITX

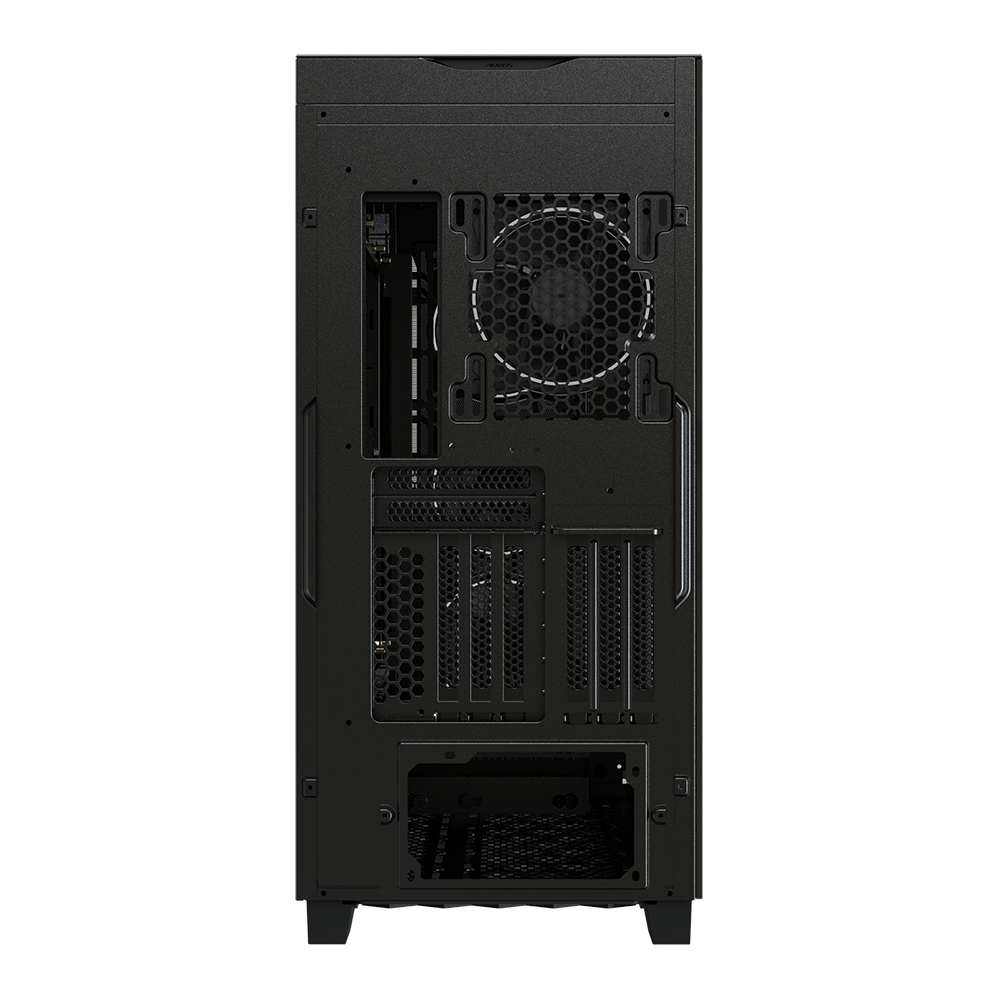

Expansion Slots: 8 + 3 (vertical; requires PCIe riser cable)
Power Supply Type: Standard ATX (not included)

Chassis Size: 548 mm (H) × 250 mm (W) × 482 mm (D)
Package Size: 594 mm (H) × 336 mm (W) × 584 mm (D)
Net Weight: 13.4 kg

Pre-Installed Fans: 3× Front 120mm ARGB PWM + 1× Rear 120mm ARGB PWM (4 fans total)
Fan Support — Front: 120mm × 3 / 140mm × 3
Fan Support — Top: 120mm × 3 / 140mm × 2
Fan Support — Rear: 120mm × 1 / 140mm × 1
Radiator Support — Front: Up to 420mm
Radiator Support — Top: Up to 360mm
Radiator Support — Rear: 140mm
Dust Filters: Top, Front, Bottom (3-sided)

Max GPU Length: 420mm
Max CPU Cooler Height: 190mm
Max PSU Length: 220mm
Vertical GPU Mount: Yes (73mm default clearance /
160mm with VGA holder bracket)

Drive Bays: 2× 3.5" / 2.5" + 2× 2.5" (4 total)
5.25" Bay: None

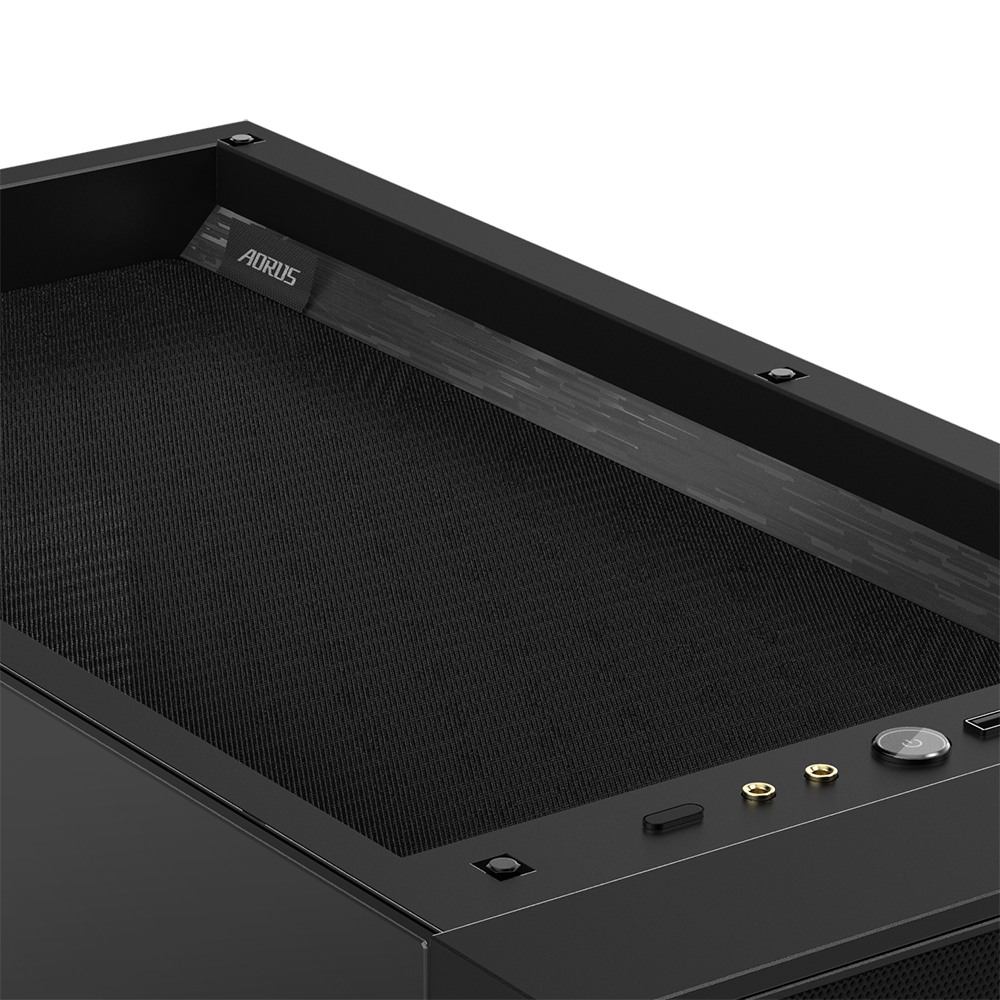

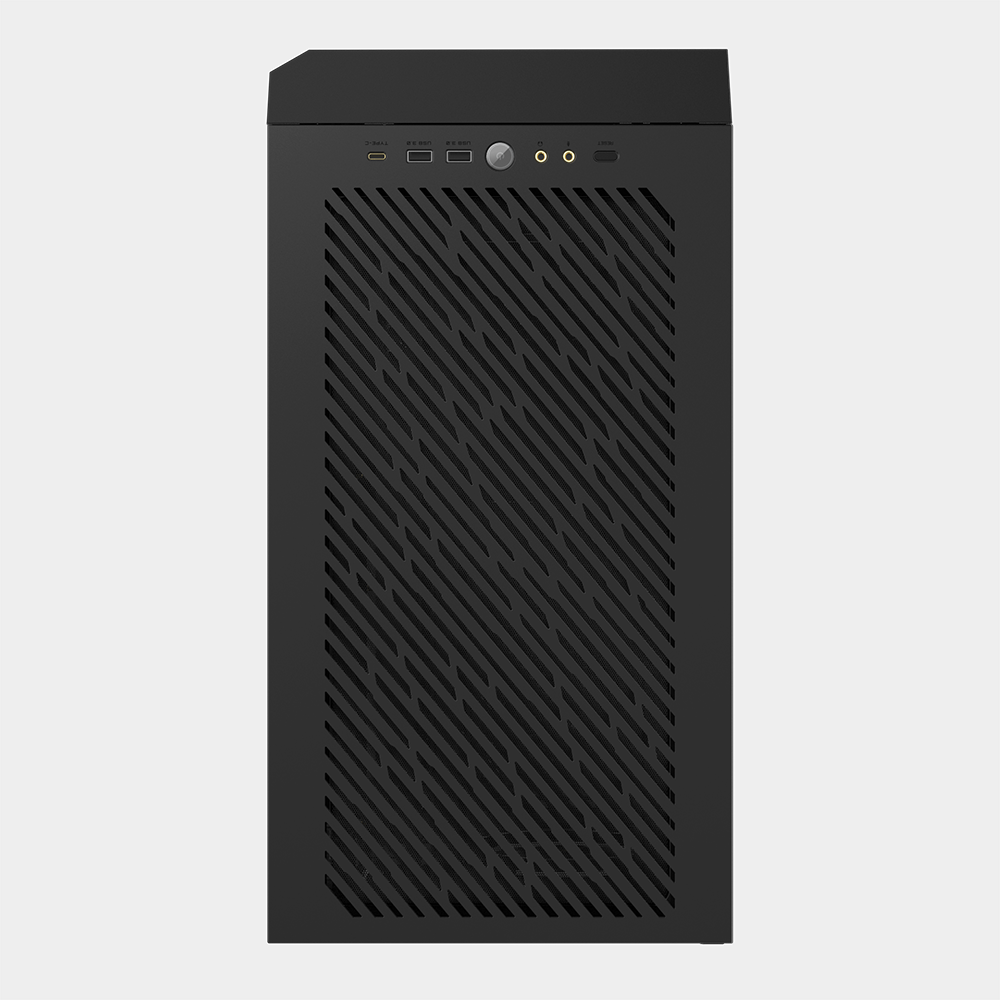

I/O Panel: 1× USB 3.1 Gen 2 Type-C, 2× USB 3.0, 1× Audio In & Out (AC97 / HD Audio)
RGB: ARGB and PWM Connector Hub (5× 5V 3-pin + 5× PWM)
RGB Software: GIGABYTE RGB Fusion 2.0

System Requirements: Compatible with E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards; standard ATX PSU with maximum length of 220mm required (not included); PCIe riser cable required for vertical GPU mount (not included); verify GPU length and radiator sizing against front and top clearances

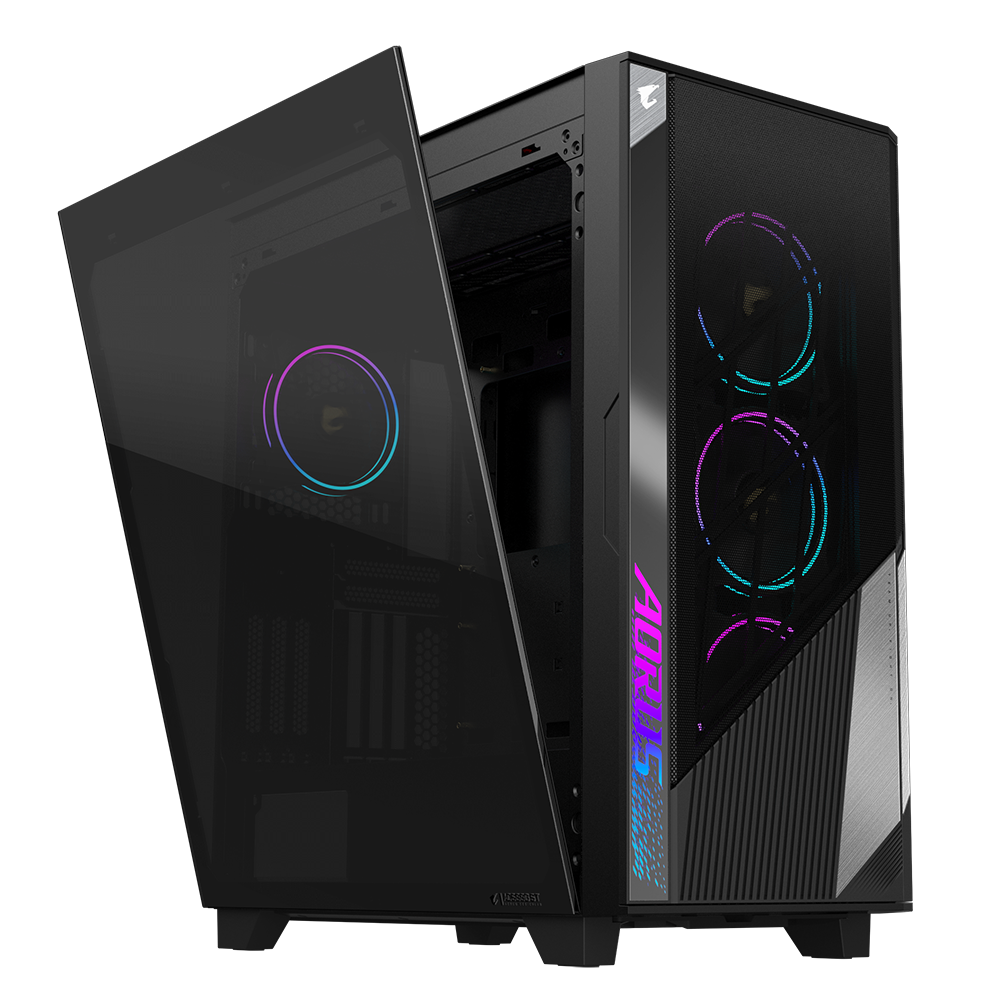

Setup: Four ARGB PWM fans pre-installed and connected via built-in hub; RGB Fusion 2.0 sync via motherboard ARGB header; swing door front panel for tool-free dust filter and fan access; non-drilled tempered glass panel removed from top first for safe removal

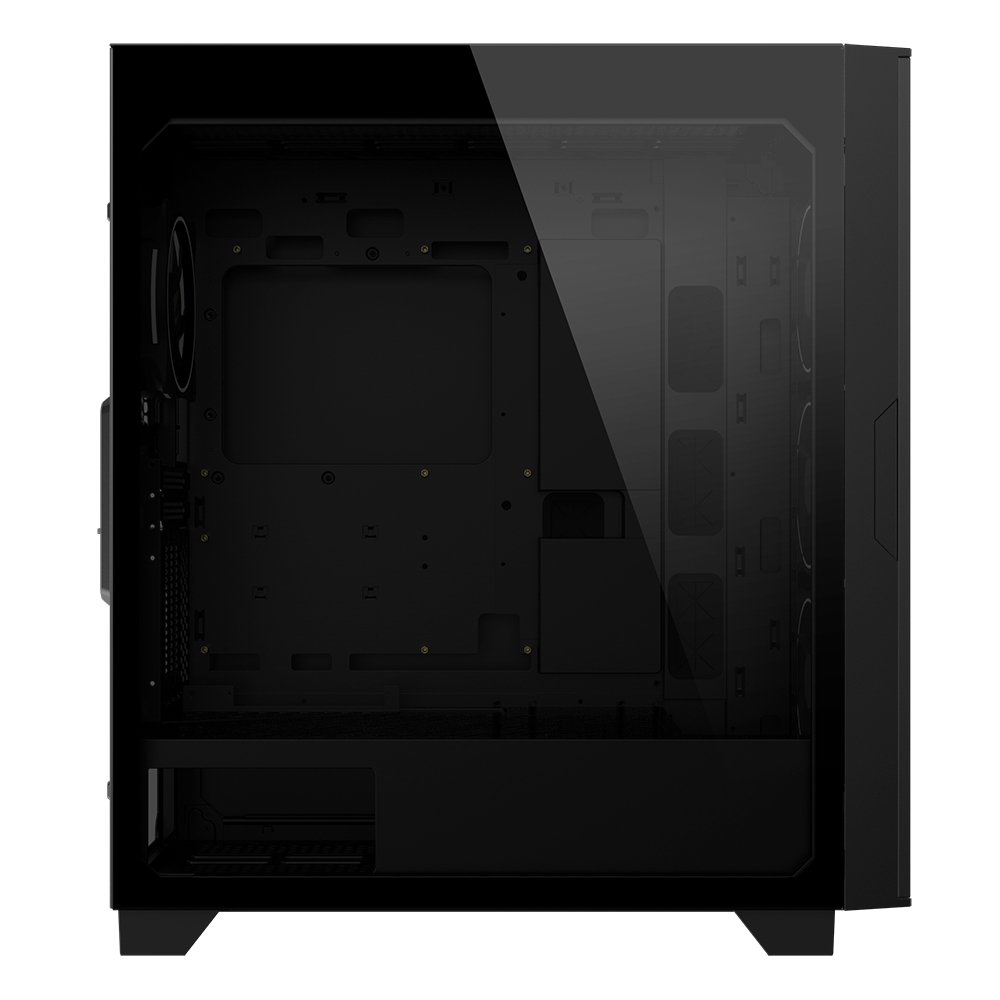

Mounting Options: Standard desktop mid-tower placement; front swing door design for easy maintenance; tempered glass side panel removable for component installation; vertical GPU mount supports 73mm or 160mm total clearance with optional VGA holder bracket

Usage Environment: Ideal for high-end AORUS gaming PCs, multi-radiator AIO and custom loop builds, vertical GPU showcase rigs, E-ATX flagship systems, and enthusiast builds requiring maximum radiator, GPU, and CPU cooler compatibility with full RGB Fusion 2.0 ecosystem integration
