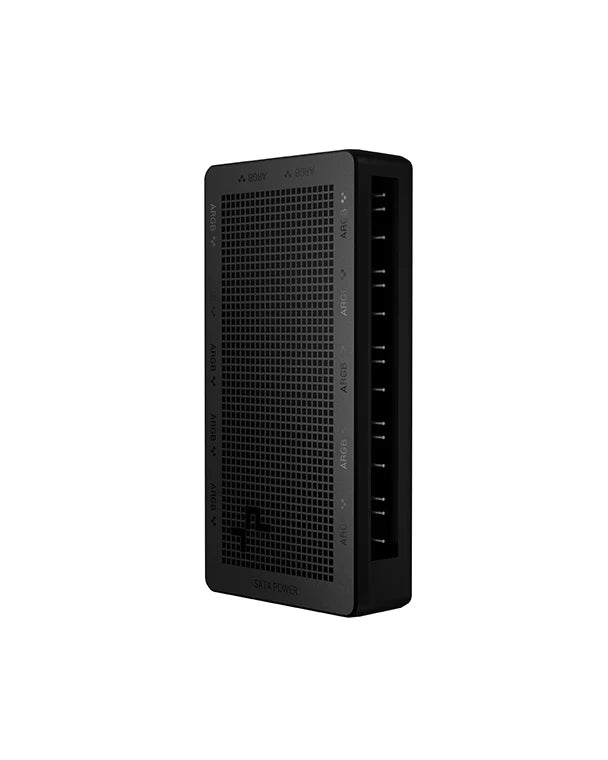

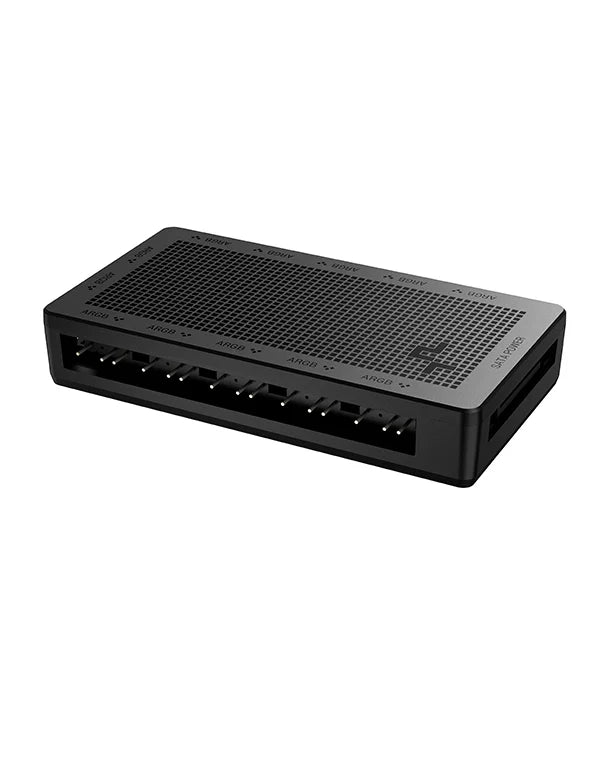

DeepCool SC700 12-Port ARGB Hub

The SC700 is designed for PC builders and modders who want to manage multiple ARGB devices in a clean and efficient way. By connecting to a single 5 V 3-pin addressable RGB header on your motherboard or controller, it allows you to power and synchronize up to twelve ARGB components—such as fans, LED strips or light bars—while drawing stable power from an included SATA power connector. Its compact magnetic housing makes it easy to mount behind the motherboard tray or in other hidden areas for a tidy build with full lighting control.

The SC700 features twelve 3-pin ARGB output ports compatible with 5 V addressable RGB devices. It supports major motherboard lighting ecosystems (ASUS Aura, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome). The hub draws power via a SATA connector to supply sufficient current even when many devices are connected. The enclosure is magnetic, allowing flexible mounting behind the motherboard tray, and the compact form factor ensures it fits in various case layouts. It is strictly for 5 V ARGB and does not support 12 V 4-pin RGB devices, ensuring you stick to the right header type for full lighting control.

Product Dimension: 84 × 45 × 15 mm
Net Weight: 38 g
Port Type: ARGB 3-Pin (5 V)
Number of Ports: 12 (3-pin addressable RGB)
Connector Cable Length (motherboard to hub): 538 mm
Rated Voltage: 5 V DC
Power Safety Current: 0.5 A per port (max) / 6 A total (12 ports)
Power Connector: SATA power input
Mounting Method: Magnetic base
Product Color: Black
Supported Systems: ARGB header (5 V 3-pin) compatible (ASUS Aura, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome)
Not Compatible With: 12 V 4-pin RGB headers

Requires a motherboard or controller with a 5 V 3-pin addressable RGB header. Connect the SATA power cable to your PSU to supply current to all attached devices. Plug your ARGB devices (fans, strips etc.) into the hub’s output ports, and the motherboard controls lighting via the single 3-pin header. Ensure the ARGB devices are 5 V addressable RGB; do not use it with 12 V 4-pin RGB headers as it will not function correctly.
